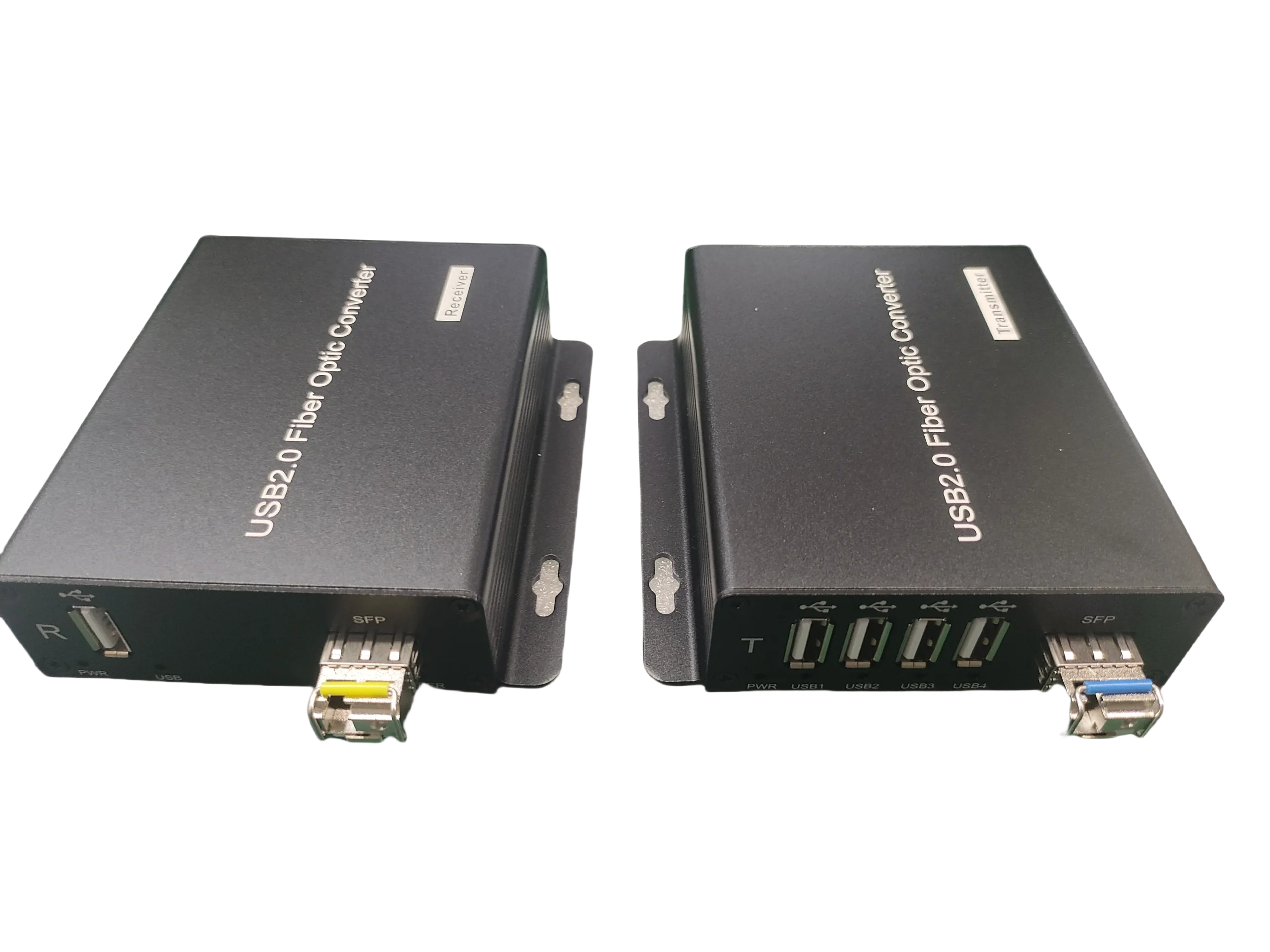

4 Ports USB 3.0 2.0 Fiber Extender up to 20km over one core optical fiber cable
Multi USB ports to fiber extender, Support USB 3.2/3.0/2.0 signal long distance transmission by one single optical fiber cable up to 10KM.
| Weight | 650 g |
|---|---|
| Dimensions | 10.4 × 10.4 × 2.8 cm |
| USB Version | USB 3.2 Gen 2 or USB 3.0 compatible with USB2.0/1.0 |

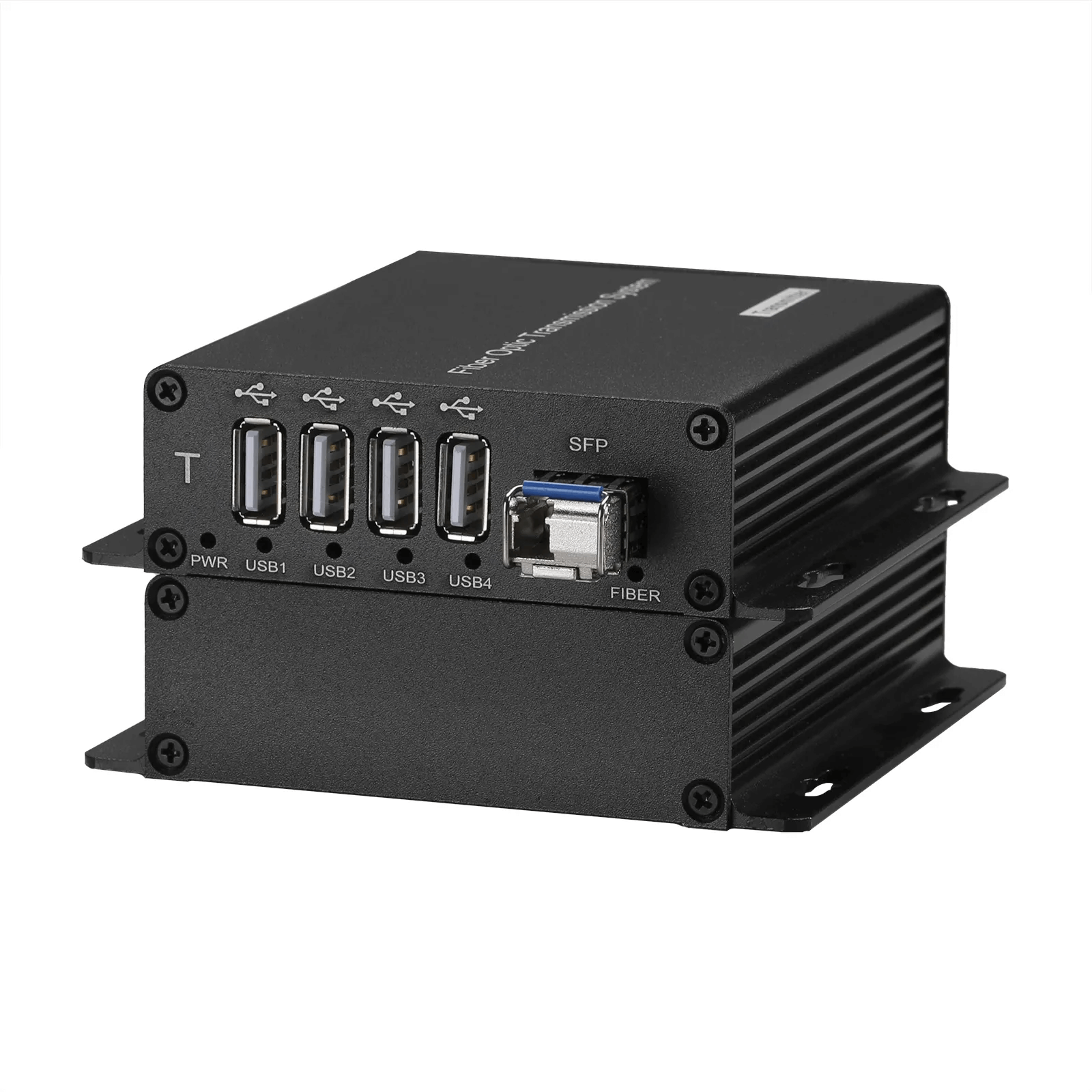

| Interface | TX: 4xUSB ports, 1×1.25G SFP Fiber Module, 1x12V power port |
| Wavelength | 1310-1550nm |
| Distance | 100m distance rate>=60Mbps(6MB). |
| Application | CCTV SYSTEM, Broadcast Education,Command center |
Detailes About 4 Ports USB 3.0 2.0 Fiber Extender up to 20km over one core optical fiber cable
USB2.0 fiber optical converter can transmit 4-channel USB2.0 signal extension of 20km through one-core optical fiber.
It uses a special USB PHY to meet the requirements of USB2.0 protocol,and uses 1.25Gbps SFP to complete the photoelectric conversion and realize the stable transmission of USB2.0 signal.

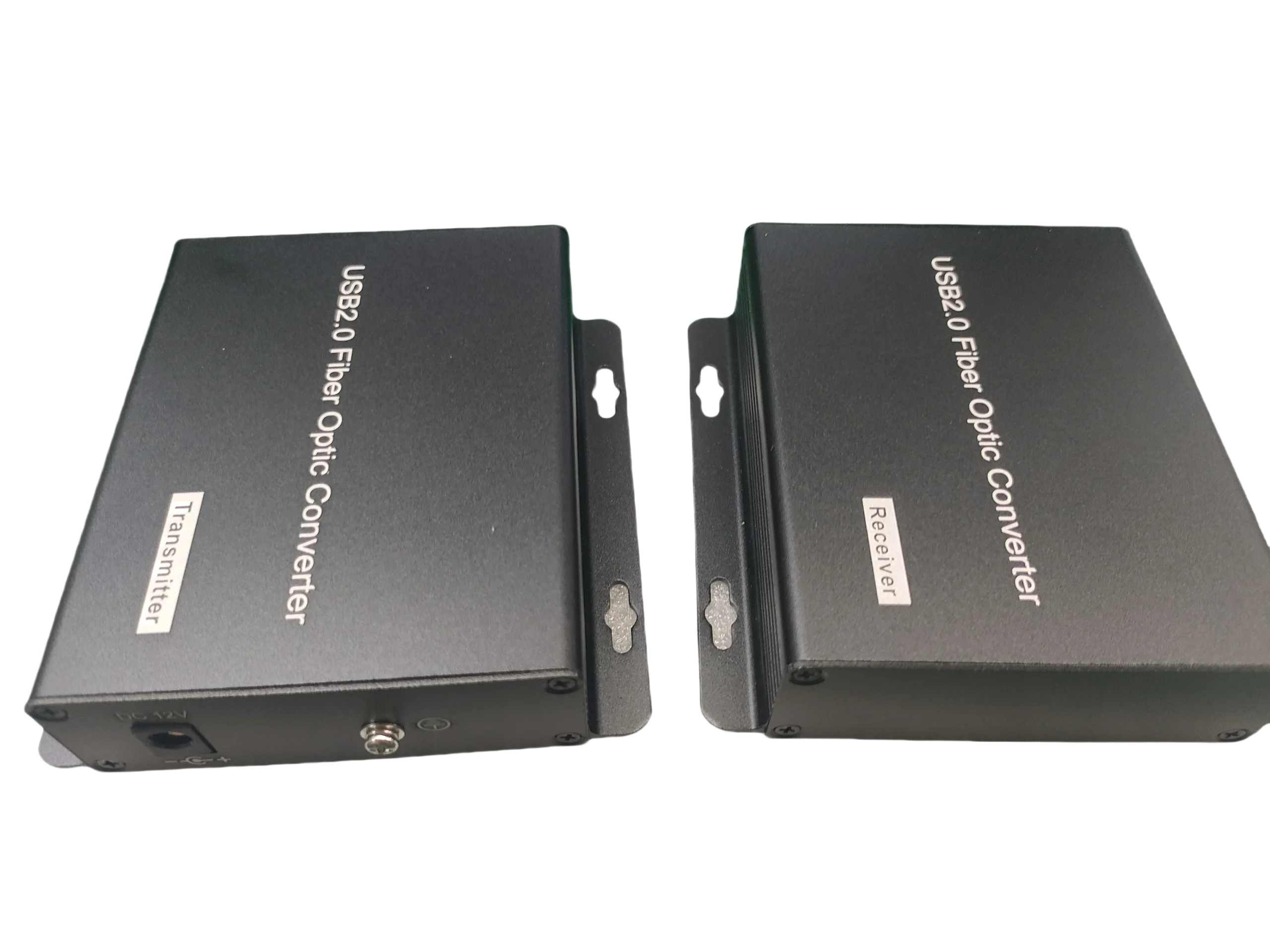

It consists of a transmitter and a receiver that provides 5V power throught the host USB 2.0 type A connector,the transmitter is powered by an external power supply and supplies power to the USB2.0 device through the USB2.0 A type connector.
Features
1.Complies with the general serial bus 2.0 specification;
2.Complies with USB power delivery 2.0 specification;
3.100m distance rate>=60Mbps(6MB).500m distance>=50Mbps(5MB).20km>= 16Mbps(1.6MB).
4.Internal USB PHY adopts advanced CMOS process to achieve low power consumption;
5.Support 4 channels independent configuration of USB2.0 signal input;
6.Support LED status indicator;
7.Plug and play,no driver;
Specification:
| Fiber index | |
| Wavelength | 1310-1550nm |
| Rate | 1.25Gbps |
| Tx power | -3db~-6db |
| Rx sensitivity | <-28db |
| Fiber connector | LC (Single fiber MM/SM) |
| USB index | |
| Version | Universal Serial Bus 2.0 |
| Transmission rate | 480Mbps |
| USB toal load current | ≤2A |
| Power supply voltage of the transmitter | 5V |
| Power supply voltage of the receiver | 12V |
| Single USB port supply current | >900mA |
| USB cable | <5 Meters |
| Physical interface | USB 2.0 Type A connector |
| Power index | |
| Transmitter input voltage | DC 12V |
| Transmitter power consumption | ＜2.5W |
| Receiver input voltage | DC 5V |
| Receiver power consumption | ＜2.5W |
| Mechanical index | |
| The shell metal | Aluminium alloy |
| Product size | 104*104*28mm |
| Net weight | 0.35KG |
| Way to install | Wall-mounted type (desktop type) |
| Color | Black |
| Packing | |
| Material | Kraft paper |
| Package size | 275*220*55mm |
| Gross weight | 0.7KG |
| Working environment | |
| Working temperature | -20°C ~75°C |
| Storage temperature | -40℃~85℃ |
| Relative humidity | From 5 to 95% (non-condensing) |
Connection diagram
Applications
USB KM To Fiber Extender, Also called USB KM To Fiber Converter.The device includes a transmitter and a receiver, which can extend USB (keyboard or mouse) to a remote location over 1 fiber cable,20KM(SM fiber cable).
The device can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
