Best 150Meter 4K 60Hz HDBaseT Extender With IR Uncompressed Signal

2020 2.0 HDMI HDBaset Extender [email protected] By CAT6 Extend IR/ UHD/HDR/UP TO 150m HDMI Extender



Additional information

Weight 333 g
Dimensions 15.7 × 9 × 2 cm
HDMI Version

2.0 HDBaset Technology

Resolution

[email protected] 4:4:4, 18Gbps

HDCP

HDCP2.2

Markets

Hospitality, Residential, Corporate, Education, Venues, Government, Retail

Cat6 Cable Perfomance

[email protected] signal up to 120meter (393ft)
1080P signal up to 150meter(492ft)

Bidirection IR

Support 38KHz~56KHz Bidirection IR transmission

RS232

Support

POC

Power over cable support

HDMI Loop Out

Support Local display

Detailes About Best 150Meter 4K 60Hz HDBaseT Extender With IR Uncompressed Signal

Features:

  • Transmits HDMI video and audio [email protected] signal up to 120m  and 1080P signal up to 150m over a single CAT6/7 cable;
  • Use single UTP/STP LAN cable (CAT-6/7) to substitute HDMI cable to achieve long-distance transmission;
  • UTP/STP cable termination follows the standard of IEEE-568B;
  • Support video resolution up to 4096×[email protected],1920×[email protected], 3D signal;
  • Audio: sampling rate: 32kHz, 44.1kHz, and 48kHz ;
  • Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
  • Support HDBaseT technology;
  • Supports CEC pass through;
  • Support HDMI loop out that transmitter has one local HDMI out;
  • Support Audio out on the receiver;
  • Support Bidirectional RS232 and 38KHz~56KHz IR transmission;
  • IR extension from the transmitter to the receiver or from receiver to the transmitter
  • Support POC function, Power from TX to RX over Cat5/6 cable(Receiver powered by Transmitter);
  • Support  LED indicators to show the power status;
  • Compliance with HDMI 2.0/1.4 and HDCP 2.2 standard;
  • Deep Color support 48/36/30/24-bit;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug, and play.

Description:

18Gbps HDMI Extender can extend high definition video/audio signal, RS-232, bi-directional IR, and the distance are up to 492ft / 150 meters between transmitter and receiver via a single CAT cable.

It supports resolution up to [email protected] 4:4:4, 18Gbps, and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embedded audio for L/R audio output and PoC function.

In addition, the extender is equipped with a two-way IR pass-through which allows for source and display control.

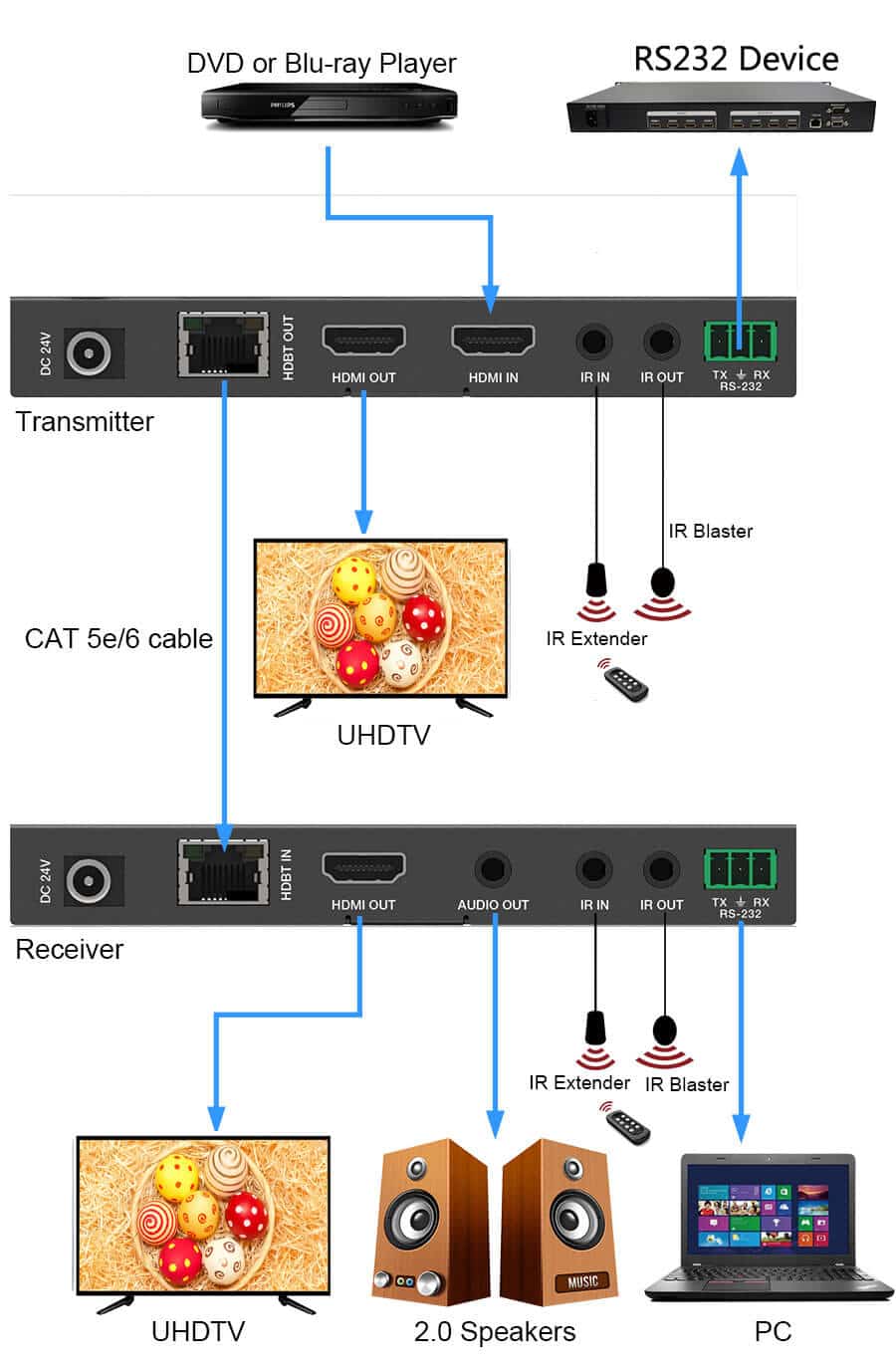

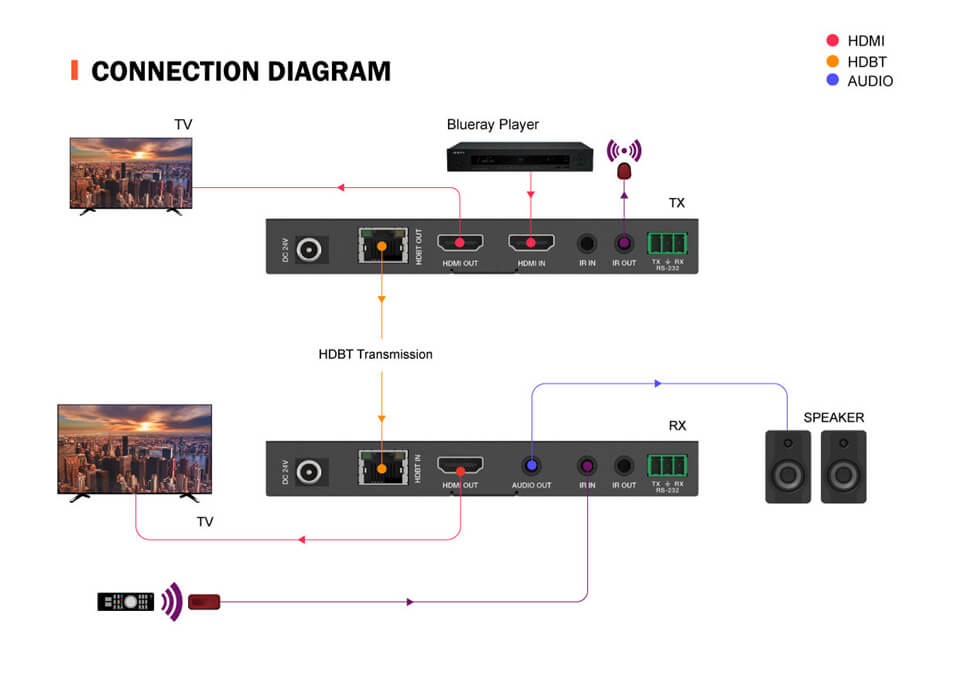

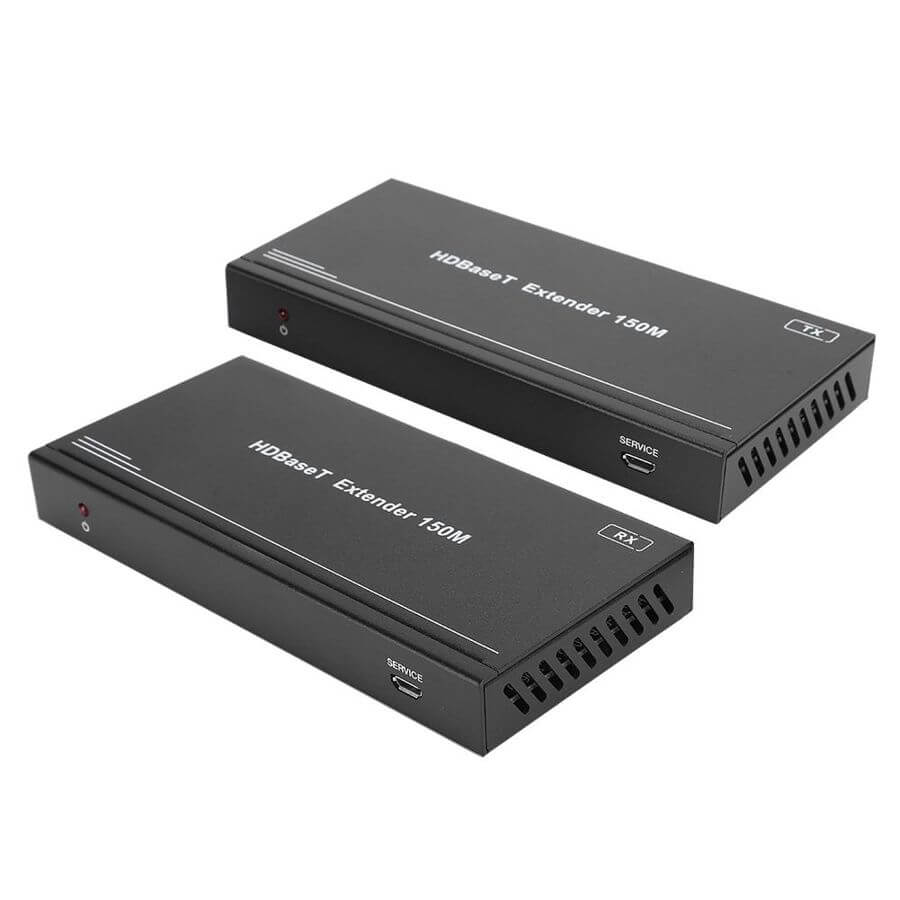

HDMI extender includes two units: transmitter unit and receiver unit. The transmitter unit is responsible for capturing the HDMI input signal and carries the signal via one cost effective Cat5e/6 cable, and transmitting/emitting IR control signals.

The receiver unit is responsible for receiving the HDMI signal and transmitting/emitting the IR control signal. It offers the most convenient solution for HDMI extension via a single Cat5e/6 with the long-distance capability and is the perfect solution for any application.

SPECIFICATIONS:

Technical Distance:        [email protected](120m/394ft),[email protected](150m/492ft)

HDMI IN         4K[email protected](3m/10ft),[email protected](10m/30ft),[email protected](15m/50ft)

HDMI OUT     [email protected](3m/10ft),[email protected](10m/30ft),[email protected](15m/50ft)

HDMIcompliance HDMI 2.0b
HDCPcompliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18 Gbps
Video Resolutions up to [email protected]/60Hz(YUV4:4:4),[email protected],[email protected], and 1080P [email protected]
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats

(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

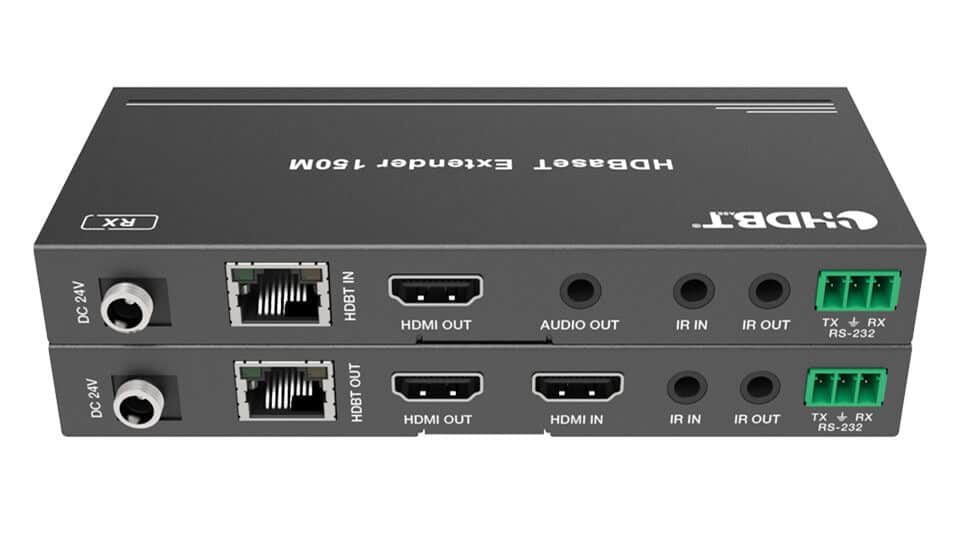

Connections
Inputs Transmitter:1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack

Receiver:  1x HDBaseT In [RJ45]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack]

Outputs Transmitter: 1x HDBaseT Out [RJ45]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Receiver:   1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions 157mm [W] x90mm [D] x 20mm [H]
Weight 333g
Power Supply Input: AC100 – 240V 50/60Hz

Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption 24W (Max)
Operation Temperature 32 – 104°F / 0 – 40°C
Storage temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)

Package Contents:

18Gbps HDMI over HDBaseT Extender (Transmitter)……..1 pcs
18Gbps HDMI over HDBaseT Extender (Receiver)…………1 pcs
IR Blaster cable (1.5 meters)………………………………………..2 pcs
20~60KHz IR Receiver cable (1.5 meters)……………………..2 pcs
Mounting Ears  …………………………………………………………..4 pcs
3-pin Phoenix connectors……………………………………………..2 pcs
24V/1A Locking Power adapter……………………………………..1 pcs
User Manual……………………………………………………………….1 pcs
