4K60hz 1×4 HDMI Splitter Extender By Single Cat 6/ With IR Control, EDID management

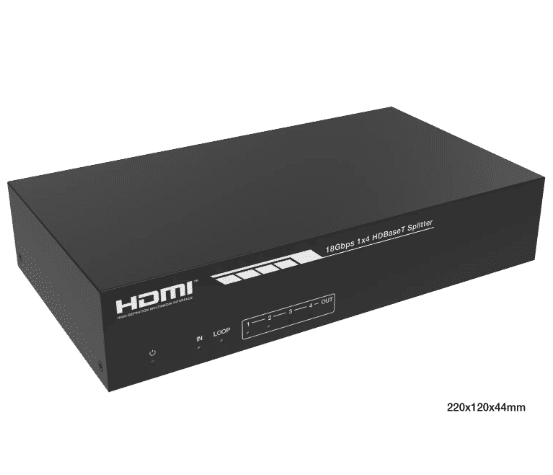

|Dimensions||22 × 15 × 5 cm|
Retail, Residential, Hospitality, Corporate, Education
|Cat6 Cable Perfomance||

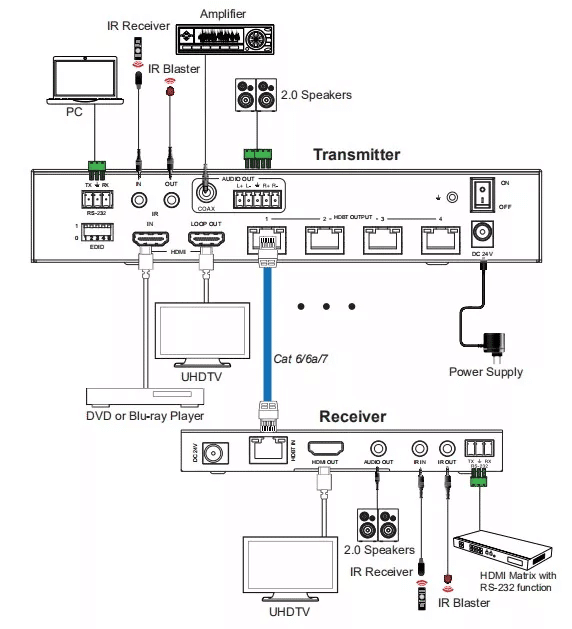

This extender can extend and connect one HD Source to Four HD Displays or Projectors by four pieces of cat6 at the same time. The extending distance can reach 150m via one Ethernet Cat6 cable. This extender meets the needs of multi-route and low-cost HD Signal long-distance transmission well.

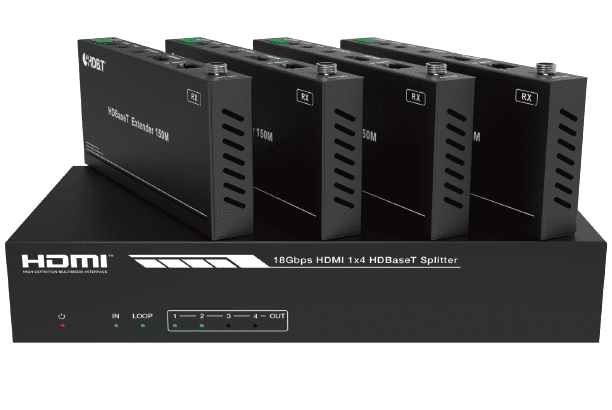

This 18Gbps HDMI 1×4 HDBaseT Splitter can distribute 1 source signal to any 4 display devices. Support video resolution up to 4K2K@60Hz 4 : 4 : 4. It is designed with 1 HDMI loop output and 4 HDBaseT outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management.
1. HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
2. Support 18Gbps video bandwidth
3. Support video resolution up to 4K2K@60Hz 4 : 4 : 4
4. Support HDR, HDR10+, HLG and Dolby vision
5. Support up to 7.1CH HD audio pass-through
6. Support digital and analog audio de-embedded output
7. Extend the signal transmission distance up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable

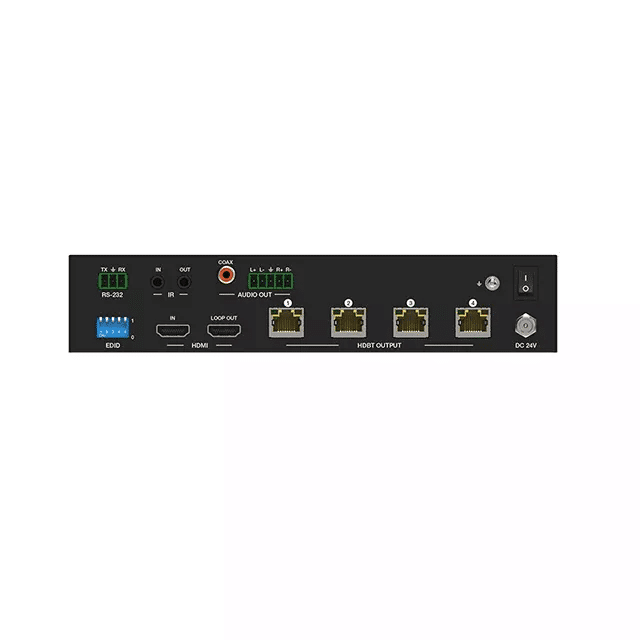

8. Support 1 HDMI input, 1 HDMI loop output and 4 HDBaseT outputs.
9. IR, RS-232 routed to HDBaseT output
10. Advanced EDID management
11. Support one-way POC function (only from transmitter to receiver)
12. Compact design for easy and flexible installation
5 × 20K~60KHz IR Receiver Cable (1.5 meters)
5 × 3-pin Phoenix Connector
1 × 5-pin Phoenix Connector
10 × Mounting Ear
1 × 24V/2.7A DC Locking Power Adapter
1 × User Manual
