Cascade Mix Connection 1080P HDMI Splitter Extender 1x4 over Ethernet up to 60m

1080P HDMI Splitter Extender By Single Cat 5E/6/7 Full HD 1080P With Deep Color, EDID Copy, Dolby Digital/DTS



Additional information

Weight 360 g
Dimensions 20.5 × 7.4 × 2.6 cm
HDMI Version

1.4a, 6.75Gbps

Resolution

FULL HD 1080P 60HZ, 3D

HDCP

HDCP1.4

EDID

Support

Markets

Retail, Residential, Hospitality, Corporate, Education

Cat6 Cable Perfomance

60Meter, 196 Feet HD Transmission

Detailes About Cascade Mix Connection 1080P HDMI Splitter Extender 1x4 over Ethernet up to 60m

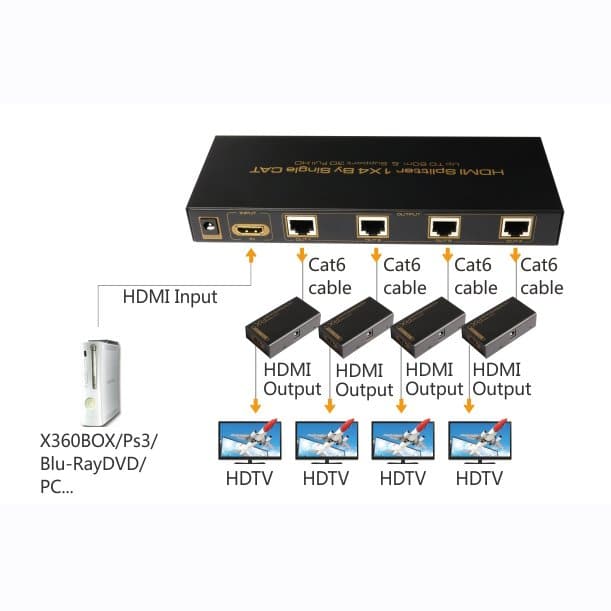

This extender can extend and connect one HD Source to four HD Displays or Projectors by
four pieces of cat5e/6 at the same time. The extending distance can reach 60m. This extender meets the needs of multi-route and low-cost HD Signal long-distance transmission well.

Features:

  • One HDMI input distributes and extends to found Display by four Cat 5e/6 cable. The extended distance can be up to 60m.
  • Support 3D
  • Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • LED Status Light:the related led light will go bright.
  • The extended distance can be up to 60m.
  • Support signal retiming
  • No loss of quality
  • Installs in minutes
  • TX uses the DC5V/3A power adaptor.
  • Four RX: each one uses 5V/1A power adaptor

SPECIFICATIONS:

  • Length of CAT-6 cable between Rx and TX…..  up to 60m
  • HDMI Input……24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support audio format input…..DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • HDMI Output…..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support audio format output……LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth…….225MHz
  • Max baud rate……..6.75Gbps
  • Input Video signal ……. 0.5~1.5Volts p p
  • Output DDC signal ……. 5Volts p-p (TT1L)
  • Input HDMI cable distance……≤15m AWG26 HDMI standard cable
  • Output HDMI cable distance……..≤20m AWG26 HDMI standard cable
  • Max working current(TX)……….2000mA
  • Max working current(RX)……….600mA
  • Power adapter format(TX)……Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
  • Power adapter format(RX)…..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
  • Operating Temperature range…….. (0 to +40℃)
  • Operating Humidity range…….5 to 90%RH (No Condensation)
  • Dimension (TX) ………205x74x26X1pcs (mm)
  • Dimension (RX) ………(82X44X22) (mm) X4pcs
  • Weight…….360g
