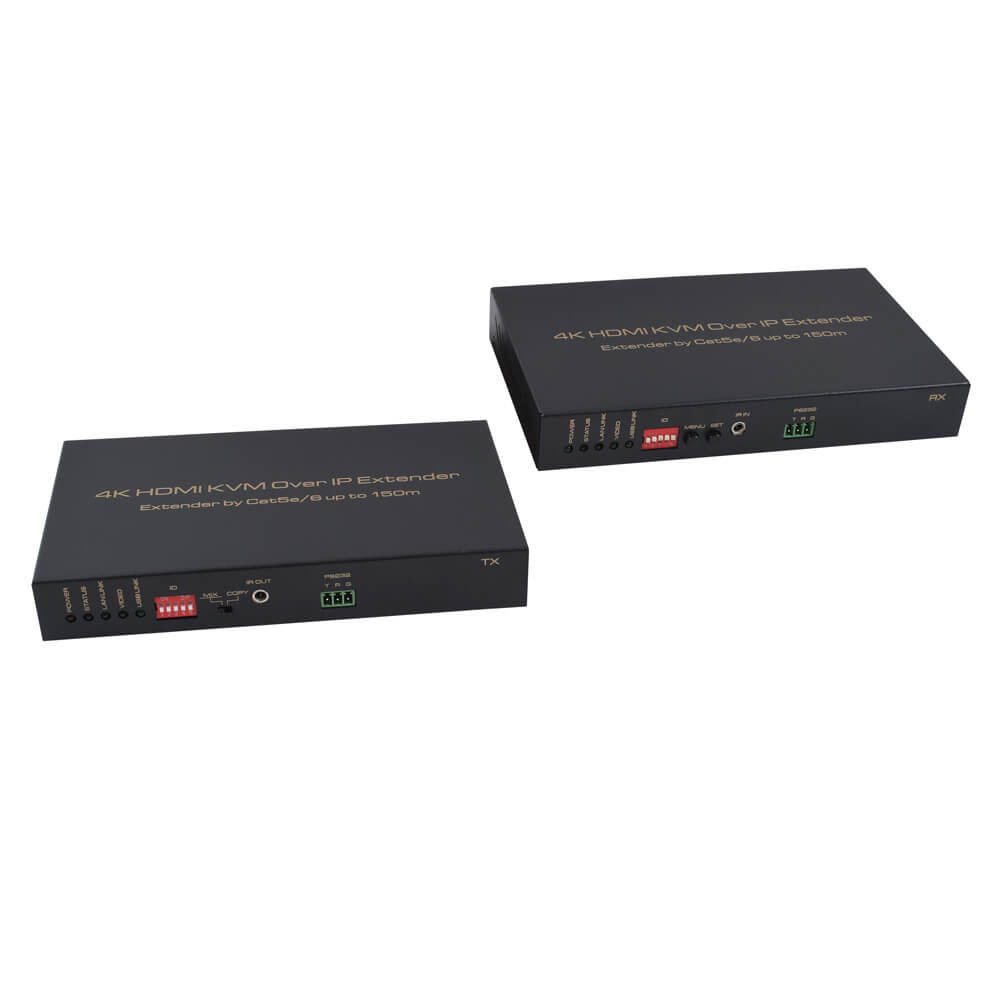

150Meter Best 4K 30Hz HDMI IP Extender With IR RS232 Cascade Router

2020 HDMI TCP/IP Extender KVM [email protected] By CAT6 Extend IR/ UHD/HDR/UP TO 150m (500ft) HDMI Extender with RS232



Additional information

Weight 333 g
Dimensions 15.7 × 9 × 2 cm
HDMI Resolution

4K 30HZ 8.91Gbps

HDCP

HDCP1.4

Markets

Hospitality, Residential, Corporate, Education, Venues, Government, Retail

Cat6 Cable Perfomance

[email protected] signal up to 150meter (500ft)
1080P signal up to 180meter(600ft)

IR

Support 20KHz~60KHz IR transmission

RS232

Support

HDMI Loop Out

Support Local display

USB Port

Mouse Keyboard Supported, USB Host device, USB slave device.

1G LAN Port

Support

MIC audio port

Support audio headphone, Amplifier

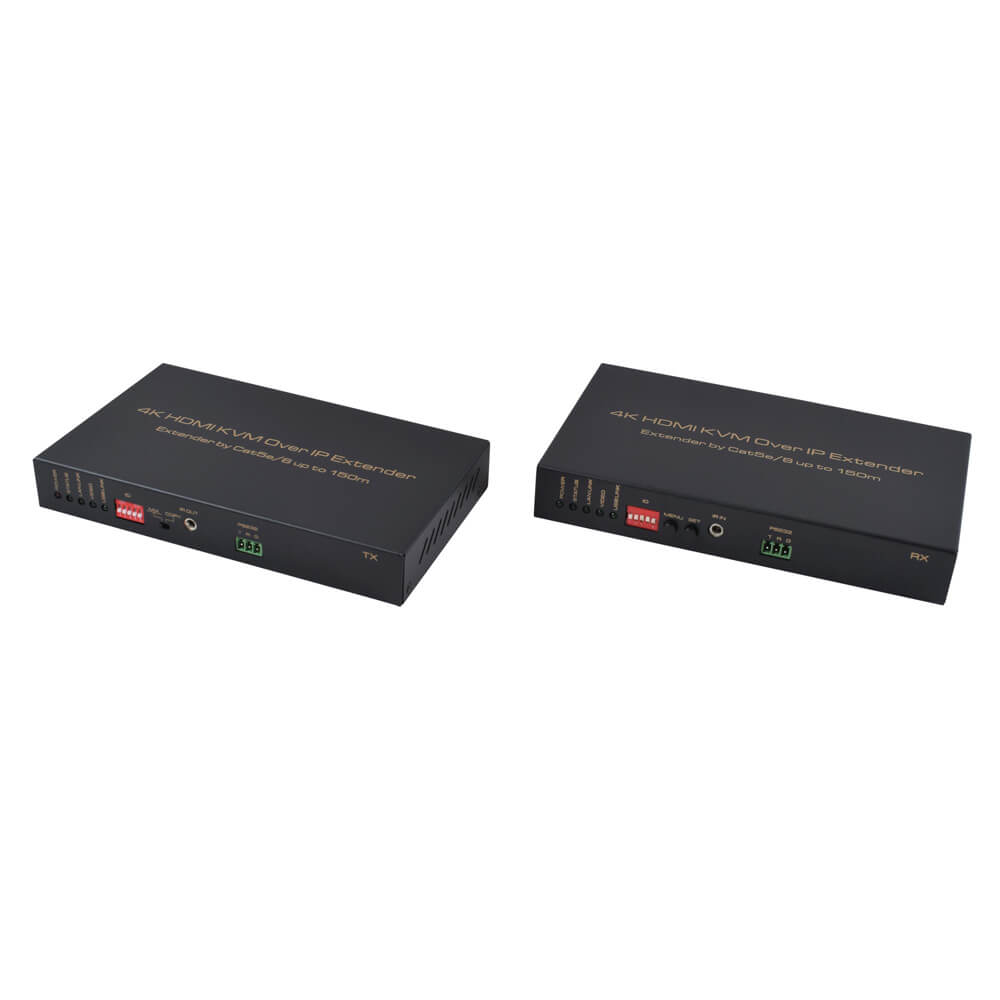

Detailes About 150Meter Best 4K 30Hz HDMI IP Extender With IR RS232 Cascade Router

Features:

  • Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Use one cat5e/cat6 cable to transmit the HDMI Signal and IR signal, the max cat cable length can be up to 150m.
  • Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support Resolution up to 1080P/60HZ,4K 30HZ
  • Support IR extender, it can do long-distance control to the HD Source by using the IR received at the receiver.
  • Support EDID Management and Control
  • CAT connections according to IEEE-568B
  • LED indication: when power is supplied or the device is working, LED relative to is light.
  • No loss of quality
  • Installs in minutes
  • Need a DC5V/1A power supply

Description:

HDMI KVM extender TCP/IP Extender with rs232 by one Cat6 cable up to 150meter (500ft) 4K 30Hz

HDMI resolution….480P/720P/[email protected]/30Hz/50Hz/60Hz, up [email protected]

[email protected],/3D etc.

HDMI Audio format…..Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM

HDMI Max bandwidth….297MHz

HDMI Max baud rate…..8.91Gbps

LAN transmission rate……850 Mbps Max

Transmission delay……<80us

Output cable length……1080P/AWG 26 ≤12m

Transmission distance……≤100m (Cat 5e)/≤150m(Cat 6)

Use network switch extensions to recover further transmission distances

Serial port baud rate…….Supports 115200/57600/38400/19200/9600/4800/2400/1200bps

IR Carrier frequency……20-60KHz

hdmi extender Package Includes

Manual x1,Power Adaptor x2,IR Transmitter cable x1,IR Receiver cable x1

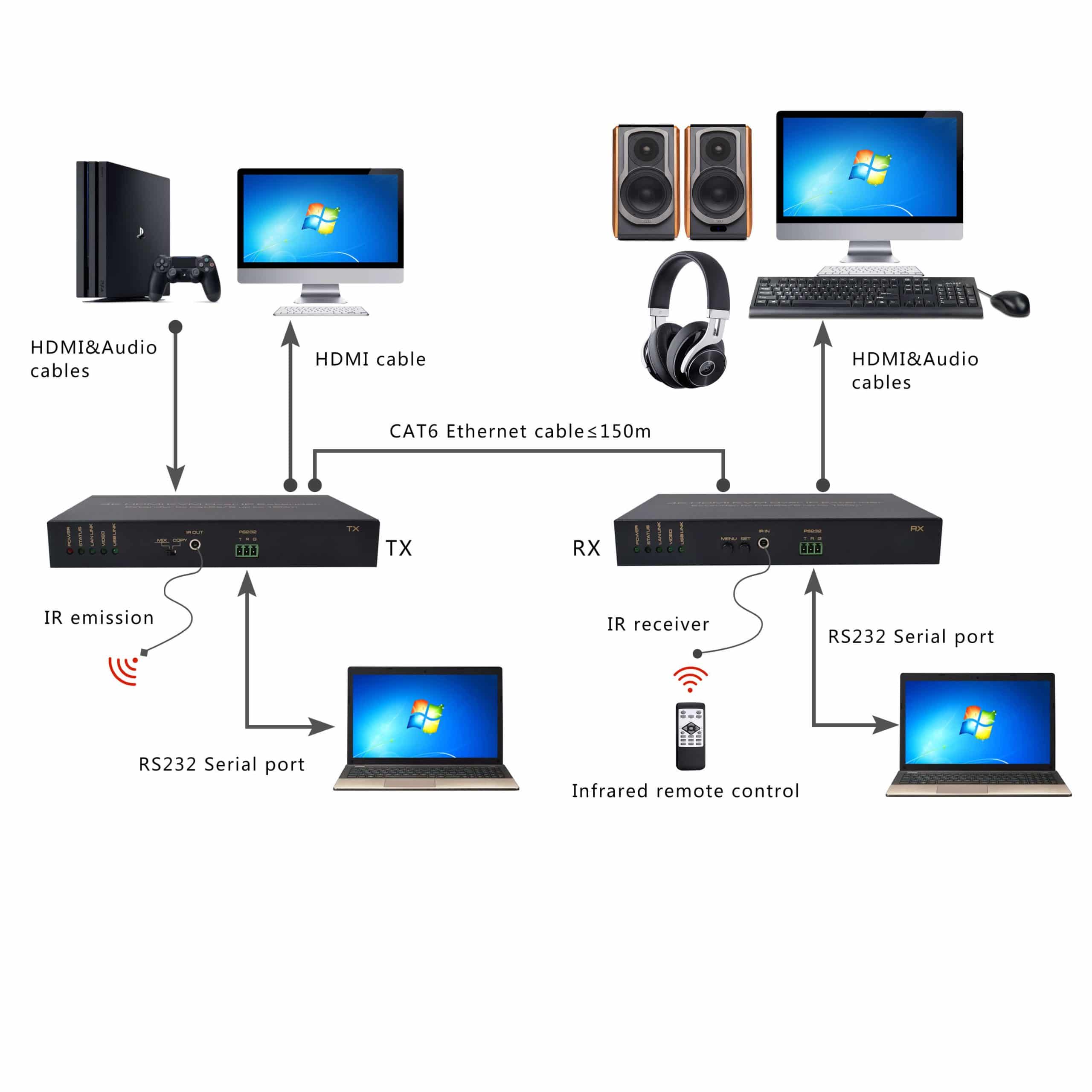

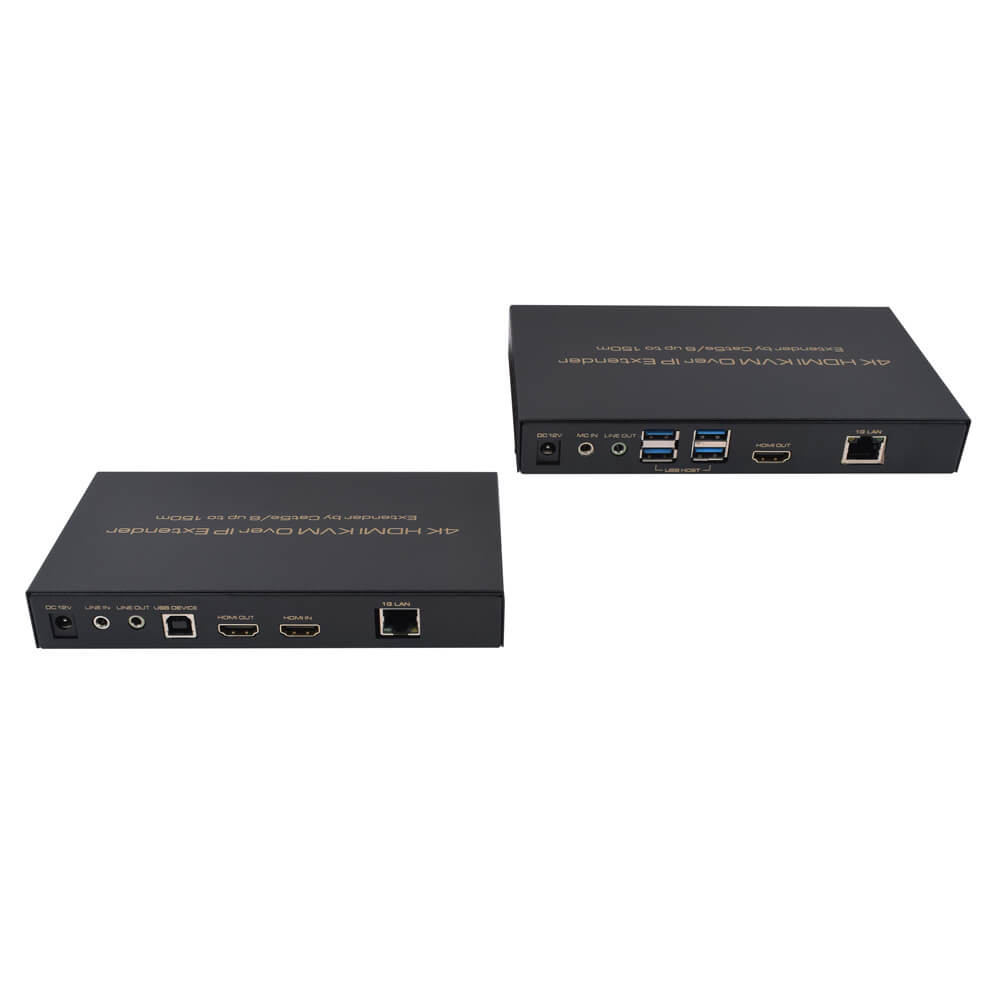

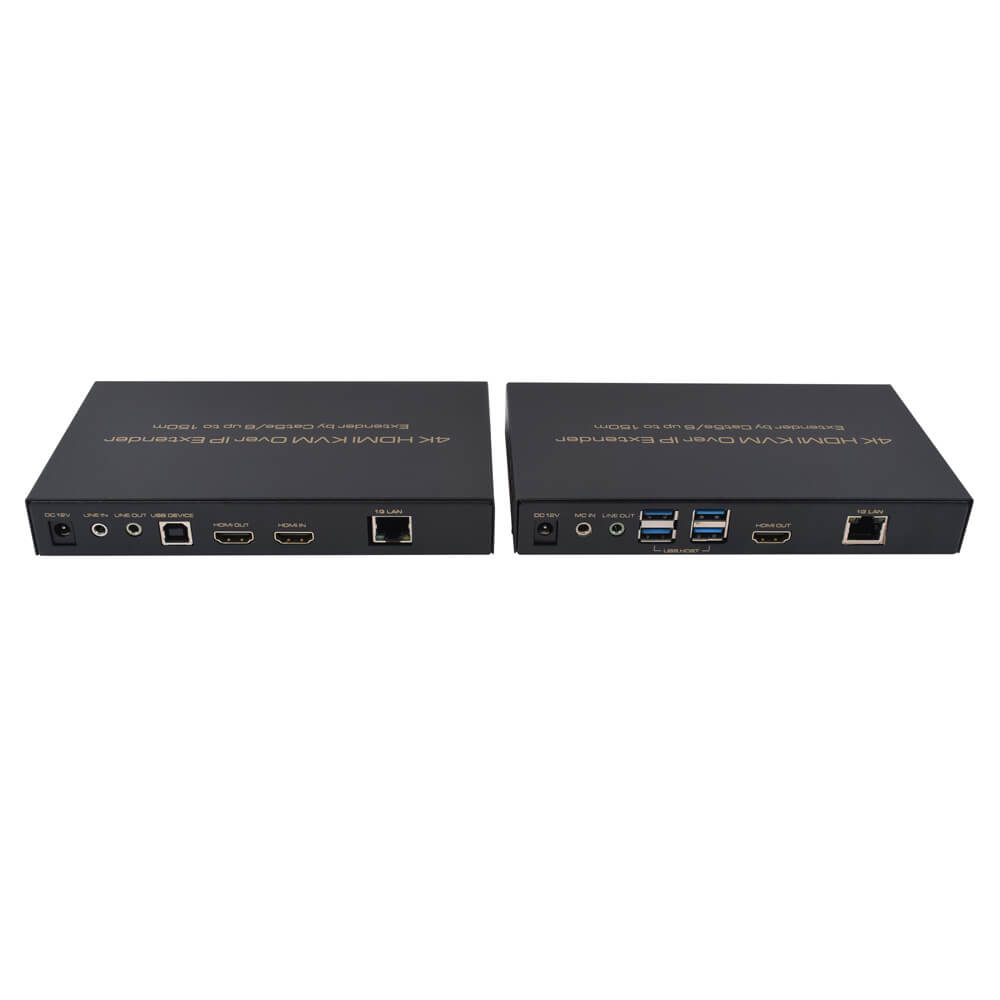

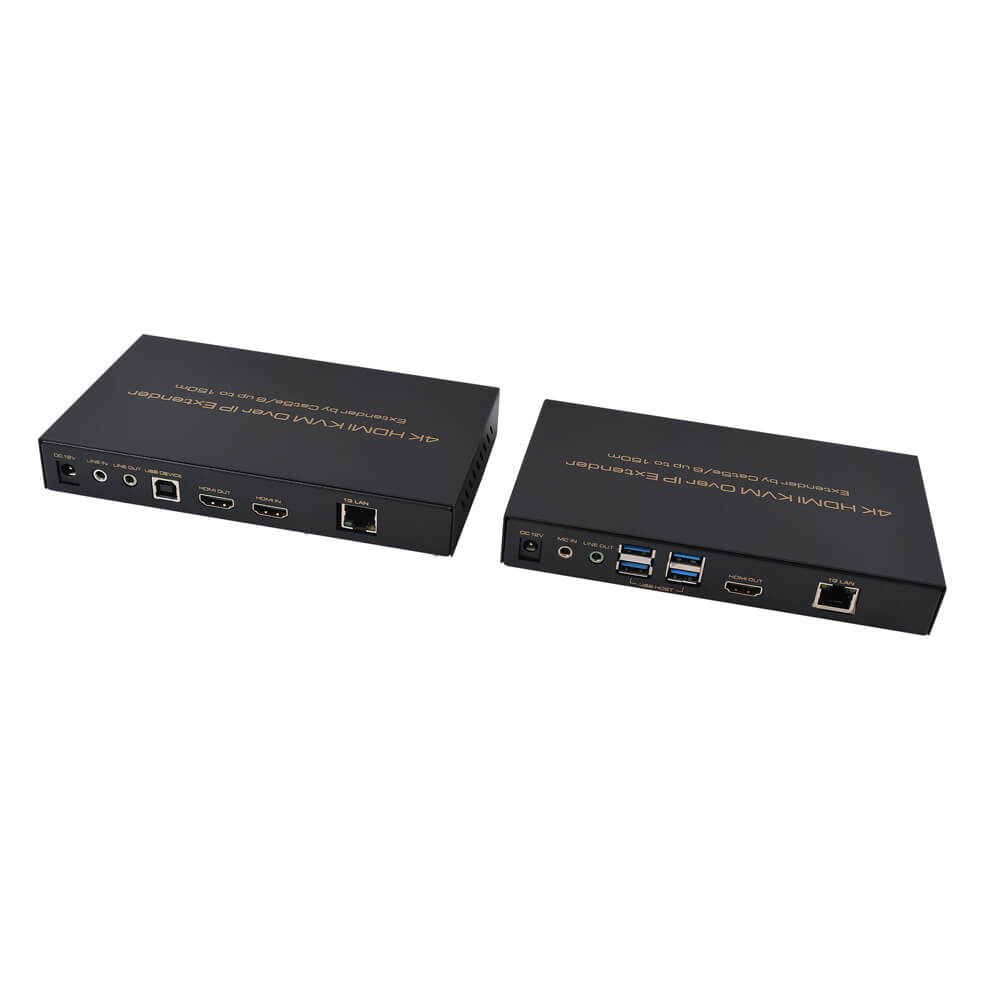

Connection instructions:

1 Connect the HDMI IN Port of the TX to the HDMI output port of signal source/PC over an HDMI cable.

2 Connect the HDMI OUT port of the RX to the HDMI input port of display device over an HDMI cable.

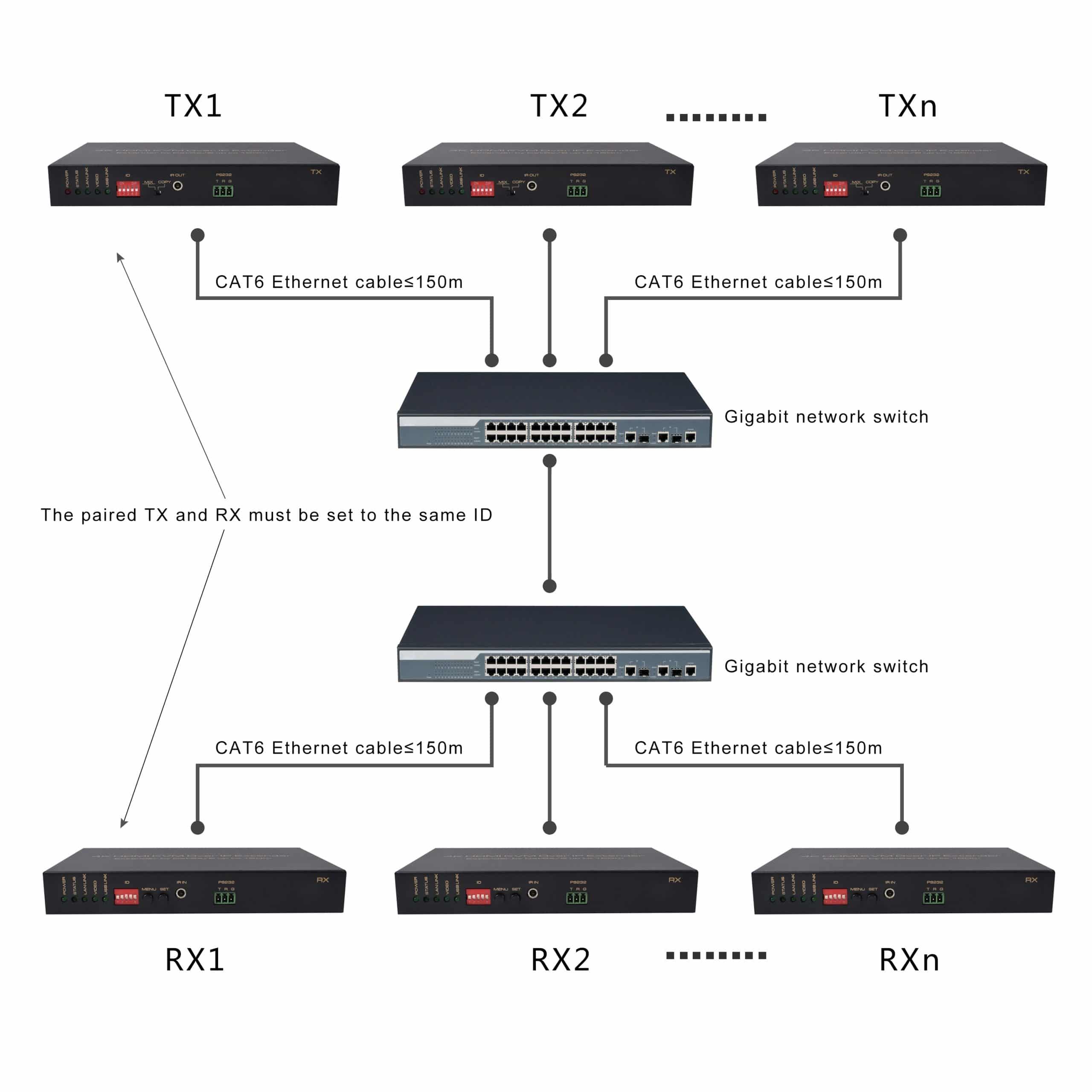

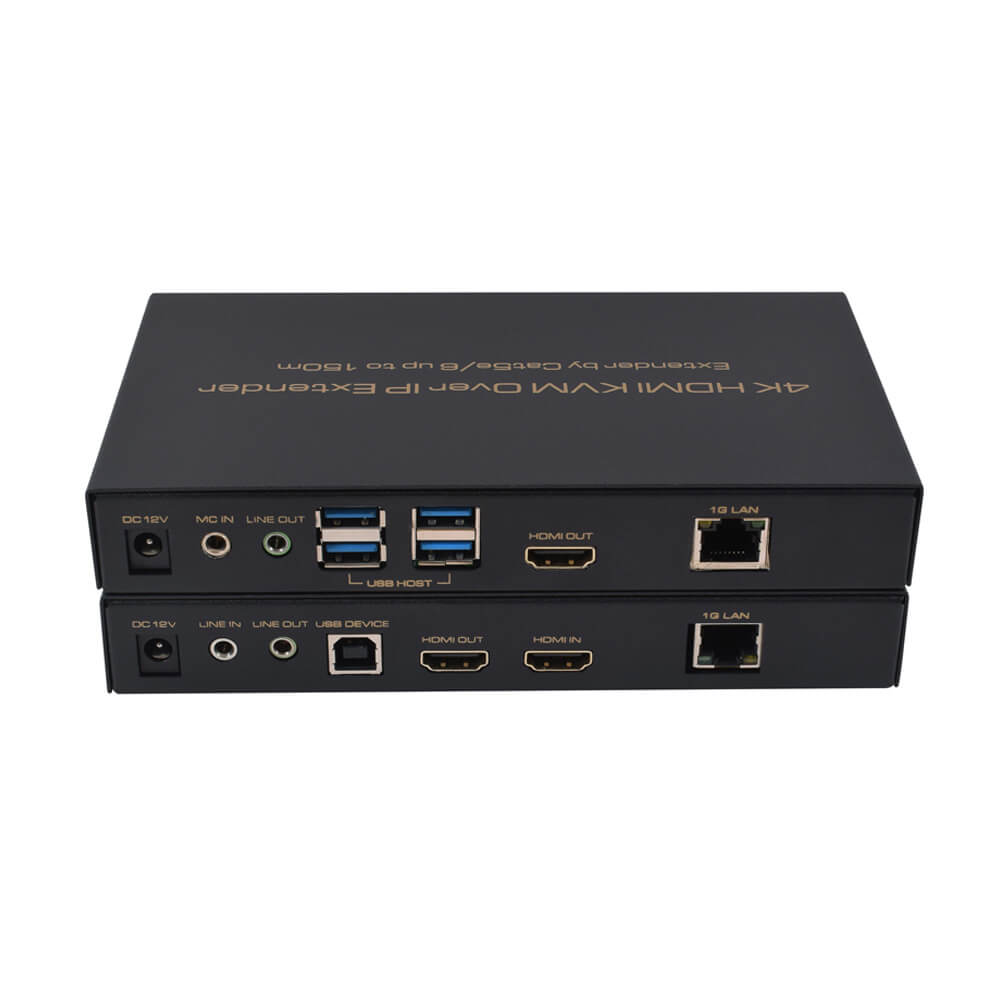

3 Connect the 1G LAN Port of the TX to the 1G LAN Port of the RX over a network cable. Gigabit switches need to be inserted between TX and RX when multiplexing

4 TX and RX need to be set to the same ID number before use. (Only for one to one application)

5 Supply TX and RX with AC power adapter.

6 RS232, IR and other interfaces can be selected as required.

RS232 Communication:

1 To use RS232 to do communication, the TX RS232 Port Baud rate can be set to 115200. RX RS232 Baud rate can be adjusted between 1200-115200 (refer to button function instruction),which need to be matched with the output connected serial port baud rate.

2 To use cross-link way for serial port connection, TXD to connect with RXD of the output connected device, the RXD to connect with the TXD of the output connected device, and GND to connect with GND.

3 At One to Many Connection mode, TX RS232 can send serial port data to many RX simultaneously and also can monitor many RX RS232.The TX only can receive data of one RX at the same time. When one of the RX send data, the TX will keep communicate with the RX, the other RX have to wait extra 0.2 seconds to get the chance of communicating with the TX after the current RX stopped communication.

6. IR Extend

1 IR Extend is used for using IR remote to do distance control to the peripheral device.

2 To check if the working frequency of the IR remote is under the range of the 30-50HZ.

3 To point the IR Transmitter head at the peripheral device location.

4 At one to many connection mode, TX will monitor many RX IR interface. The TX only can receive one of the RX IR data. When one of the RX send data, the TX will keep communicating with the RX, the other RX have to wait the extra 2seconds to have the chance of communicating after the current RX stopped communicating.

7.Analog Audio Input and Output:

1 If the TX Line In or Line Out have cable connection, it will transmit the Line IN input audio to the RX automatically.

2 If the RX MIC IN or LINE Out have cable connection, the HDMI Output audio will be mute and the audio will be priority output from the LINE OUT Port.

3 TX Line Out audio signal is from RX MIC IN Port.

4 At One to Many Connection mode, it need to keep pressing the RX MENU button for lasting three seconds to get the chance of using the TX LINE OUT Channel. After done successfully, the RX will show “USB owner”.

8.USB Expand:

1 To use the USB cable to connect the TX DEVICE Port to the PC. Normally no need to install driver, if meet the remind of driver installation, please download the driver by linking the Ethernet.

2 It can insert the Mouse, Keyboard and U-stick and other peripheral device to the RX USB Port. And the peripheral device driver still need to be installed at the PC.

3 The device can be used normally after the RX and RX USB LINK LED both go bright.

4 At One To Many connection mode, there are many RX, it need to short press the RX SET button to get the chance of using the RX USB Channel.

9.EDID Mode and Update:

1 There is one EDID Mode Switch, when choose MIX Mode, it will do mixed process to the EDID from both TX and RX HDMI Port Connected Device; when choose Copy Mode, it will only read the RX HDMI Port connected device.

Technical Distance:        [email protected](120m/394ft),[email protected](150m/492ft)

HDMI IN         [email protected](3m/10ft),[email protected](10m/30ft),[email protected](15m/50ft)

HDMI OUT     [email protected](3m/10ft),[email protected](10m/30ft),[email protected](15m/50ft)

HDMIcompliance HDMI 2.0b
HDCPcompliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18 Gbps
Video Resolutions up to [email protected]/60Hz(YUV4:4:4),[email protected],[email protected], and 1080P [email protected]
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats

(Pass-through)

LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs Transmitter:1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack

Receiver:  1x HDBaseT In [RJ45]

1x IR INPUT [3.5mm Stereo Mini-jack]

1x RS232 [Phoenix jack]

1x Service [Mini-USB jack]

Outputs Transmitter: 1x HDBaseT Out [RJ45]

1x IR OUTPUT [3.5mm Stereo Mini-jack]

Receiver:   1x HDMI Type A [19-pin female]

1x IR INPUT [3.5mm Stereo Mini-jack]

Mechanical
Housing Metal Enclosure
Color Black
Dimensions 157mm [W] x90mm [D] x 20mm [H]
Weight 333g
Power Supply Input: AC100 – 240V 50/60Hz

Outp: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption 24W (Max)
