USB 3.1 Gen2 10Gbps Active Optical Fiber Cable Compatible for Camera Oculus Link Quset 1/2 Steam VR



(4K/8K fiber optic HDMI 2.0/2.1 cable/DVI/Displayport/USB connections)

100% Pure Fiber, No Copper, Zero latency, No Loss, Uncompressed long distance Transmission



USB TypeAM to AF Full Fiber AOC can solve the problems of limited transmission distance and weak electromagnetic interference resistance of traditional USB cables.

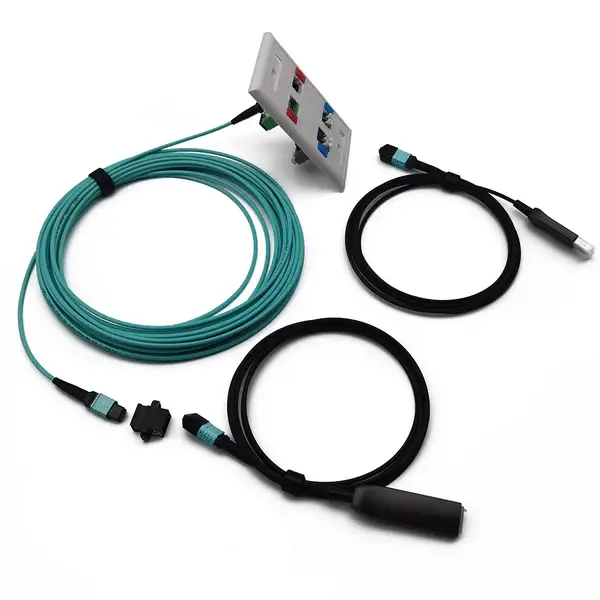

Supports 10Gbps, bi-directional USB 3.1 Gen2 Modular design for multi- points connections in one link, transmission distance over 100 Meters, an ideal solution for Wall-Plate scenarios or equivalent applications.

USB TypeAM to AF Full Fiber AOC compatible with the majority of USB TypeA peripherals in the market, including WebCam, Hard Drive, USB hub 、 Flash drive, PlayStation, and VR Headsets.

Features:

850nm VCSEL, PIN, lens platform.

Supports USB 3.1 Gen2 with a total bandwidth of 10Gbps.

Backward compatible with USB 3.0, supporting a maximum length of 100m.

Excellent EMI/RFI protection.

The device requires an auxiliary power supply through the USB MicroB power port.

Specifications:

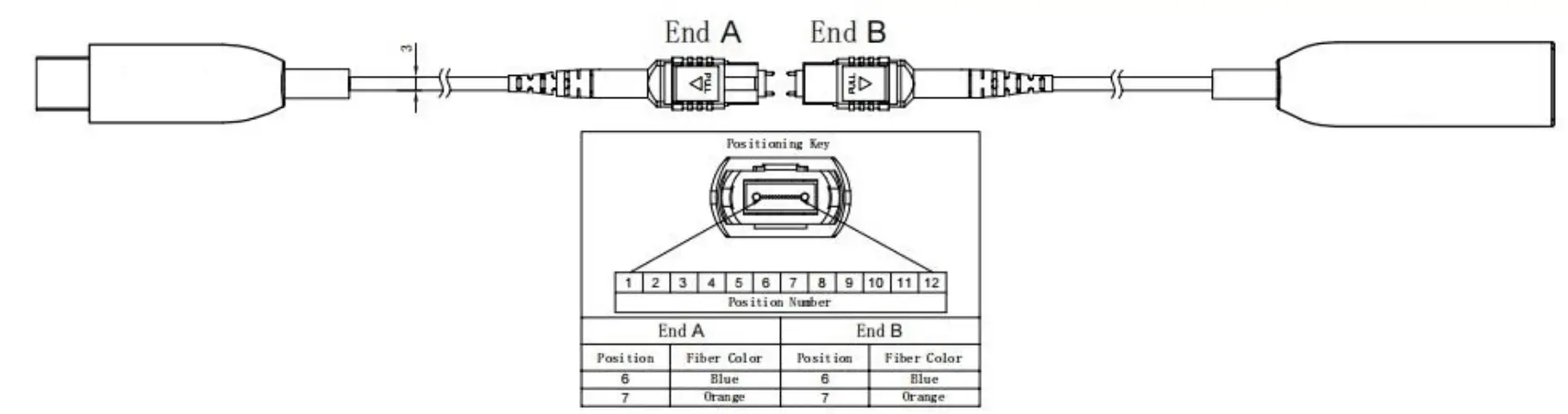

Connector: Type A/Type A (Male/Female)

Contacts Nickel plating on iron shell

Cable OD 3.0mm

Jacket Material LSZH/PVC/TPE

Environment: Storage Temp -40 to 85℃ Operating Temp -20 to 70℃

EMI/EMC: FCC Class B,CISPR 32

HANDLING AND CARE CAUTION:

Optical energy is contained within cable and housings, do not cut optical cable. Viewing the cut fiber ends, especially with certain optical instruments (for example, eye loupes, magnifiers, and microscopes) may pose an eye hazard.

This product is classified as a Class 1 Laser product in accordance with IEC60825- 1:1993+A1+A2 and complies with 21CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice N0. 50, dated 24-Jun-2007.

Use or modification of this device other than those specified herein may result in hazardous radiation. To meet laser safety requirements the cable shall be used within environmental specifications.

Tampering with or modifying the device will result in voiding of the product warranty.

INVISIBLE LASER RADIATION CLASS 1 LASER PRODUCT 840-860nm, 700uW

What is MPO Connector?
Multi-fiber push on connectors, or MPOs for short, are fiber connectors comprised of multiple optical fibers. While defined as an array connector having more than 2 fibers, MPO connectors are typically available with 8, 12 or 24 fibers for common data center and LAN applications. Other fiber counts are available such as 32, 48, 60 or even 72 fibers, but these are typically used for specialty super high-density multi-fiber arrays in large scale optical switches.

Why choose MPO pure fiber optical cable solutions for your HDMI/DVI/Displayport/USB connections?

Compared with hybrid optical AOC cables, New pure fiber cables have significant advantages as below:

• One multi-fiber OM3 fiber cable with 4x MPO connectors for many different Pigtails MPO cable and pigtails are separate
• You can change and connect with HDMI, DP, USB, DVI. etc up to 20 different Pigtails anytime
• No fixed direction they are bi-directional Pigtails are separate and you can change the “Source” and “Display” anytime
• Easily upgrade to the next generation. If you need new HDMI  version, just change the Pigtail Extra long length up to 1000ft using OM3 fiber
• The pure fiber cable support 8K@60Hz
• Best for Home Theater Systems or Smart TV or Projectors or Gaming
• Integrated TV streaming Gaming Ultra Ethernet with full control
• Connects 4K 8K Smart-TVs and Projectors at Full Distance with Perfect Original Uncompressed Sound & Video Quality

Step by Step Instruction User Manual
