Description:

This product will let the user experience transmitting the HD content by wireless.

The HDMI sources over wireless kit extend high-definition video and audio to any HDTV displays up to 200 meters away.

The extender follows the TCP / IP standard Wireless Transport Protocol, so it has a high transmission rate and strong anti-interference capability.

It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely applicable to office presentations, lectures, education, conference, family entertainments, etc.

FEATURES：

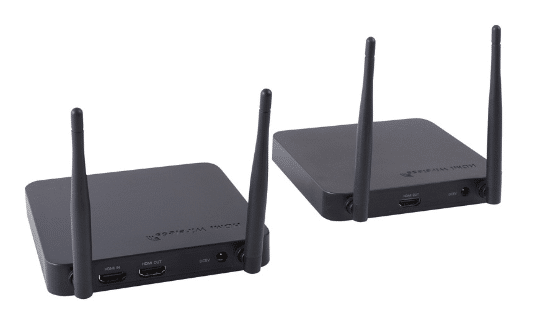

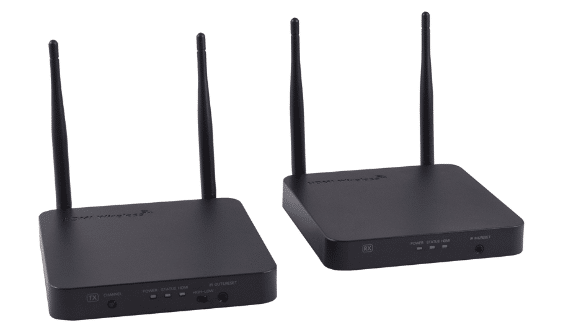

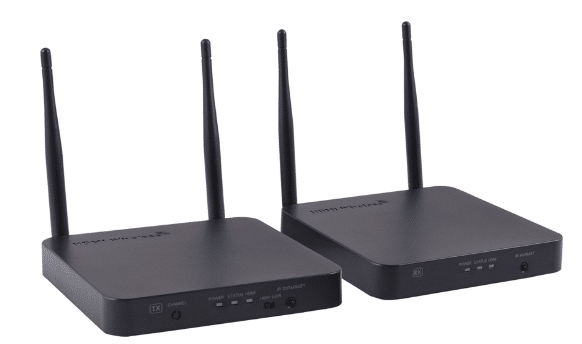

Contains a transmitter (TX) and a receiver (RX). The HDMI signal over a wireless transmission from the transmitter to the receiver
One TX can be paired with multiple (up to 4PCS) RX
The TX support one HDMI loop output, for local screen monitor
Support HDMI resolution: 480P~1080P@50/60Hz and SVGA~WUXGA
Use the internationally accepted 5G ISM frequency band, high transmission rate, and strong anti-interference capability
Using external dual – gain antennas. Full HD 1080p transmits up to 200 meters wireless in open space.( Maybe affected by the use environment)
Extends wide-band infrared remote to control source device from the display side
Support OSD, for informed of device status
Simple Plug and Play, no software installation required
Supports both panel settings and Web Configuration Interface, Simple and easy to use

Specification

HDMI resolution ……………..…up to 1080P@50/60Hz

HDMI Audio Format……………………LPCM2.0/48KHz/16Bit

HDMI Max bandwidth…………………………225MHz

HDMI Max baud rate…………………….……6.75Gbps

Input/Output TMDS signal ………….…………………….0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………. 5Volts p-p (TTL)

HDMI output cable distance………………….≤12m AWG26 HDMI standard cable

Antenna type…………………………..…. External dual 3dBi gain antenna

Wireless standard…………………….. IEEE 802.11a/n

Wireless Band…………………………5GHz ISM Band

Max Data rates………………… 2T2R up to 300Mbps

Transmit Output Power（IPEX）………………….……20dBm Max

Transmission distance………………….up to 200m (in open space)

IR Carrier frequency…………………. 20-60KHz

TX/RX Max working current ………….………. 1A

Power adapter format Input …………….….….….….….… AC 100V～240V 50HZ/60Hz, DC5V/2A

Operating Temperature range ……..…………….……………. -5 to +45℃

Storage Temperature range……………………. -20 to +60℃

Operating Humidity range …………….10 to 90%RH (No Condensation)

Storage Humidity range………………………5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………….127.5×127.5×25 (mm)
