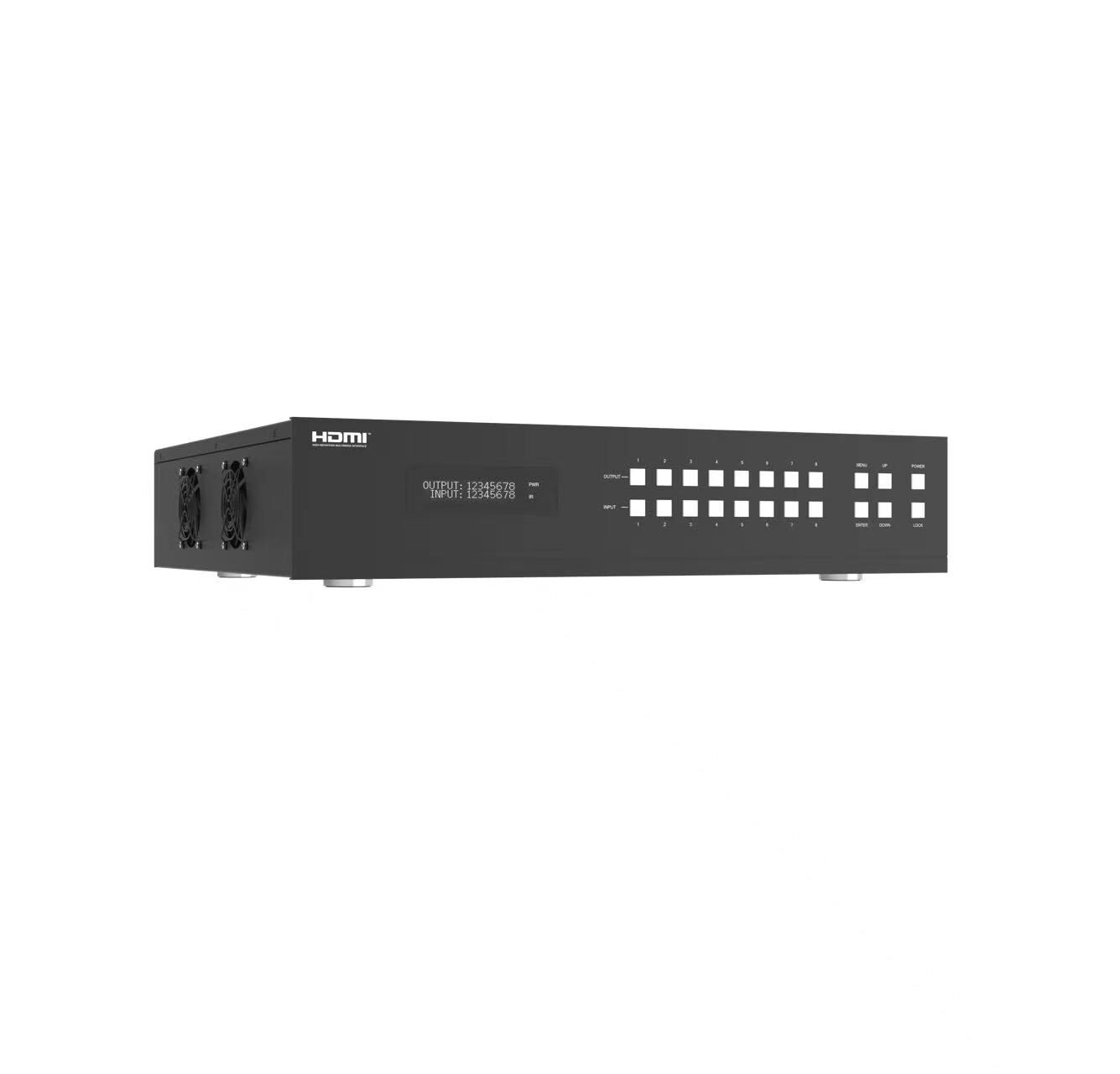

4K 60Hz HDBaseT Matrix Extender HDMI2.0 8×8 With IR Uncompressed Signal

HDMI2.0 HDBaset Matrix 8×8 4K@60Hz By CAT6 Extend IR/ UHD/HDR/UP TO 150m HDMI Extender with 8 receivers



Additional information

Weight 8000 g
Dimensions 44 × 37 × 9 cm
HDMI Version

2.0 HDBaset Technology

Resolution

4K2K@60Hz 4:4:4, 18Gbps

HDCP

HDCP2.2

Markets

Hospitality, Residential, Corporate, Education, Venues, Government, Retail

Cat6 Cable Perfomance

4K@60Hz signal up to 150meter (492ft)

Bidirection IR

Support 38KHz~56KHz Bidirection IR transmission

RS232

Support

POC

Power over cable support

HDMI Loop Out

Support Local display

Detailes About 4K 60Hz HDBaseT Matrix Extender HDMI2.0 8×8 With IR Uncompressed Signal

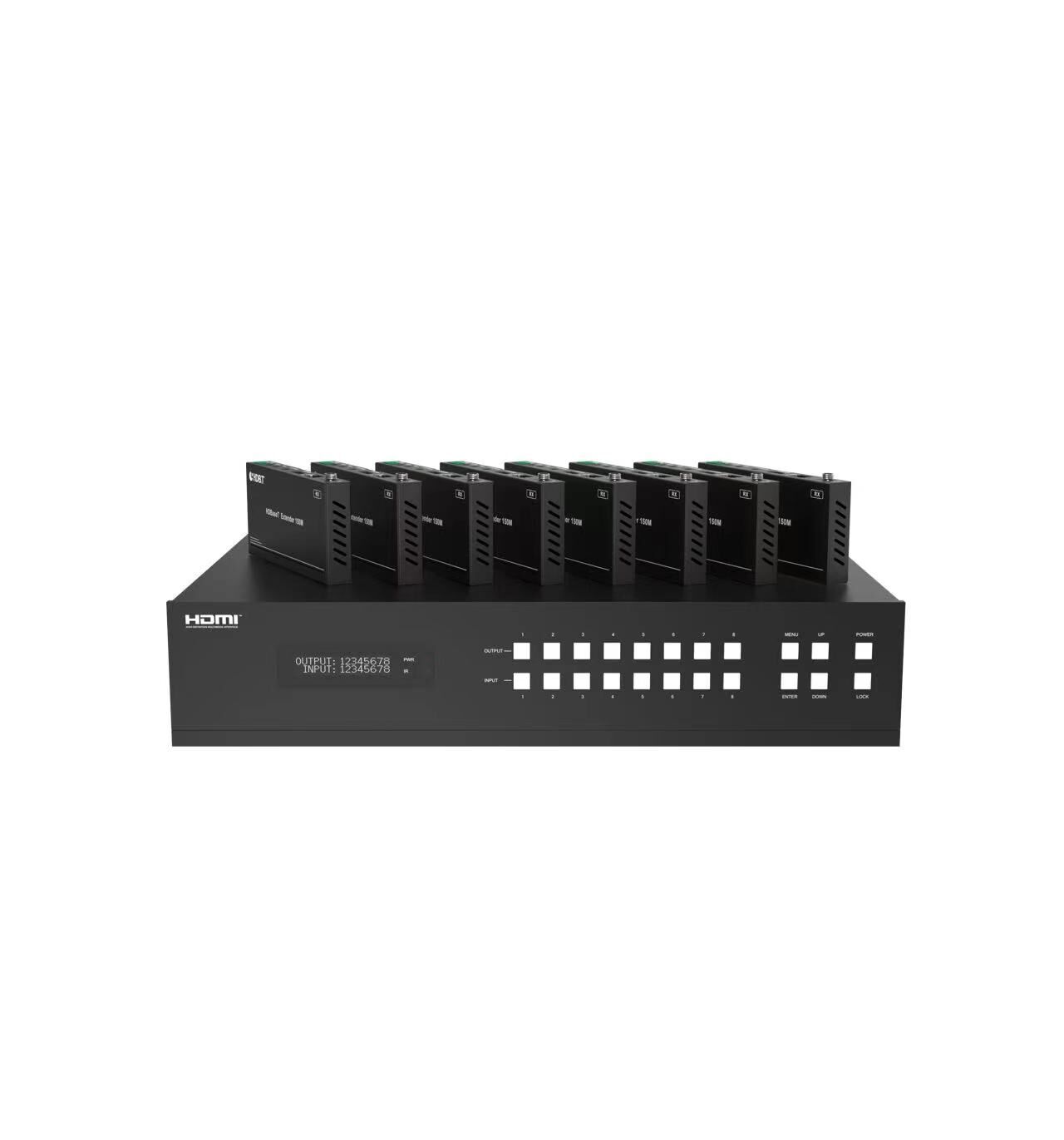

8×8 4K UHD HDBaseT™ Matrix Kit

4k 60hz hdbaset matrix extender hdmi2.0 8x8 with ir uncompressed signal

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

The 18Gbps 8×8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. HDBaseT output can extend video transmission distance up to 492ft / 150m via a single Cat 5e/6/7 cable and the resolution is up to 4K2K@60Hz 4:4:4. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports 4K2K to 1080P downscaler independently.

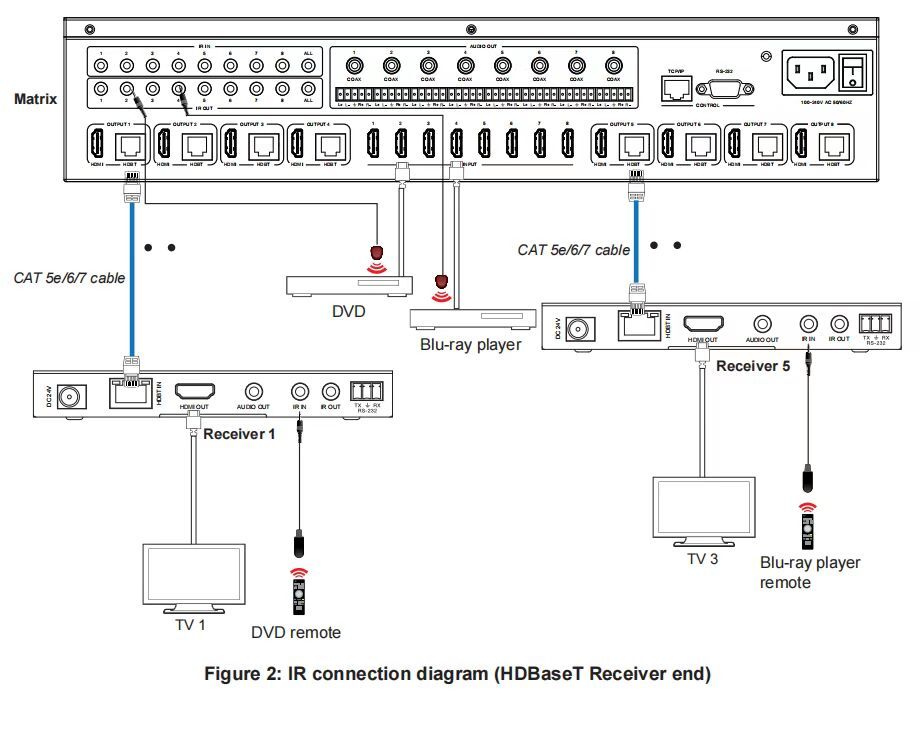

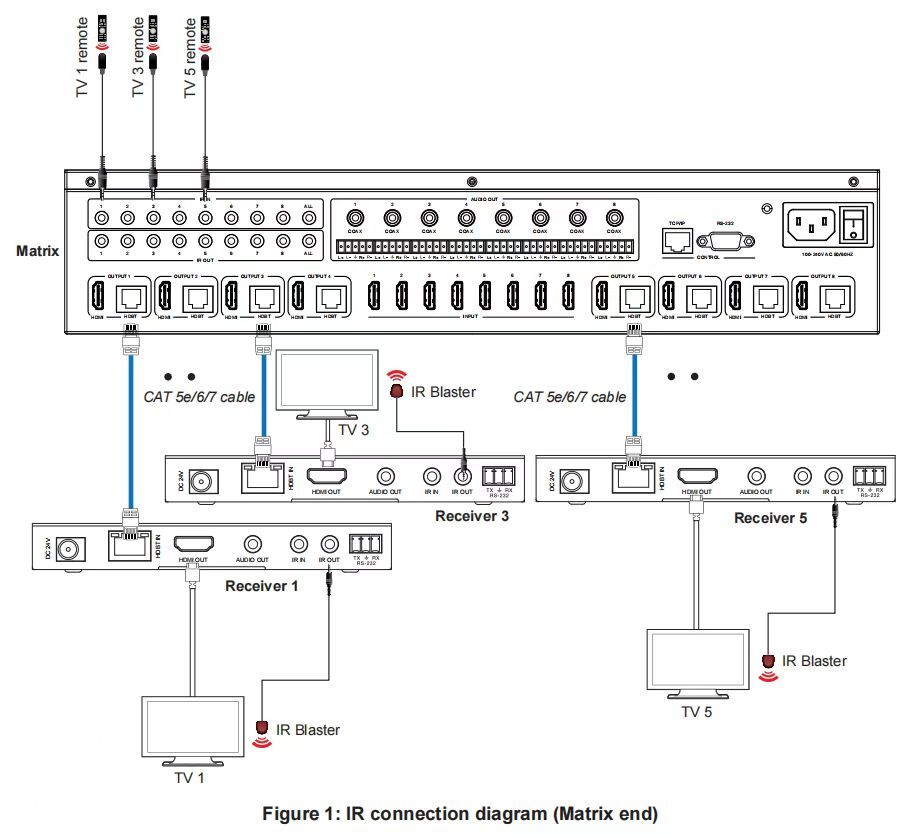

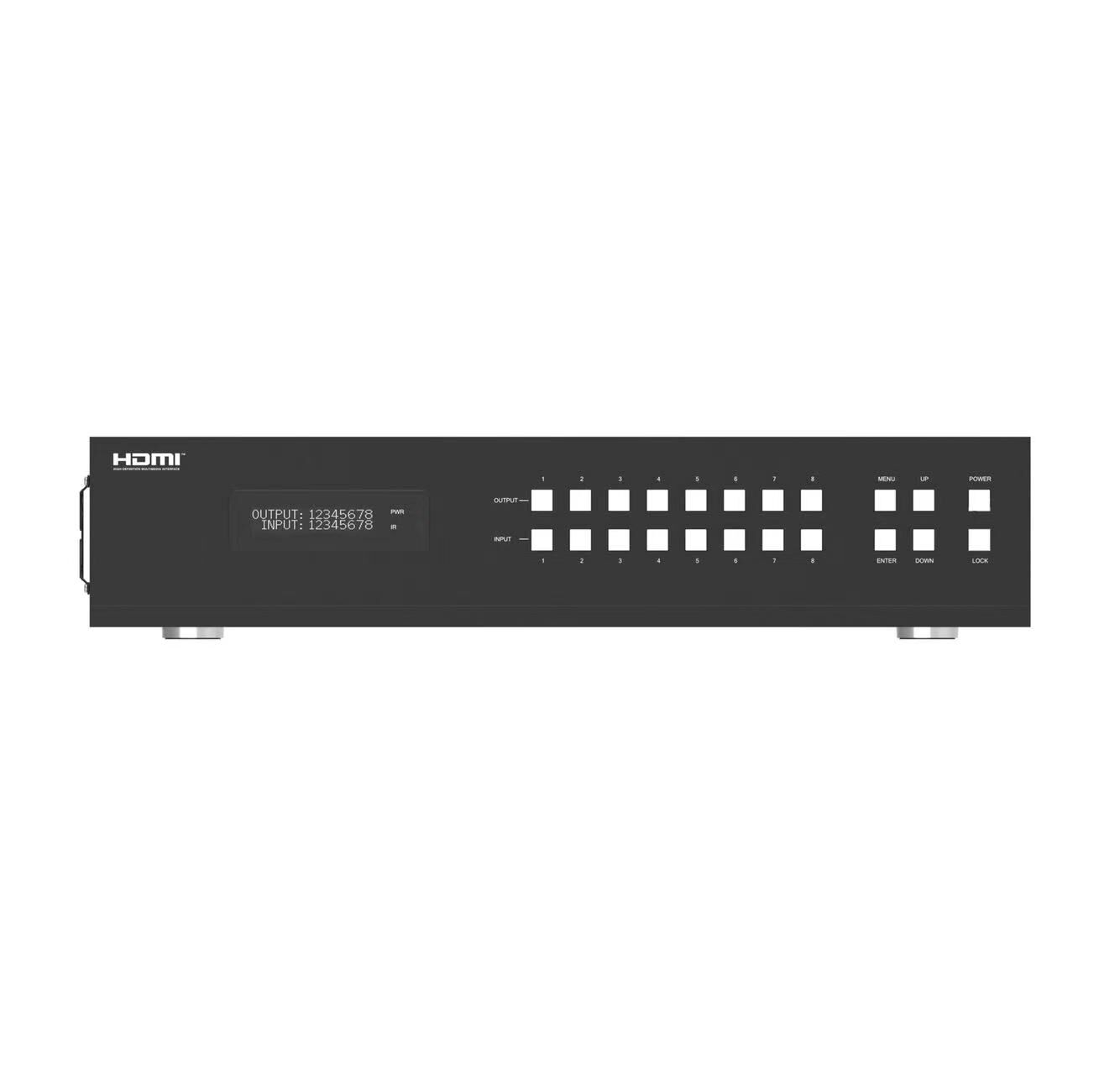

The product supports IR matrix. The IR signal is one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. The product provides an intuitive set of front panel with OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Features:

☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant

☆ Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT ports

☆ 8 HDMI inputs, 8 HDMI & HDBaseT mirrored outputs

☆ HDMI ports transmit 18Gbps lossless uncompressed video bandwidth

☆ Support 18Gbps lossless compressed HDBaseT signal transmission

☆ Support 4K->1080P Down Scaler for each output port

☆ HDR, HDR10, HDR10+, Dolby Vision, HLG are supported

☆ HDBaseT output can extend video transmission distance up to 492ft / 150m for 1080P or 394ft / 120m for 4K2K via a single Cat 5e/6/7 cable

☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio) ☆ Support IR matrix

☆ Audio de-embedded is supported via analog and coax ports

☆ Advanced EDID management and CEC control are supported

☆ 24V POC on all HDBaseT ports

☆ 1U rack mounted design with front panel OLED display

☆ Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Technical Distance:        4K@60Hz(150m/492ft)

HDMI IN/Out       4K@60Hz(5m/16ft),4K@30Hz(10m/32ft),1080@60Hz(15m/50ft)

HDMIcompliance HDMI 2.0b
HDCPcompliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18 Gbps
Video Resolutions up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4)
8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
HDMI Audio Formats

(Pass-through)

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby Digital Plus(DD+), DTS-ES, DTS HD Master,
DTS HD-HRA, DTS-X
Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1
Analog Balanced
Audio Formats
PCM2.0CH

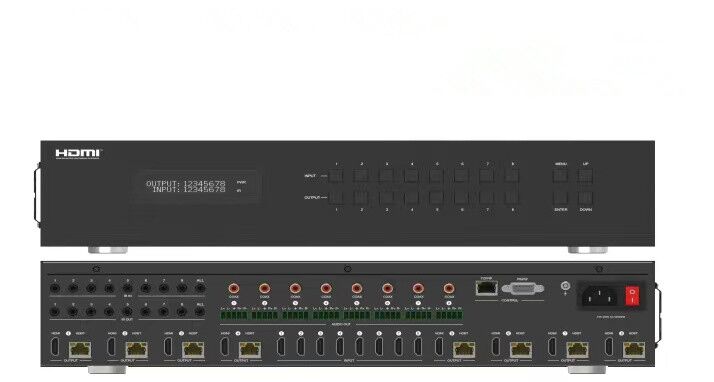

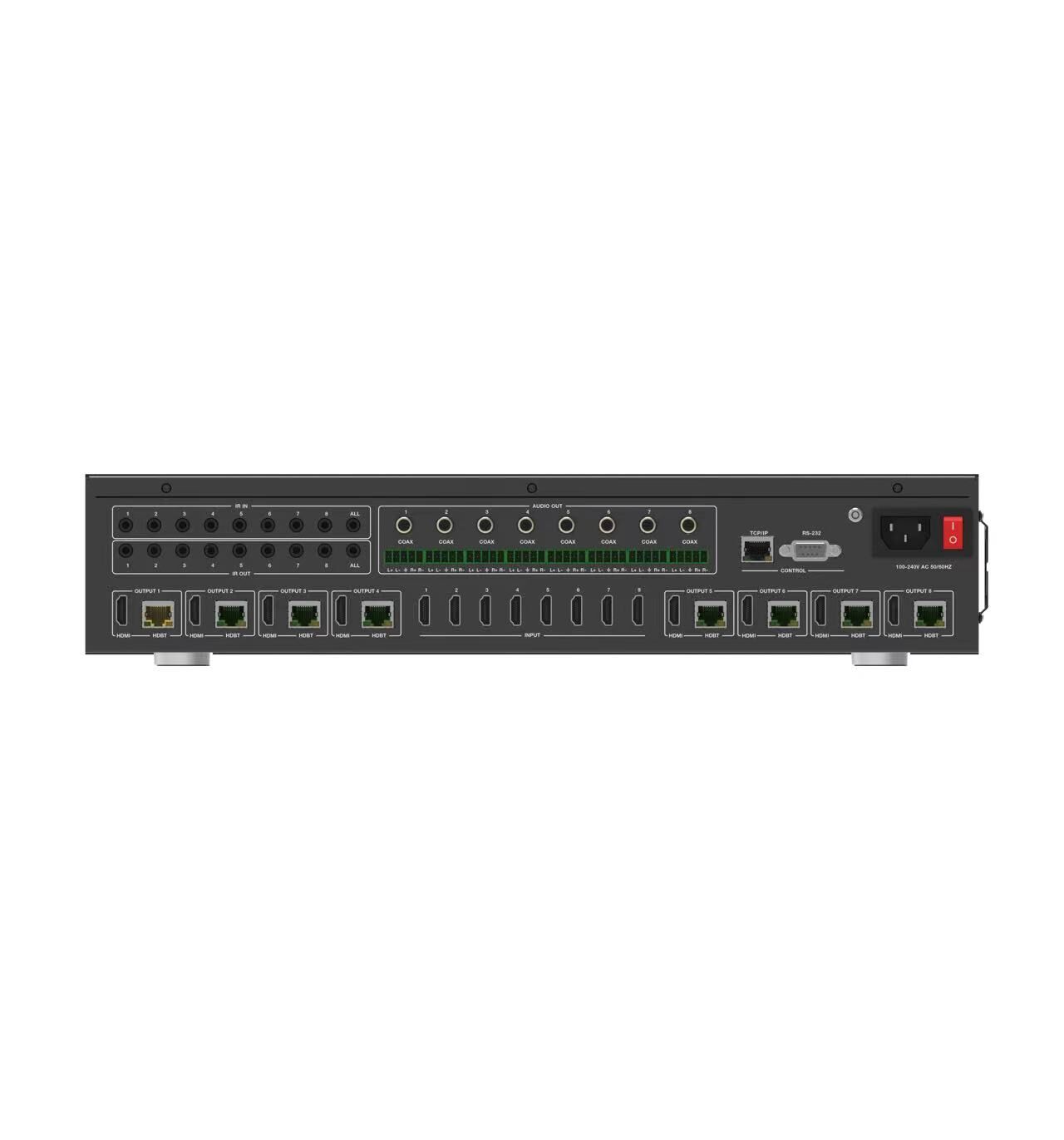

Connections
Matrix Inputs: 8 x HDMI Type A [19-pin female]
Outputs: 8 x HDMI Type A [19-pin female]
8 × HDBaseT port [RJ45]
8 × Coaxial audio [3.5mm Stereo Mini-jack]
8 × balanced analog audio [5-pin Phoenix
connector]
Controls: 9 x IR IN [3.5mm Stereo Mini-jack]
9 x IR OUT [3.5mm Stereo Mini-jack]
1 × TCP/IP [RJ45]
1 × RS-232 [D-Sub 9]
HDBaset Receiver Input: 1 x HDBT IN [RJ45, 8-pin female]
Outputs: 1 x HDMI Type A [19-pin female]
1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Controls: 1 x IR IN [3.5mm Stereo Mini-jack]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x RS-232 [3-pin Phoenix connector]
1 x SERVICE [Mini-USB, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions Matrix: 440mm (W) × 374mm (D) × 88.6mm (H)
Receiver: 140mm (W) x 65mm (W) x 18mm (W)
Weight Matrix: 6.54Kg, Receiver: 155g
Power Supply Input: AC100 – 240V 50/60Hz

Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption 24W (Max)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 – 90% RH (no condensation)

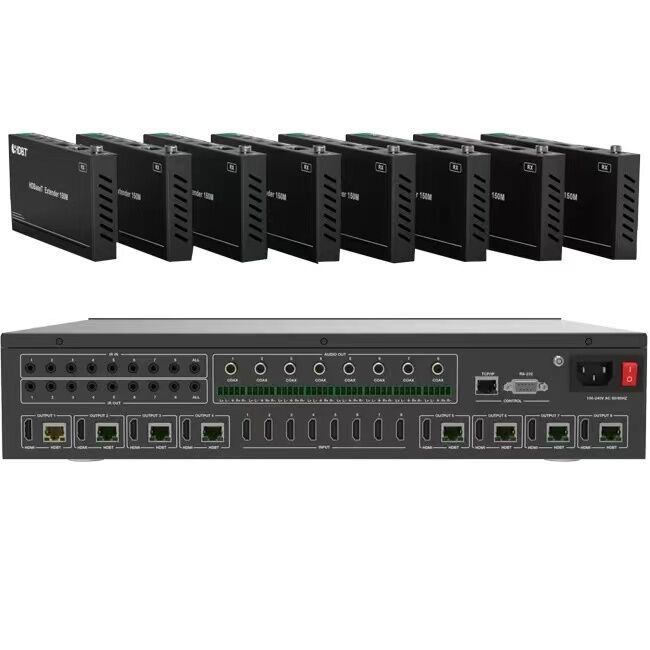

Package Contents:

① 1 x 18Gbps 8×8 HDBaseT(150M) Matrix
② 8 x HDBaseT Receiver
③ 1 x Matrix IR Remote
④ 1 x 100~240V AC 50/60Hz Power cable
⑤ 1 x RS-232 serial cable (1.5 meters, male to female head)
⑥ 8 x 3-pin Phoenix Connector & 8 x 5-pin Phoenix Connector
⑦ 9 x IR Blaster cable (1.5 meters)
⑧ 9 x IR Receiver cable (1.5 meters)
⑨ 18 x Mounting Ear (Matrix and Receiver)
⑩ 1x User Manual
