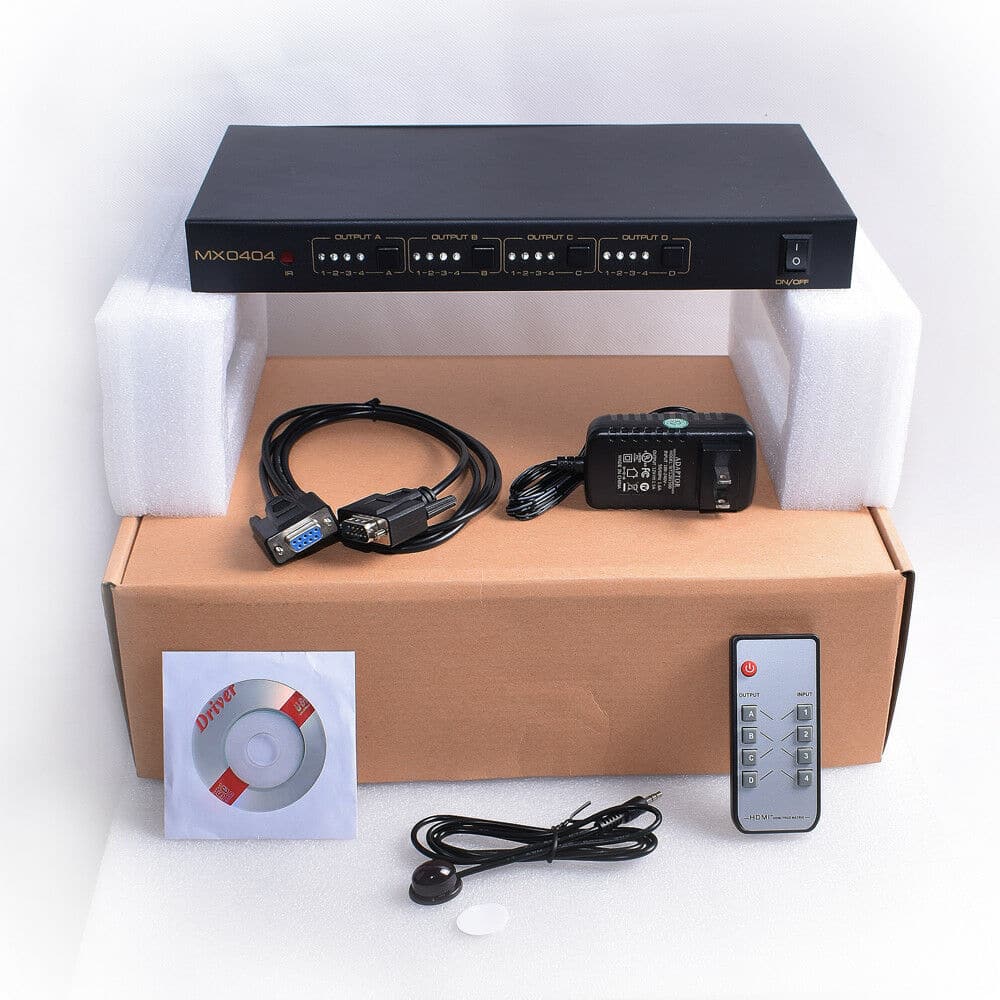

1080P HDMI True Matrix 4x4 with RS232 3D

1080P HDMI True MATRIX 4X4 3D Switch Splitter with IR Remote RS232

Additional information

Weight 1216 g
Dimensions 30.8 × 15.1 × 3.6 cm
HDMI Version

1.4

Resolution

24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i

HDCP

HDCP1.4

ARC

Support

Audio Format Support

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 1080P HDMI True Matrix 4x4 with RS232 3D

The 4×4 HDMI Matrix can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.

Feature:
1. Four Input HD Source signals switch and distribute to four HD Displays
2. Support 30/36 Bit Deep Color
3. Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC
4. Support Audio Format:DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5. Support Signal Retiming
6. Input HDMI Cable length up to 10M if using the standard AWG26 HDMI Cable; Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable.
7. It can use the remote to choose the signal source or switch the input signal source by press the switch button.
8. Use 5V3A Power Adaptor

SPECIFICATION:
HDMI Input/Output Resolution……24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i
Deep Color….24bit/deep color 30bit,36bit
HDMI Audio Format……DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Max bandwidth………225MHz
HDMI Max baud rate……6.75Gbps
Input/Output TMDS signal ……0.5~1.5Volts p-p(TTL)
Input/Output DDC signal…… 5Volts p-p (TTL)
HDMI Input cable distance.…… ≤10m AWG26 HDMI standard cable
Output cable distance…….≤15m AWG26 HDMI standard cable
Max working current……2A
Power adapter format………5V/3A
Operating Temperature range…….(-15 to +55℃)
Operating Humidity range…5 to 90%RH (No Condensation)
Product size (L x W x H)……308X151X36 (mm)
Weight…..1216g
