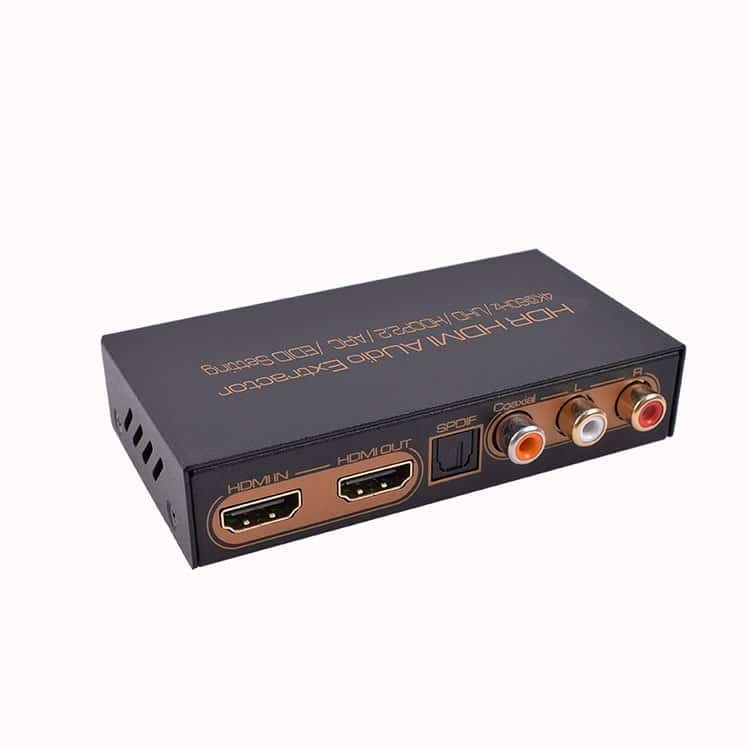

New 4K HDR HDMI to HDMI Audio Extractor HDMI 2.0
| Weight | 220 g |
|---|---|
| Dimensions | 10.6 × 6 × 2.7 cm |
| HDMI Version | 2.0b 18Gbps |
| Resolution | 4K 60 HZ, YCbCr 4:4:4 HDR |
| HDCP | HDCP 2.2 HDCP1.4 |
| EDID | Support |
| Audio Format Support | Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS5.1, Dolby Digital, 7.1ch, Dolby 5.1, Dolby true HD, LPCM 2.0 Etc |
| Markets | Residential |
The converter allows the HD Source connected to single HD Display and adds extra one ARC audio out port.
It supports 3D, HDR,4K*2K/60Hz, ARC function.

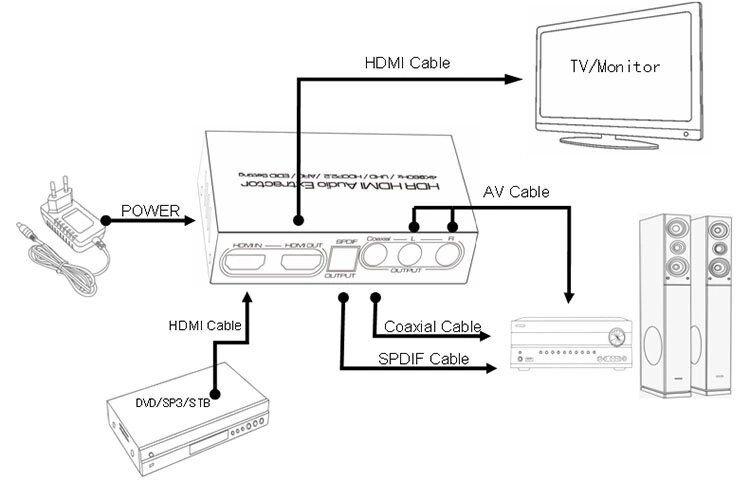

It can connect one HD Source to one HD Display and support one Toslink digital audio out+one Coaxial Audio Out+one LR Analog Audio out.
FEATURES

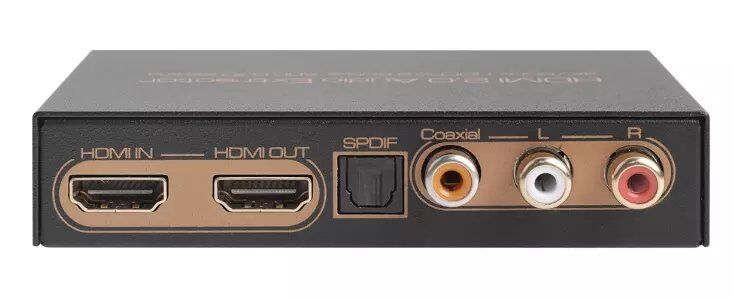

One HDMI input converter to one HDMI+ One Toslink Audio + One Coaxial Audio + One L/R Audio Out
Output audio support: Toslink Audio +Coaxial Audio +L/R analog Audio Output
Support HDR
Support 4K*2K @60Hz resolution
Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
Supports ARC, TV audio will return and out by the Optical Port;
HDMI to achieve the synchronization of audio signal separation. Support 2.0/ 5.1/ ADV three kinds of audio mode options
Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM2.0

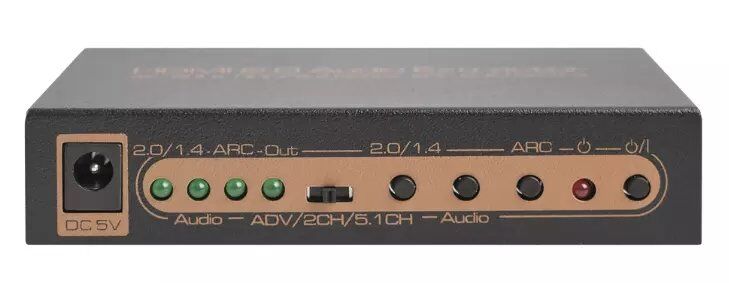

LED indication: when the source or sink is working, LED related will go bright.
Led Status Light allows the user to know the working status easily.
No loss of quality
Need a DC5V/2A power supply.
SPECIFICATIONS:
| model name | HDR 4K 60HZ HDMI audio extractor |
| Input | HDMI 2.0 |
| Output | HDMI 2.0 +toslink+RL+Coaxial audio |
| HDMI resolution | 4K@60Hz /4K@30Hz/1080P/1080i/720p/576p/576i/480P/480i |
| audio format | DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
| Max bandwidth | 600MHz |
| Max baud rate | 18Gbps |
| Input/Output cable distance | ≤10m(1080P)/6M(4K) AWG24 HDMI standard cable |
| Power adapter | 5V 2A |
