Professional 1080p VGA KVM Extender USB 2.0 over Cat6 Up To 150meter,with Audio, RS232
VGA KVM Extender over one Cat 6 up to 150m with Audio, RS232 control,USB for KVM, Printer,U disk.
| Weight | 1600 g |
|---|---|
| Dimensions | 18.5 × 10.5 × 3.3 cm |
| Video Resolution | 1920*1080@60Hz |
| Transmitter ports | VGA input, RS232 ,USB-B, Audio,Mic, RJ45 |
| Receiver ports | VGA Output, RS232 ,USB-A 4 ports , Audio,Mic, 2 RJ45 |
| Transmission Distance | 150m-200m |
| Working temperature | 0-50° |
| Storage temperature | -20~60°C |
| Bi-direction Audio & RS232 | support |
| Material | Iron metal casing |
Detailes About Professional 1080p VGA KVM Extender USB 2.0 over Cat6 Up To 150meter,with Audio, RS232
Overview
The 4K KVM over IP HD video encoder is an IP-based KVM video signal extender that connects via a network cable. Leveraging the professional features of an over IP KVM solution, it allows remote USB control access to computer systems over the internal network.
Features:
- Integrated VGA video signal, USB keyboard and mouse control signal, USB2.0HUB function (USB device, U KEY, printer, mobile hard disk, touch screen and other USB devices), RS232 interface signal, audio two-way signal, RJ45 network port, iron shell body in one network ultra-clear video KVM extender.

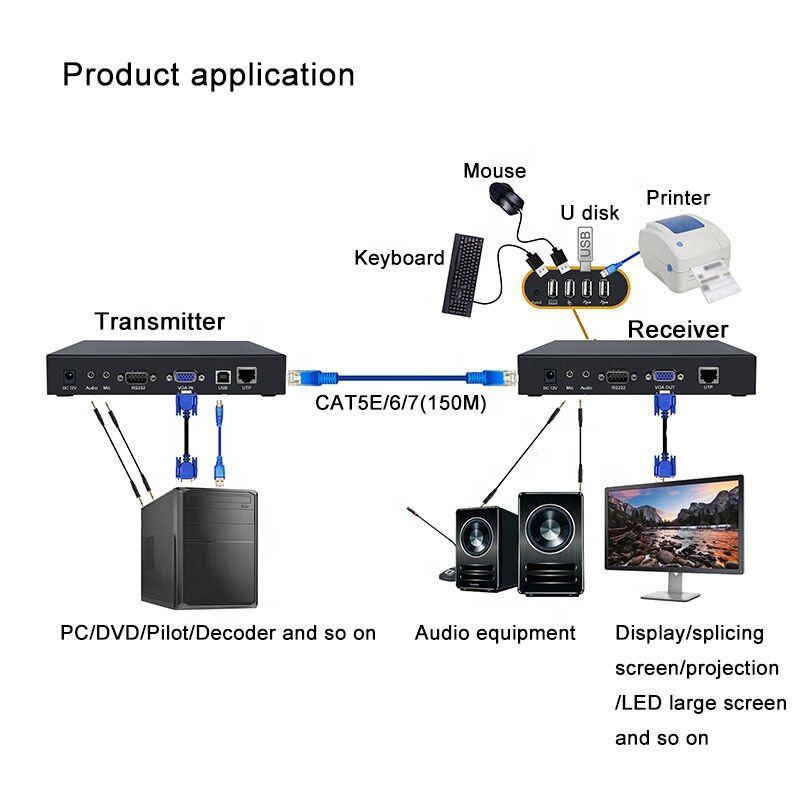

- Using gigabit digital coding technology, the local sending end of the device is connected to the VGA video signal and USB control signal of the computer host, etc., and is connected to the receiving end of the extender through the network cable, which can be extended by 150 meters, and the user can use the operating computer at the receiving end.
- Supports HD 1080p image resolution (backward compatible) to provide superior image display. At the same time, it provides high-quality video quality with extremely low latency transmission capability. It can be widely used in education, banking and securities, medical care, confidential office and other fields.
| VGA KVM extender Transmitter | 1piece |
| VGA KVM extender Receiver | 1piece |
| Video cable | 1piece |
| Audio cable | 1piece |
| USB A/B cable | 1piece |
| 12V/2A Power adapter | 2piece |
| Warranty card certificate | 1piece |

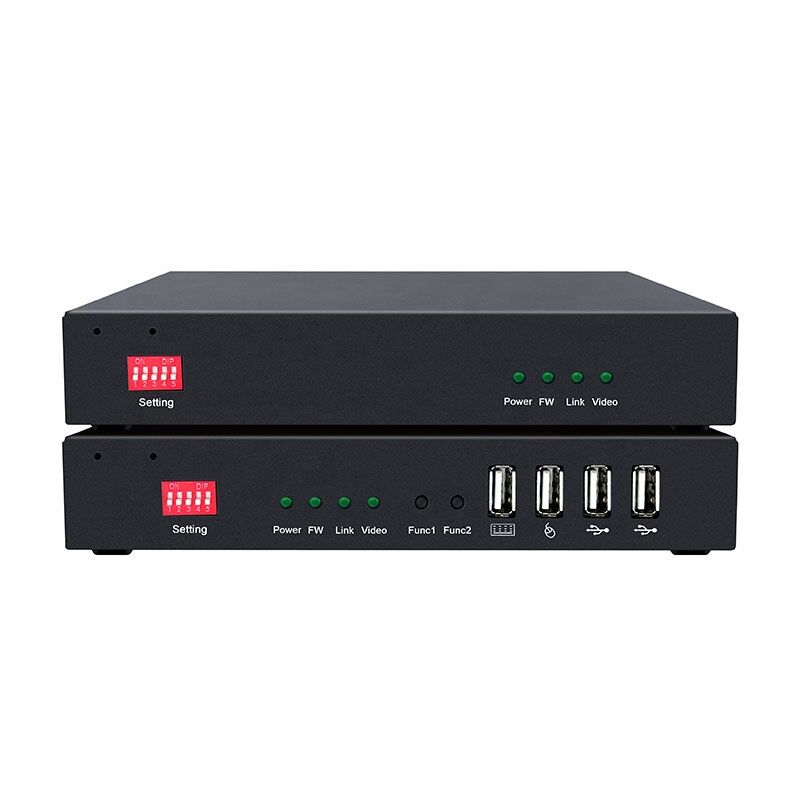

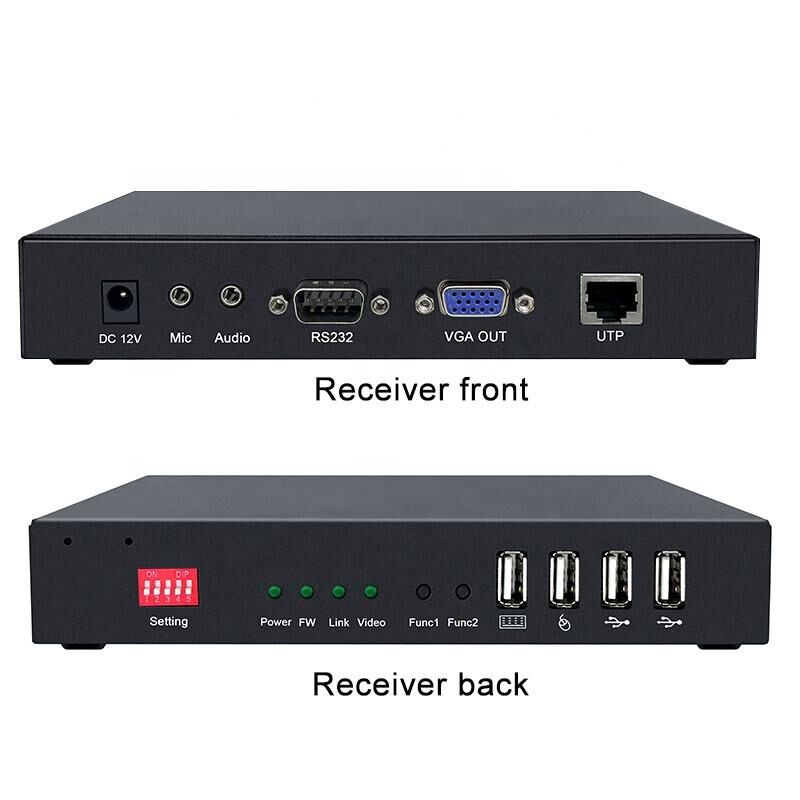

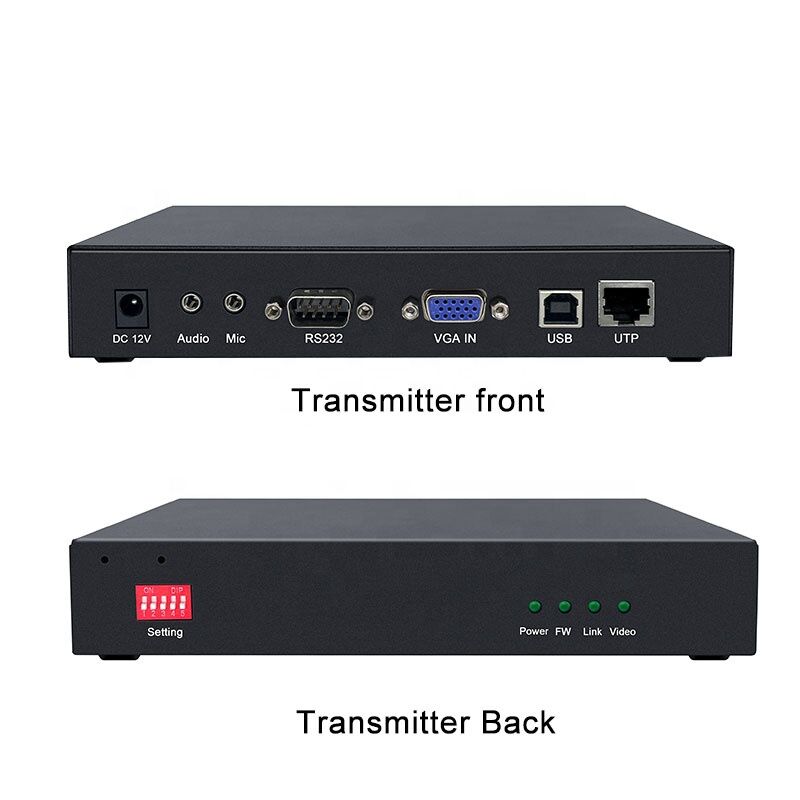

| Serial number | Interface name | Interface description |
| ① | Setting | DIP switch：Used to change the IP address of the device, the sender and receiver with the same IP address can shake hands normally (factory default all dialed) |
| ② | Power | Power signal light：Solid on, indicating that the power is on |
| FW | Work indicator：Blinking, the device is working properly | |
| Link | Connect the signal light：Solid light indicates that the connection between the sender and the receiver is successful | |
| Video | Video signal lights：Solid on, indicating that the Video is on | |
| ③ | Func1 | Confirm key：Confirm |
| ④ | Func2 | OSD Function keys： EDID，baud rate，equipment IP and MAC address |
| ⑤ | USB keyboard and mouse interface | |
| ⑥ | USB2.0HUB：Supports USB 2.0 devices | |
| ⑦ | DC12V | Power Input：DC12V |
| ⑧ | Audio | Forward audio port:Transmitter audio input, Receiver audio output |
| ⑨ | Mic | Reverse audio port: Receiver Audio input,Transmitter audio Output |
| ⑩ | RS232（customize） | DB9：baud rate115200，Backward compatible |
| ⑪ | VGA IN | Video signal input，Connect to a host or server (Coded extenders for DP/HDMI/DVI/VGA interfaces can be ordered) |
| ⑫ | VGA OUT | Video signal output，Connect with display, support 4K30hz (Coded extenders for DP/HDMI/DVI/VGA interfaces can be ordered.)） |
| ⑬ | USB B | The sender uses a USB cable to connect to the host or server |
| ⑭ | RJ45 interface | The standard is extended by 150 meters and the limit distance can reach 200 meters |
Special Features:
* Using gigabit digital encoding technology, the image is clear and smooth without delay；
* Independent two-way audio transmission；
*USB 2.0 HUB function (USB devices, such as USB flash drive, printer, wireless keyboard and mouse, touch screen;
* The standard is extended by 150 meters and the limit distance can reach 200 meters；
* Hot-swappable design, plug and play；
* Supports 1920 x 1080@60Hz and is backward compatible with a wide range of general resolutions；
* Super 4 USB interface design, support the use of large-capacity USB devices；
* Can be connected via switch or directly;
* Mixable and matchable, the transmitter can be connected with the receiver of different video signal interfaces.

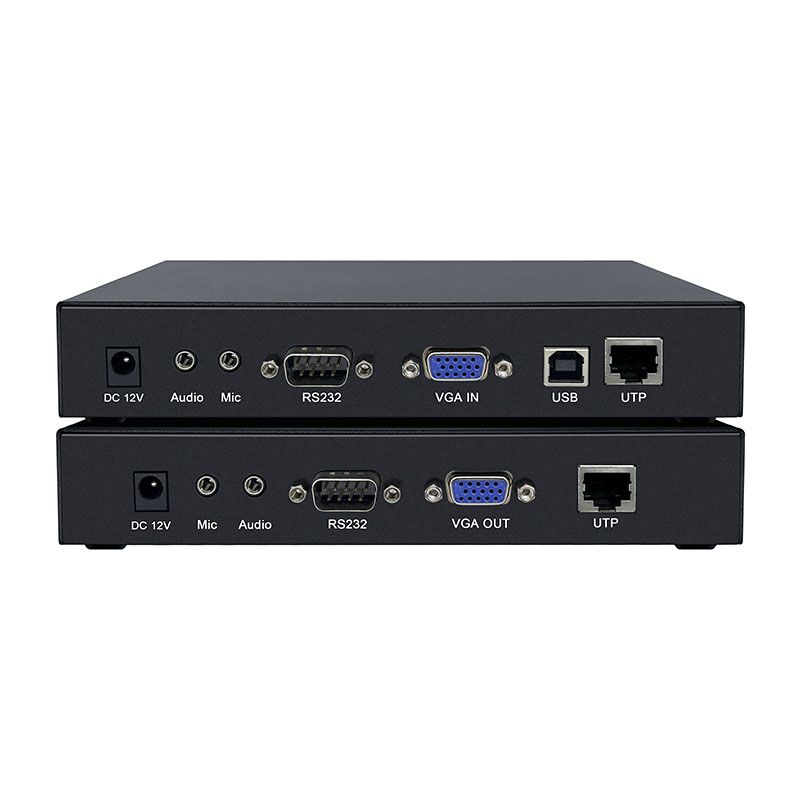

| Interface description | Transmitter | Receiver |
| VGA*1 | VGA*1 | |
| RS232*1 | RS232*1 | |
| USB B*1 | USB A*4 | |
| Audio*1 | Audio*1 | |
| Mic*1 | Mic*1 | |
| RJ45*1 | RJ45*1 | |
| indicator | Video*1 | Video*1 |
| Link*1 | Link*1 | |
| Power*1 | Power*1 | |
| FW*1 | FW*1 | |
| Video format | MAX 1920*1080@60Hz and below | MAX 1920*1080@60Hz and below |
| Power | 12V2A | 12V2A |
| Physical characteristics | Iron shell | Iron shell |
| 185*105*33（L*W*H）mm | 185*105*33（L*W*H）mm |
