BYOD Wireless Presentation gateway Content share from laptops Tablets Video Conference

Video Collaboration BYOD Presentation System ClickShare Content Control

Additional information

Weight 300 g
Dimensions 18 × 7 × 2 cm
HDMI Version

1080p

Video Bandwidth

Up to 40Gbps FRL and 18Gbps TMDS

Operation System

Windows 7/8/8.1/10 32 & 64 bit
macOS 8.0 and above8.0
Android 4.2 and above4.2
iOS 8..0 and above 8.0

Transmission Distance

Adjustable with signal strength modulation; max. 30m (100 ft) between Button and Base Unit

Frequency band

2.4 GHZ and 5 GHz (DFS channels not supported)

Wireless transmission protocol

IEEE 802.11 a/b/g/n/ac

Authentication protocol

WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the Button in network integration mode

Markets

Video Conference room for Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About BYOD Wireless Presentation gateway Content share from laptops Tablets Video Conference

Wireless AV Content Sharing & BYOD collaboration System (Quad Viewer)

Transmitter (HDMI Dongle,Type C dongle,USB Dongle) and Receiver

Four or Six devices share on One Screen



Introduction

BYOD collaboration System is a wireless presentation series, aiming to replace the legacy Pro-AV switcher with not only the least cabling and cost but also more powerful presentation and collaboration capabilities, it allows people to bring their own devices to share content anywhere they sit and also easily collaborate with others without any public contact, especially under post-pandemic environment, it helps conference or training went on safely as normal, with the least contact and required social distance.

Main features:

◆ High end design with hidden antenna;

◆ RK3328, Android 9.0 OS, quad core CPU;

◆ Rich functions, built in whiteboard software, max support 9 split screens;

◆ Full interactivity with touch back, annotation or local view of the display;

byod wireless presentation gateway content share from laptops tablets video conference

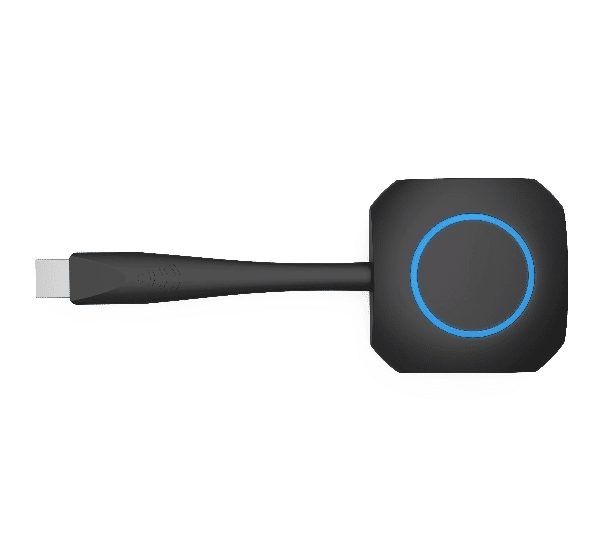

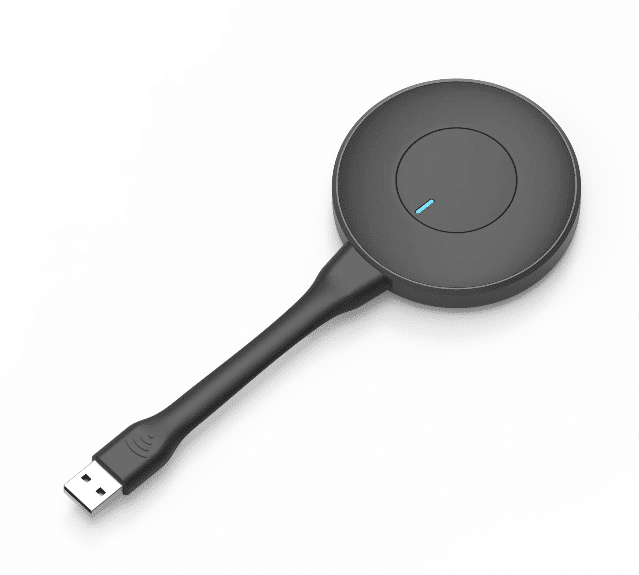

USB Dongle –Transmitter Features:
byod wireless presentation gateway content share from laptops tablets video conference

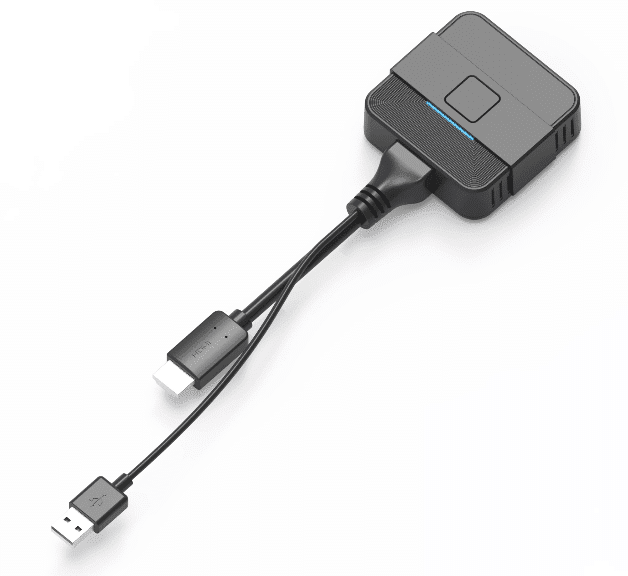

Wireless Transmitter  (HDMI Dongle,Type C dongle,USB Dongle)

No configuration, no installation, automatic connection

USB interface plug-and-play

Windows, Mac support

WiFi 2.4G/5G dual-band

1080P 30fps

Ultra-low power consumption

CPU: Dual-Core Low power

Main frequency: 1.0Ghz

System:Linux

Wifi: 2.4/5G Dual-Band

Transmission Latency 120-200ms

(When used with a conference tablet, only the wireless transmitter can achieve all functions, no need receiver box)

byod wireless presentation gateway content share from laptops tablets video conference

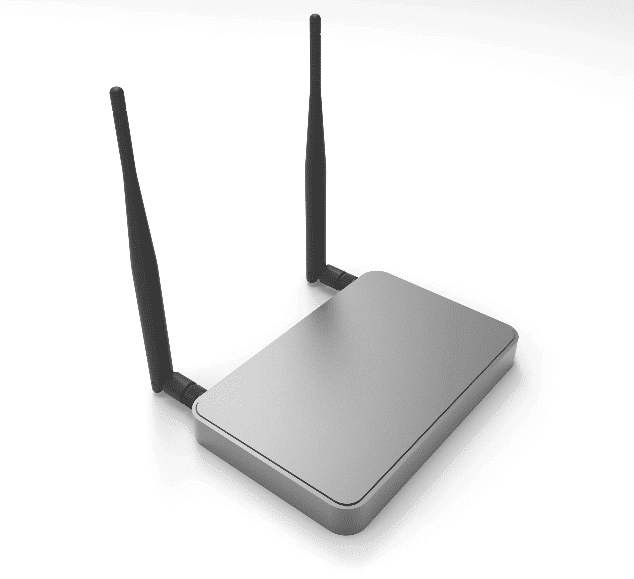

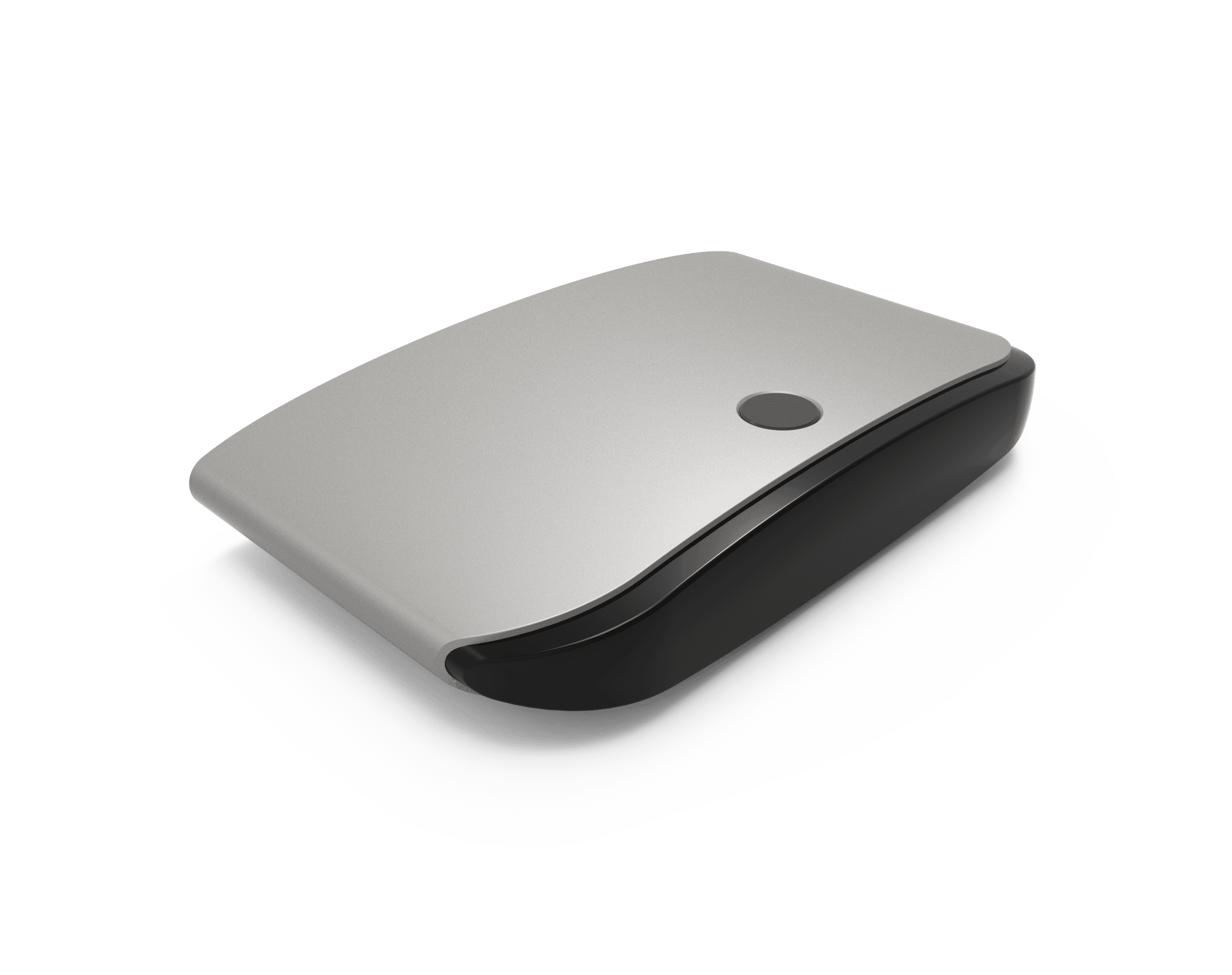

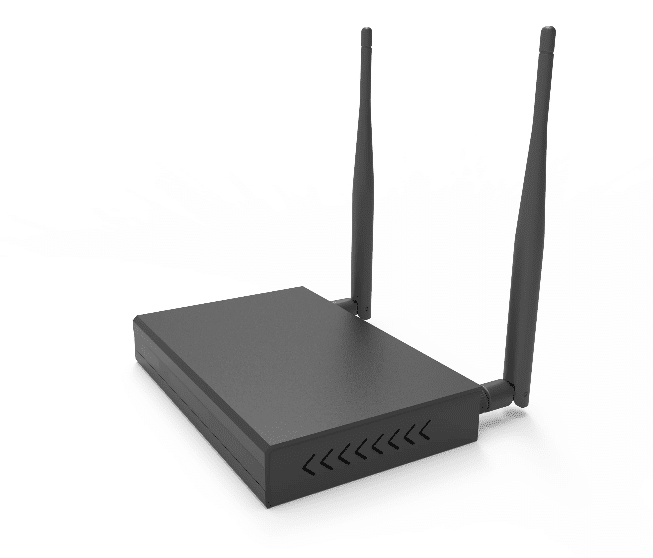

Wireless Receiver

CPU: Quad-Core Low power

Main frequency: 1.8Ghz

System:Android 5.1

Wifi: 2.4G/5G Dual-Band

Transmission Latency 120-200ms

Packing List
① 1 x (Transmitter) ( Depends on different application for 4 or 6 devices content share)
② 1 x (Receiver)
③ 1 x Remote controller
④ 1 x HDMI Cable & 1 x Power adapter
Specification
Frequency Band 2.4G Hz & 5G Hz Auto
Native Protocols Airplay, Miracast*, DLNA
Wireless Protocol IEEE 802.11ac / 802.11n
Wifi Transfer Speed More than 200Mbps*2
Wifi Work Mode STA and AP
Authentication Protocol AES, WPA2-PSK
Video Decoding Support H263,H.264,H265,VP8,RV,WMV,AVS,MPEG4
Decode Resolution Support 720P/1080P/2K/4K
Touch Type Support mouse, IR touch, capacitive touch, Laser Touch

Application Example

byod wireless presentation gateway content share from laptops tablets video conference
byod wireless presentation gateway content share from laptops tablets video conference
Two Independent Solutions
Solution 1: Work with Smart Interactive Board
Transmitter is compatible with any BYOD device.Connect your laptop or mobile phone via the button or APP or Screen Mirroring,then wireless share your screen to smart interactive board.
byod wireless presentation gateway content share from laptops tablets video conference
Solution 2 : Work with any Third Party Display
Receiver can connect with any third party display through HDMI cable, through this receiver, the Transmitter can wireless share any device screen to the any third party display.
byod wireless presentation gateway content share from laptops tablets video conference
Four in One Screen share
byod wireless presentation gateway content share from laptops tablets video conference
Multi person Presentations
byod wireless presentation gateway content share from laptops tablets video conference
