Wireless HDMI Extender / Adapter / Dongle 328 Ft ( HDMI Transmitter + Receiver ) Supporting HD 1080P 3D Video & Digital Audio from Laptop, PC, Cable, Netflix, YouTube, PS4 to HDTV/Projector
|Dimensions||12.8 × 12.8 × 2.5 cm|
|HDMI Version|| |
|HDMI Audio Format|| |
|Operational frequency|| |
2.4G/5G dual frequency
|Operational range|| |
Up to 100M in open space
|Video compression|| |
Comparable with H.264
|Latency (delay)|| |
|Infrarood retourfunction frequency range|| |
This product will let the user experience transmitting the HD content by wireless.
The HDMI sources over wireless kit extend high-definition video and audio to any HDTV displays up to 100 meters away.
The extender follows the TCP / IP standard Wireless Transport Protocol, so it has a high transmission rate and strong anti-interference capability.
It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments, etc.

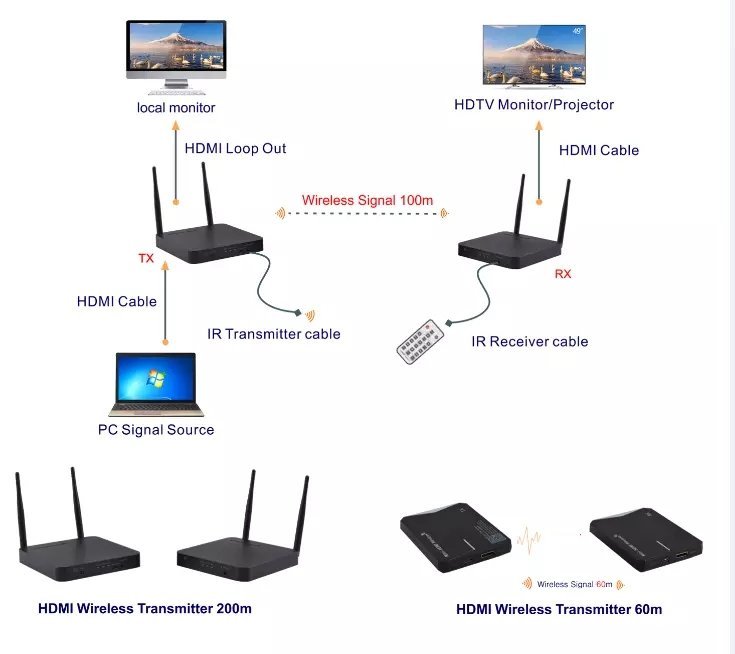

Contains a transmitter (TX) and a receiver (RX). The HDMI signal over a wireless transmission from the transmitter to the receiver.

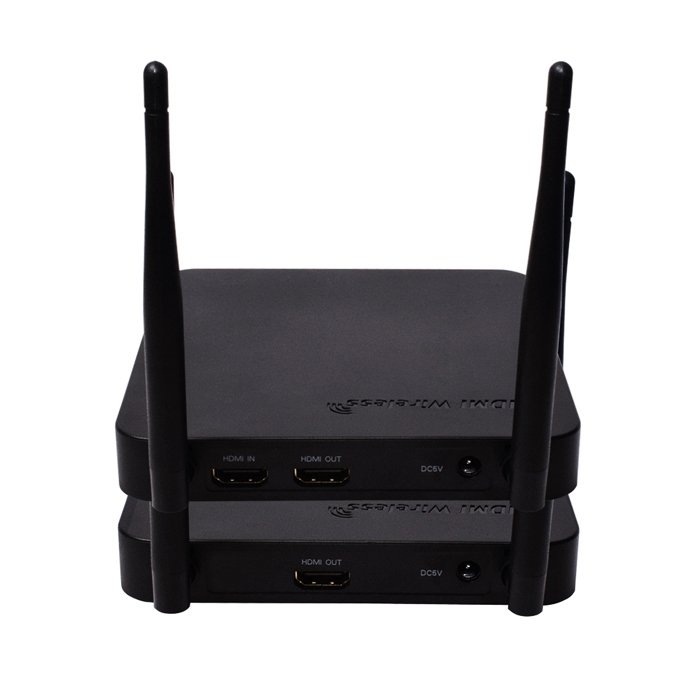

The TX support one HDMI loop output, for a local screen monitor.
Support HDMI resolution: 480i/[email protected]/60Hz and SVGA~WUXGA.
Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate, and strong anti-interference capability.
Using an external dual – gain antennas. Full HD 1080p transmits up to 100 meters wirelessly in open space. ( May be affected by the use environment).
Extends infrared remote to control source device from the display side.
Support OSD, for informed of device status.
Simple Plug and Play. Full hardware design, no software installation required.
Support Web Configuration Interface, Simple, and easy to use.
HDMI Compliance……. HDMI1.3/HDCP1.4
HDMI resolution…up to [email protected]/60Hz&SVGA/XGA/WXGA/SXGA/WXGA+/UXGA/ WSXGA+/ WUXGA
HDMI Audio Format….. LPCM2.0
HDMI Max bandwidth……..225MHz
HDMI Max baud rate………6.75Gbps
Input/Output TMDS signal ……0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …… 5Volts p-p (TTL)
HDMI output cable distance……≤12m AWG26 HDMI standard cable
Antenna type…… External dual 3dBi gain antenna
Wireless standard……IEEE 802.11a/b/g/n
Wireless Band…2.4GHz, 5GHz ISM Band
Max Data rates……2T2R up to 300Mbps
Transmit Output Power（IPEX）……16±2dBm
Transmission distance….up to 100m (in open space)
IR Carrier frequency….38KHz
TX/RX Max working current ……. 1A
Power adapter format Input …….AC 100V～240V 50HZ/60Hz, DC5V/2A
Operating Temperature range …….. -5 to +45℃
Storage Temperature range…. -20 to +60℃
Operating Humidity range ….10 to 90%RH (No Condensation)
Storage Humidity range…5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ….127.5×127.5×25 (mm)
