4K60Hz UHD 2.0 HDMI Extender Over Single Coax Cable with Audio IR up to 328ft

18Gbps HDMI Extender over One Coax Cable up to 100meter with IR,EDID Audio

Additional information

Weight 350 g
Dimensions 15 × 5 × 2 cm
HDMI Version

HDMI 2.0a

Resolution

4K@60Hz 4:4:4

HDCP

HDCP2.2

Audio Formats

Audio Embedded 5.1CH

Video Bandwidth

18Gbps

EDID

Support

IR

Support Bi-direction IR control

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 4K60Hz UHD 2.0 HDMI Extender Over Single Coax Cable with Audio IR up to 328ft

4K UHD HDMI Extender over Single Coax with Bi-directional IR

Overview

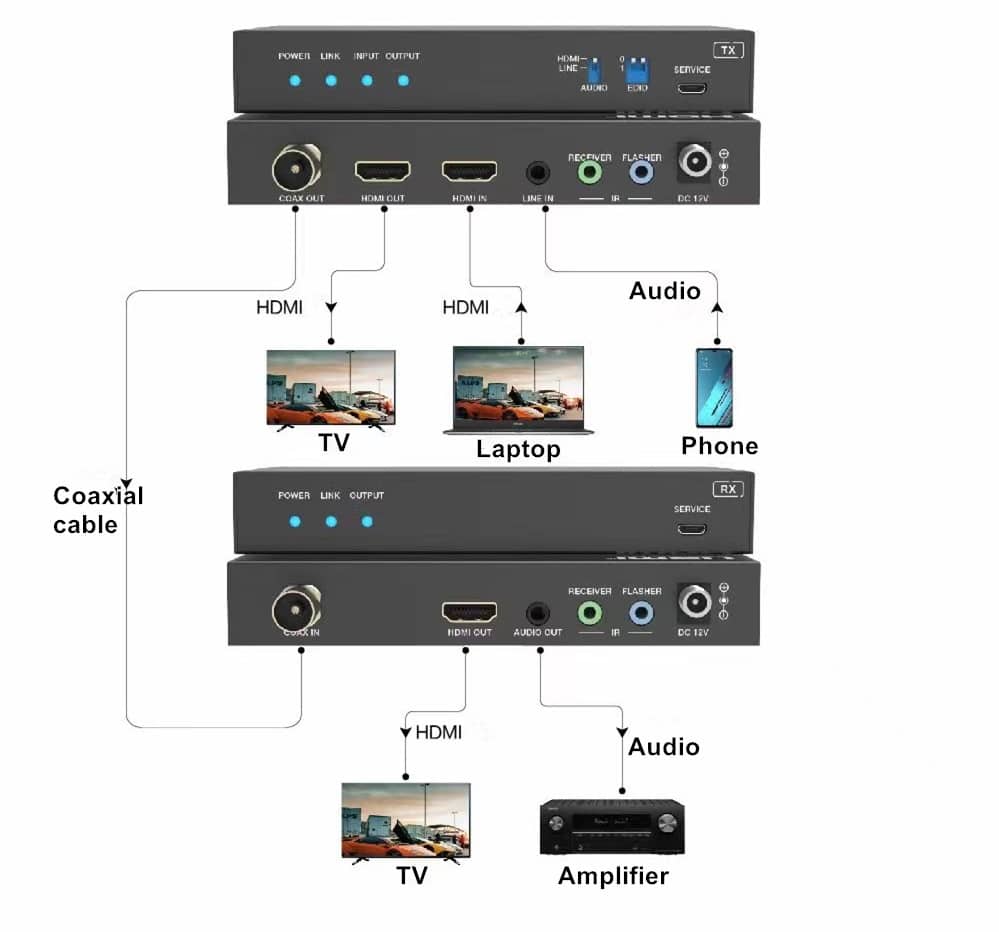

This 18Gbps HDMI over COAXIAL Extender can extend HDMI video and audio signals up to 328ft / 100m via a single coaxial cable. Video resolution is up to 4K2K@50/60Hz 4:4:4. The Extender supports audio embedding and de-embedding functions.

It is equipped with bi-directional IR pass-through, allowing users to send IR control up to a distance of 328ft / 100m, making IR control possible without any additional wires. It also supports advanced EDID management.

The Extender provides exceptional quality, advanced & user-friendly operation, and flexible control.

4k60hz uhd 2.0 hdmi extender over single coax cable with audio ir up to 328ft

Features

1) HDMI 2.0 and HDCP 2.2 compliant

2)Support 18Gbps video bandwidth

3) Support video resolution up to 4K2K@50/60Hz 4:4:4

4) Bi-directional IR with IR Adapter Cable to connect to control systems

5)Support audio embedding / de-embedding function Up to 5.1-channel audio supported including Dolby Digital, DTS, and PCM. This unit does not support Dolby True HD, DTS-HD, or LPCM 4K transmission distance up to 328ft/100m via a single RG6 Copper (75 ohm) coaxial cable

6)3D, HDR, HDR10+, Dolby Vision, HLG supported

7)Advanced EDID management

8)Wall-mountable housing design for easy installation

4k60hz uhd 2.0 hdmi extender over single coax cable with audio ir up to 328ft

Belden 1694A coaxial cable is recommended for maximum performance. It has a maximum data rate of 18Gbps and features automatic signal equalization.

Package Contents

1 × HDMI over COAXIAL Extender (Transmitter)

1 × HDMI over COAXIAL Extender (Receiver)

1 × IR Blaster Cable (1.5 meters)

1 × IR Receiver Cable (1.5 meters)

4 × Mounting Ear
