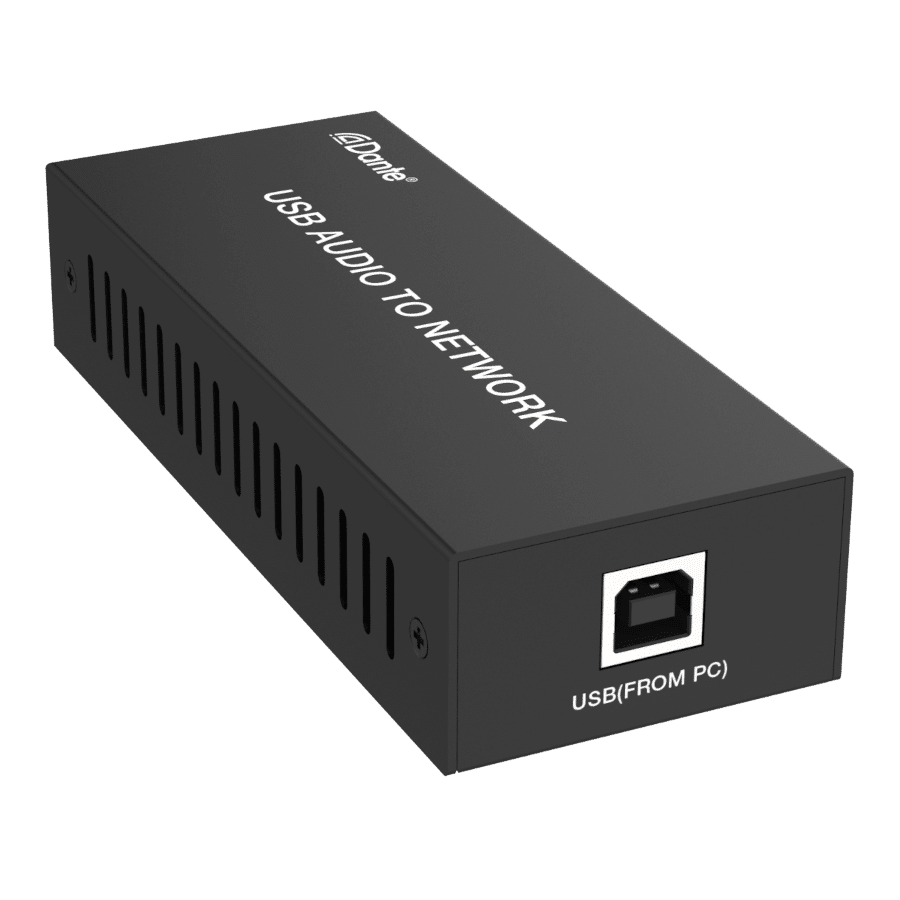

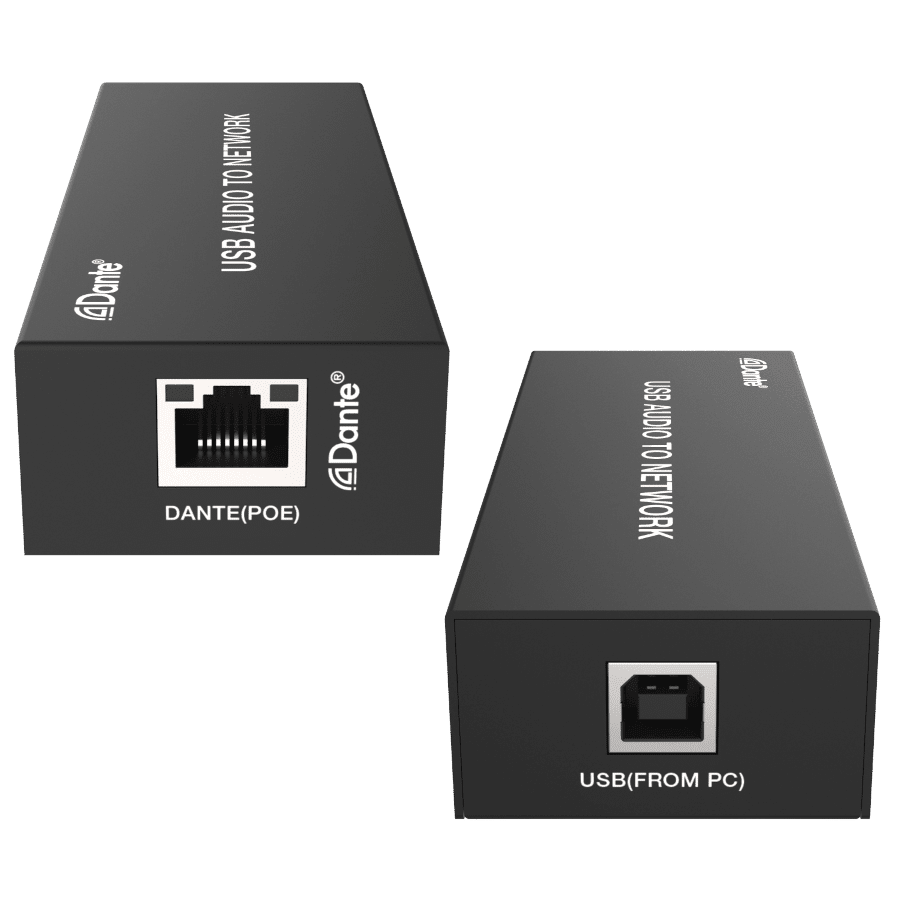

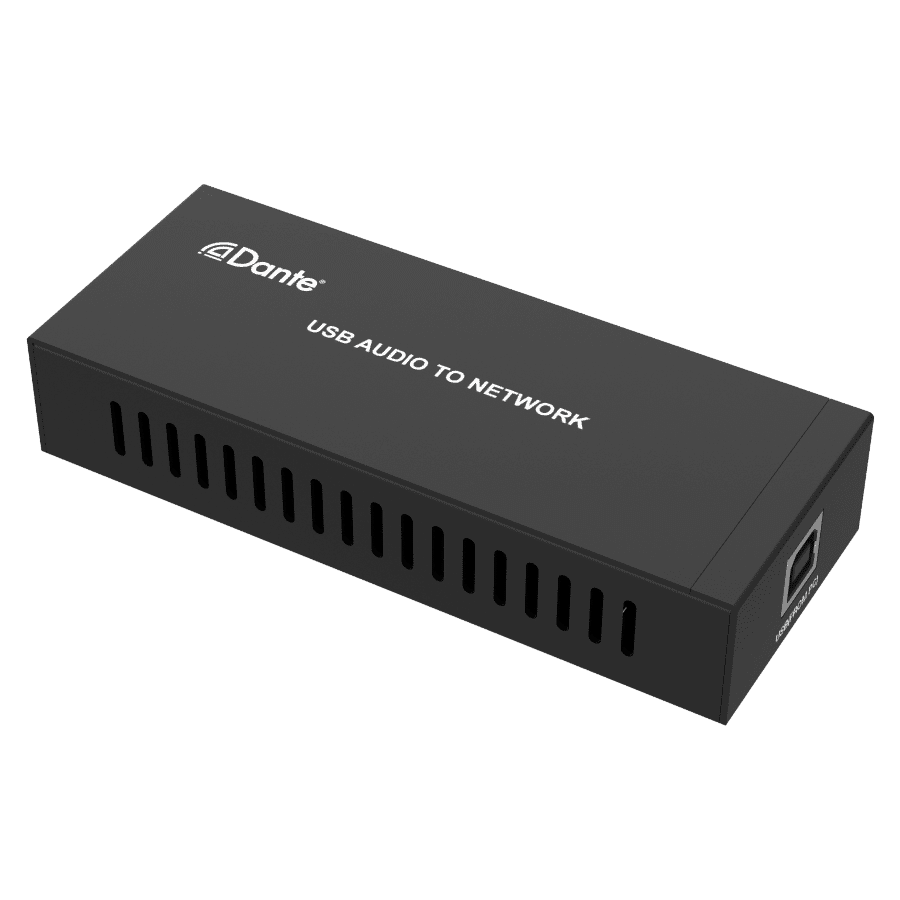

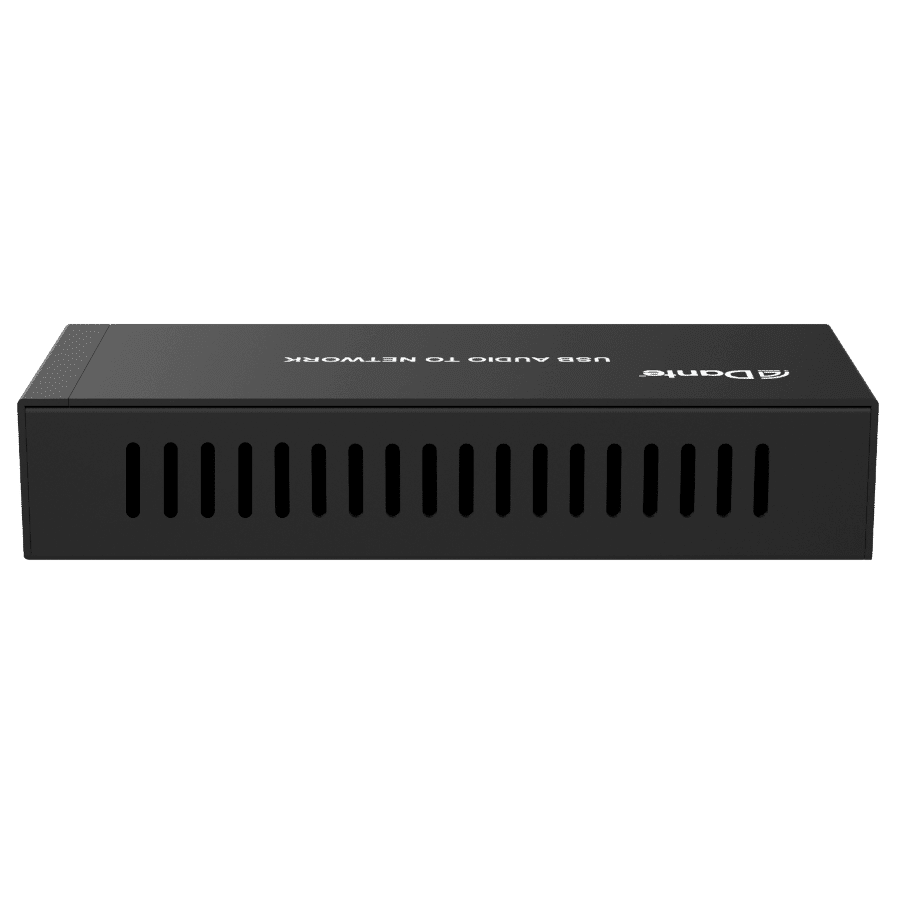

Dante 2 Channel USB Audio to Network 2CH USB Audio Encoder Decoder with POE
Dante Audio Intergration Transmitter and Receiver up to 100meter via Cat6/6a
| Weight | 188 g |
|---|---|
| Dimensions | 12 × 4.7 × 2.6 cm |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
Detailes About Dante 2 Channel USB Audio to Network 2CH USB Audio Encoder Decoder with POE
Introduction
This Dante 2CH USB Audio Encoder/Decoder is a Dante sound card adapter based on the DanteUltimo solution. It supports USB audio transmission. Built-in USB sound card chip, it transmits audio signal through network (Dante). It supports USB power supply and POE function. The product is compact and easy to carry, plug and play, suitable for recording studios, art festivals, concerts and other scenes.
Features
- Compliant with USB 2.0 Full Speed Operation
- Compliant with USB Audio Device Class Specification V1.0
- Analog sound card, supporting MIC input and SPK output
- Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
- Dante solution supports AES67 RTP audio transmission
- Support USB 5V power supply and POE function (IEEE802.3af Class 0)
Package list
1× Dante 2CH USB Audio Encoder/Decoder
1× USB Cable (6FT USB A to USB B)
1× User Manual
| Technical | |
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Frequency Response | 20Hz to 20kHz |
| Control Method | Dante Controller |
| Connection | |

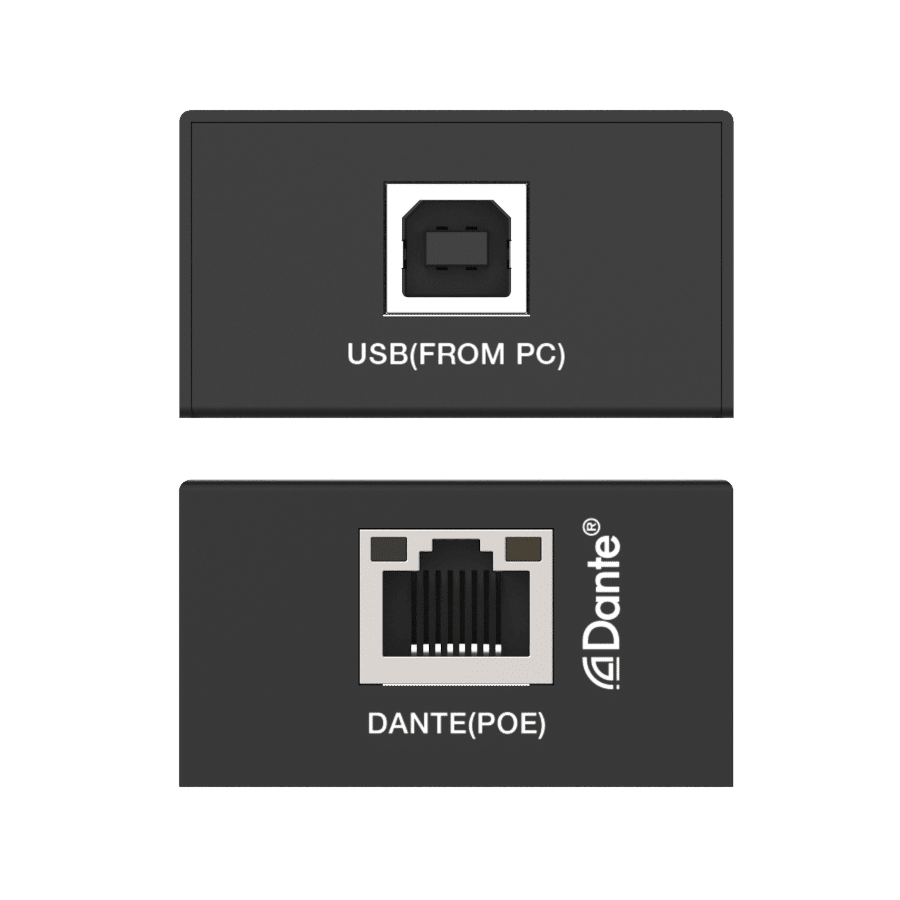

| Input & Output | 1x USB-B1x DANTE [RJ45 connector, POE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 188g |
| Power Supply | USB input: 5V-500MA POE input: IEEE802.3af Class 0 |
| Power Consumption | 1W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (no condensation) |
