Dante 2Channel Audio XLR input output Adapter Analog to Digital Dante
2CH Dante Adapter, Digital to Analog, Analog to Digital Converter,balanced or unbalanced analog XLR to crystal-clear dante digital audio
| Weight | 200 g |
|---|---|
| Dimensions | 13 × 11 × 3 cm |
| Interface | Analog-to-digital conversion |
| Frequency Response | 20Hz-20kHz |
| Signal-to-noise ratio | >100dB |
| THD+N | < 0.01%@4 dBu |
| Background noise | -90dB |
| Power Consumption | 2W |
| Ethernet connection | 100BASE-TX(Support PoE) |
| USB specification level | ≥ USB 2.0 |
| Configurable dante audio delay | 1,2,or 5 milliseconds |
Detailes About Dante 2Channel Audio XLR input output Adapter Analog to Digital Dante

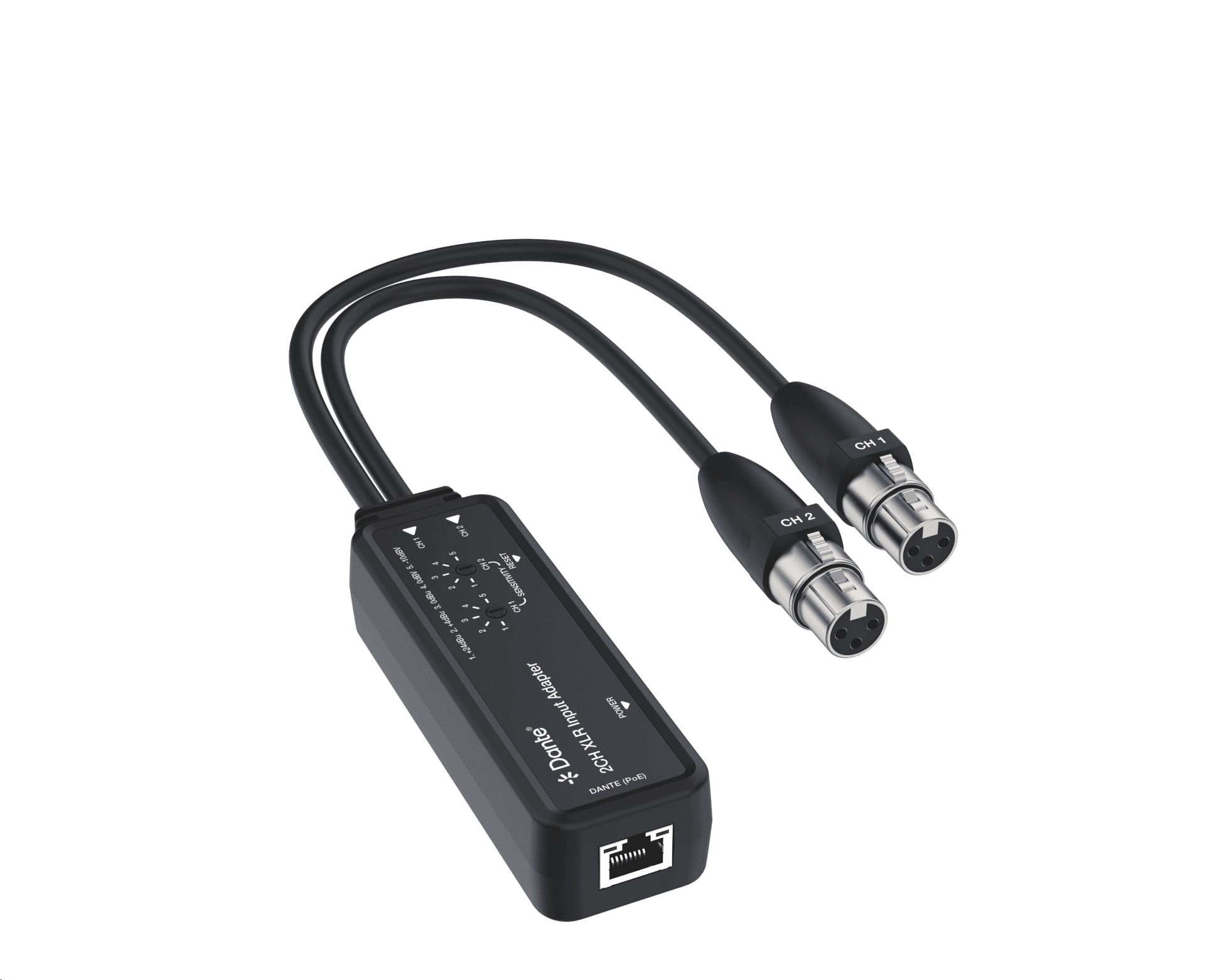

Dante Two-channel XLR analog audio to Dante 2CH digital audio with POE
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation
Take command with Dante Controller, easily manage and adjust settings. With true plug-and-play functionality, your installation is up and running in no time, with no hassle.

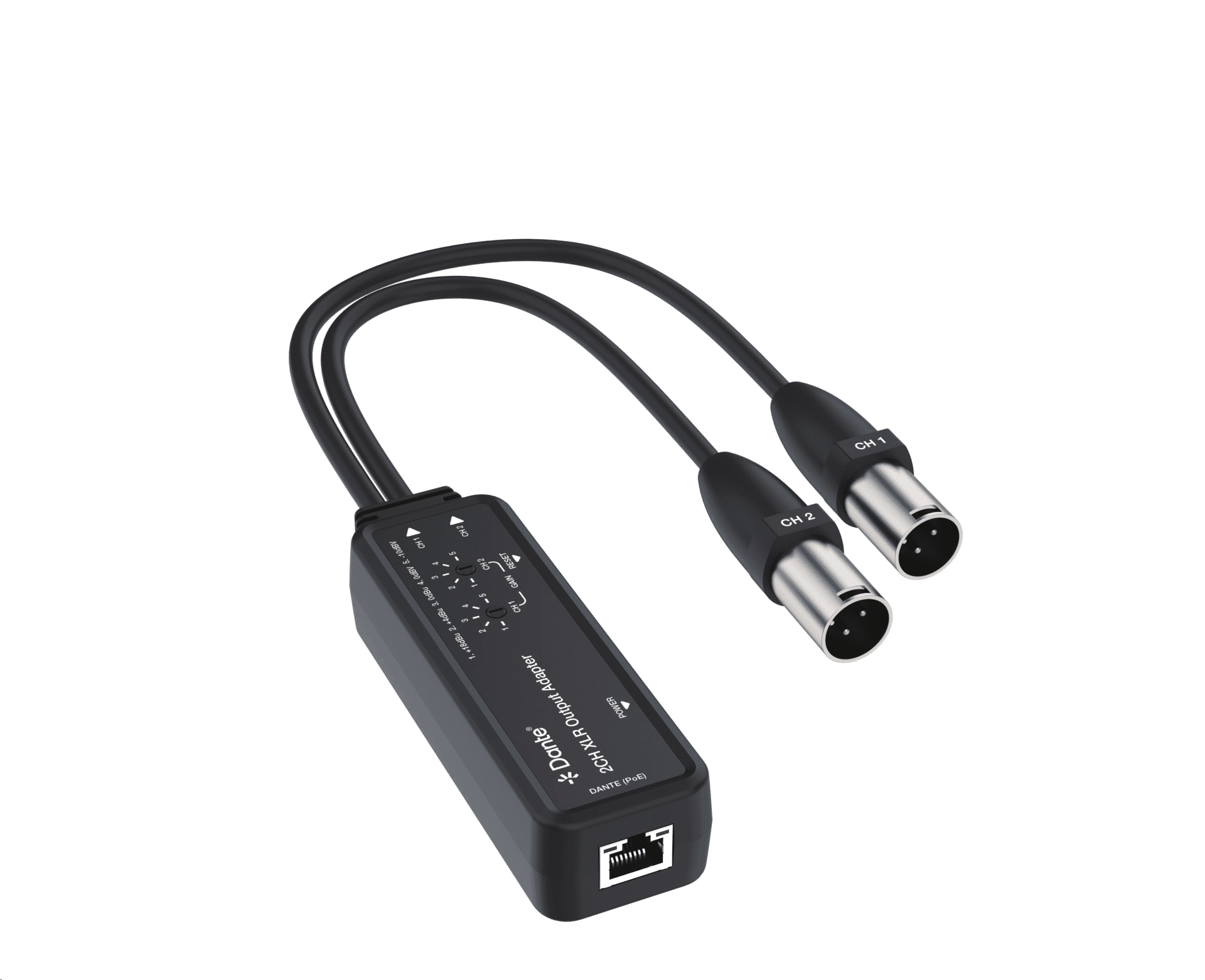

Dante® 2CH digital audio to two-channel XLR analog audio
Balanced/unbalanced XLR analog audio output
Dante® audio sampling rate supports 44.1/48/88.2/96KHz@24bit
Dante® audio delay supports 1/2/5ms (configurable)
Analog audio output supports 5-level gain adjustment (+18dBu, +4dBu, 0dBu, 0dBv, -10dBv)
Supports local USB-C port power supply and PoE function (Class 0 802.3af PoE)
Compact design for easy and flexible installation
APPLICATION SCENARIO
It is suitable for meeting room, exhibition hall, small activities, classroom interaction and other occasions.
