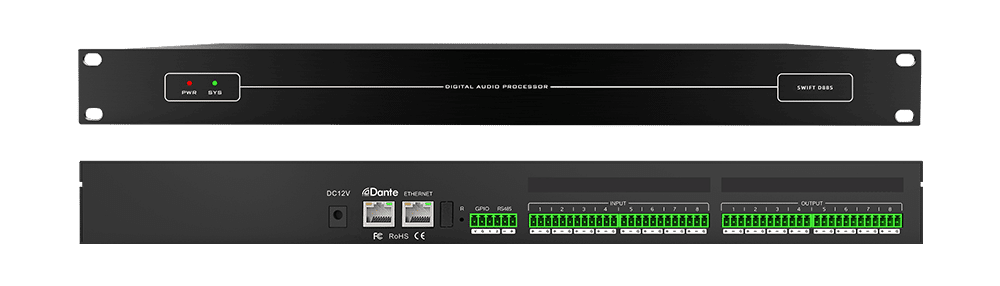

Introduction

Features



Highly integrated, integrating a variety of traditional Analog audio processing equipment in a Digital audio processor;

High-performance 32-bit floating-point DSP processor, all-digital processing, fast response to feedback elimination, echo cancellation, noise cancellation and other core algorithms;

High-performance A/D, D/A converter, 24bit/48KHz sampling frequency, high-quality Analog → Digital, Digital → Analog conversion;

8 Analog input channels and 8 Analog output channels, very small distortion and ultra-low background noise;

Rich interface expansion;

Supports Dante network transmission, which makes audio transmission more stable and faster;

Humanization, graphical, intuitive and easy-to-operate control software interface;

Comprehensive matrix mixing functions;

Scene storage is different from the Analog equipment is one of the most practical and significant features, can store 100 complete scenes, all the scenes can be exported to an external storage device for storage backup, so that the later call at any time.

Function

Comprehensive matrix mixing function, 24bit/48KHz sampling frequency, high performance A/D, D/A converter and 32-bit floating point DSP processor

DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing functions, but also has a mixing component control function; at the same time with AFC, AEC, ANS module;

Inputs per channel: Preamplifier, Generator, Expander, Compressor, Auto Gain, 5-band parametric EQ;

Outputs per channel: delay, crossover, limiter, 31-band graphic EQ;

Chinese name can be set independently for each channel;

Test signal generator, sine wave, pink noise, white noise, frequency and level magnitude selectable;

Input phase switch, mute switch, phantom power switch;

Output mute switch, phase switch per channel;

Flexible switching between Chinese, Traditional and English languages;

One-click display of all function modules;

Storing Chinese help document and software with the machine;

Central control code generated in the control software; power failure automatic protection memory function; one-key reset function;

Channel copy, paste function;

The same host allows 10 users to manage, the user name can be set to Chinese;

Device name can be modified, Chinese name is allowed;

Editable preset mode, new, delete, modify, one-key initialization, preset mode can be stored to computer and one-key recovery; With camera tracking function, can independently adjust the preset position of a camera, compatible with VISCA, PELCO-D, PELCO-P three control protocols, support for custom commands;

Convenient and fast web control: Built-in web controller for fast operation on Windows, macOS, Linux, Android, iOS and other platforms;

Ethernet multi-purpose data transmission and control port, can support real-time management of single and multiple devices;

Intuitive image, simple and easy to understand the graphical software control interface, for customers to bring fast, real-time operating experience;

The device does not need a disc, comes with installation software, a device for a software version, to solve the troubles caused by the loss of the installation disc and the confusion of multiple software versions

Extendable USB interface, support USB music playback and recording function;

Configuration of bi-directional RS232 interface, RS485 interface, standard Ethernet control interface, 4-channel programmable GPIO control interface (customisable inputs and outputs), level support for external inputs 3.3 ~ 24V;

Support 8 groups of scene presets, scene increase, save, delete and other functions;

Intuitive, graphical software control interface, can work in Windows XP, 7, 8, 10, 11 and other system environments;

Specification

Control System

The Swift Control system brings users a more intuitive operating experience and a more intelligent audio processor experience. The clients supports Windows and Android system, Supports Browser-side controlmethods,and is fully compatible with IE,Chrome, and Firefox.

Automatic Noise Canceler: Select the signal that needs noise cancellation processing, and the processed signal is output in the mixer by selecting the corresponding channel;
