Dante 4ch 300W 600W Class D Amplifier with DSP and Dante
Newest Class D Dante Amplifier with DSP and Dante,Control Via GPIO,TCP/IP,Web GUI and optional control panel
| Weight | 1880 g |
|---|---|
| Dimensions | 24 × 21 × 4.4 cm |
| Input | 1x Dante Network audio input |
| Output | 1x Dante Network audio output |
| Input Sensitivity | Full power@0.775V (0dBu) |
| Output power | DC power supply: 2x 75W@4Ω/8Ω; 1x 150W@8Ω; 1x 150W@70V/100V |
| Max Voltage Gain | 27 – 30dB SE/39 – 42dB BTL |
| Audio Format | LINE IN [Analog audio, Balanced 2CH, Max input level 2VRMS] |
| Control | RS232,TCP/IP, Web GUI |
Detailes About Dante 4ch 300W 600W Class D Amplifier with DSP and Dante

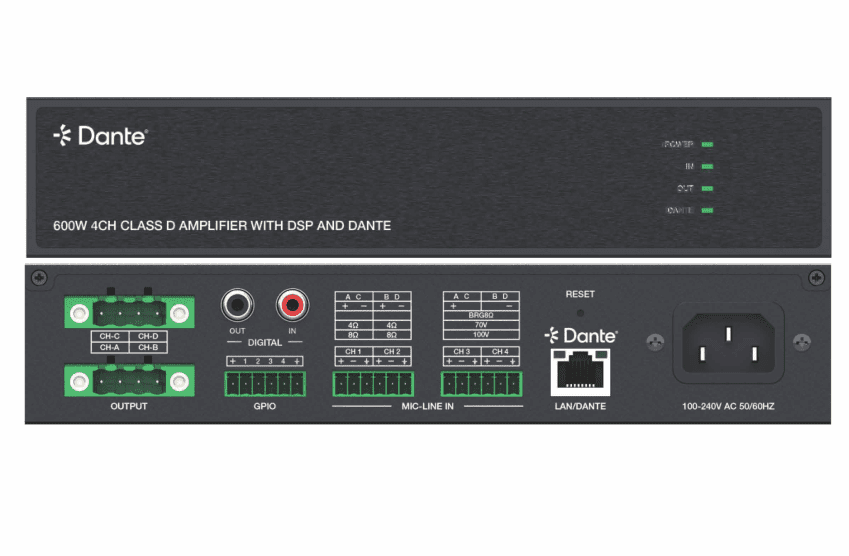

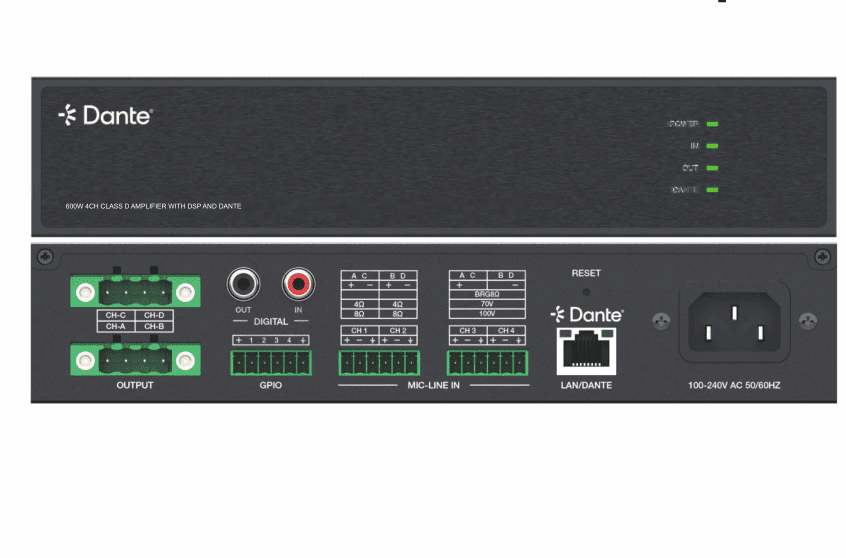

4 Channel 300W 600W Class D Amplifier with DSP DANTE
Introduction
This product is designed as a four-channel amplifier using class D amplifier technology. It can be used for powering low impedance (4Ω/8Ω) stereo systems with a maximum power of 4 x 150 Watt, while bridging to a constant voltage (100V and 70V) is possible with a maximum output power of 300W /600 Watt. It features Dante 4CH digital inputs and outputs, and balanced or unbalanced line level analog inputs and outputs. This amplifier can be controlled via RS-232, LAN and Web GUI. It also features built-in DSP, auto-standby and maximum durability. It is suitable for a vast range of AV installations.
Features
Professional-Grade Class D Audio Amplifier, Power Range 300W/600W
300W Single-channel 4×75W @ 4/8Ω, Bridged 2×150W @ 4/8Ω or 70/100V
600W Single-channel 4×150W @ 4/8Ω, Bridged 2×300W @ 4/8Ω or 70/100V
Full DSP Configuration via Web GUI and API
Supports Dante Network Audio, 2×2 Channels
Audio Digital Signal Processing (DSP) Features: Gain, Ducking, Mixing, Matrix Processing, Equalizer, Volume, and Delay Control
High-Pass Filter Technology for Clear and Natural Sound Quality
Provides Digital Audio Input/Output for Cascade Connection
Each Output Supports up to 100ms Delay (34.3 meters)
Supports Low Impedance (4Ω/8Ω) and High Impedance (70V/100V) Signal Output
Control via GPIO, TCP/IP, Web GUI, and Optional Control Panel
Package
① 1 x 300W/600w Class D Amplifier ② 3 x 5pin-3.81mm Phoenix Connector (male) ③ 2 x 4pin-5.08mm Phoenix Connector (male) ④ 6 x Mounting Ear ⑤ 24 x Machine Screw ⑥ 1 x AC (100-240V) Multinational Power Cord (1.5 meters) ⑦ 1 x User Manual
