4 Channel Bluetooth 5.0 Dante Audio Transmission Panel (Dante 4×4)
4CH Bluetooth Dante Transceiver, Support phone, tablet playback. Bluetooth Audio Network POE Dante
| Weight | 500 g |
|---|---|
| Dimensions | 13 × 11 × 3 cm |
| Input ports | Dante *4, Bluetooth 5.0, stereo, RCA*2、3.5mm TRS*1 |
| Output ports | Dante *4, Bluetooth 5.0, stereo ,3.5 mm TRS*1 |
| Frequency Response | 20Hz-20kHz |
| Signal-to-noise ratio | >100dB |
| THD+N | <0.005% |
| Background noise | -90dB |
| Power Consumption | 2W |
| Operating Temperature | -10℃ – 40℃ |
| Operating Humidity | 5-95% |
Detailes About 4 Channel Bluetooth 5.0 Dante Audio Transmission Panel (Dante 4×4)
4 Channels Bluetooth Transmission Panel
Introduction
It is a Interchange device for Dante audio channel (4 x4) , Bluetooth wireless audio interface (2 X2), and analog audio interface (RCA or TRS) , It uses PoE power supply,and installed in the wall.
Audio transmission and power supply of the device are solved by a network cable, simple to use.
Features
· Easy to use: Press the button to complete the Bluetooth pairing and connect the device, LED lights will show the connection status;
· Good compatibility: Compatible with most smartphones, Apple ipad and Android tablets on the market;
· 3.5 mm TRS*1 Stereo output;
· Bluetooth BT 5.0;
· DATNE 4X4;
· Integration of power supply and audio transmission: PoE network switches power supply, power supply and audio transmission by network cable;
· Bluetooth call bridging feature for conference.

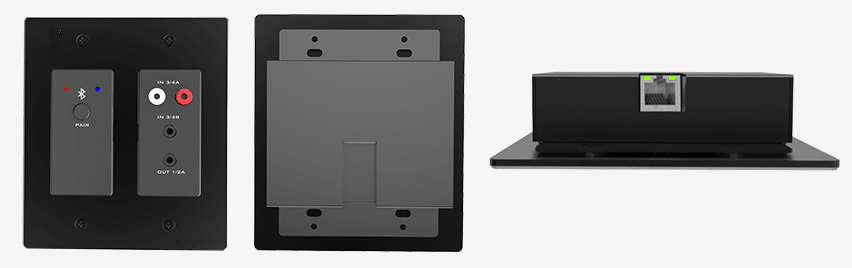

Interface
| Input Interface | Dante *4、 Bluetooth 5.0, stereo, RCA*2、3.5mm TRS*1 | Power Consumption | 2W |
| Output Interface | Dante *4、 Bluetooth 5.0, stereo ,3.5 mm TRS*1 | Operating Temperature | -10℃ – 40℃ |
| Frequency Response | 20Hz-20kHz | Operating Humidity | 5-95% |
| Signal-to-noise ratio | >100dB | Dimension(LxWxH) | 123.5mm×109.1mm×30mm |
| THD+N | <0.005% | Weight | 310g |
| Background noise | -90dB |

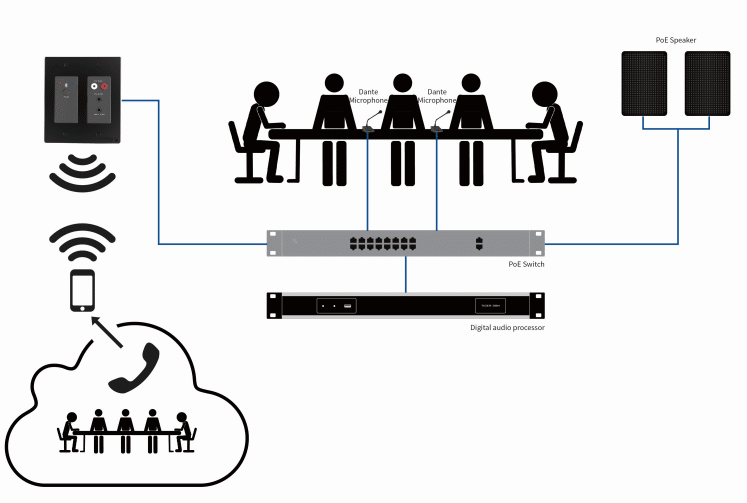

Mainly suitable for teleconferencing, audio media transmission and other scenes.
All Dante connection
