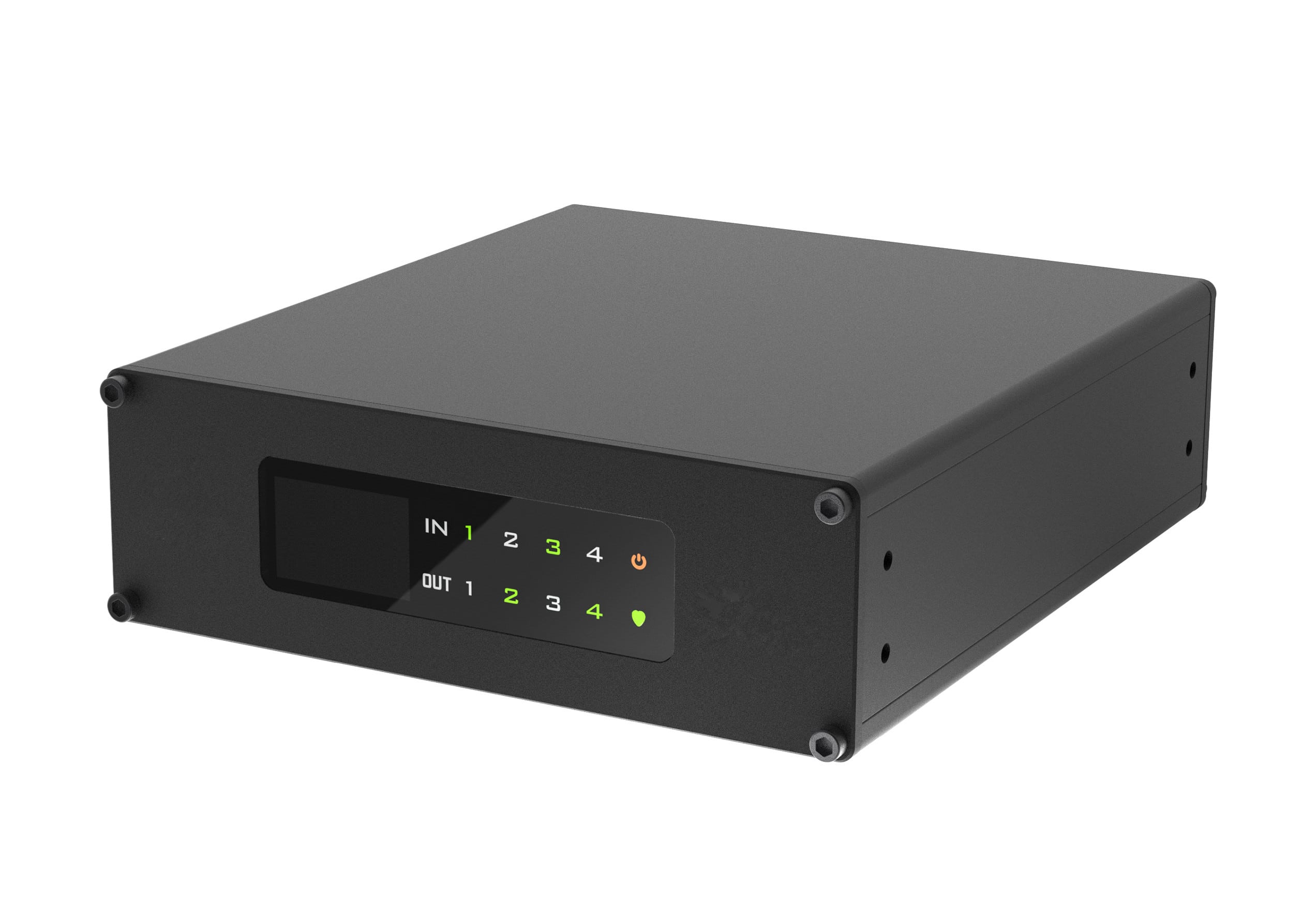

4×4 Dante Audio Processor Box

Dante Audio Processor 4X4 with USB port

Additional information

Weight 500 g
Dimensions 7.6 × 7 × 2 cm
Analog Channels

4-Channel Balanced Inputs + 4-Channel Balanced Outputs

Dante Channel

4ch input+4ch output

Input Gain Amplification

-6~36dB, 6dB level total 8 levels

Markets

Conference room , theatre, multifunction room,

Frequency Response

20~20KHz,±0.5dB

Detailes About 4×4 Dante Audio Processor Box

4 CH Dante DBOX

Overview

DBOX series network audio interface machine provides the interconversion of network digital audio signal and analog audio signal.

4×4 is an excellent choice for digital upgrading and expansion of analog multimedia system.

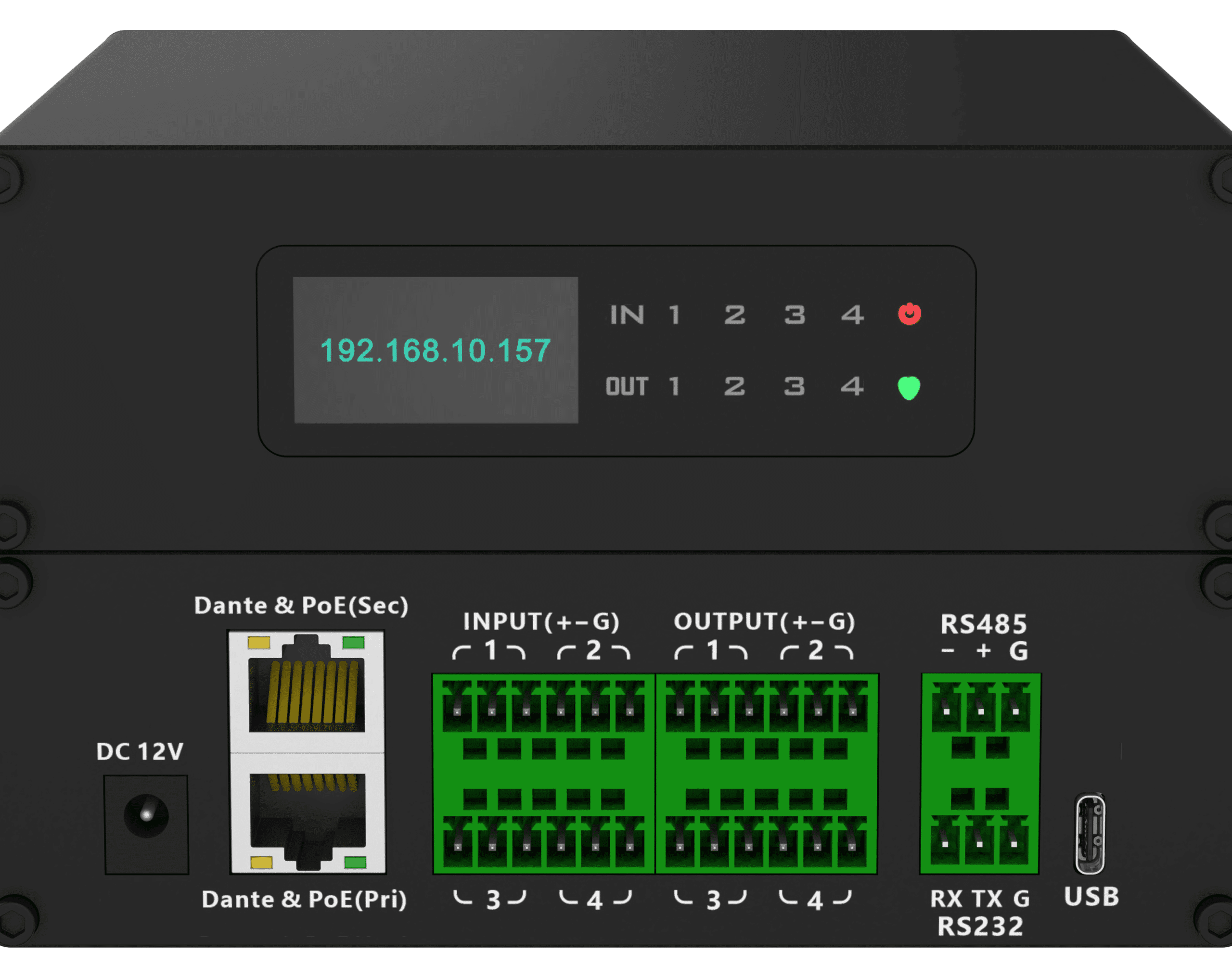

We have the Dante 4×4 audio processor with USB port (USB-C and USB-A)port for phone/Pad/Tablet control.

SNAD44U     4X4 with USB-C port  Supports analog audio input and output + USB C sound card audio input and output + Dante (transmitter and receiver)

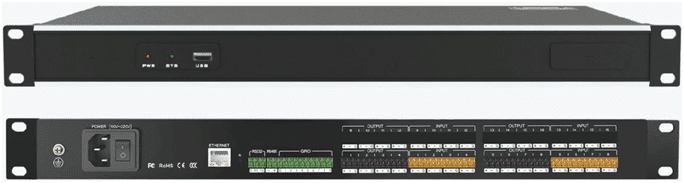

SNAD88U      8×8 with USB-A port   Supports analog audio input and output + USB sound card audio input and output
SNAD88UD      8×8 with USB-A port   Supports analog audio input and output + USB sound card audio input and output+ Dante (transmitter and receiver)

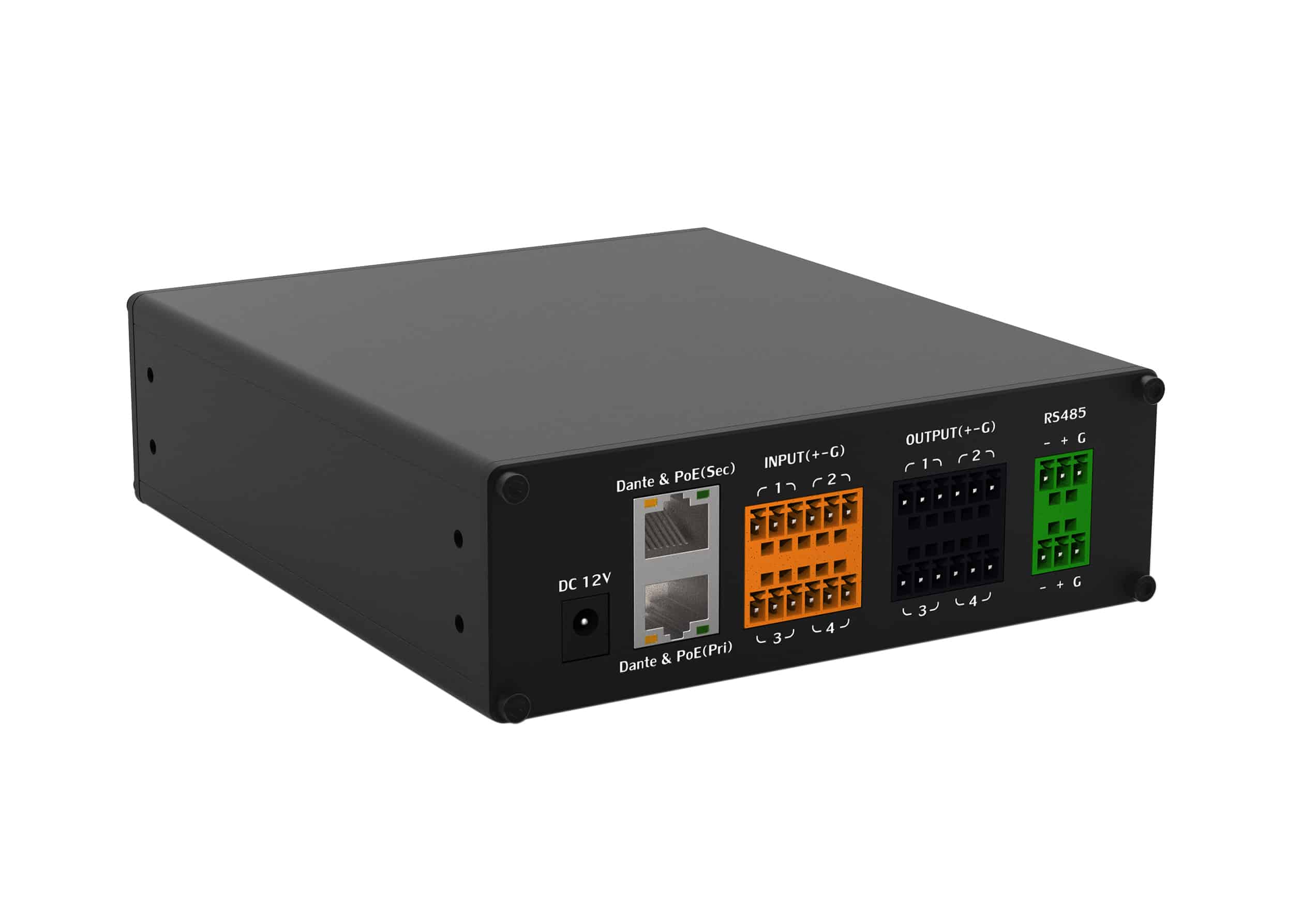

4x4 dante audio processor box
4 in 4 out Dante interface
1. Input and output signal matrix mixing, mixing component control, 24bit/48KHz sampling frequency, high-performance dual-core floating point high-speed DSP processor;
2. Input each channel: front stage amplification, 5-stage parameter equalization, compressor, dodge, AFC, AEC, ANC;
3. Output per channel: 31 graphic equalizer, limiter;
4. Input mute switch, analog input channel phantom power supply switch;
5. Output mute switch for each channel;
★6. Support PC client software control, built-in client, support online download;
7. Intuitive, graphical software control interface, can work in Windows7, 8, 10, 11 and other system environment;
★8. Configure RS485 interface, two-way RS485 interface, standard Ethernet control interface and USBTypeC sound card interface;
9. Support 8 groups of scene preset, scene add, save, delete and other functions;

CONTROL SYSTEM

DBOX software system can provide users with more intuitive operation experience and more intelligent audio processing experience, client support Windows, IOS, Android system fully compatible with IE, CHROME, FIREFOX.

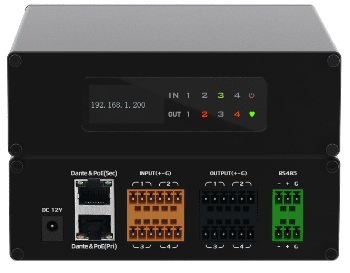

4x4 dante audio processor box

PRODUCT PARAMETERS

Analog Channels 4-Channel Balanced Inputs + 4-Channel Balanced Outputs Frequency Response 20~20KHz,±0.5dB
Dante Channel 4ch input+4ch output THD+N ≤0.005% @ 4dBu
Input Gain Amplification -6~36dB, 6dB level total 8 levels Digital-Analog Dynamic Range 114dBu
Number of Quantization Bits 24bit Analog to Digital Dynamic Range 114dBu
Sampling Rate 48kHz Input Impedance (Balanced) 20KΩ
Phantom Power (per input) 48V Output Impedance (Balanced) 100Ω
EIN (A-weighted) ≤-110dBu Channel Isolation 100dB@1kHz,4dBu
Common Mode Rejection 80dB@80Hz Background Noise -88dBu
Maximum Input Level 10dBu Maximum Output Level 14dBu
System Delay <3ms Operating Temperature 0-40℃
Operating power supply AC110V-220V,50Hz/60Hz;POE48V;DV12V Dimension (WXDXH) 142*157*46mm

APPLICATION SCENARIO

Large conference room, multi-function hall, theater, conference center, extended processor input and remote signal access, distributed processing to reduce the burden of audio processing in the computer room.

Application with USB port audio in&Out : its a mic mixer and preamp with phoenix connections that lets you connect up to 4,6,8 mics and it has a USB output (USB-C and USB-A).

Uses it in meeting rooms ,you can connect several mics and plug the USB in to a USB-C hub. So when people use the meeting room with Teams or ZOOM they use the USB-C dock and get access to all the mics.

USB ports support Audio in and out. No need driver when using these processors. Easy Plug and Play.
