Digital Audio Processor 8×8,12×12 16×16 with Dante 8×8 12×12 16×16
Digital Audio Processor 8X8 12×12 16×16 for Video Conference Audio System
| Weight | 3500 g |
|---|---|
| Dimensions | 59 × 43 × 11 cm |
| Number of Analog Channels | 8/12/16-channel balanced/line input + 8/12/16-channel balanced/line output |
| Number of Dante Channels | 8/12/16 ch input+8/12/16 ch output |
| Sampling Rate | 48k@24bit |
| 232,485port | 1 x 232 port, 1x 485 port |
| GPIO | 8, freely configurable inputs and outputs |
| RJ45 | 3 X RJ45 Ports |
| USB port | 1 USB Type A |
| Input Impedance (Balanced) | 20kΩ |
| Output Impedance (Balanced) | 100Ω |
| Background noise | -90dBu |
| THD+N | ≤0.004% @4dBu |
| EIN (A-weighted) | ≤-125 dBu |
| Channel Isolation | 100dB @1k Hz, 4dBu |
| Max Input to Output Level | 18dB |
| Common Mode Rejection | 70dB@80Hz |
| System delay | ≤9ms |
Detailes About Digital Audio Processor 8×8,12×12 16×16 with Dante 8×8 12×12 16×16
Introduction
The digital audio processor equipped with a high-performance 32-bit floating-point DSP processor and A/D ~ D/A converter, support for 24bit/48KHz sampling frequency, high-quality 21-stage preamplifier circuit, DSP processing bus structure built-in feedback elimination, echo cancellation, noise cancellation, automatic mixing and other audio core algorithms, to restore high-quality sound, with a comprehensive matrix mixing function It supports multiple scene presets, scene saving and other functions, and user-friendly control software interface.
Mainly used in a variety of large places, can meet the theatre, concert halls, remote video conferencing, stadiums, churches, conference center, theme parks, public sound reinforcement systems and other aspects of the application needs.
Features
Highly integrated, integrating a variety of traditional Analog audio processing equipment in a Digital audio processor;
High-performance 32-bit floating-point DSP processor, all-digital processing, fast response to feedback elimination, echo cancellation, noise cancellation and other core algorithms;
High-performance A/D, D/A converter, 24bit/48KHz sampling frequency, high-quality Analog → Digital, Digital → Analog conversion;
16 Analog input channels and 16 Analog output channels, very small distortion and ultra-low background noise;
Rich interface expansion;
Supports Dante network transmission, which makes audio transmission more stable and faster;
Humanization, graphical, intuitive and easy-to-operate control software interface;
Comprehensive matrix mixing functions;
Scene storage is different from the Analog equipment is one of the most practical and significant features, can store 100 complete scenes, all the scenes can be exported to an external storage device for storage backup, so that the later call at any time.
Function
Comprehensive matrix mixing function, 24bit/48KHz sampling frequency, high performance A/D, D/A converter and 32-bit floating point DSP processor
DSP audio processing, built-in automatic mixing console, including mixing and automatic mixing functions, but also has a mixing component control function; at the same time with AFC, AEC, ANS module;
Inputs per channel: Preamplifier, Generator, Expander, Compressor, Auto Gain, 5-band parametric EQ;
Outputs per channel: delay, crossover, limiter, 31-band graphic EQ;
Chinese name can be set independently for each channel;
Test signal generator, sine wave, pink noise, white noise, frequency and level magnitude selectable;
Input phase switch, mute switch, phantom power switch;
Output mute switch, phase switch per channel;
Flexible switching between Chinese, Traditional and English languages;
One-click display of all function modules;
Storing Chinese help document and software with the machine;
Central control code generated in the control software; power failure automatic protection memory function; one-key reset function;
Channel copy, paste ,joint control function;
The same host allows 10 users to manage, the user name can be set to Chinese;
Device name can be modified, Chinese name is allowed;
Editable preset mode, new, delete, modify, one-key initialization, preset mode can be stored to computer and one-key recovery;
Input and output channels can be set independently of the colour,one-key recovery switch
With camera tracking function, can independently adjust the preset position of a camera, compatible with VISCA, PELCO-D, PELCO-P three control protocols, support for custom commands;
Convenient and fast web control: Built-in web controller for fast operation on Windows, macOS, Linux, Android, iOS and other platforms;
Ethernet multi-purpose data transmission and control port, can support real-time management of single and multiple devices;
Intuitive image, simple and easy to understand the graphical software control interface, for customers to bring fast, real-time operating experience;
The device does not need a disc, comes with installation software, a device for a software version, to solve the troubles caused by the loss of the installation disc and the confusion of multiple software versions
Extendable USB interface, support USB music playback and recording function;
Configuration of bi-directional RS232 interface, RS485 interface, standard Ethernet control interface, 4-channel programmable GPIO control interface (customisable inputs and outputs), level support for external inputs 3.3 ~ 24V;
Support 100 groups of scene presets, scene increase, save, delete and other functions;
Intuitive, graphical software control interface, can work in Windows XP, 7, 8, 10, 11 and other system environments;
Support Mobile iOS,iPadOS,Android control software.
Specification
Number of Analog Channels: 8 balanced/line inputs + 8 balanced/line outputs
12 balanced/line inputs + 12 balanced/line outputs, 16 balanced/line inputs + 16 balanced/line outputs
Number of Dante Channels:8 inputs + 8 outputs,12 inputs + 12 outputs,16 inputs + 16 outputs
| Sampling Rate | 48k@24bit | ||||||||
| Preamplification | 51dB(3dB per step, 17 steps in total) | ||||||||
| Phantom Power | 48V | ||||||||
| Frequency Response | 20Hz ~ 20K Hz, ±0.3dB | ||||||||
| THD+N | ≤0.005% @1k, 4dBu | ||||||||
| Digital-analog Dynamic Range (A-weighted) | 114dB | ||||||||
| Analog-digital Dynamic Range (A-weighted) | 120dB | ||||||||
| Input Impedance (Balanced) | 20kΩ | ||||||||
| Output Impedance (Balanced) | 100Ω | ||||||||
| EIN (A-weighted) | ≤-125 dBu | ||||||||
| Channel Isolation | 100dB @1k Hz, 4dBu | ||||||||
| Common Mode Rejection | 70dB@80Hz | ||||||||
| Maximum Input Level | 18dB | ||||||||
| Maximum Output Level | 18dB | ||||||||
| Background Noise | -90dBu | ||||||||
| System Delay | ≤9ms | ||||||||
| Operating Power | AC110V-220V,50Hz/60Hz | ||||||||
| Operating Temperature | 0-40℃ | ||||||||
| Chassis Size(WxDxH) | 482*258*45(mm) | ||||||||

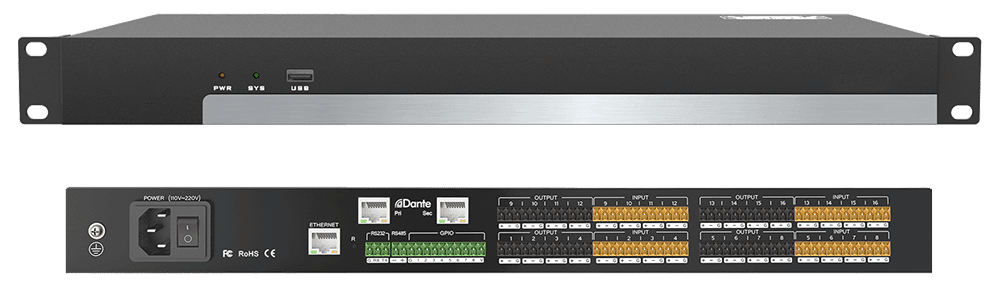

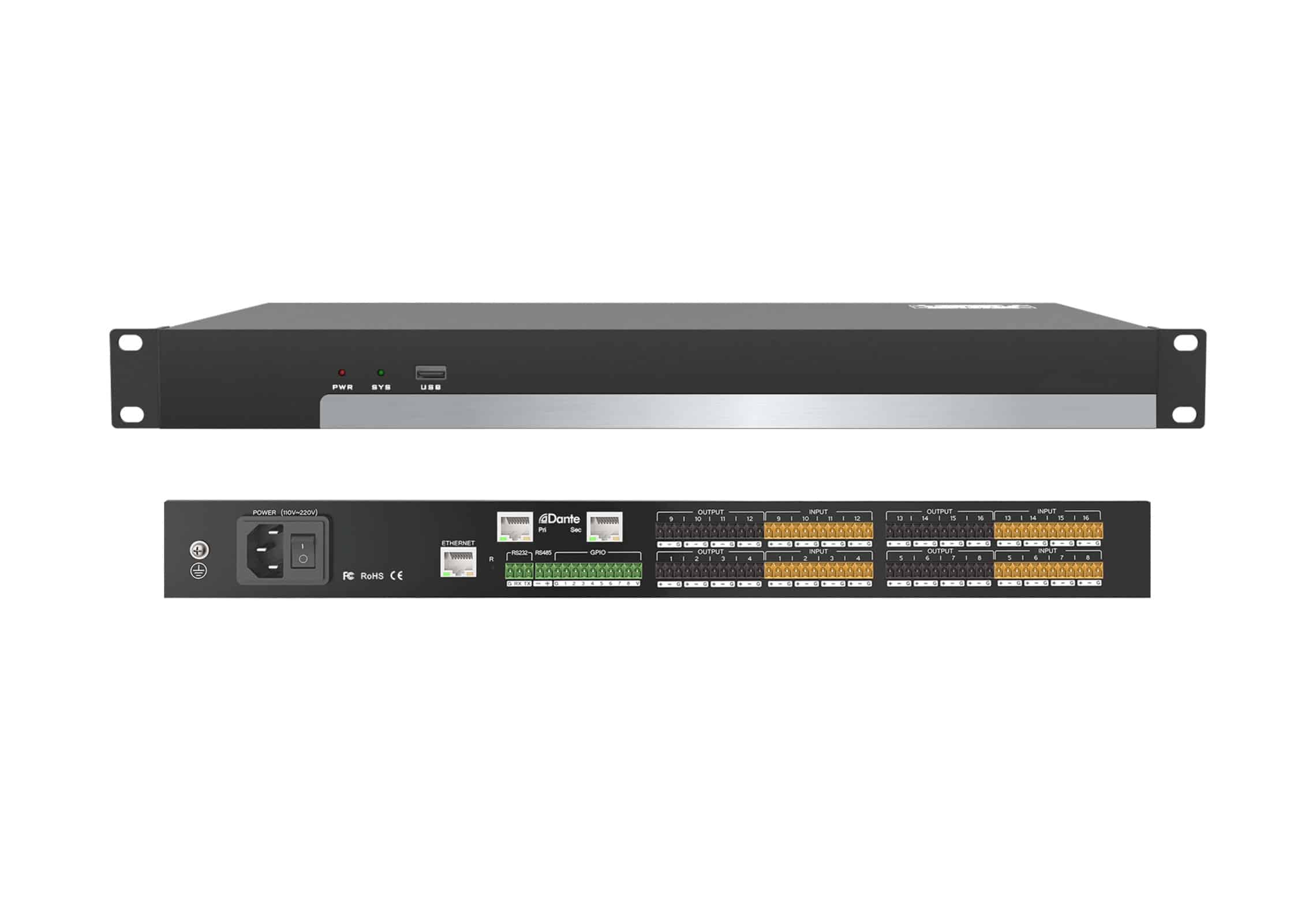

Front
Rear
Note: This manual takes 16-channel device as an example for illustration, please refer to the actual device for details.
Control System
The Control system brings users a more intuitive operating experience and a more intelligent audio processor experience. The clients supports Windows and Android system, Supports Browser-side controlmethods,and is fully compatible with IE,Chrome, and Firefox.
AFC, AEC, ANS
Automatic Feedback Canceler: Used to eliminate the whistling generated between the microphone and speakers in the sound reinforcement system, thus capturing the frequency that causes the whistling for attenuation to ensure the quality of the sound as well as to prevent burning out of the amplifier or speakers.
Automatic Echo Canceler: Set the signal that needs to be processed by the Echo Canceler, and the processed signal selects the output channel in the Mixer;
Automatic Noise Canceler: Select the signal that needs noise cancellation processing, and the processed signal is output in the mixer by selecting the corresponding channel;
Matrix Mixer
