bluetooth audio to dante audio panel dante 2x2 xlr audio encoder decoder with poe (复制)
bluetooth audio to dante audio panel,aes67 rtp, poe,webgui dante controller
bluetooth audio to dante audio panel,aes67 rtp, poe,webgui dante controller
bluetooth audio to dante audio panel,aes67 rtp, poe,webgui dante controller

Bluetooth Audio to Dante Audio Panel,AES67 RTP, POE,WebGui Dante controller

Bluetooth Audio to Dante with POE,Bluetooth Analog Audio to Dante panel, AES67 RTP ,US/EU Type,Support API,WebGui, Dante Controller

Weight 500 g
Dimensions 13 × 11 × 3 cm
Panel

Bluetooth to Dante interface, Bluetooth with L/R Audio out to Dante (POE)
AES67 Protocol

Support

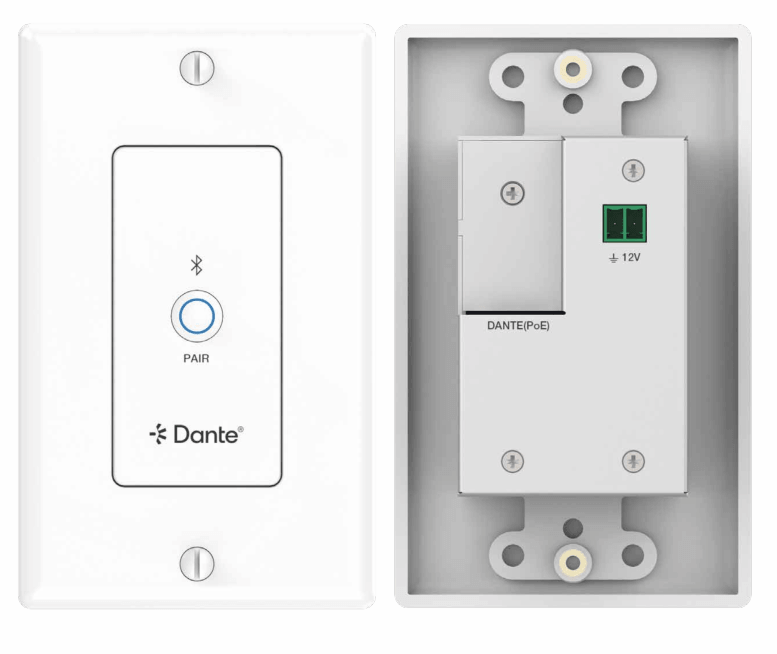

US Size

Wall plate: 95mm [W] x 105mm [H] x 41.2mm [D]
Faceplate: 115mm [W] x 115mm [H] x 6mm [D]
Without faceplate: 359g,With faceplate: 452g
Power supply

1. PoE/PD (Class 0 IEEE 802.3af)
2. DC 12V (for the case that Switch does not support PoE)
Two bluetooth device

Support
Audio Latency

Configurable Dante® device latency
(Supports 1, 2 or 5ms configurable using Dante®Controller)
Bluetooth Volume Control

Support
Bluetooth Audio

Pre/Next/Pause

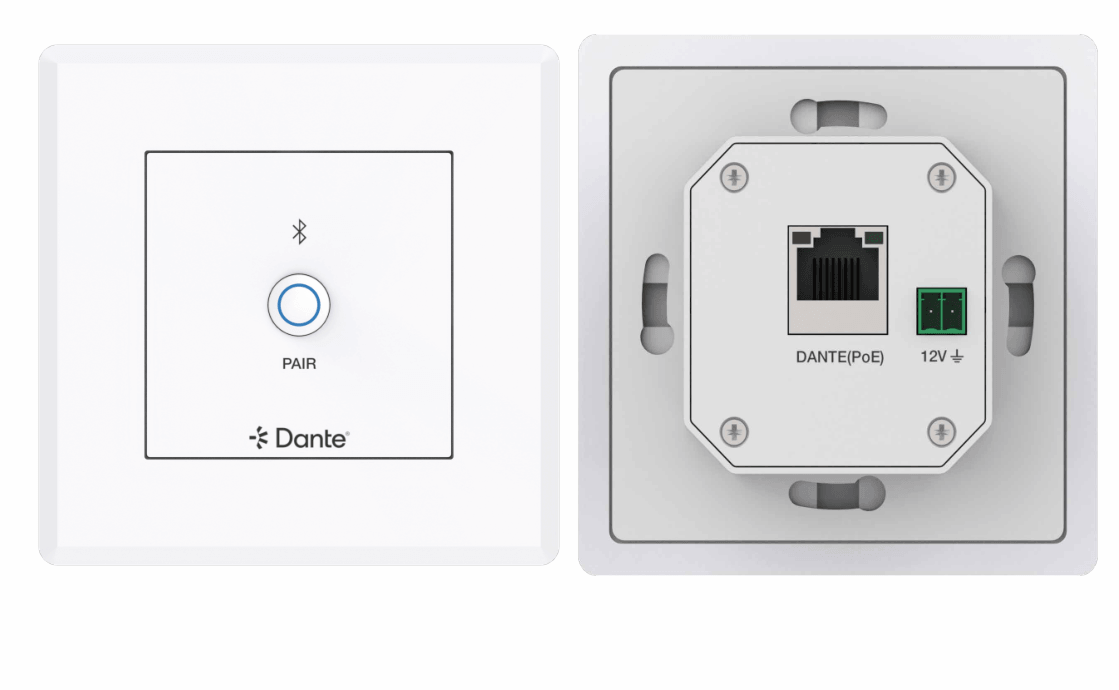

EU/UK Size

Wall plate: 136mm [W] x 75mm [H] x 40.7mm [D]
Faceplate: 146mm [W] x 85mm [H] x 5mm [D]
Without faceplate: 275g,With faceplate: 347g
Control

Button, WebGui,Dante Controller
Bluetooth Analog

RCA or 3.5mm Audio input

Get Free Quote & Catalog

Privacy Policy: Security and Privacy Guaranteed 100%!
Quote Now

Detailes About Bluetooth Audio to Dante Audio Panel,AES67 RTP, POE,WebGui Dante controller

Bluetooth Audio input to Dante Output Panel,POE, US/EU type

bluetooth audio to dante audio panel dante 2x2 xlr audio encoder decoder with poe (复制) Features

Dante Network Wall Panel Interface — Bluetooth Input

Bluetooth V5.0, SBC / AAC / APTX / APTX-LL / APTX-HD codec, 192kHz @ 24bit

Configurable Bluetooth device name for quick device search

Supports switching between Bluetooth signals at the input end

Supports up to 2 simultaneous Bluetooth connections

Supports Bluetooth volume adjustment, volume range 0-16

Bluetooth audio previous/next/pause function

Supports displaying album information for the audio source

Supports upgrading Bluetooth software via USB-C port

PoE power supply (Class 0, IEEE 802.3af) or local 12V DC power supply

Supports AES67 RTP audio transmission protocol

Supports front panel buttons, Web GUI, and Dante Controller control

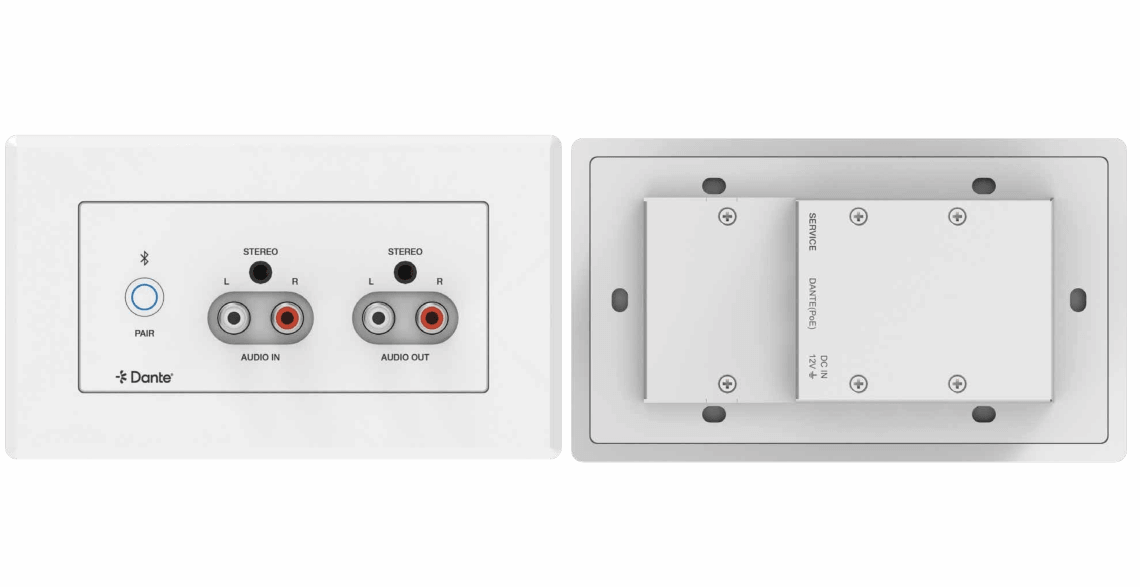

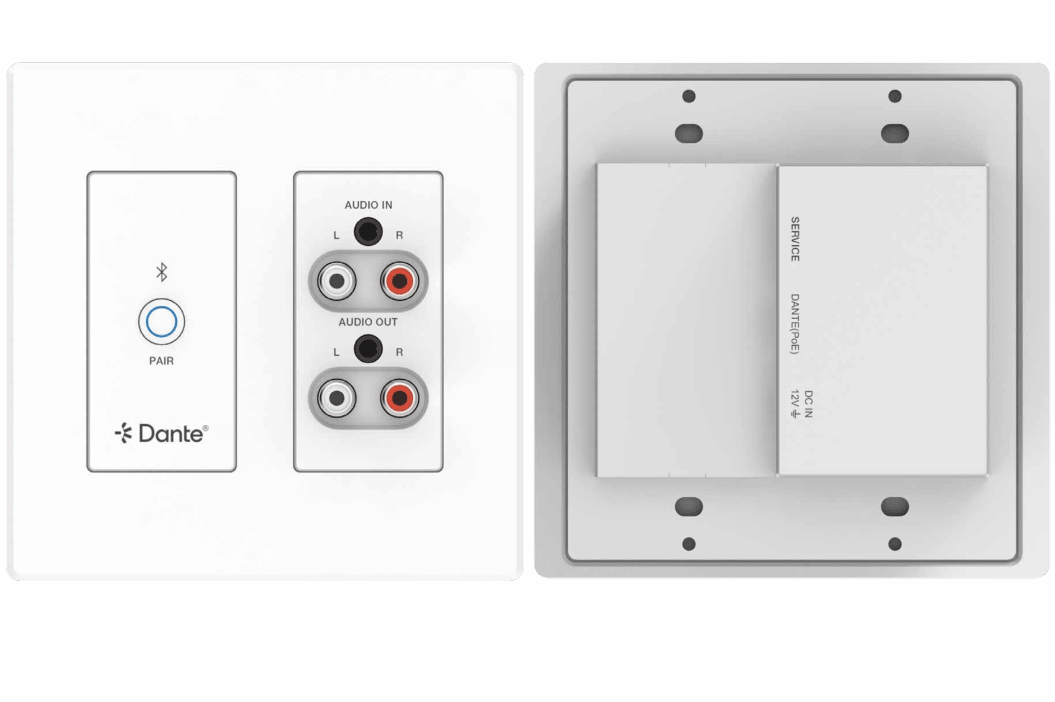

Bluetooth & Analog Audio input to Dante Output Panel,POE,

US/EU type bluetooth audio to dante audio panel,aes67 rtp, poe,webgui dante controller

Features

Dante Network Wall Panel Interface — Bluetooth/Analog Audio Input/Output Switch

Supports Bluetooth input or analog audio input (RCA or 3.5mm), and can output to both RCA and 3.5mm simultaneously.
Analog input sensitivity adjustable: +24dBu, +4dBu, 0dBu, -10dBV, -28dBV (set via control software)
Output gain adjustable: +18dBu, +4dBu, 0dBu, 0dBV, -10dBV (set via control software)
Bluetooth: V5.0, compatible with SBC/AAC/APTX/APTX-LL/APTX-HD codecs, 192kHz @ 24bit
Input supports switching between Bluetooth, RCA, or 3.5mm signals.
Configurable Bluetooth name for quick device discovery.
Bluetooth supports up to 2 simultaneous connections.
Supports Bluetooth volume adjustment, volume range 0-16. Bluetooth audio previous/next track/… Pause function
Supports displaying album information for the audio source
Supports upgrading Bluetooth software via USB-C port
PoE power supply (Class 0, IEEE 802.3af) or local 12V DC power supply
Supports front panel buttons, API/Web GUI control, and Dante Controller control
