2026 New 8K60 HDMI 2.1 Extender over One Cat5e/6 up to 50Meter,Bi-directional IR, POC
8K HDMI 2.1 HDMI Extender with Bi-directional IR,Bi-directional POC to 50meter Cat6 Cable, Easy plug and play
| Weight | 400 g |
|---|---|
| Dimensions | 8.8 × 6.1 × 1.8 cm |
| HDMI Version | HDMI 2.1 |
| Video Bandwidth | 48 Gbps FRL and 18Gbps TMDS |
| HDCP | HDCP2.3 |
| Transmission Distance | 50Meter |
| Video Resolution | Up to 8K@60 |
| HDMI audio formats | LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Atmos, |
| IR & POC | Support Bi-directional IR control and bi-directional POC |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 2026 New 8K60 HDMI 2.1 Extender over One Cat5e/6 up to 50Meter,Bi-directional IR, POC
Overview
This is a high-performance, long-reach HDMI extender for HDMI signal transmisson and IR signals over one Cat5e/6 Cable up to 50meter.
It provides exceptional quality, flexible control, advanced and user-friendly operation.
The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.
Resolution up to 8K@60,4K@144Hz,4k@120Hz
HDR10,HDR10+,DolbyVision,HLG
Transmission Distance uo tp 50 meter
7X24 Uninterrupted Working
LPCM7.1CH,DolbyAtmos,DolbyTrueHD,Dolby Digital Plus and DTS-HD Master,DTS X Audio
Bi-directional POC

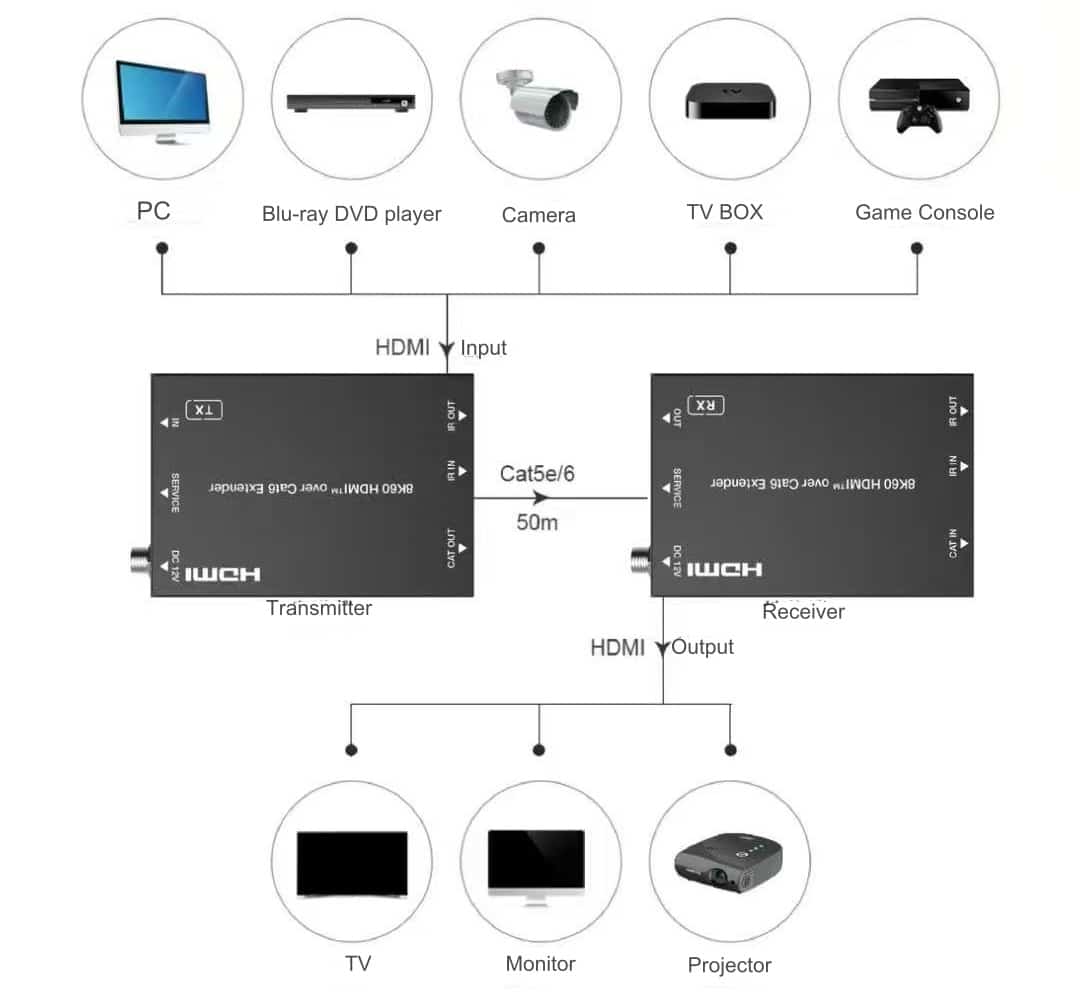

Connection diagram
Features
☆ Compliant with HDCP 2.3
☆ Video bandwidth is up to 48Gbps FRL and 18Gbps TMDS
☆ Video resolution is up to 8K@60 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
☆ Transmission distance is up to 50m/164ft over CAT6 cable
☆ Supports all industry standard video resolutions including VGA-WUXGA and 480i-8K60
☆ HDMI™ re-clocking is helpful to solve HDCP compatibility and handshaking issues
☆ Support HDMI™ audio formats: PCM 2.0, LPCM 5.1, LPCM 7.1, (32K/44.1K/48K/88.2K/96K/176.4K/192K) (16/20/24); Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos; DTS Surround, 96/24, ES, DTS Express, DTS-HD HRA, DTS HD Master, DTS:X
☆ Bi-directional PoC (Power over Cable) function to power extenders from either transmitter or receiver end
☆ CEC and bi-directional IR pass-through
☆ Support HDR10, HDR10+, Dolby Vision, HLG
☆ Support VRR, FVA, ALLM
Packing list
① 1× 8K60 HDMI™ Extender (TX)
② 1× 8K60 HDMI™ Extender (RX)
③ 1× IR Blaster Cable (1.5m)
④ 1× IR Wideband Receiver Cable (1.5m)
⑤ 1× 12V/1A Multinational Power Supply
⑥ 4× Mounting Ear
⑦ 8× Machine Screw (KM3*4)
⑧ 1× User Manual

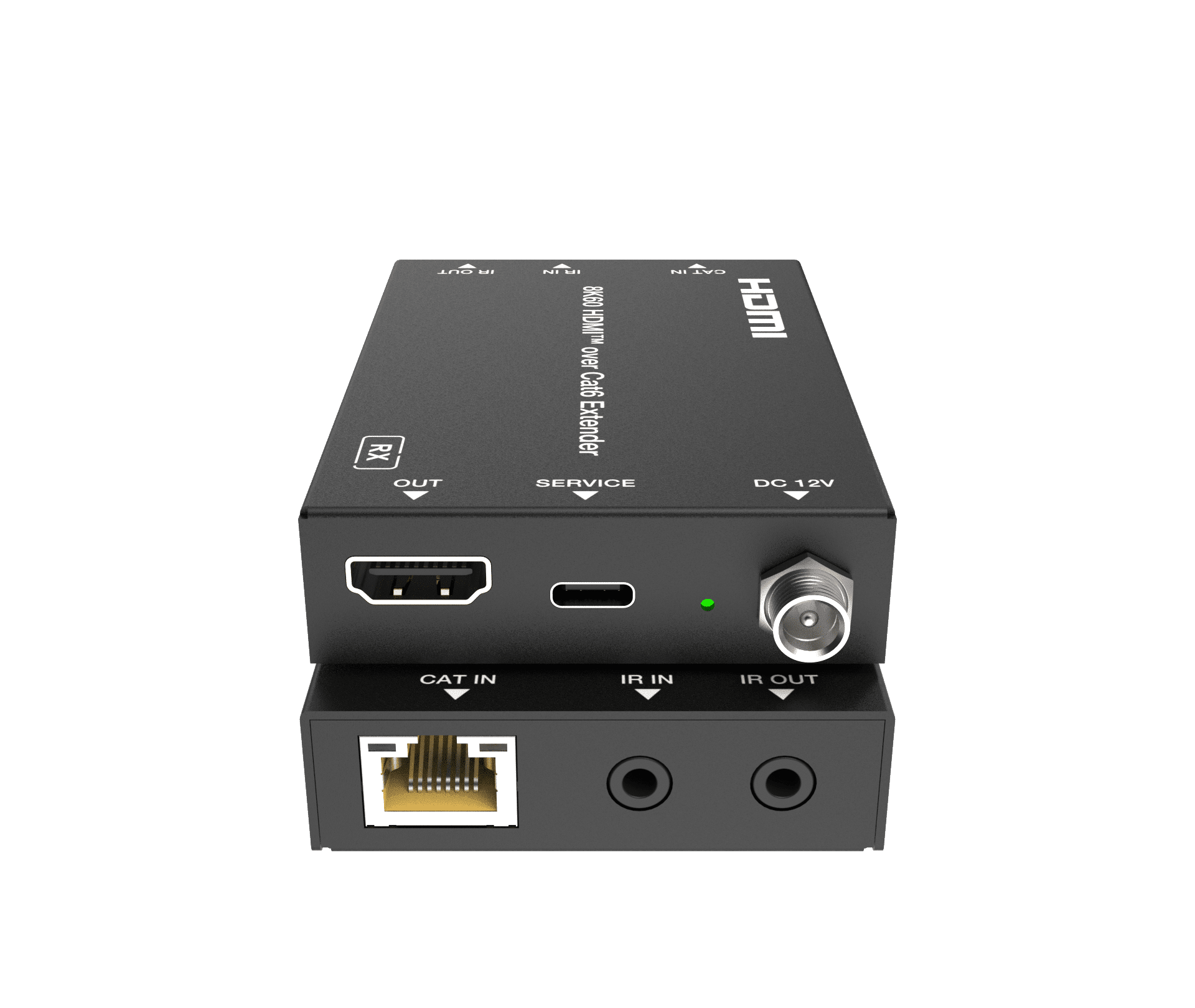

Interface Receiver
Transmitter
Specification
