Introduction

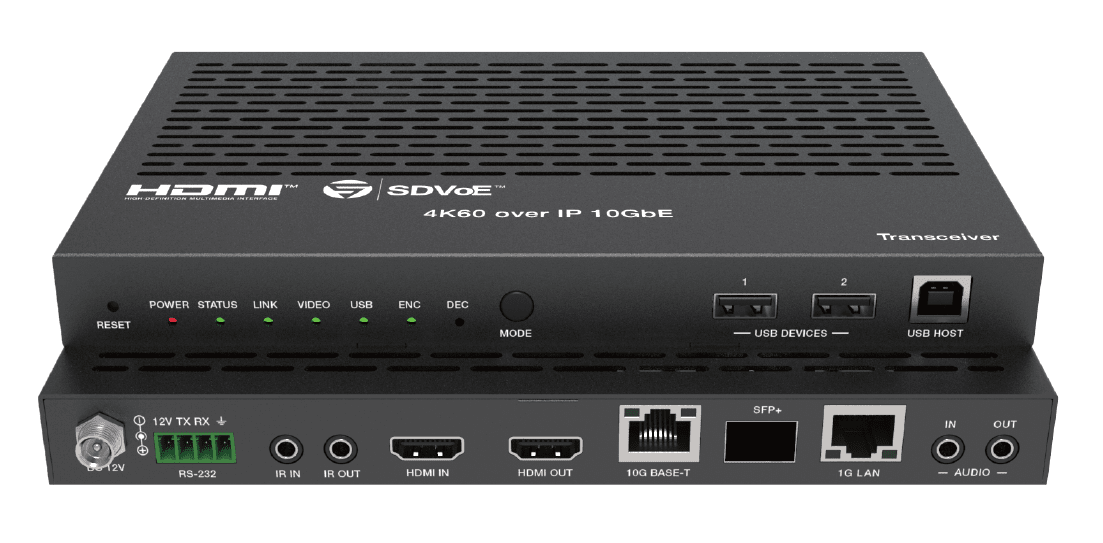

This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that
provides highest-quality, uncompressed 4K and zero-frame latency audio/
video extension over a standard 10G Copper or Fiber Network Switch with
instant switching, Video Wall and MultiView functions.

It can transfer advanced HDMI content such as HDR (high dynamic range), full color-depth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control.

Its built-in Secondary Stream supports a high quality,bandwidth configurable H.264/H.265 compression video stream for portable device preview purpose. Multiple control and data signals can be transmitted along with audio and video signals simultaneously, including bi-directional IR,
RS-232, USB KVM, CEC and 1G Ethernet.

Features

☆HDMI 2.0b and HDCP 2.2 compliant
☆ Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
☆ Flexible transceiver design (Encoder, Decoder, Copper and Fiber ports
within a single box)
☆ Encoder or Decoder mode can be set via Button or API
☆ Automatic detection of Fiber and Copper ports (priority can be set)
☆ Encoder supports HDMI Loop out
☆ Support HDR10, Dolby Vision, HLG, 3D as well
☆ Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X
☆ Support Zero-Frame latency operating mode
☆ Support signal extension, seamless switching, Matrix, Video Wall up to 9×9 and MultiView up to 25 windows
☆ Flexible audio routes control including bidirectional analog audio
transmissions between Encoder and Decoder
☆ Built-in H.264/H.265 Secondary Stream (SS) for preview
☆ Support Secondary Stream VLAN tagging and parameters configuration
☆ Support bi-directional IR and RS-232 control signal pass-through
☆ Support USB2.0 (KVM), CEC routing control
☆ Support IR, RS-232, TCP/IP, Web GUI control
☆ Standard POE supported (802.3at PD device)
☆ 10G managed network switch

Widely used in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.

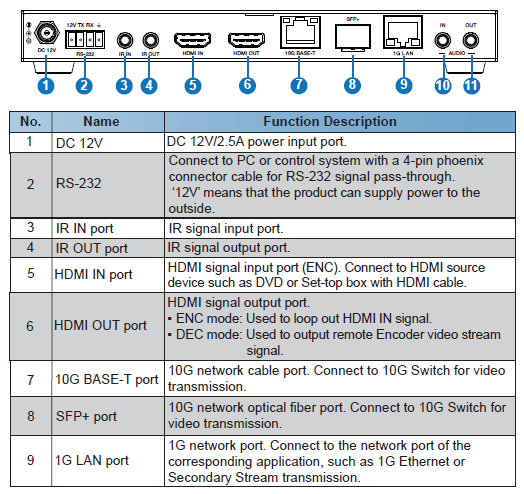

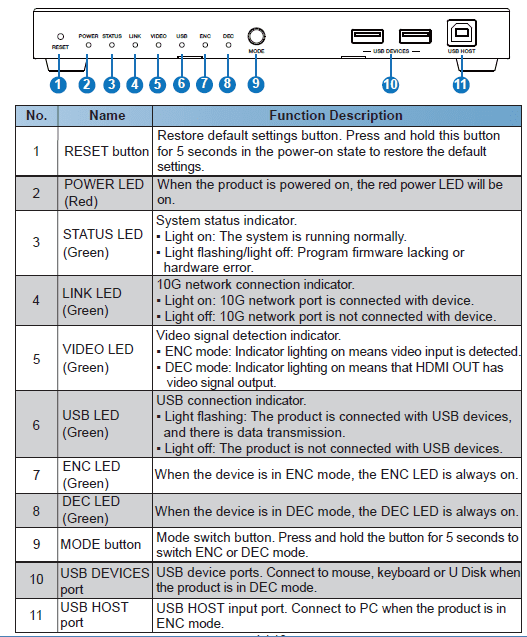

Description of ENC/DEC LED:

(1) When the device is powered on, the ENC/DEC LED flashes for about 15 seconds, and then keeps on, indicating the current ENC/DEC mode.
Press and hold the MODE button for 5 seconds to switch to another mode. The corresponding
ENC/DEC LED flashes for about 30 seconds and then stays on, indicating that the mode is switched successfully.

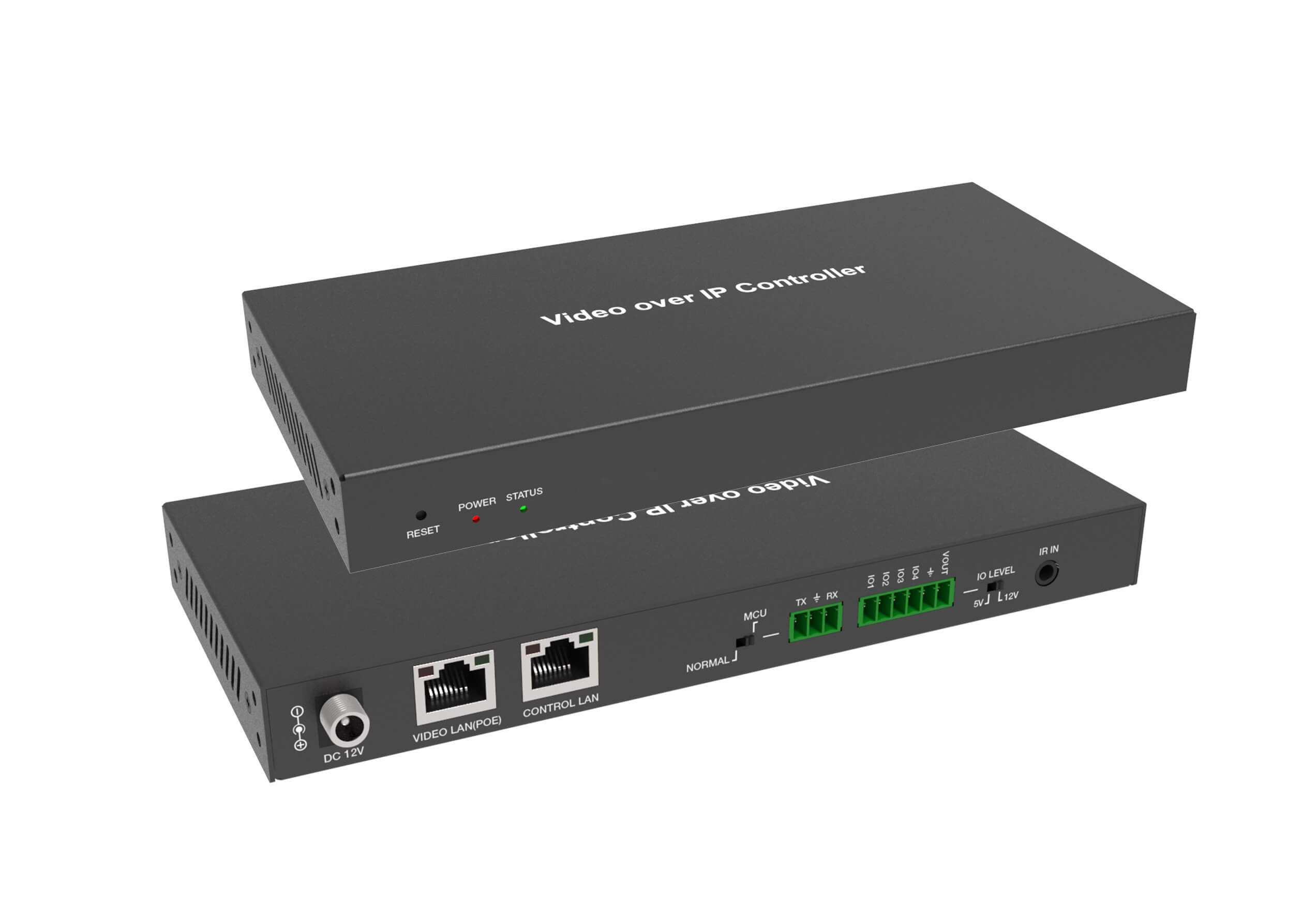

(2) The user can also turn on the SHOW ME mode of the device by the Controller box.
At this time, the ENC/DEC LED flashes to indicate the current corresponding ENC/DEC
device, so that the user can easily find the device.

Connection:

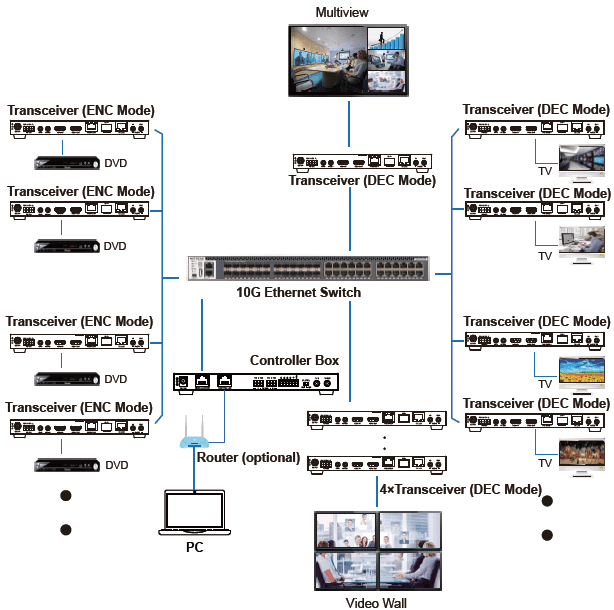

One to One Application

One to Many application

Many to One Applicaiton

Many to Many Application with Controller
