Introduction

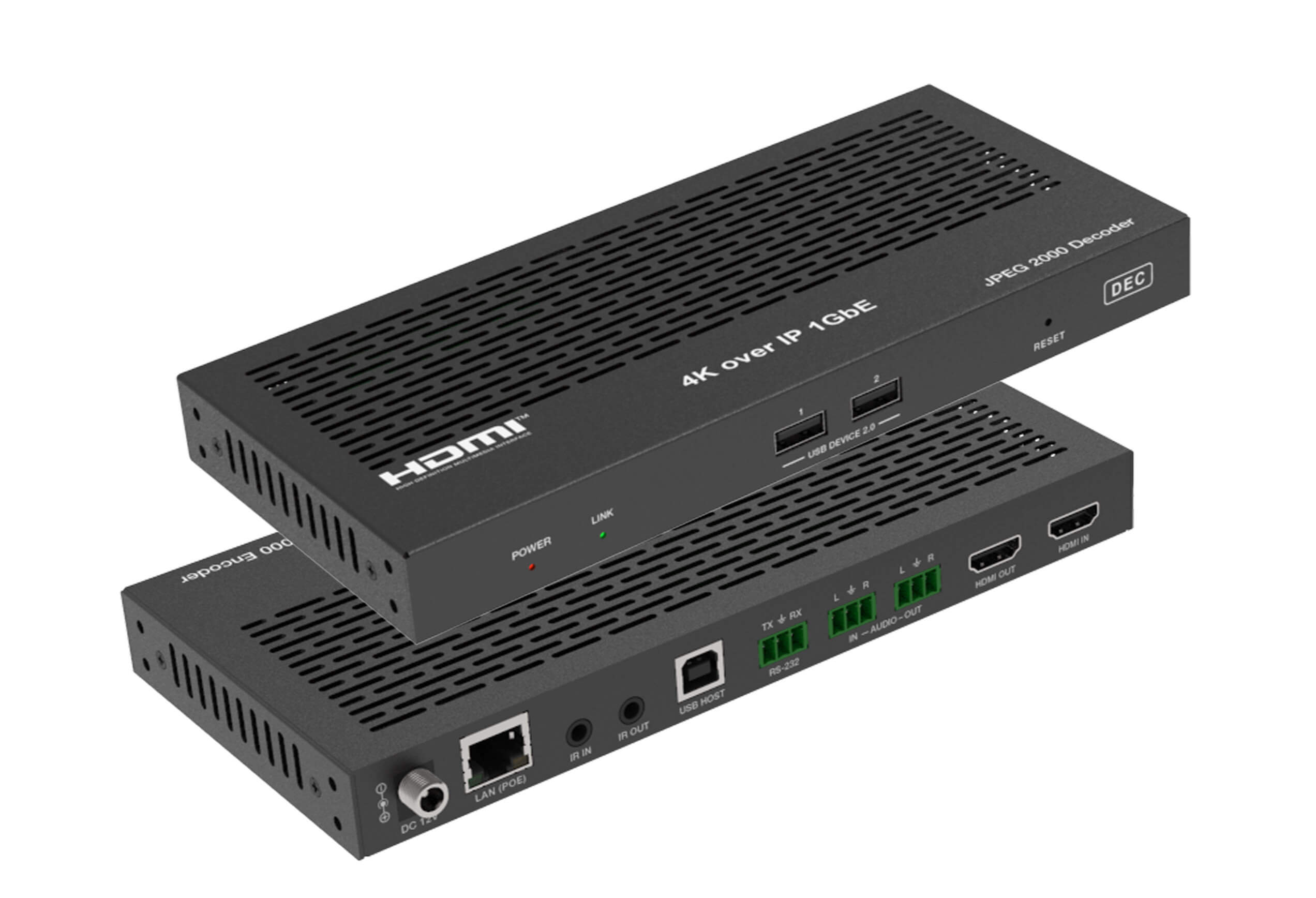

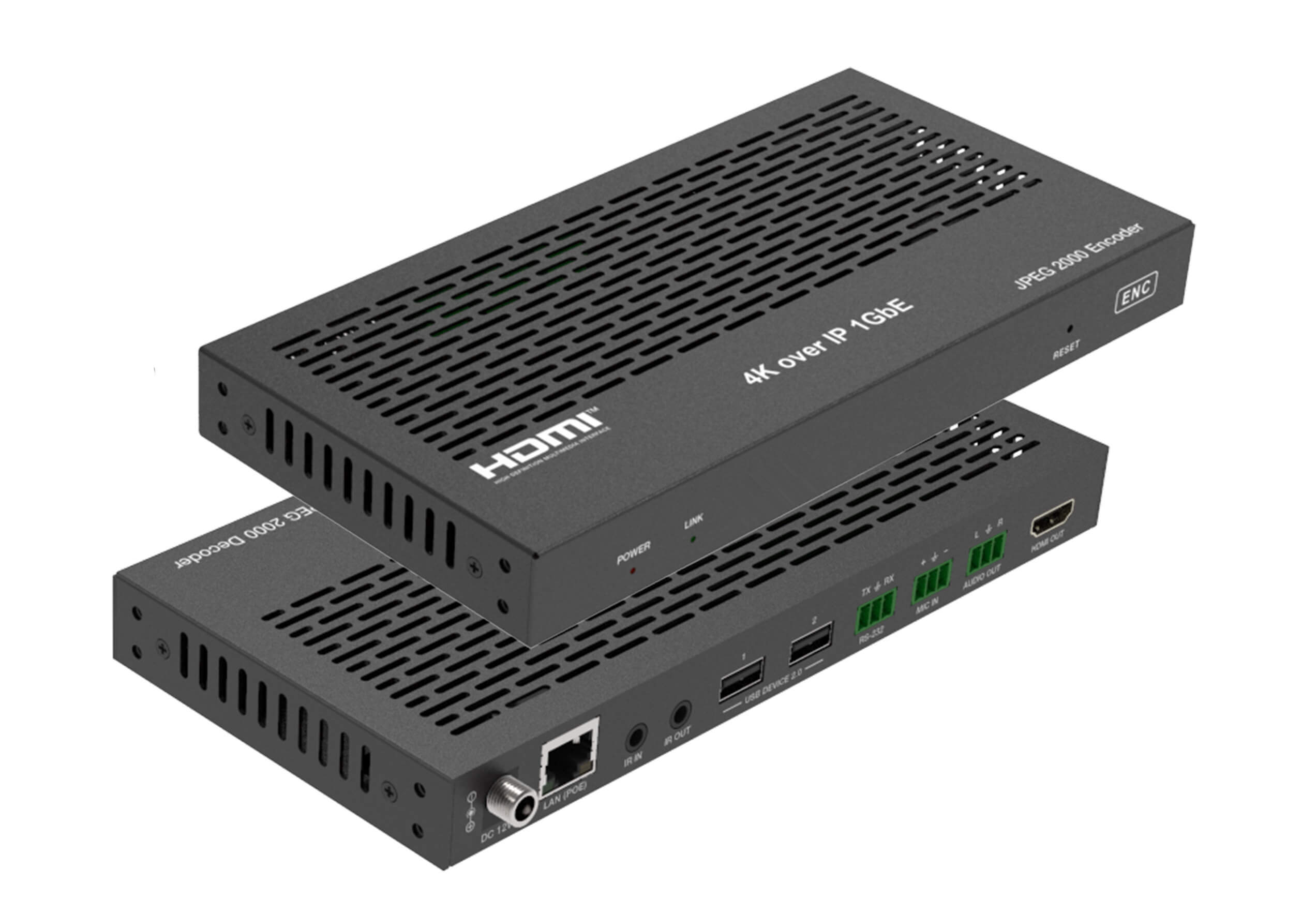

This product is based on JPEG2000 technology. Encoder input supports up to 4K60, audio embedding or audio out. Decoder output supports up to 4K30, audio extracting or audio in transmitted to Encoder audio out.

The product supports USB2.0/KVM, 1G Ethernet, bidirectional RS-232, two-way IR control and POE function. Guest mode control of RS-232, IR, CEC supported. Built-in secondary H.265 stream which supports plenty API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.

As the H.265 stream can be accessed in a different domain from JPEG2000 main stream via tagged its LAN ID, this makes it possible to isolate the network systems of main stream which works in Video LAN and secondary stream which works in Control LAN.
The system is based on Linux for software development, provides flexible control methods, that are based on the intelligent networking of 1G Ethernet Switch.

2. Features

4K60 JPEG 2000 Technology AV over IP.
HDMI 2.0b, HDCP 2.2 compliant, 18Gbps video bandwidth. Input up to 4K60 4:4:4, output up to 4K30 4:4:4
Transmit video, audio, IR, RS-232, CEC, and USB signals over Ethernet
Supports both unicast and multicast functions
Supports point-to-point, video matrix, and video wall functions (video wall up to 9×9)
Screen Group management
JPEG2000 Main Stream and standard H.265 codec Secondary Stream (SS)
Support Secondary Stream VLAN tagging and parameters configuration
Support 1G Ethernet Switch
Support POE
Flexible control through Web GUI/TCP/RS-232/IR and third-party controller
Smart networking design for easy and flexible installation.

Widely used in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.

Connection:

One to One Application

One to Many application



Many to One Applicaiton

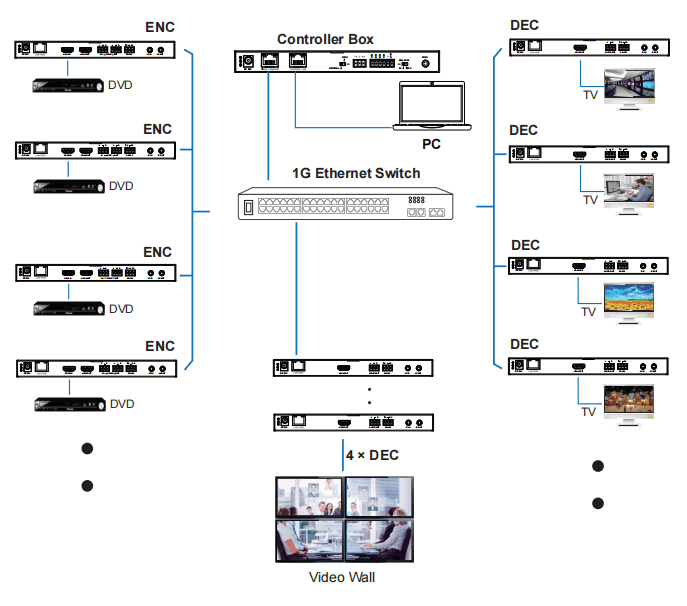

Many to Many Application with Controller
