48Gbps 8K60Hz 2.1 HDR HDMI Splitter 1×2 1×4 1×8 4K120Hz with Audio De embedded
2025 8K HDMI Splitter 1×2 1×4 1×8 4K@120Hz 7680×4320@60Hz 8K HDMI Switch Splitter with Auto downscaling, Audio De-embedded,Auto converting
| Weight | 500 g |
|---|---|
| Dimensions | 15 × 6.8 × 2 cm |
| HDMI Version | 2.1, HDCP 2.3,HDCP 1.4 |
| Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit |
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS |
| Audio Formats | HDMI input/output: |
| Color | Color depth 8/10/12bit |
| ESD Protection | IEC 61000-4-2: |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About 48Gbps 8K60Hz 2.1 HDR HDMI Splitter 1×2 1×4 1×8 4K120Hz with Audio De embedded

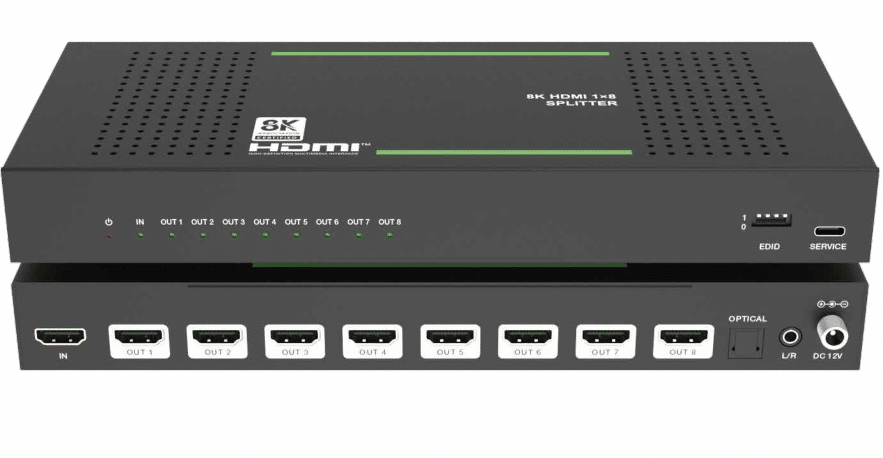

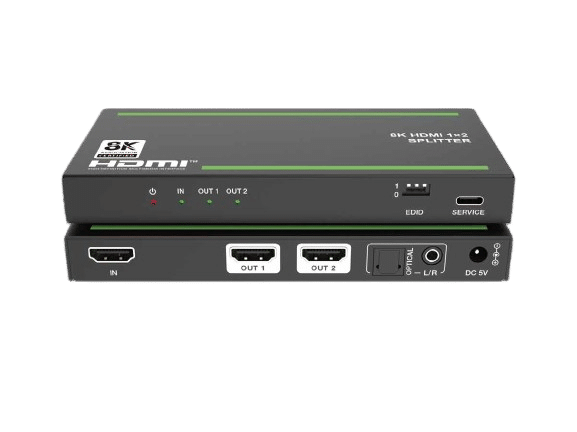

The 1×2 1×4 HDMI Splitter can connect one HD Source with two HD Displays (1×2) or four Displays(1×4) or eight Displays (1×8); it can easily distribute HD Source signals to two or four or eight UHD displays at the same time.

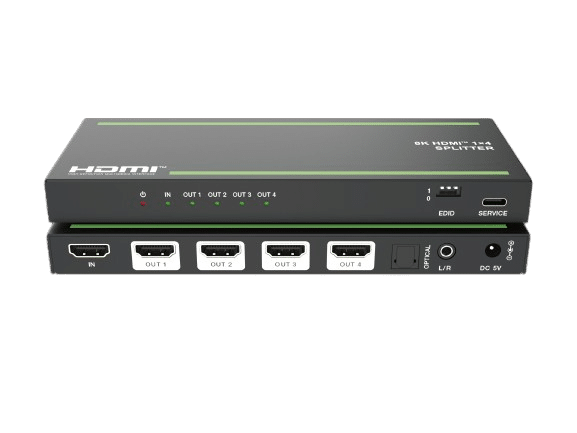

8K HDMI 1×2 1×4 1×8 Splitter with Audio,Auto DownScaling,Auto Converting
Features
☆ HDCP 2.3 compliant
☆ Support 48Gbps FRL and 18Gbps TMDS video bandwidth
☆ Support resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit, as specified in HDMI 2.1
☆ VRR, FVA, ALLM are supported
☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
☆ Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio
☆ Support audio de-embedding function (output through the optical and analog port)
☆ Support resolution auto downscaling on each output
☆ Support auto converting of HDR to SDR on each output
☆ Advanced EDID management
Package Contents
① 1 × 8K HDMI 1×2/1X4 /1×8 Splitter
② 1 × 5V/2A Multinational Power Supply
③ 1 × User Manual
Premium High Speed HDMI” cable is highly recommended for those HDMI2.1 8K HDMI devices.

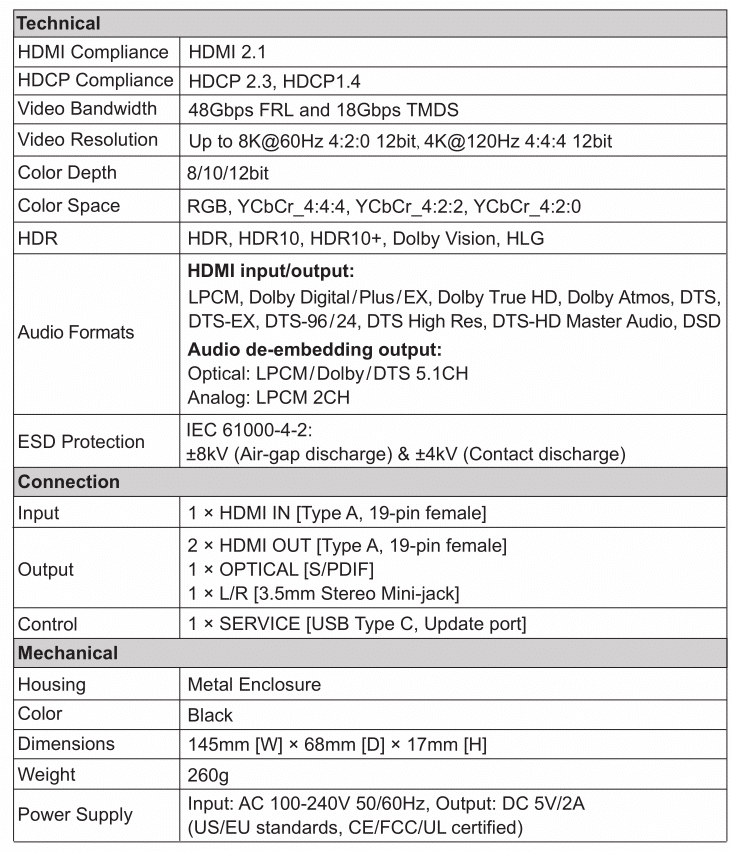

Specification

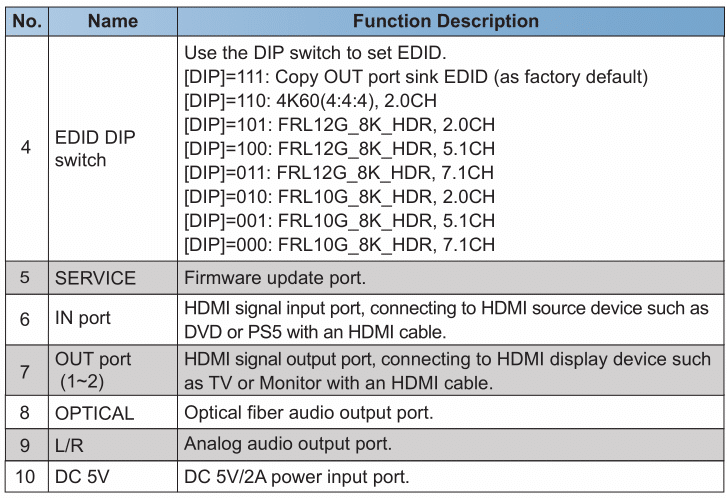

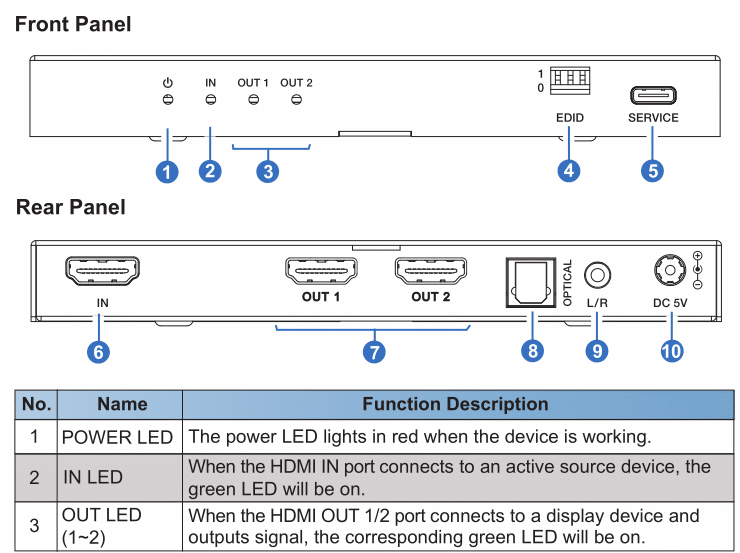

Interface

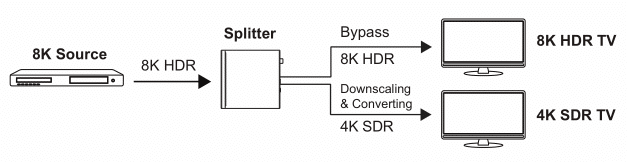

Auto Downscaling & Auto Converting

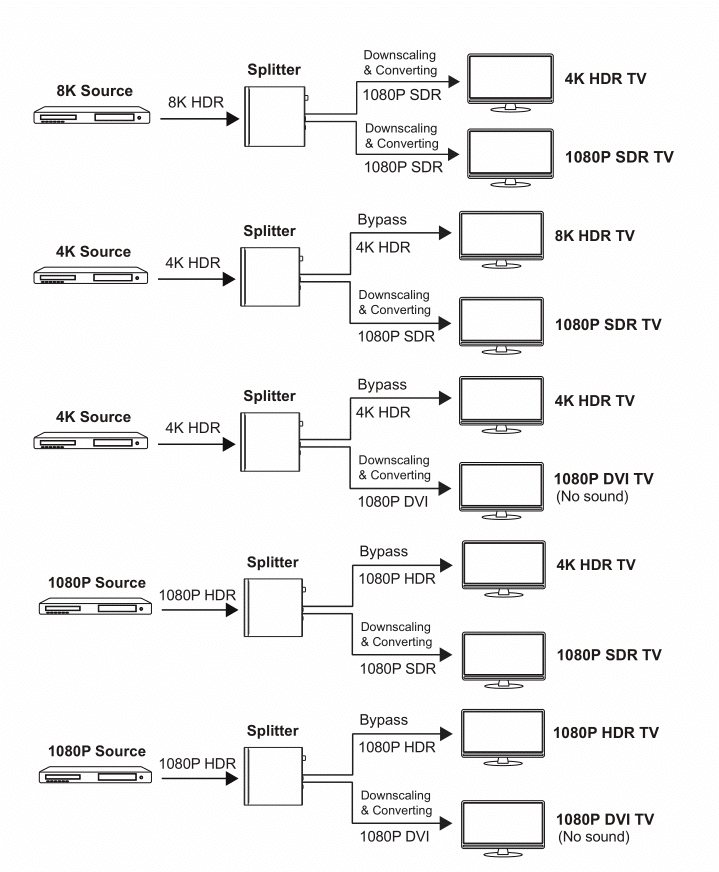

This 1×2 splitter supports auto downscaling and auto converting on all outputs. Before downscaling it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output. For example:
Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on TV.
Downscaling will not work in the following conditions: 1. The input source is 8K DSC format. 2. The resolution of input source is not supported by the splitter.

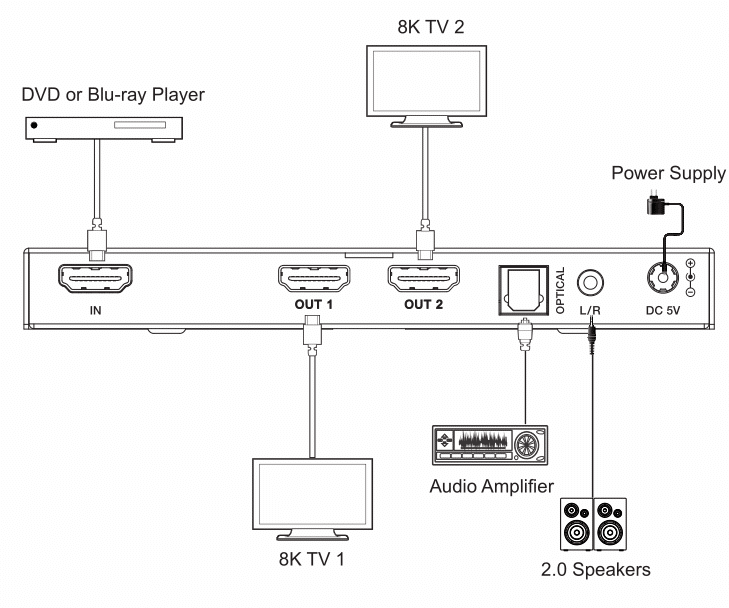

Diagram
