2023 Flexible Modular Seamless Matrix System 8×8 16×16 32×32 4K60Hz 18Gbps

Pro AV integration 4k60hz Video wall Processor / Controller / Video wall system

Additional information

Weight 10000 g
Dimensions 48.3 × 36.5 × 8.9 cm
HDMI Version

HDMI 2.0b, HDCP 2.2

Resolution

4K60 YCbCr 4:4:4 24bit

Bandwidth

HDMI18Gbps

Audio Formats

LPCM 2.0CH

Control

Front Panel button, IR,RS-232,TCP/IP, Web, Software Control

Input /Output

Support HDMI, DVI-U(DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and Fiber input and output

Markets

LED/LCD Video Wall Application via Gen-Lock Technology , no Delay.

Detailes About 2023 Flexible Modular Seamless Matrix System 8×8 16×16 32×32 4K60Hz 18Gbps

New Flexible Modular Seamless Matrix One card with 4 ports

(HDMI,DVI,SDI,Fiber,HDBaset,VGA,)

2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps



Introduction

Modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment.

It supports up to 8~80 inputs, 8~80 output swithm any kinds of daughter cards. This product supports multiple video formats input and output.

Multi-format matrix using the daughter cards structure,flexible and convenient installation.The

input/output port support:Fiber, HDbaseT, SDI, HDMI, VGA, DVI U (HDMI/DVI/VGA/YPbPr/CVBS).

With the Ethernet/LAN and RS232 communication interface,through the PC software to control the matrix signal switching, monitoring the working status of the matrix,set the signal resolution,etc.

8×8 size 483x365x89mm, Carton 60×20.5x50cm, weight 9Kg

16×16 size 483x365x134mm, Carton 61x29x50cm, weight 13Kg

32×32 size 483x365x223mm, Carton 56x47x48cm, weight 23Kg

Common description

1. 8×8~32×32 Quad-Ch Modular Matrix

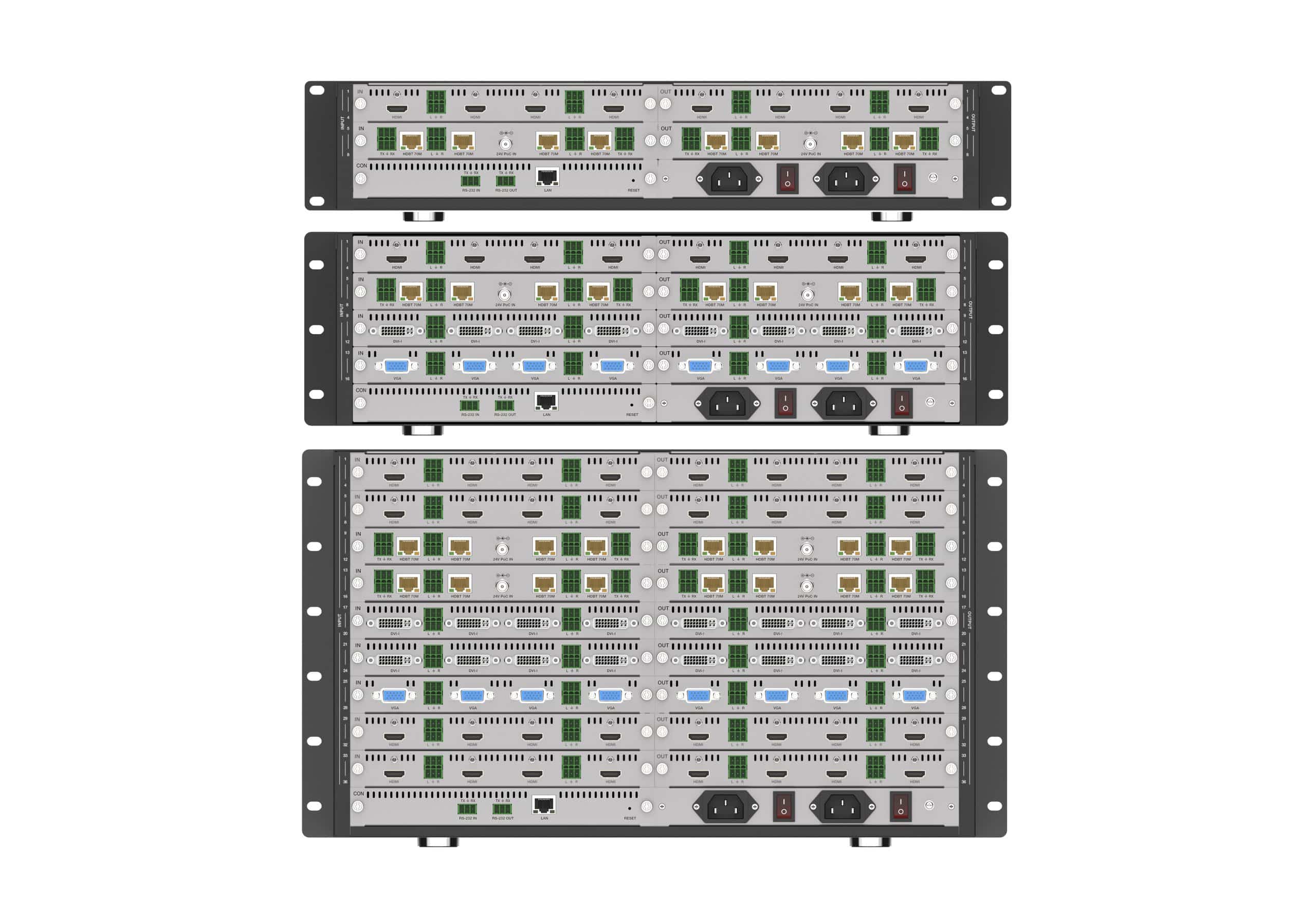

2. Redundant power supply

3. Seamless switching
4. 4 Free-Windows

5. VideoWall with Bezel

6. Customized Resolution for LED wall

7. Input/output cards: HDMI/DVI- U/VGA/SDI/HDBaseT/Fiber

8. LAN control(iOS, Android, any device with internet explorer)

9. RS232 control

10. EDID management

11.Save/Recall scene.

2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps

2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps

This Modular Seamless Switching Matrix is a professional all-in-one machine that supports various audio and video signal switching and distribution, integrated video wall function and control system.

It supports up to 8~72 signal inputs and 8~72 signal outputs. Audio and video matrix adopts pure hardware high-speed matrix switching chip, which has high integration, stable system, no compression/loss/delay of signal.

Advanced full digital signal processing technology can ensure signal distortion-free processing, and the best image quality to the display devices.



This series of Modular Seamless Switching Matrix, supported by the high bandwidth backplane, provides up to 4Kx2K@60Hz YCbCr 4:4:4 24bit input/output and arbitrary routing of various signals.

It supports HDMI 2.0b, 18Gbps video bandwidth, color depth up to 12 bits. The matrix adopts pluggable card structure, which is flexible and convenient for installation.

It provides HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SDI, HDBaseT and optical fiber input/output cards. One card with four channels, both 2K series and 4K series cards are supported. Input cards support audio embedding, and output cards support audio de-embedding, providing maximum support for the audio system in the whole system.

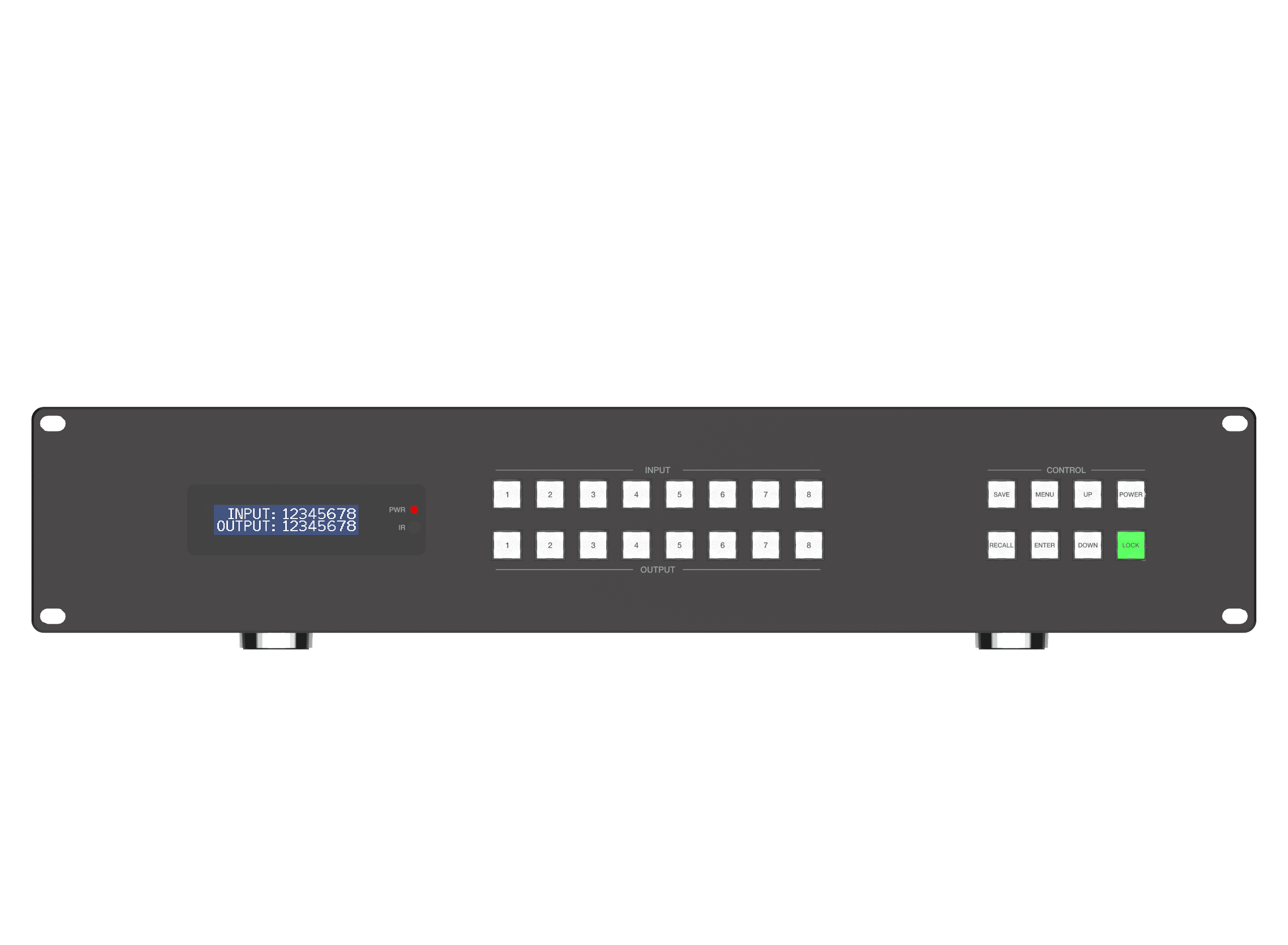

It offers multiple control methods such as front panel buttons (with LCD screen), IR remote, RS-232 signals, LAN, PC tool or Web GUI control.

The built-in video wall function can realize any splicing mode within the range of 8/16/36/72 total output channels, providing a turnkey solution for the distribution and processing of video signals with various formats in various industries.

The built-in control system integrates multiple control interfaces and intelligent control GUI modules that can be directly recalled by users.

This Matrix is applicable to video conference, energy and power, judicial prison, smart city, government service, water conservancy and hydrology, meteorology and earthquake, enterprise management, metallurgy and steel, banking and finance, public security and transportation, exhibition, production scheduling, radio and television, education and scientific research and other fields.

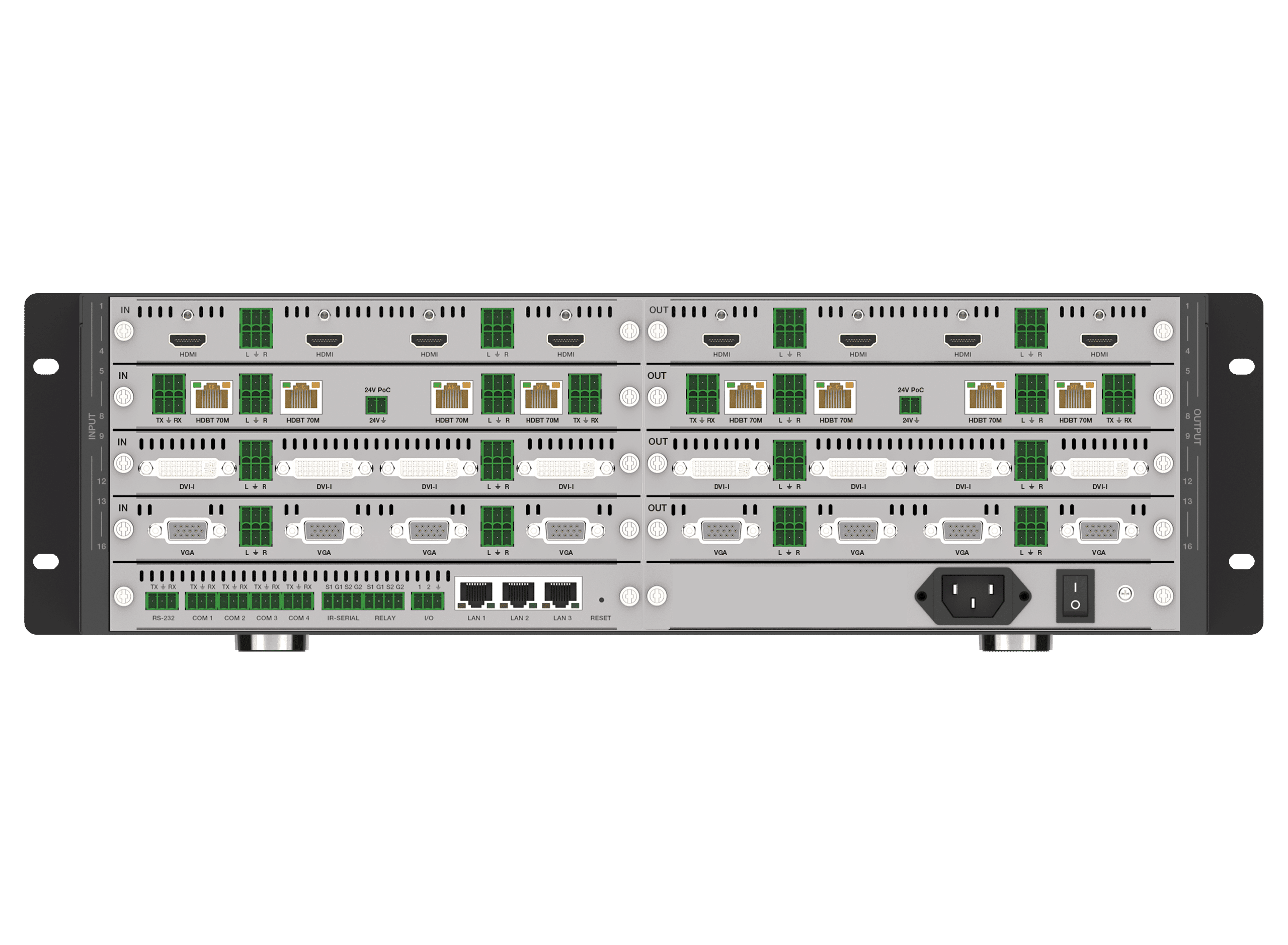

Take the 16×16 diagram for example

2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps

Features

SeamlessSwitching Gen-lockbasedVideoWall,

Based on Gen Lock technology, the video delay between any output channel is less than 0.1ms, the video will not distorted.

Available in 8×8~80×80 depends on number of output channels.

It’s especially matched withLCD/LEDVideoWall Any kind of Font

Default:English, Chinese

Available:French, German, Hindi, Portuguese and Spanish,etc.

Size/Color/Position/Content may be set by PC/Notebook

Notes: If you are new or don’t know how the find the good quality matrix system, you can check below parts before order others products with reasonable price and Aftersale warranty service is also import for installation solutions.

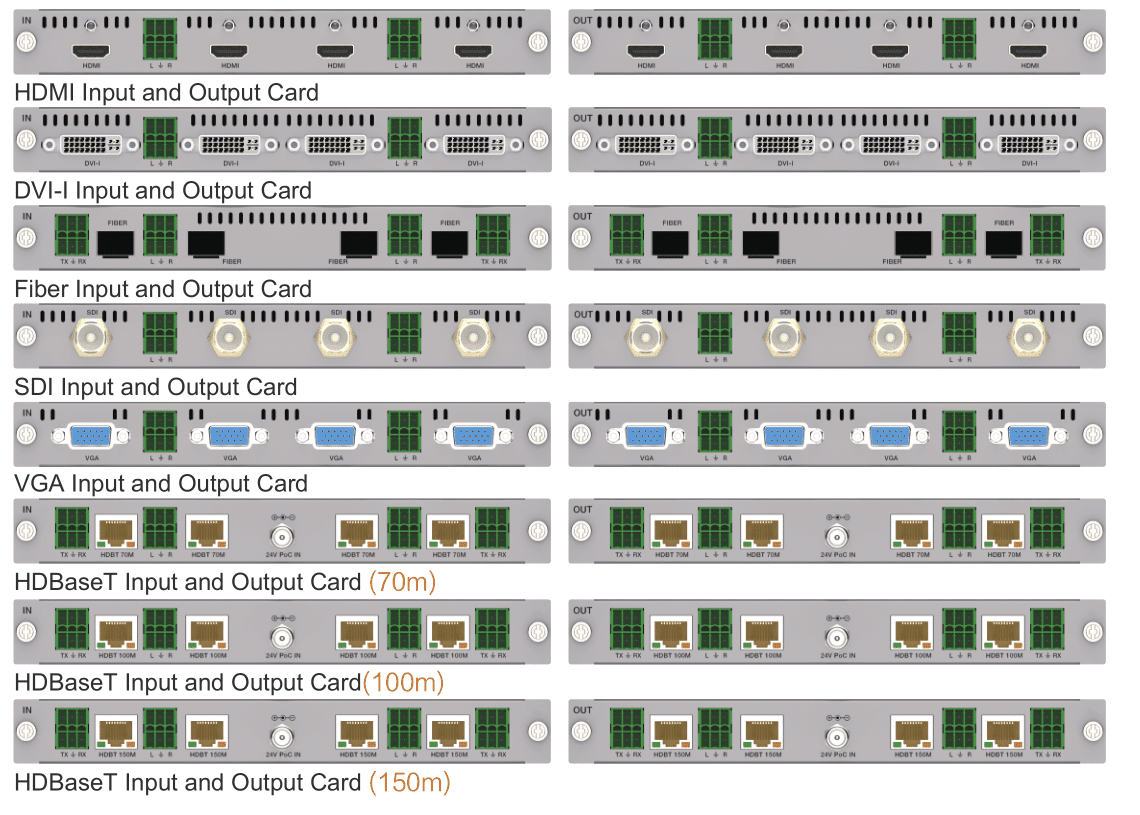

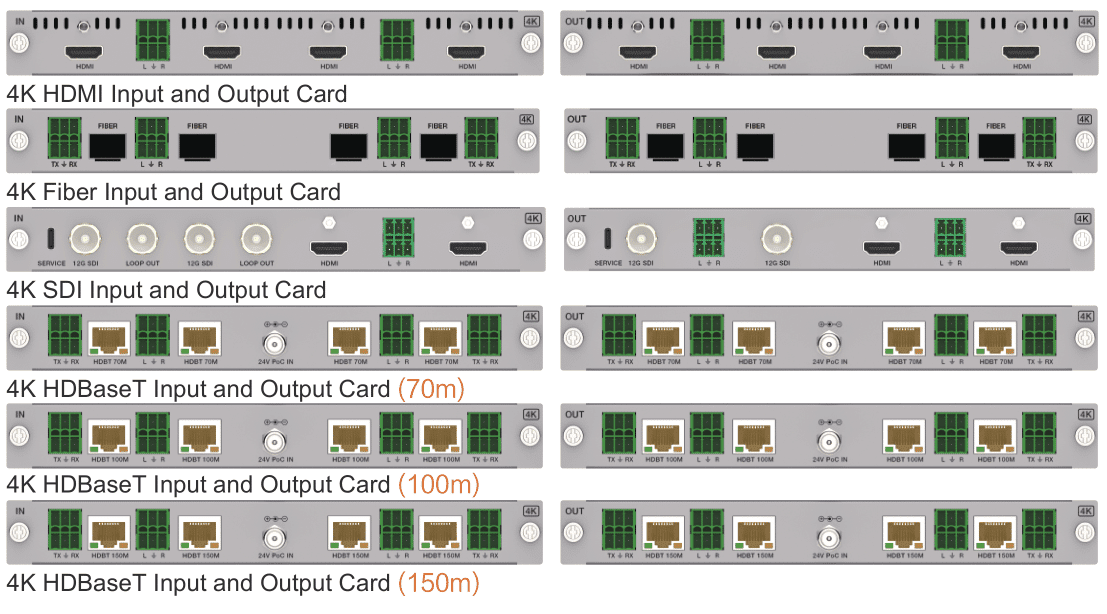

Below some card for your reference. (HDBaset 1.0,3.0 input or output card, HDMI 2.0 4K60Hz card, SDI card

2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps 2023 flexible modular seamless matrix system 8x8 16x16 4k60hz 18gbps

Why choose Sinowell modular matrix system ? Please check below details

2023 flexible modular matrix 8x8 16x16 4k60hz 18gbps 2023 flexible modular matrix 8x8 16x16 4k60hz 18gbps
