2Channel Dante Audio Adapter Analog to Digital Dante
2CH Dante Adapter, Digital to Analog, Analog to Digital Converter
| Weight | 200 g |
|---|---|
| Dimensions | 13 × 11 × 3 cm |
| Interface | Analog-to-digital conversion |
| Frequency Response | 20Hz-20kHz |
| Signal-to-noise ratio | >100dB |
| THD+N | < 0.01%@4 dBu |
| Background noise | -90dB |
| Power Consumption | 2W |
| Ethernet connection | 100BASE-TX(Support PoE) |
| USB specification level | ≥ USB 2.0 |
Detailes About 2Channel Dante Audio Adapter Analog to Digital Dante
2 Channels Dante Audio Adapter
two analog signal inputs and turns to Dante digital signal output.
It supports the two-way channel signal transmission from USB signal input to Dante signal output and Dante signal input to USB signal output.
· Compact design, easy to use, supports hot-plug;
· Easily and freely convert between analog audio signal and DanteTM digital audio signal;
· Built-in 2 input or 2 output audio channels;
· Extends audio, control, Ethernet, and power over a single affordable network cable.
· Replaces multiple analog or multi-core cables with only a network cable, cost-effective, versatile;
· Extends uncompressed high-quality audio signal with near-zero latency;
· Transmits high quality 2-channel audio safely and reliably;
· Perfectly supports Dante software, the network and audio routing can be easily expanded andreconfigured with just a few mouse clicks;
· DI22/DO22 supports PoE,and conforms to ieee 802.3af line power supply function, DU22 supports USB power supply;
· Built-in lightning & surge protection.
Digital-to-analog conversion interface
Features:
1.USB power supply mode;
★2. Supports bidirectional signal transmission from USB signal input to Dante signal output, and from Dante signal input to USB signal output.
Technical parameters:
1)USB specification grade: ≥ USB 2.0
2) Connector: RJ45 and USB
3) Sampling: 48KHz
4) Network transmission: DanteIPAES67RTP audio
5) Background noise: -90DBU
6) Size (LxWxH): 652mm x 32mm x 22mm
7) weight: 0.2 kg
8) Power: USB
| SNDI22 ,SNDO22 | |||
| Channel | SNDI 22 2 ch dante Inputs ,2 ch analog output | Input level(balanced) | Max.18 dBu(DI22) |
| SNDO 22 2 ch analog Inputs 2 ch dante output | Output level(balanced) | Max.18 dBu(DO22) | |
| Supported network speed | 100/1000Mpbs Ethernet | Frequency response | 20 – 20 kHz，± 0.5dB |
| Sampling rates | 48kHz | Dynamic range | > 100 dB |
| Bit depth | 24 bit | SNR(Signal to NoiseRatio) | > 100 dB |
| Latency | 1ms(default) | THD + N | < 0.01%@4 dBu |
| Ethernet connection | 100BASE-TX(Support PoE) | Floor Noise | -90dBu |
| Input impedance | 20 KΩ (DI22) | Power supply | PoE |
| Output impedance | 100 Ω (DO22) | Power consumption | 2 W |
| DU22 | |||
| Connector | RJ45 and USB class A | USB specification level | ≥ USB 2.0 |
| Sampling | 48 kHz | Power Supply | USB |

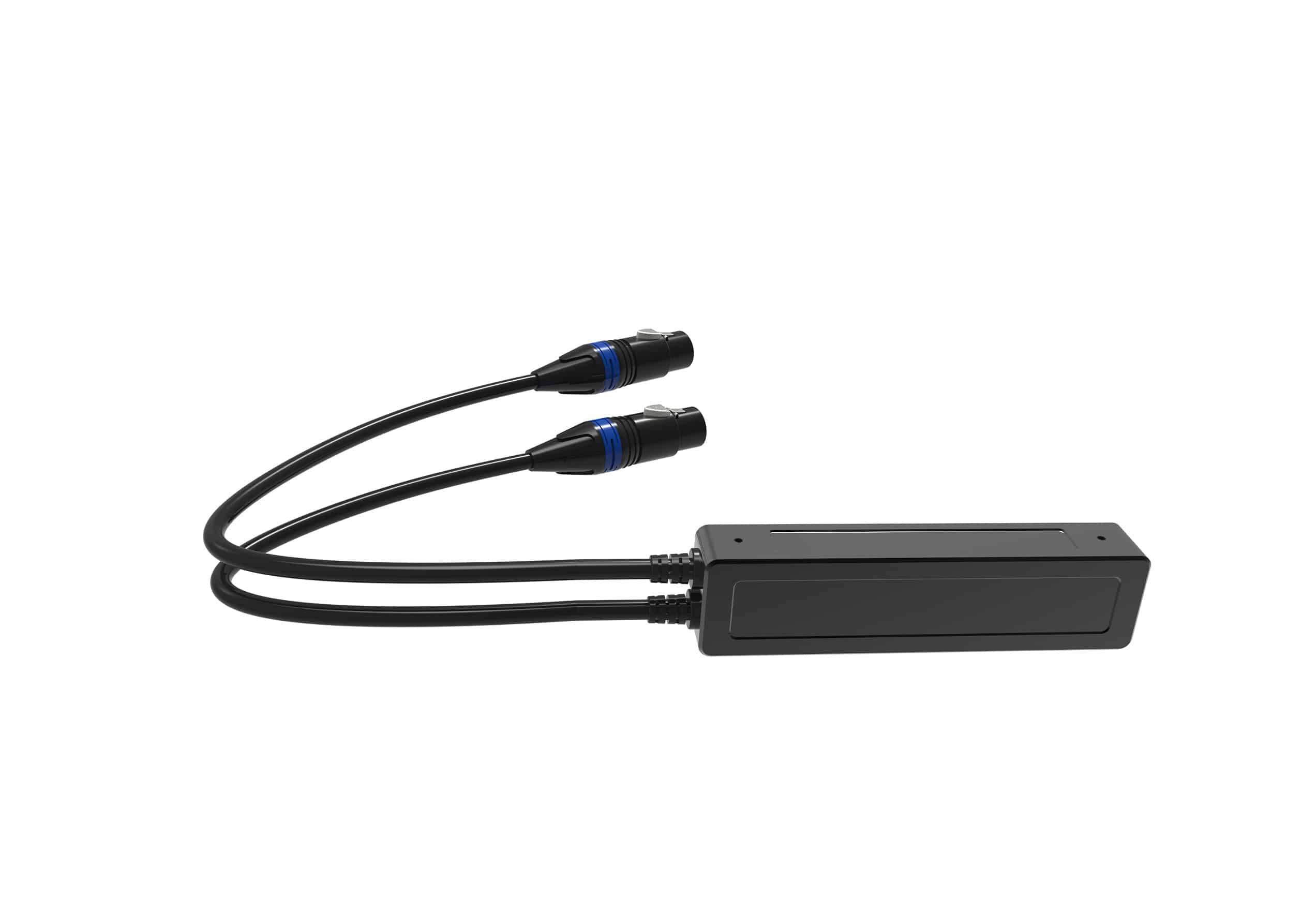

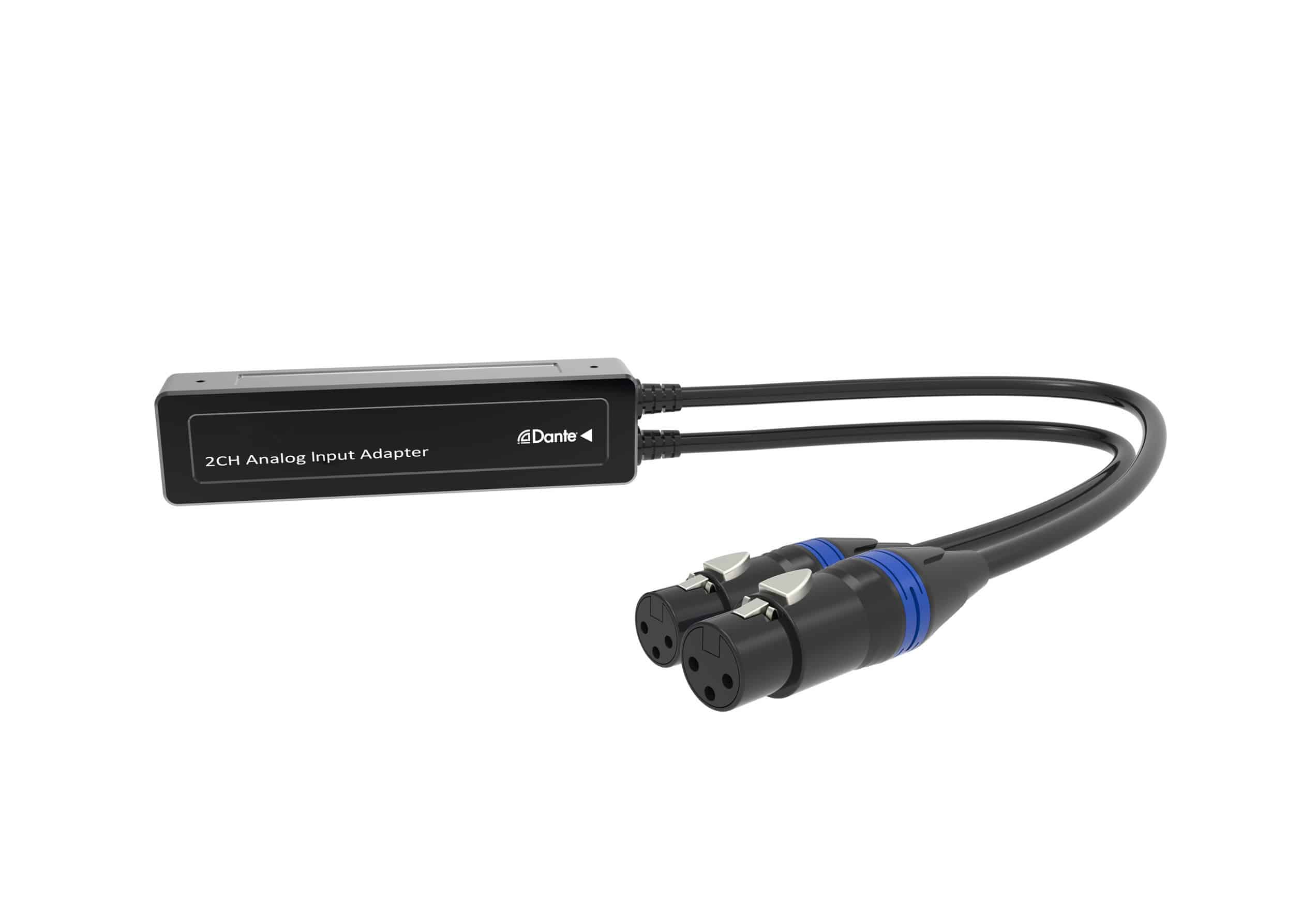

It supports two analog signal inputs and turns to Dante digital signal output.
| 2 ch analog Inputs 2 ch dante output |
Analog-to-digital conversion interface
Features:
★1. Support two analog audio signal inputs and two Dante network audio signal outputs;
2. Two Kannon heads for input analog audio signals;
★3.1 RJ45 network ports connected to switches for outputting Dante network audio signals;
4. Convert analog audio signals to Dante network audio signals.
Technical parameters:
1) two three-core Kannon interface female heads
2) One RJ45 network port
3) Analog audio interface: Canon interface
4)Dante Network audio interface: RJ45
5) Power consumption: <1W
6) Maximum signal level (balance) : 18dBu

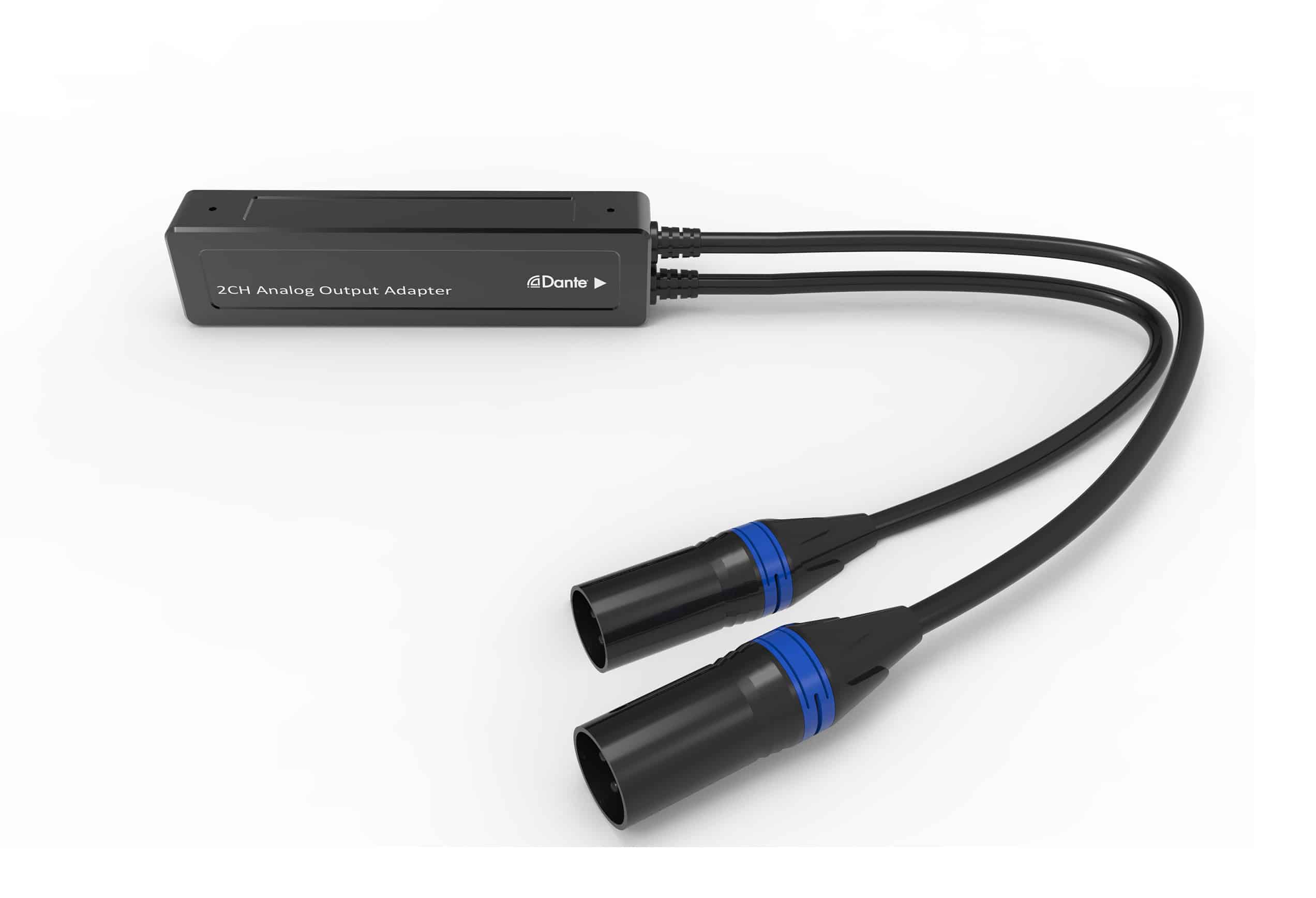

It supports Dante digital signal input, turn to 2-channel analog signal output.
2 ch Dante Inputs ,2 ch analog output
Digital-to-analog conversion interface
Features:
★1. Support two access routes of Dante network audio signals and two analog audio signal outputs
★2. Two Kannon heads for the output of analog audio signals
★3.1 RJ45 network ports Connect to switches for receiving Dante network audio signals
4. Convert Dante network audio signals to analog audio signals for output
Technical parameters:
1) two three-core Kannon male connectors
2) One RJ45 network port
3) Analog audio interface: Canon interface
4)Dante Network audio channel: RJ45
5) Power consumption :<1W
6) Maximum signal level (balance) : 18dBu
7) Frequency response: 20-20khz, ±0.5dB
8) Impedance: 110 ω (balanced type)
9) Dynamic range: > 100dB
10) SNR: > 100dB
11) THD + N: < 0.003% @ 4 is a 1 KHZ
12) Connector: RJ45 and 1XLR-M;RJ45 and XLR – 2 M
13) Sampling rate: 48KHz
APPLICATION SCENARIO
It is suitable for meeting room, exhibition hall, small activities, classroom interaction and other occasions.
