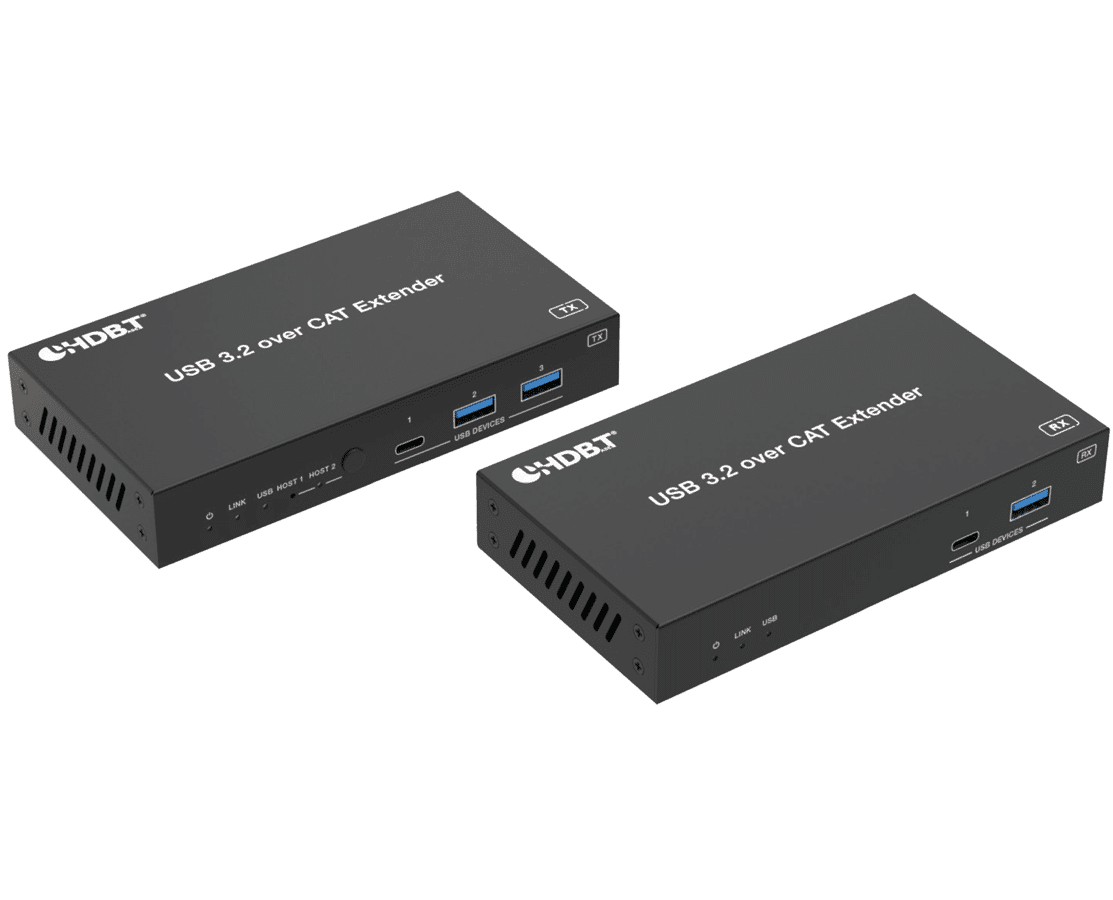

2024 USB 3.2 HDbaset Extender with Multiple USB C input up to 100m over CAT6a cable API Commands

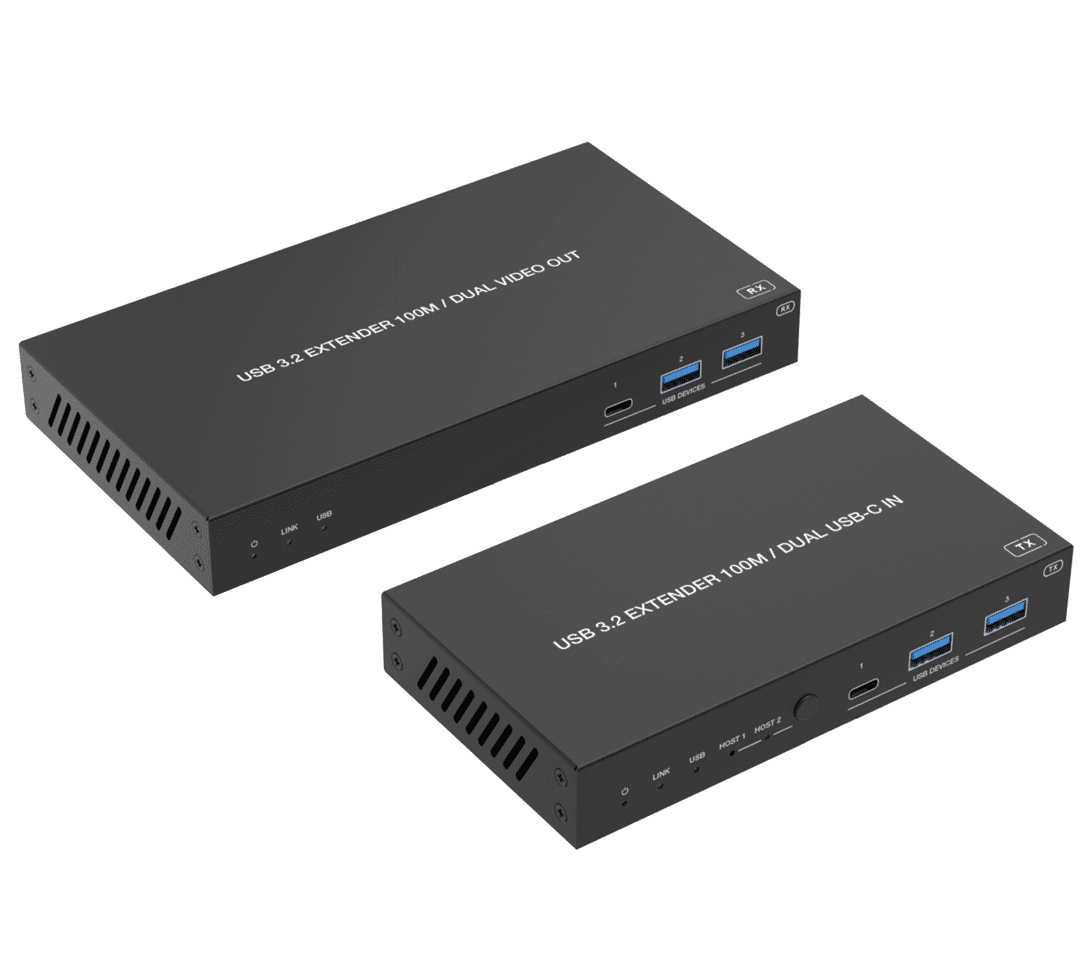

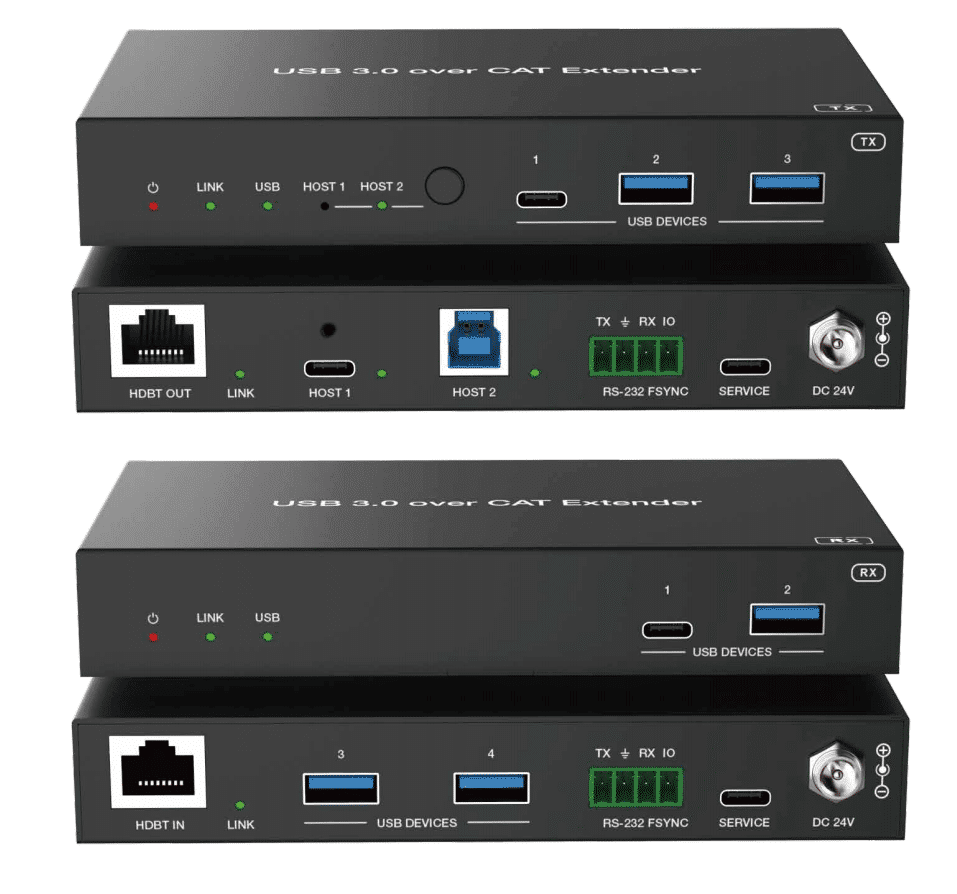

New 100Meter USB 3.2 Extender with USB-B USB-C Input, 2 Port USB 3.2 Gen 1 100m extender, with Dual USB-C in & Video Out
| Weight | 850 g |
|---|---|
| Dimensions | 14 × 7.5 × 2.3 cm |
| USB Version | USB 3.2 Gen 1, Backwards compatible with USB 2.0 and 1.1 |
| Interface | (TX) has 1 USB-C input ports and 1 USB B ports, |
| Data transfer rate | 5Gbps |
| Control methods | RS232 Control |
| Special feature | FSYNC GPIO passthrough for industry camara use |
| Transmission distance | 100m/328ft via CAT6a (F/FTP) cable 1.5m/4.9ft via USB cable, |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
Detailes About 2024 USB 3.2 HDbaset Extender with Multiple USB C input up to 100m over CAT6a cable API Commands
USB 3.2 HDBaset EXTENDER,Plug&Play,Easy operation

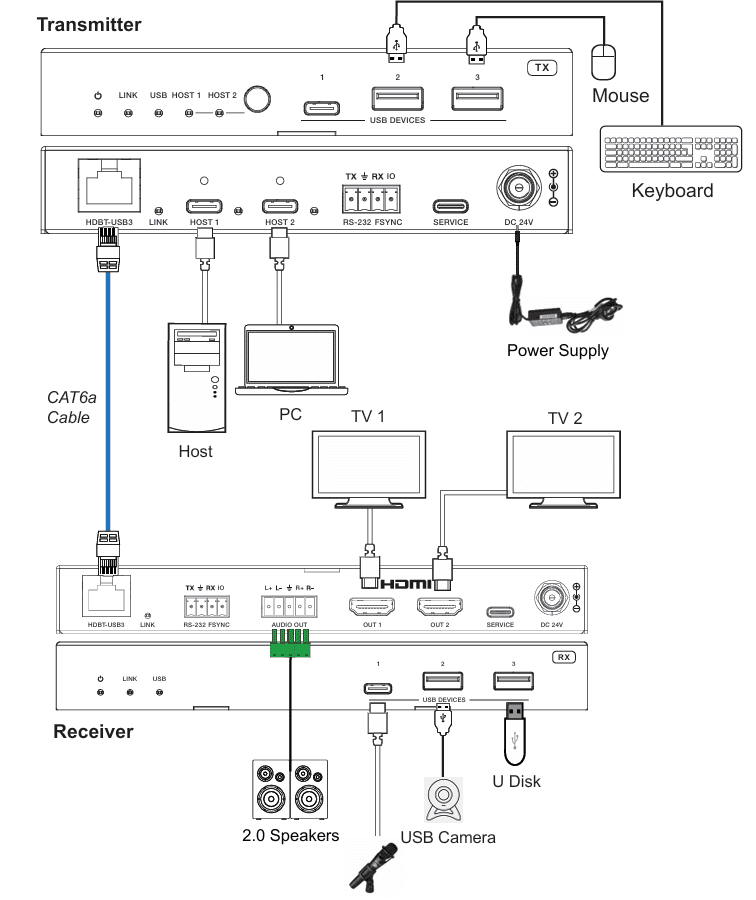

This USB Extender can extend USB 3.2 Gen 1 5Gbps signal to a distance up to 100m/328ft via a single CAT6a cable. The transmitter features two USB-C selectable host ports, one USB-C and two USB-A device ports. The receiver features one USB-C and two USB-A device ports, and two HDMI output ports. This extender supports auto switching and manual switching for the two USB-C host ports. Bi-directional 24V PoC (Power over Cable) allows
user only to provide power supply to the transmitter side or the receiver side.
It can be widely used for long distance USB and video signal transmission between USB sources and devices like webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, touch panel displays and other USB devices.
Features
☆ Extension of USB 3.2 Gen 1 up to 100m/328ft via CAT6a cable
☆ USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
☆ Backwards compatible with USB 2.0 and 1.1
☆ Hardware acceleration for isochronous and bulk transfer
☆ Built-in DisplayLink technology for video over USB on dual HDMI outputs, with
resolution up to 4K@60Hz
☆ TX supports auto switching and manual switching via switch button or API commands
☆ RX supports audio de-embedding to balanced/unbalanced analog output
☆ RS-232 pass-through and API control
☆ Firmware upgrade via USB-C service port
☆ FSYNC GPIO pass-through for industry camera use
☆ Bi-directional 24V PoC (power over cable), when TX or RX gets power, the other end does not need an external power supply
Package Contents
① 1× USB 3.2 Gen 1 Extender (Transmitter)
② 1× USB 3.2 Gen 1 Extender (Receiver)
③ 1× 24V/3.75A Locking Power Supply
④ 2× 4pin-3.5mm Phoenix Connector (Male)
⑤ 1× 5pin-3.5mm Phoenix Connector (Male)
⑥ 4× Mounting Ear
⑦ 8× Machine Screw (KM3*4)
⑧ 1× User Manual
This device does not require any software to your system or target devices. Simply attach the transmitter to your computer’s USB port, plug in the Cat 6a cable, attach remote USB peripherals to the receiver, and start working.
It works with Windows, Mac OS X, and Linux operating systems.
API Commands
The product supports API commands control. Connect the SERVICE or RS-232 port of the product to a PC, then open a Serial Command tool on PC to send API commands to control the product.

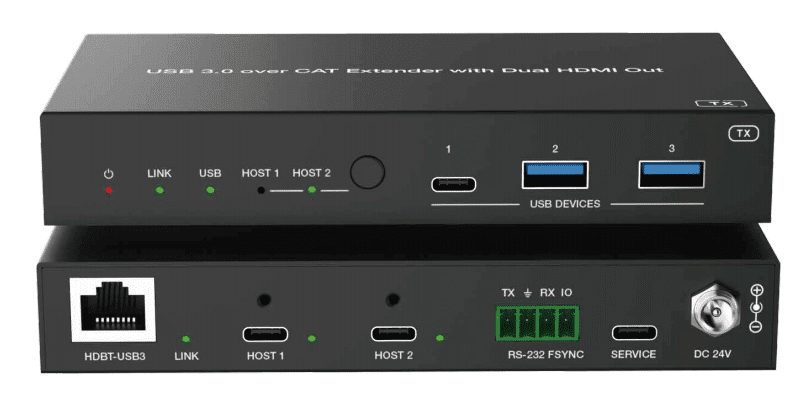

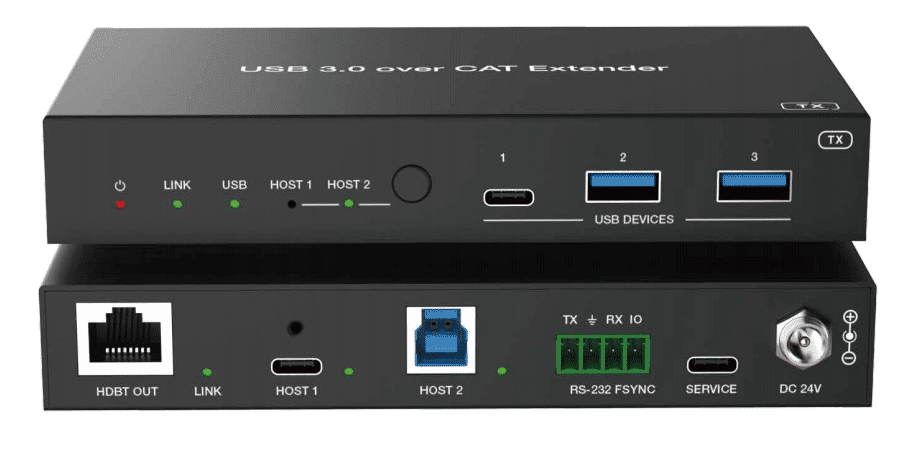

Transmitter interface

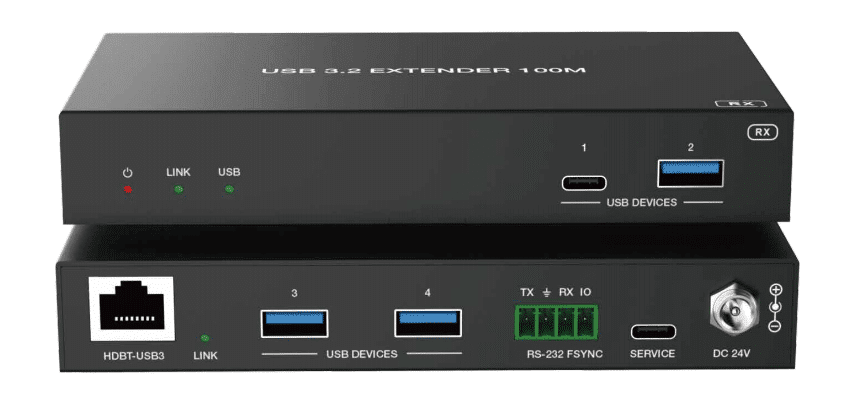

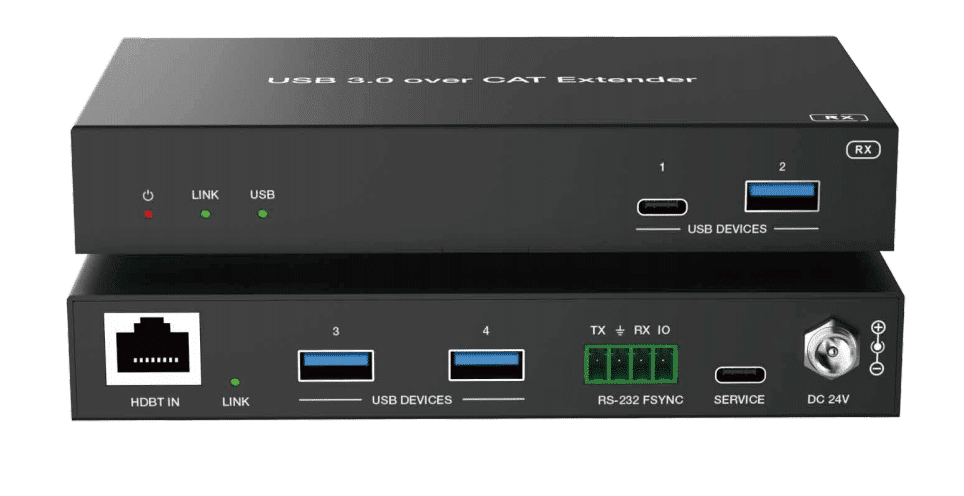

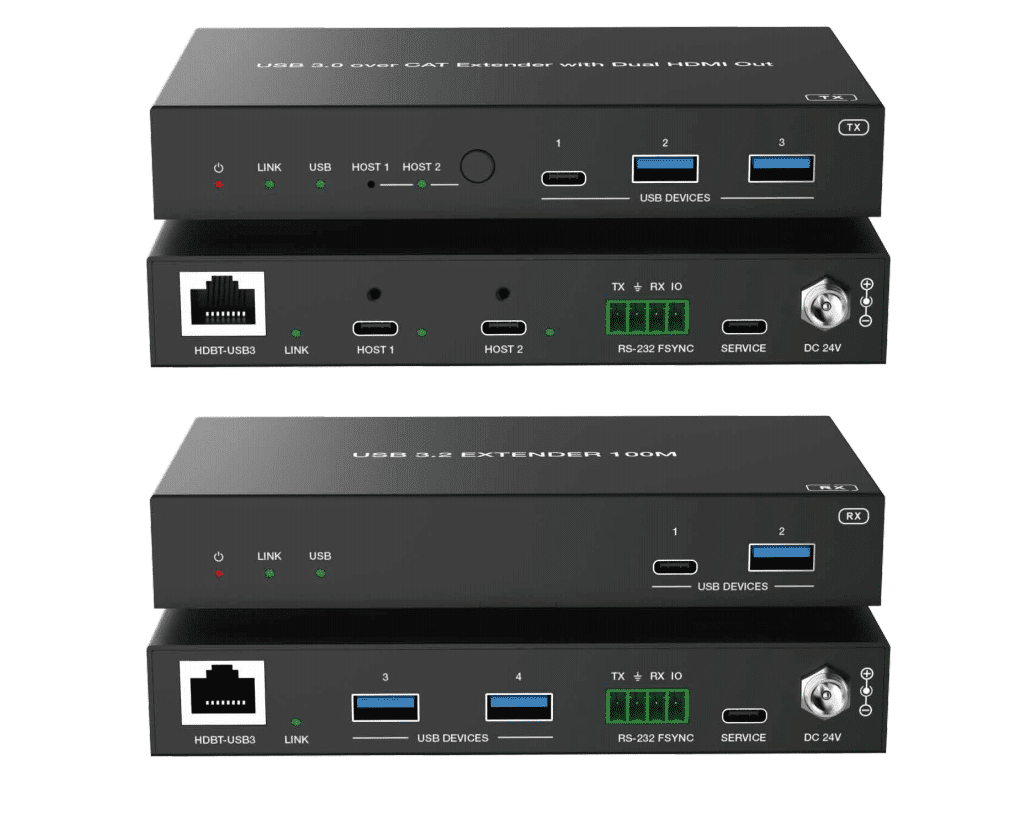

Receiver Interface
Applications
Conference rooms
Classroom projector systems
Collaborative PC systems
Digital signage
Educational institutions
Boardroom systems
