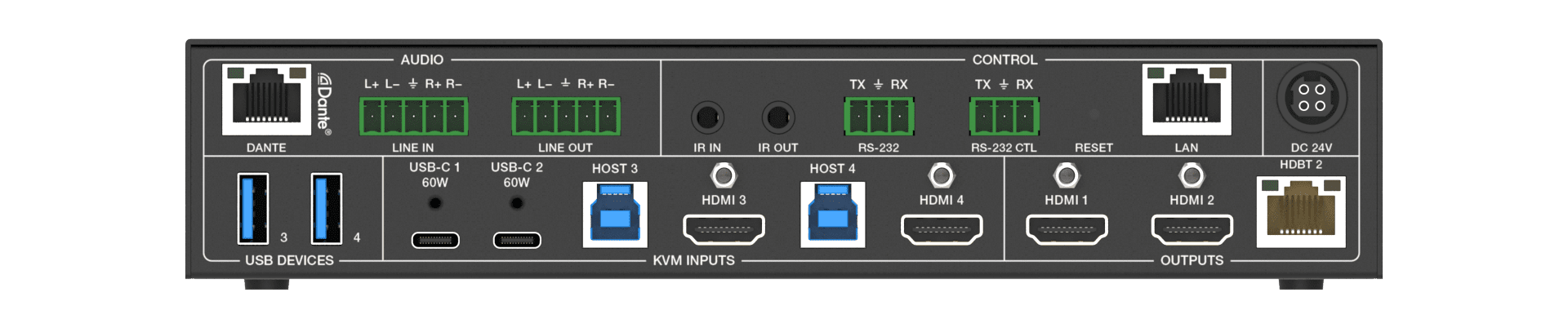

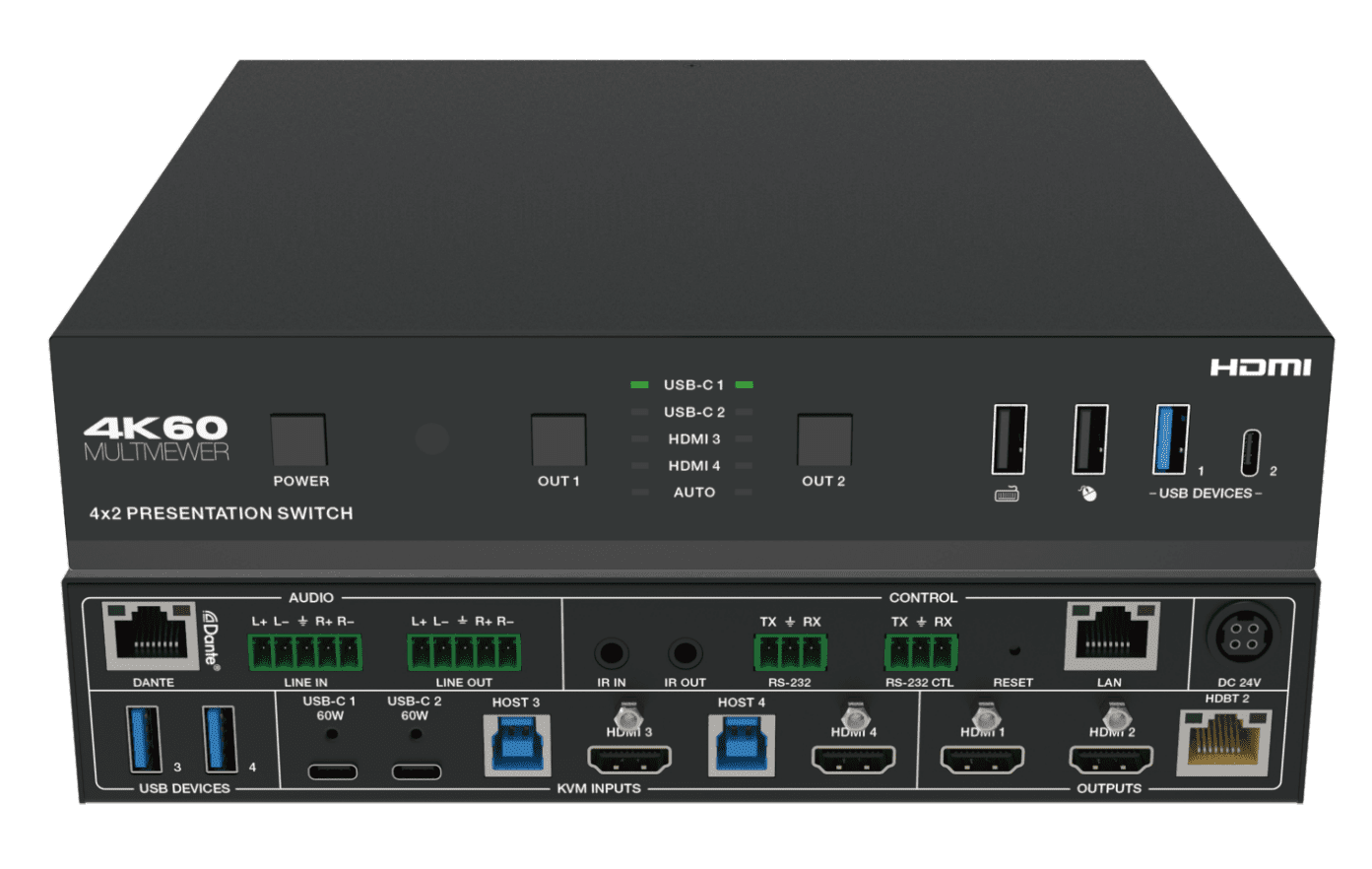

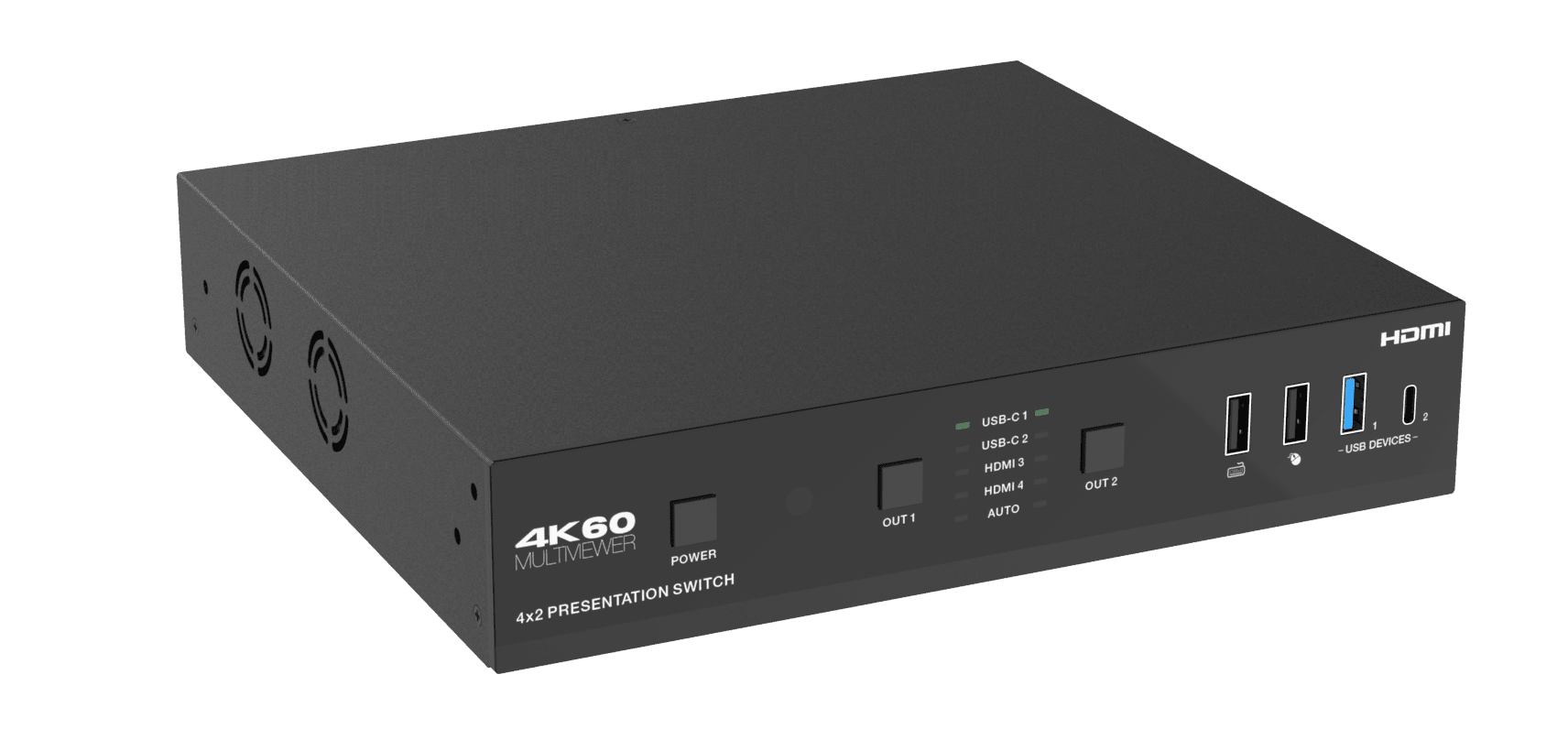

Home theatre Presentation System 4×2 seamless switcher with multiviewer ,HDBaset, RS232, control,Dante,USB-C support
| Weight | 1200 g |
|---|---|
| Dimensions | 23 × 10 × 3 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | up to 3840×2160@60hz |
| HDCP | HDCP2.2 |
| Transmission Distance | HDBaset 3.0 70m POE Mirrored Outputs |
| Multiview | Full Screen PIP/PAP/Tri/Quad-view Multiview 5 configurable display modes |
| Video Resolution | Up to 4K2K@50/60Hz(YUV4:4:4) |
| 5 Inputs | 3×HDMI, and 1×USB-C inputs |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |

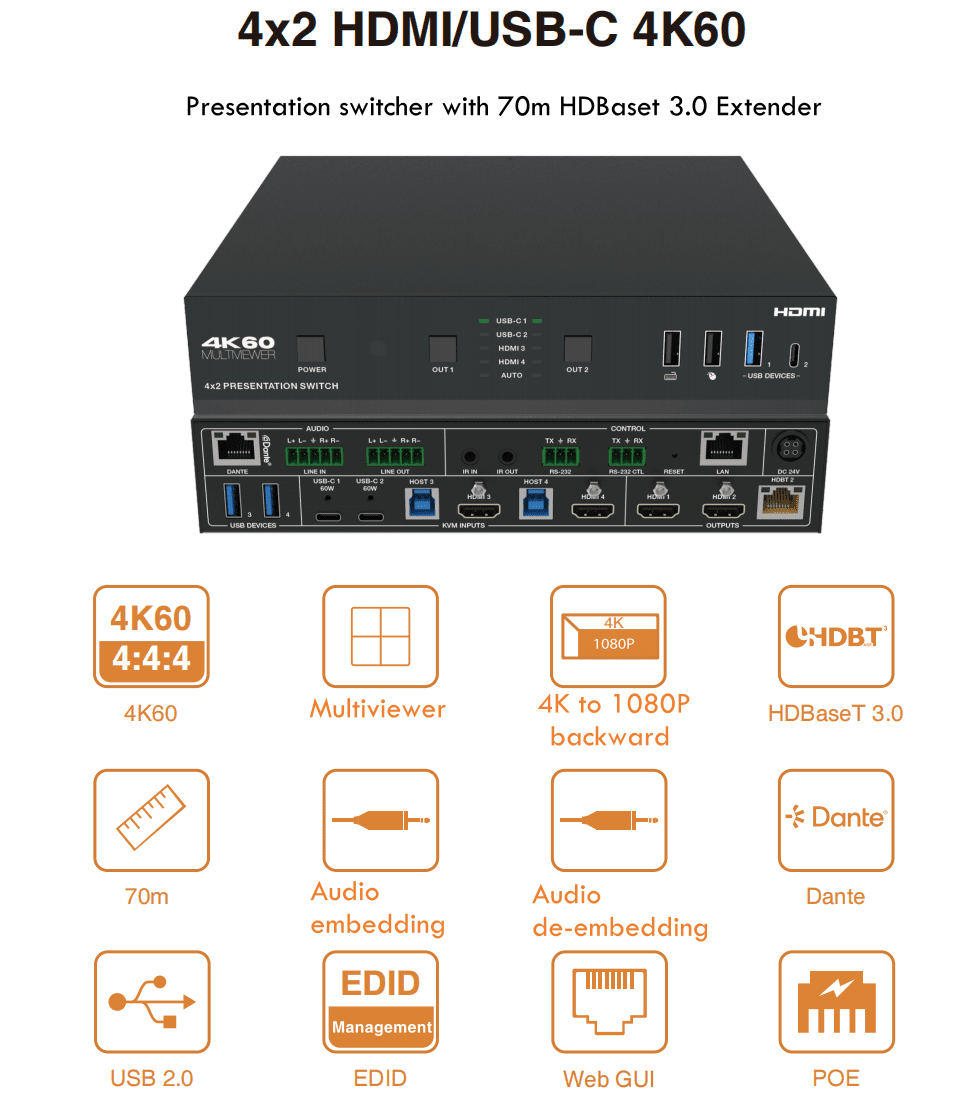

PIP/PAP/Tri/Quad-view Multiview functionality 18Gbps 4×2 Seamless HDMI Switcher
Overview
☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Up to 4K60Hz RGB/YCbCr 4:4:4
☆ Support LPCM, Dolby Digital, DD+,DTS audio pass-through
☆ 3x HDMI and 1x USB-C inputs support auto and
☆ manual seamless switching
☆ USB-C supports ALT-DP mode for A/V, USB and 60W charging
☆ Full screen/PIP/PAP/Quad-view configurable display modes
☆ HDMI and HDBaseT 3.0 (70m POE) mirrored outputs
☆ Built-in equalizer, scaling, retiming and driver
☆ Dante and external analog audio embeddedand de-embedded
☆ EDID management

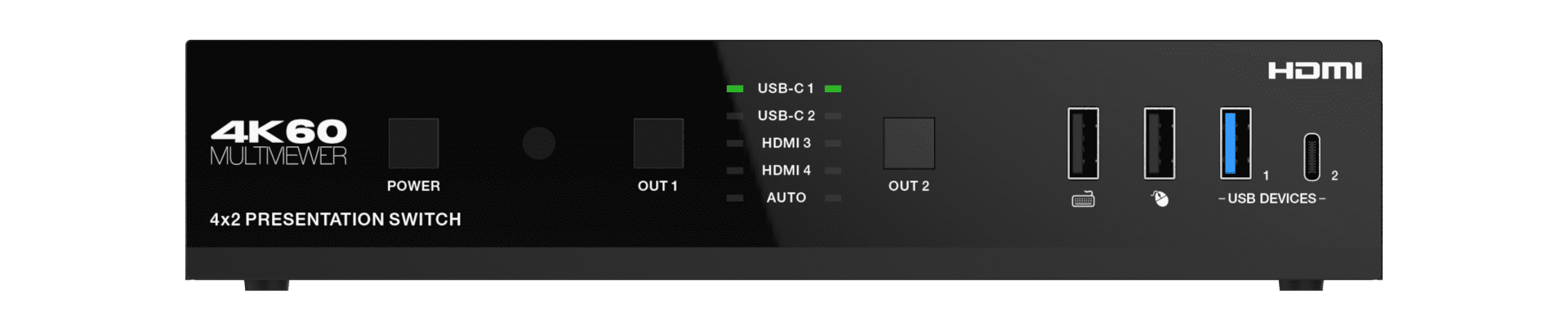

☆ Front panel button, IR, RS-232, TCP/IP and Web GUI control
The Switcher support 5 Multiview display modes
SINGLE, PIP, PBP, 3xWIN, 4Xwin
Users can select different operations for different Multiview modes as following:
SINGLE and 4xWIN: Inputs selection
PBP and 3xWIN: Inputs selection, Display Ratio selection
PIP: Inputs selection, Display Ratio selection, Sub window size and position selection
