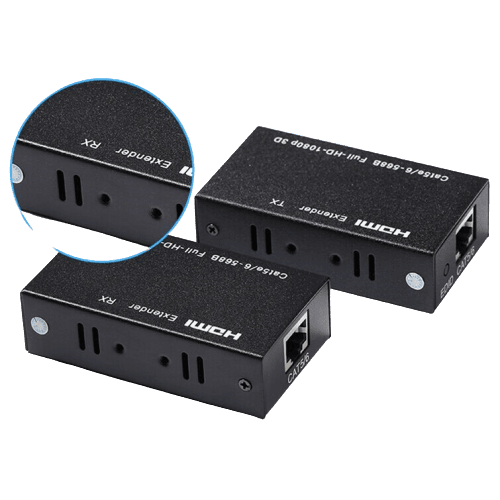

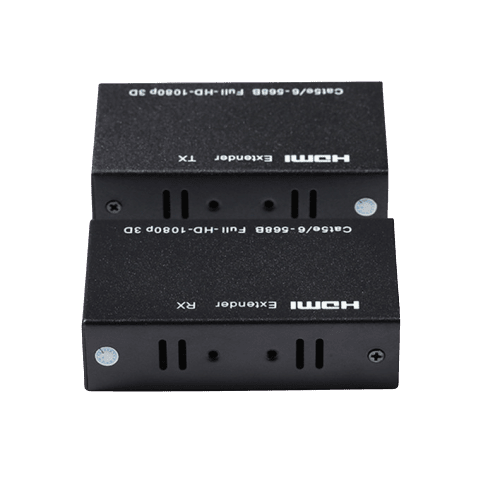

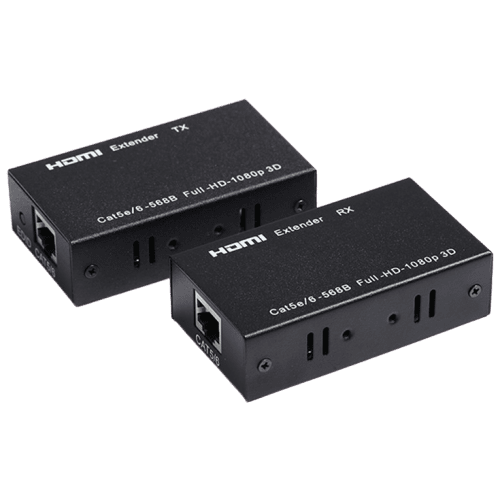

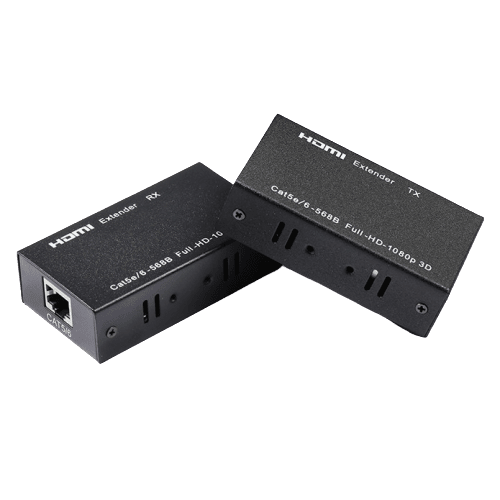

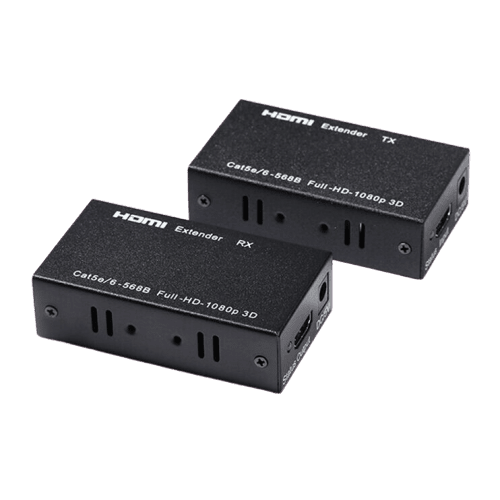

60Meter 196ft 1080P HDMI over Ethernet Extender with EDID

HDMI Extender By Single Cat 5E/6/7 Full HD 1080P With Deep Color, EDID Copy, Dolby Digital/DTS



Additional information

Weight 220 g
Dimensions 8.1 × 4.3 × 2.2 cm
HDMI Version

1.4a, 1.65Gbps

Resolution

FULL HD 1080P 60HZ, 3D

HDCP

HDCP1.4

EDID

Support

Cat6 Cable Perfomance

60Meter, 196 Feet HD Transmission

Markets

Retail, Residential

Detailes About 60Meter 196ft 1080P HDMI over Ethernet Extender with EDID

Features
Extend full 1080p video signal up to 196 feet using 1 CAT6 cable
Follows standard IEEE-568B

EDID control
Signal rates up to 4.95Gbps
Compact size
RoHS Compliant

Description
HDMI extender is your low-cost solution when an HDMI signal needs to be extended up to 196 Feet.

The extender has signal transfer rates of up to 4.95Gbps with a full 1080p video signal.



This extender features EDID management, which allows and encourages source and display “handshake” for seamless integration. In addition, the extender is also included with UL listed power adapters.

SPECIFICATIONS:

Length of CAT-6/CAT-5E cable between Rx and TX……Up to 60 meters

HDMI Input….24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio input…DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD

HDMI Output…..24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio output……DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD

Max bandwidth……165MHz

Max baud rate……1.65Gbps

Input video signal …… 0.5~1.5Volts p-p

Output DDC signal ……… 5Volts p-p (TT1L)

Input HDMI cable distance…..≤15m AWG26 HDMI standard cable

Output HDMI cable distance……… ≤20m AWG26 HDMI standard cable

TX Max working current…….510mA

RX Max working current…….100mA

Power adapter format……Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range…… (-15 to +55℃)

Operating Humidity range……5 to 90%RH (No Condensation)

Dimension (L x W x H)     …81x43x22 (mm)

TX Weight….…100g

RX Weight……..120g
