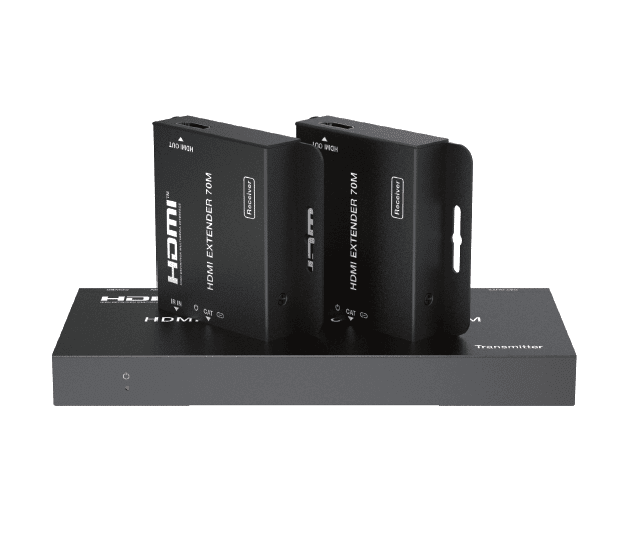

Cascade Mix Connection 4K30Hz 1080P HDMI Splitter Extender 1×2 over Ethernet up to 70m
4K30hz 1×2 HDMI Splitter Extender By Single Cat 6/ With IR Control, EDID management

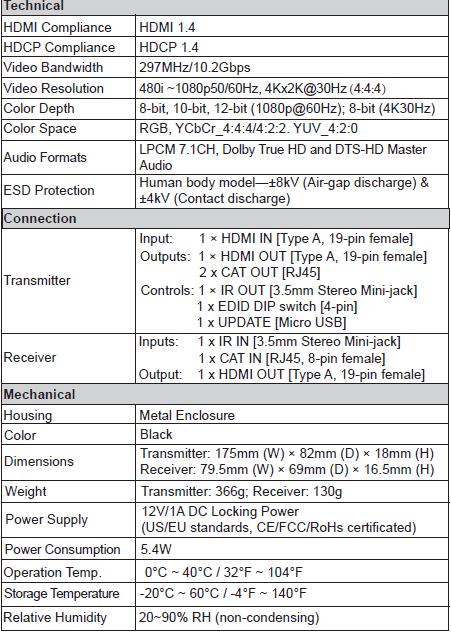

| Weight | 900 g |
|---|---|
| Dimensions | 21 × 8.3 × 1.8 cm |
| HDMI Version | 1.4, 10.2Gbps |
| Resolution | 480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4) |
| HDCP | HDCP1.4 |
| EDID | Support |
| Markets | Retail, Residential, Hospitality, Corporate, Education |
| Cat6 Cable Perfomance | 70Meter, 230 Feet 1080P |
Detailes About Cascade Mix Connection 4K30Hz 1080P HDMI Splitter Extender 1×2 over Ethernet up to 70m
This extender can extend and connect one HD Source to TWO HD Displays or Projectors by two pieces of cat6 at the same time. The extending distance can reach 70m via one Ethernet Cat6 cable. This extender meets the needs of multi-route and low-cost HD Signal long-distance transmission well.
Features:
One HDMI input distributes and extends to found Display by Two Cat 6 cables.
The extended distance can be up to 70m Support 3D,1080P, 4K 30hz
☆ HDMI 1.4 and HDCP 1.4 compliant
☆ Video resolution up to 4K2K@30Hz(4:4:4) 8-bit
☆ Support audio formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
☆ Extend the signal transmission distance up to 131ft / 40 meters at the resolution of 4K30Hz, or 230ft / 70 meters at 1080P@60Hz via a single CAT6 cable

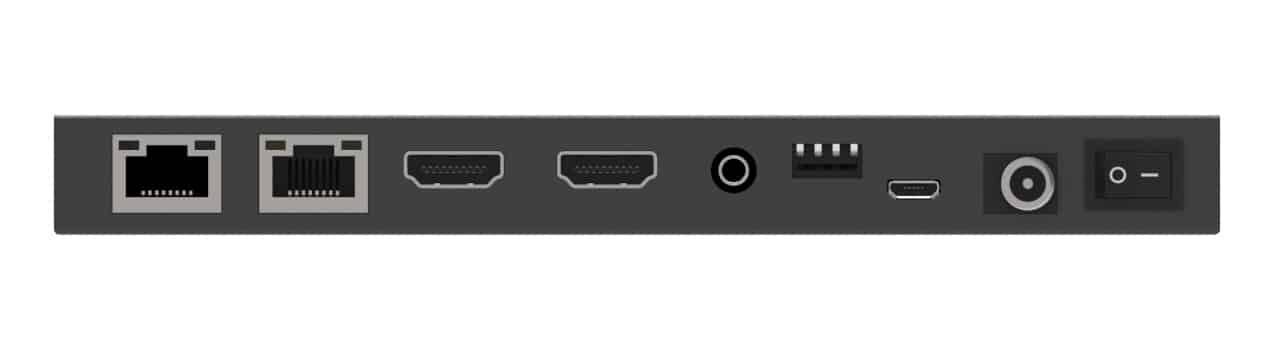

☆ Support 1 HDMI input, 1 HDMI loop output and 2 CAT outputs.
☆ Advanced EDID management
☆ Support one-way POC function (only from transmitter to receiver)
☆ Compact design for easy and flexible installation
- Package:

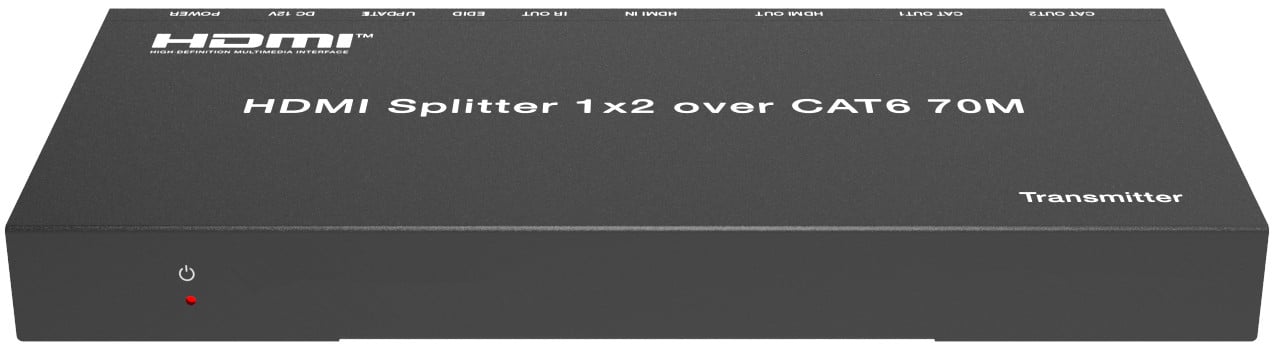

- ① 1 × HDMI 1×2 Splitter
- ② 2 × CAT Receiver

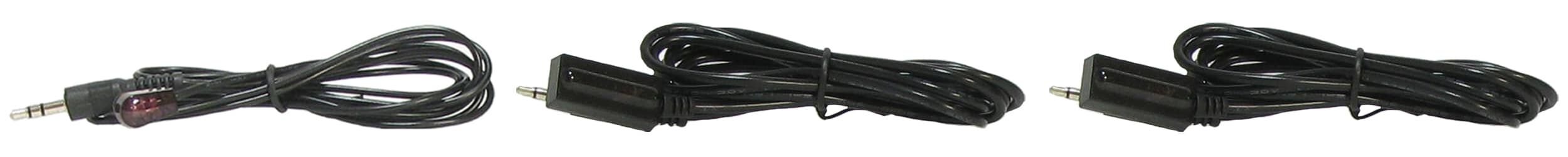

- ③ 1 × IR Blaster Cable (1.5 meters)
- ④ 2 × IR Receiver Cable (1.5 meters)
- ⑤ 2 × Mounting Ear
- ⑥ 1 × 12V/2.5A DC Locking Power Adapter
- ⑦ 4 × Machine Screw (KM3*4)
- ⑧ 1 × User Manual
- The defined EDID setting list of the product is shown as above.
