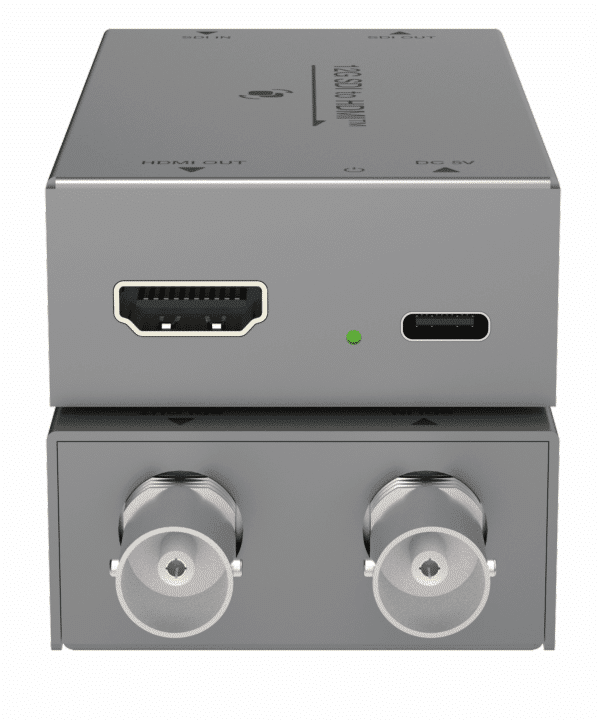

12G SDI to HDMI Converter Features:

SDI to HDMI™ Converter (Supports 12G-SDI)

Supports 1 SDI input, 1 HDMI™ output, and 1 SDI loop-out.

Supports real-time conversion of HD/3G/6G/12G-SDI input signals to HDMI™ output.

Supports automatic detection of input video signal format.

Built-in SDI signal retiming function ensures stable signal quality.

Supported SDI standards: SMPTE 292/424/2081/2082.
Supported transmission distance (based on Belden 1694A coaxial cable): 12G-SDI/6G-SDI: up to 60 meters; 3G-SDI/HD-SDI: up to 100 meters.

Supported SDI formats: HD-SDI (SMPTE 292-1, up to 1.485 Gbps), 3G-SDI (SMPTE 424, up to 2.97 Gbps). 5.94 Gbps, 6G-SDI (SMPTE 2081-1, up to 5.94 Gbps), 12G-SDI (SMPTE 2081-2, up to 11.88 Gbps)

Plug and play, easy to install

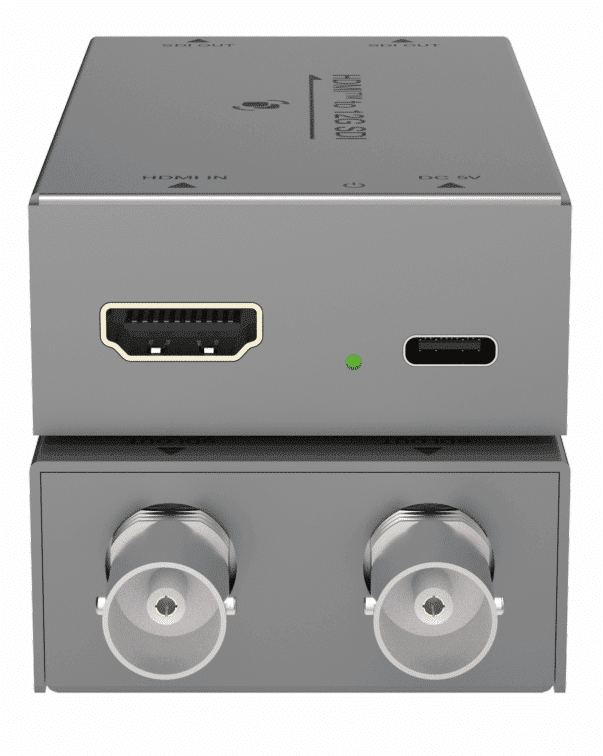

12G HDMI to SDI  Converter Features:

Supports 1 HDMI input and 2 SDI outputs.

Can convert 4K60 HDMI input to HD/3G/6G/12G-SDI output in real time.

Automatically detects HDMI input video signals.

Built-in SDI signal retiming function to ensure stable signal quality.

Supports SDI standards SMPTE-292/424/2081/2082.

Supported SDI transmission distance: When using Belden 1694A cable, 12G-SDI/6G-SDI up to 60 meters,

3G-SDI/HD-SDI up to 100 meters.

Supported SDI output formats: HD-SDI (SMPTE 292-1, up to 1.485 Gbps), 3G-SDI (SMPTE 424, up to 2.97 Gbps), 6G-SDI (SMPTE 2081-1, up to 2.97 Gbps). 5.94 Gbps)

12G-SDI (SMPTE 2081-2, up to 11.88 Gbps)

Plug and play, easy to install
