Mini Video Switcher for Live Streaming

Overview

Switcher supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously. The switcher supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port.

The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to requirements, which is quite flexible. For the needs of video switching such as radio and television, program production, live production of interviews and lectures, outdoor sports events, and school courseware production, the functions of the switcher can be fully met.

Functional characteristics ,video switcher is a multi-functional switcher, no professional knowledge is required, and video switching and audio mixing can be performed by simple operations. This machine can be used in broadcasting, live broadcast and various event venues.

Features

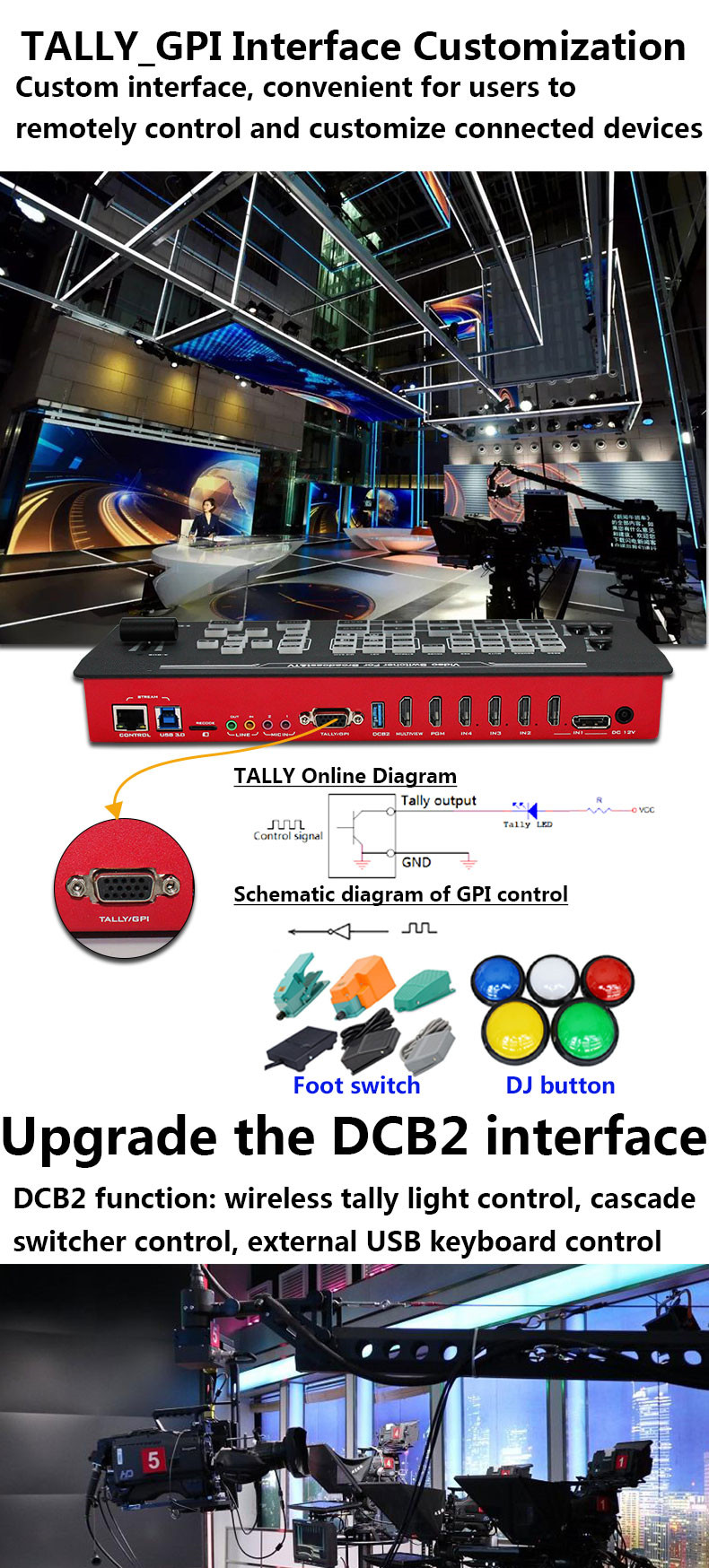

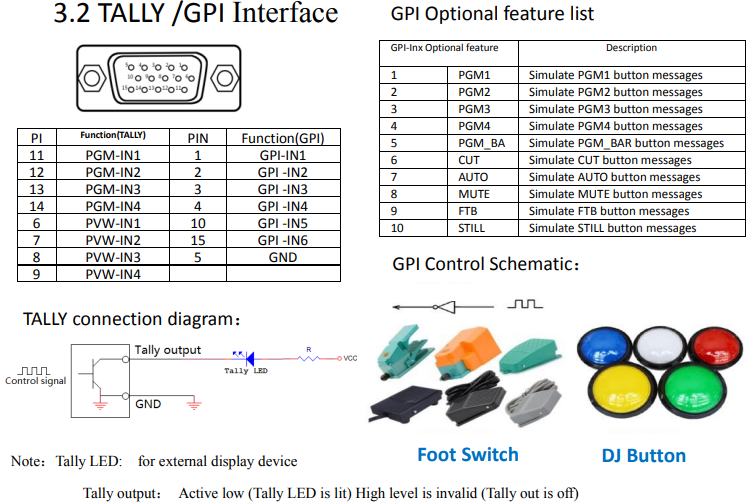

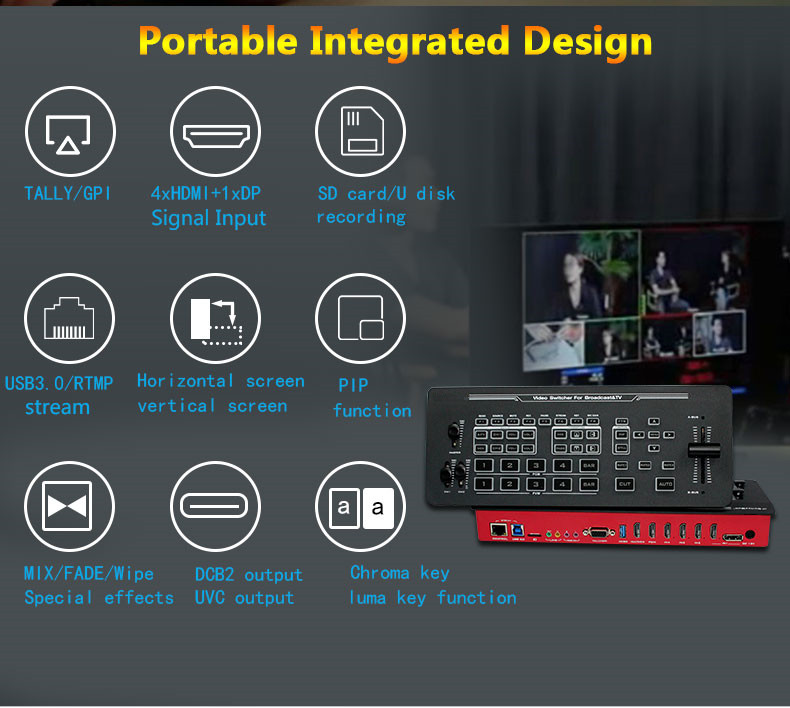

 Portable integrated design  Aluminum alloy body, high strength and light weight  Integrated control keyboard audio fader and video fader  Support up to 4 HDMI+1 DP inputs  2 MIC inputs  3.5mm analog audio input and output  USB3.0 streaming  DCB2 control + video expansion  GPI control, support foot pedal, control handle, etc

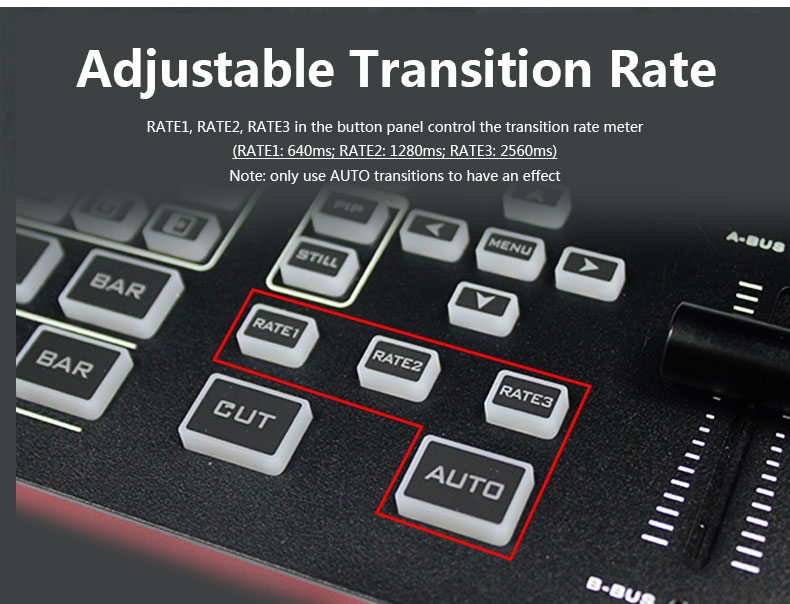

◆Support audio following and mixing functions ◆ Support HDMI audio de-embedding ◆ PGM output: 1 HDMI ◆ Multiview output: 1 HDMI ◆ Support MIX /FADE/WIPE and other special effects switching ◆ Support CUT hard cut and AUTO special effect switch ◆Support supporting DEVICEWELL TALLY lamp system ◆Support TF card to record PGM screen ◆Support network RTMP streaming ◆1 group of KEY, support Luma key, chroma key, key image and superimposed character function

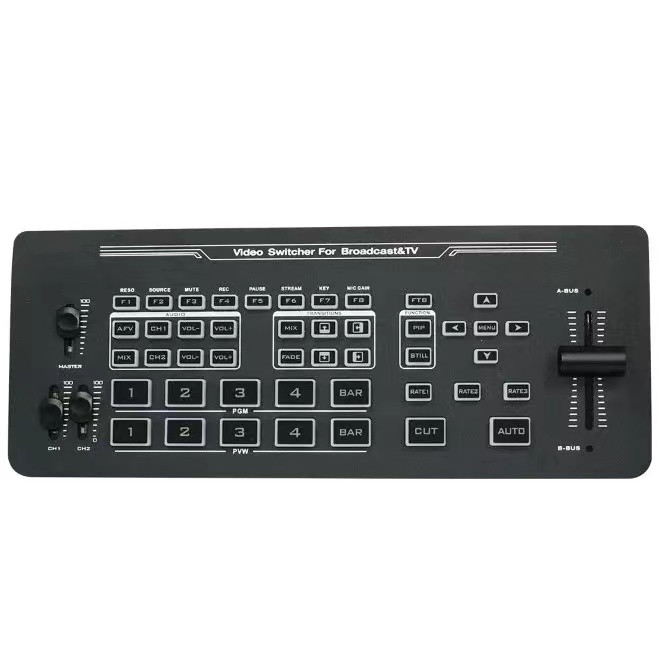

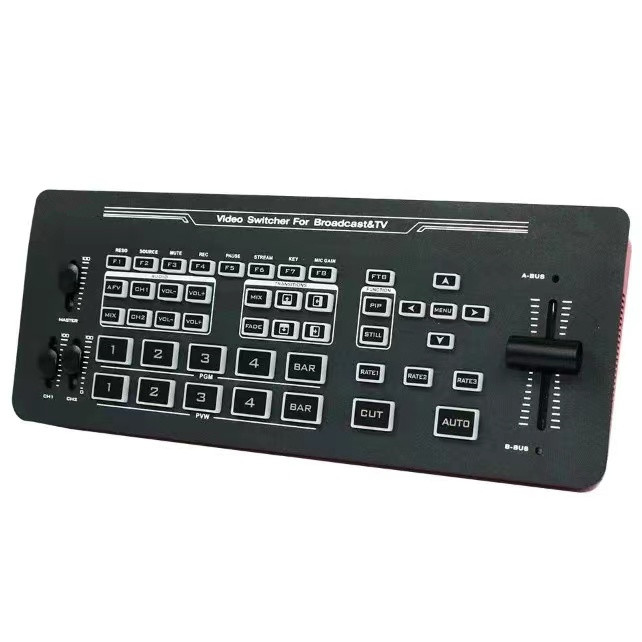

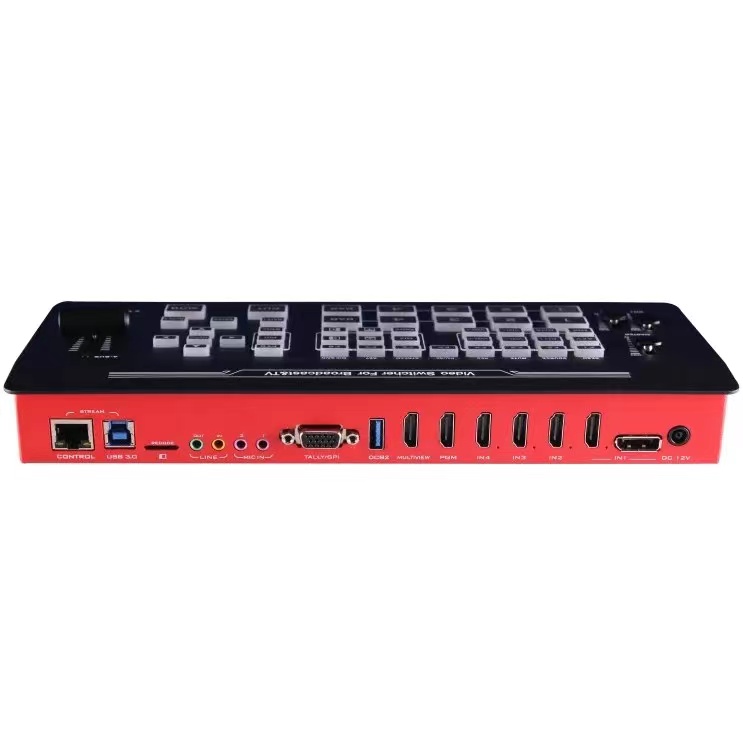

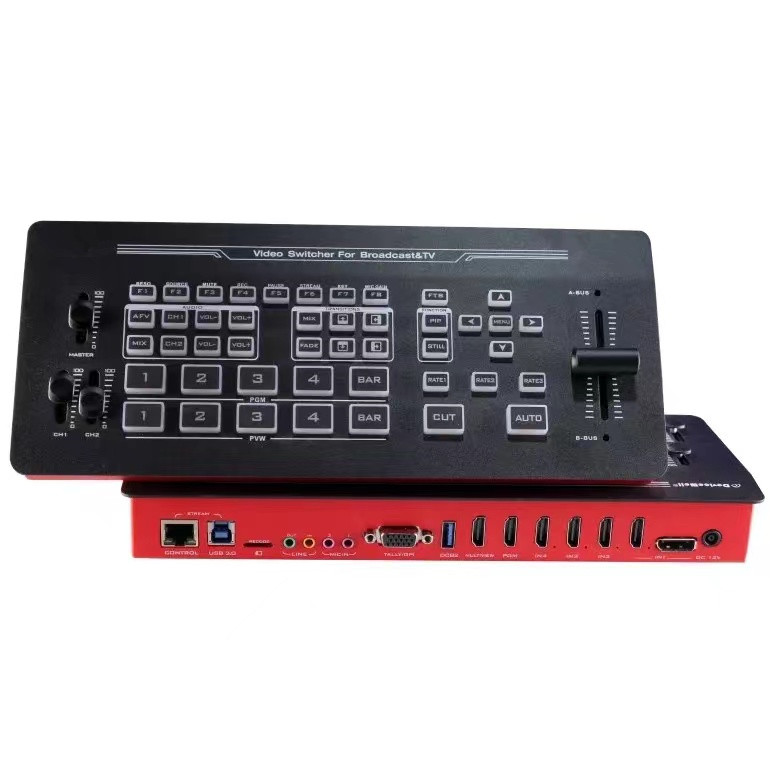

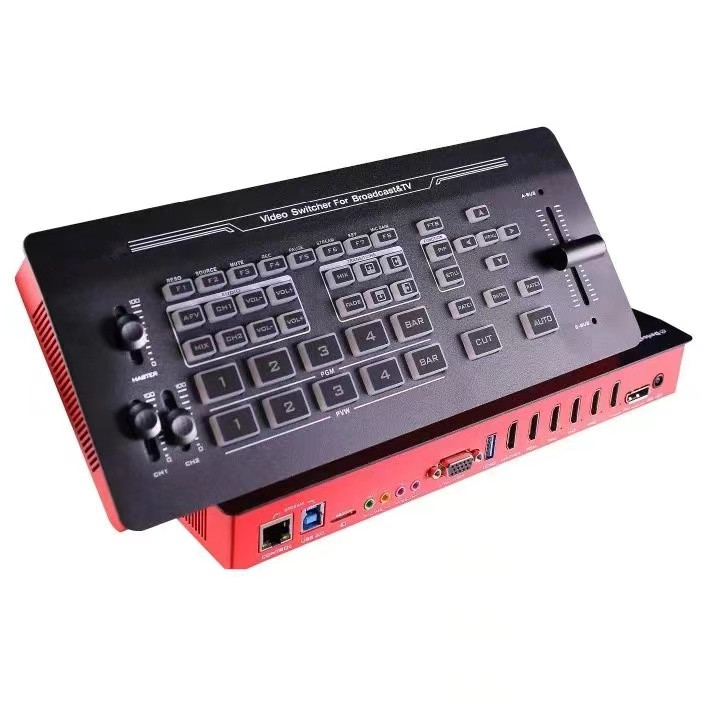

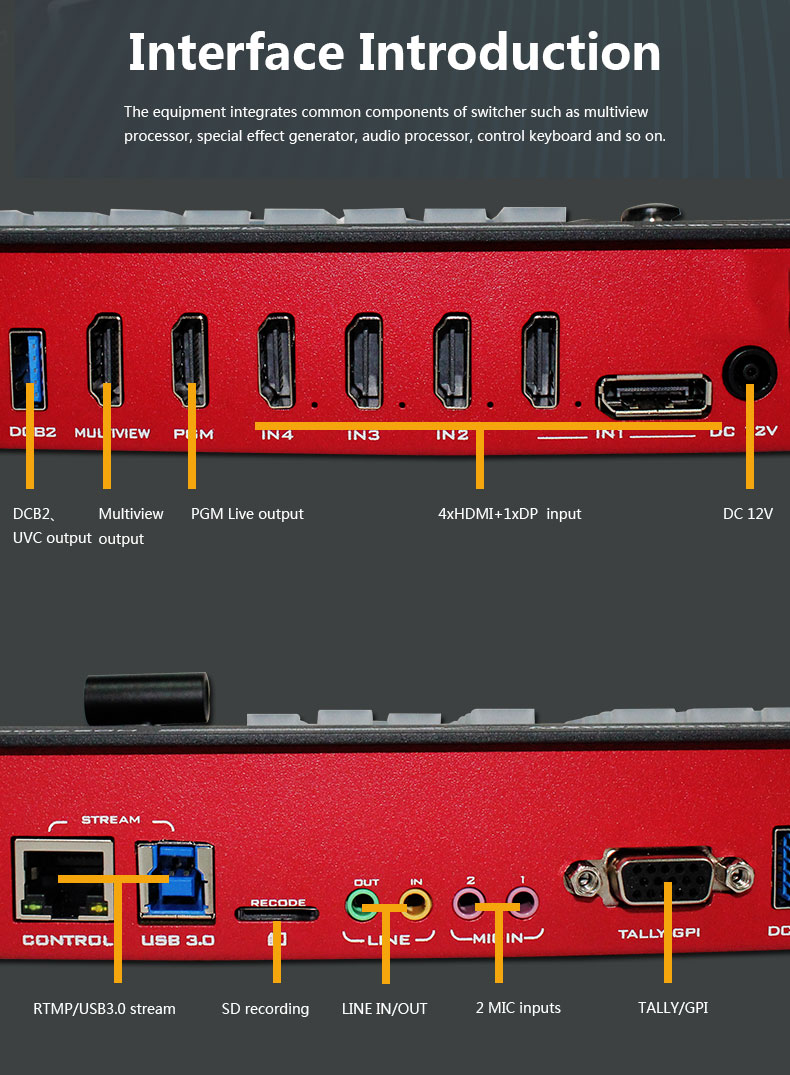

Control Panel and Interface

Before using the HD Mini Switcher, please take a few minutes to read this section. This chapter will introduce you the panel and interface of the HD switcher to facilitate your subsequent use and operation. The new high-strength characteristics of the new aluminum alloy with high-strength characteristics improve the anti-drop, anti-shock and shock-proof capabilities of the whole machine, and effectively protect the internal components of the equipment.

Ultra-lightweight features make the unit easier to transport and maintain without the need for additional equipment; it also offers unparalleled thermal performance. In addition to the innovation of the case, the HD switcher has also been completely optimized for the interface connector. Environmentally friendly materials with new RoHS standards are More demanding in terms of durability and environmental protection, to provide customers with more stable, more environmentally friendly, more cost-effective products

The Video switcher is used in a variety of professional environments, such as Live broadcasts,Weddings, Video conferences, Game Live Stream, Church and live event production.

It is easy to create professional multi camera productions for live streaming to YouTube or innovative business presentations using Skype.

Simply connect and switch live between 4 high-quality HDMI video cameras, presentation computers or game consoles.

The switcher also supports monitoring preview images, allowing you to preview and create exciting high end digital video effects in advance!
