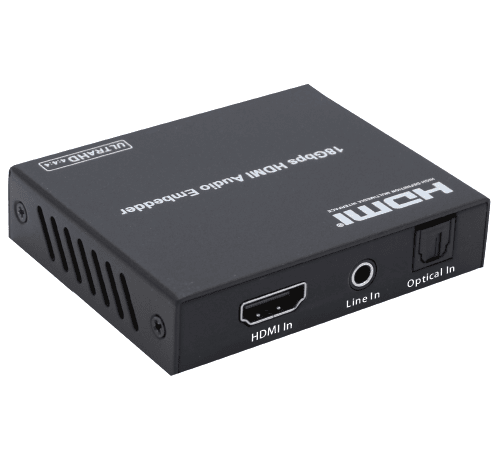

18Gbps HDMI Digital/Analog Audio Embedder 4K@60Hz 4:4:4

New 4K HDR HDMI to HDMI Audio Embedder HDMI 2.0b



Additional information

Weight 220 g
Dimensions 10.6 × 6 × 2.7 cm
HDMI Version

2.0b 18Gbps

Resolution

4K 60 HZ, YCbCr 4:4:4 HDR

HDCP

HDCP 2.2 HDCP1.4

CEC

Support

Audio Format Support

Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS5.1, Dolby Digital, 7.1ch, Dolby 5.1, Dolby true HD, LPCM 2.0 Etc

Markets

Residential

Detailes About 18Gbps HDMI Digital/Analog Audio Embedder 4K@60Hz 4:4:4

DIGITAL/ANALOG AUDIO TO HDMI EMBEDDER INSERTER

Bring together separate audio and video sources into one HDMI signal
From video tutorials to re-visiting live stream gaming

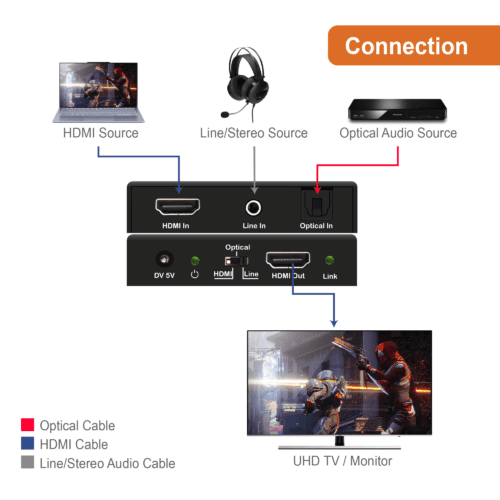

This embedder will take in your HDMI video (now up to 4K@60Hz 4:4:4!) as well as your audio whether multi-channel digital optical audio (TOSLINK/SPDIF) or analog audio (3.5mm/line).

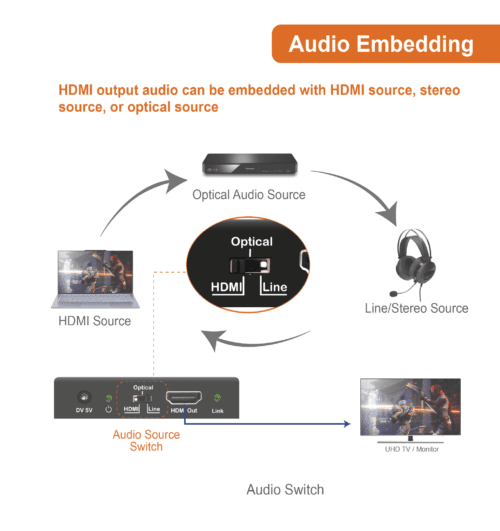

It will then output the combination as a single HDMI audio/video signal to your display. There’s also the option to keep the original HDMI audio instead of replacing it.

This gives more options without the hassle of moving cables around; just flip a switch.

Don’t just send a video and hope they understand the best parts, now they can hear you tell them as they watch.

Also supported: HDMI 2.0B (18Gbps), 10bit High Dynamic Range (HDR), Dolby Vision, HDCP 2.2/1.4, CEC pass-through, many multichannel audio formats, audio sampling rate up to 192kHz, and HDMI High Bit Rate (HBR) audio pass-through.

Conclusion:

The HDMI 18Gbps Audio Embedder could embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444).
It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass,LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Features

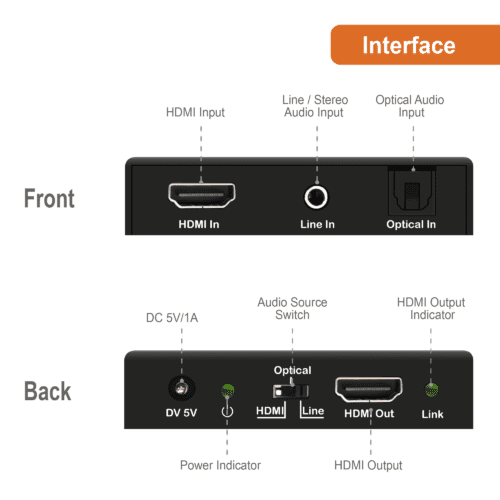

☆ Embeds multi-channel optical (SPDIF) or Line analog
audio to HDMI output
☆ Optical audio supports LPCM 2CH, Dobly Digital 2/
5.1CH, DTS 2/5.1CH
☆ Analog audio supports PCM2.0
☆ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI 1.0 compliant
☆ Video resolutions up to 4K2K@50/60Hz (YUV444)
☆ Supports HDMI High Bit Rate(HBR) audio pass through
☆ 10bits HDR (High Dynamic Range) pass through
☆ Supports CEC bypass

SPECIFICATIONS:

model name HDR HDMI audio embedder
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
video bandwidth 18Gbps
video resolutions up to 4k2k@50/60hz (YUV 4:4:4),4K2K@30HZ,1080P@120hz,and 1080p 3@60hz
Color space RGB ,YCbCr 4:4:4,YCbCr 4:2:0
Color Depth 10bit,12bit
HDMI Audio Formats (pass-through) LPCM2/5.1/7.1ch,Dolby digital,DTS5.1,Dolby Digital +,Dolby TrueHD,DTS-HD Master Audio,Dolby Atmos,DTS:X
Optical Audio LPCM 2CH,LPCM5.1,Dolby Digital 2/5.1ch,DTS 2/5.1CH
