2023 Flexible Modular Seamless Matrix System 36x36 4K18Gbps 2K

Pro Audio Video Solutions Video wall Processor / Controller / Video wall system 36×36,80×80

Additional information

Weight 16000 g
Dimensions 48.3 × 37.8 × 26.6 cm
HDMI Version

4K Series Card : HDMI 2.0b, HDCP 2.2
2K Series Card : HDMI 1.4, HDCP 1.4


4K cards 3840x2160p60Hz YCbCr 4:4:4
2K cards 1920x1200p60Hz
YCbCr 4:4:4



Audio Formats

HDMI Audio LPCM 2.0/5.1/7.1CH
Analog audio LPCM 2.0CH


Front Panel button, IR,RS-232,TCP/IP, Web GUI,or PC program

Input /Output

Support HDMI, DVI-U(DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI, HDBaseT and Fiber input and output

Color Depth

2K series card: 8/10/12-bit (1080P60Hz)
4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4)

Transmission Distance

HDMI: 1080P/15 meters, 4K30/10 meters, 4K60/5 meters
HDBT: 1080P/70 meters/100 meters/150 meters;
4K/40 meters/70 meters/120 meters


LED/LCD Video Wall Application via Gen-Lock Technology , no Delay.

Detailes About 2023 Flexible Modular Seamless Matrix System 36x36 4K18Gbps 2K

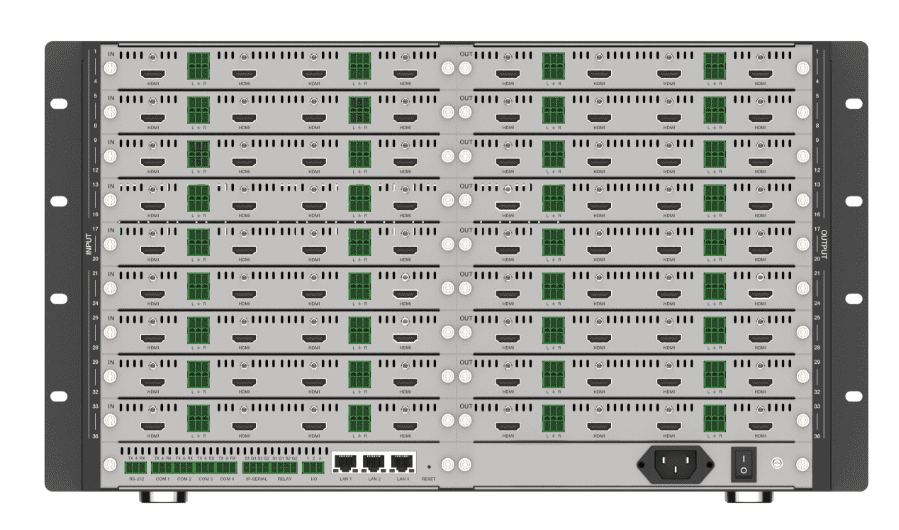

New Flexible Modular Seamless Matrix One card with 4 ports


2023 flexible modular seamless matrix system 36x36 4k18gbps 2k


This Modular Seamless Switching Matrix is a professional all-in-one machine that supports various audio and video signal switching and distribution, integrated video wall function and control system.

It supports up to 8~72 signal inputs and 8~72 signal outputs. Audio and video matrix adopts pure hardware high-speed matrix switching chip, which has high integration, stable system, no compression/loss/delay of signal.
Advanced full digital signal processing technology can ensure signal distortion-free processing,and the best image quality to the display devices.

This series of Modular Seamless Switching Matrix, supported by the high bandwidth backplane, provides up to 4Kx2K@60Hz YCbCr 4:4:4 24bit input/output and arbitrary routing of various signals. It supports HDMI 2.0b, 18Gbps video bandwidth, color depth up to 12 bits. The matrix adopts pluggable card structure, which is flexible and convenient for installation.

It provides HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SDI, HDBaseT and optical fiber input/output cards. One card with four channels, both 2K series and 4K series cards are supported. Input cards support audio embedding, and output cards support audio de-embedding, providing maximum support for the audio system in the whole system.

It offers multiple control methods such as front panel buttons (with LCD screen), IR remote, RS-232 signals, LAN, PC tool or Web GUI control.

The built-in video wall function can realize any splicing mode within the range of 8/16/36/72 total output channels, providing a turnkey solution for the distribution and processing of video signals with various formats in various industries.

The built-in control system integrates multiple control interfaces and intelligent control GUI modules that can be directly recalled by users.

This Matrix is applicable to video conferences, energy and power, judicial prison, smart city, government service, water conservancy and hydrology, meteorology and earthquake, enterprise management, metallurgy and steel, banking and finance, public security and transportation, exhibition, production scheduling, radio and television, education and scientific research and other fields.


☆ HDMI 2.0b and HDCP 2.2 compliant
☆ HDMI 18Gbps video bandwidth, up to 4K60 YCbCr 4:4:4 24bit
☆ Pluggable card structure (One card with four channels)
☆ Support 8/16/36/72 channel video signal inputs and outputs
☆ Multiple input/output cards with HDMI, DVI-U (DVI/YPbPr/CVBS), VGA, 3G/HD/SD-SDI,HDBaseT and optical fiber
☆ Video resolution up to 1920×1200p60hz (2K series card), 3840x2160p60hz (4K series card)
☆ Seamless switching without image tear, black screen or flicker in the switching process
☆ Based on Gen-Lock video wall splicing technology, the latency between any output channel is less than 0.1ms
☆ Any splicing modes in the allowed range of 8×8~72×72, especially suitable for LCD/LED video wall
☆ Multiple output resolutions to meet the needs of different types of display devices
☆ Adopt pure hardware high-speed matrix switching chip with high integration

☆ Built-in signal equalization, signal recovery and signal redriver
☆ Built-in video quality enhancement, output video quality can be adjusted
☆ Built-in HDCP processing logic to avoid HDCP compatibility issues
☆ Input cards support audio embedding, output cards support audio de-embedding
☆ Analog audio embedding supports LPCM 2.0CH, analog audio and video signals are input synchronously
☆ Analog audio de-embedding supports LPCM 2.0CH, analog audio and video signals are output synchronously
☆ Up to 64 kinds of scene presets can be recalled
☆ Advanced EDID management (Internal EDID or copy from any output devices)
☆ Control via front panel buttons, IR, RS-232, TCP/IP, Web GUI or PC program
☆ Built-in intelligent control system with user-friendly GUI
☆ Silent fan design, noiseless, stable performance
☆ AC power port with built-in power module
☆ Standard rack size design, convenient for installation

Package Contents

① 1 x Modular Seamless Switching Matrix
② 6 x 3pin-3.81mm Phoenix Connector (male)
③ 2 x 4pin-3.81mm Phoenix Connector (male)
④ 1 x IR Remote
⑤ 1 x RS-232 Serial Cable (DP9 female connector to 3pin H2.0 Phoenix Connector,
1.5 meters)
⑥ 1 × USB to RS-232 Serial Cable (USB A to RS-232 serial DB9 male connector)
⑦ 4 × Rubber Foot
⑧ 4 × Machine Screw (M3*4)
⑨ 1 x 100~240V AC 50/60Hz Power Cord
⑩ 1 x User Manual
