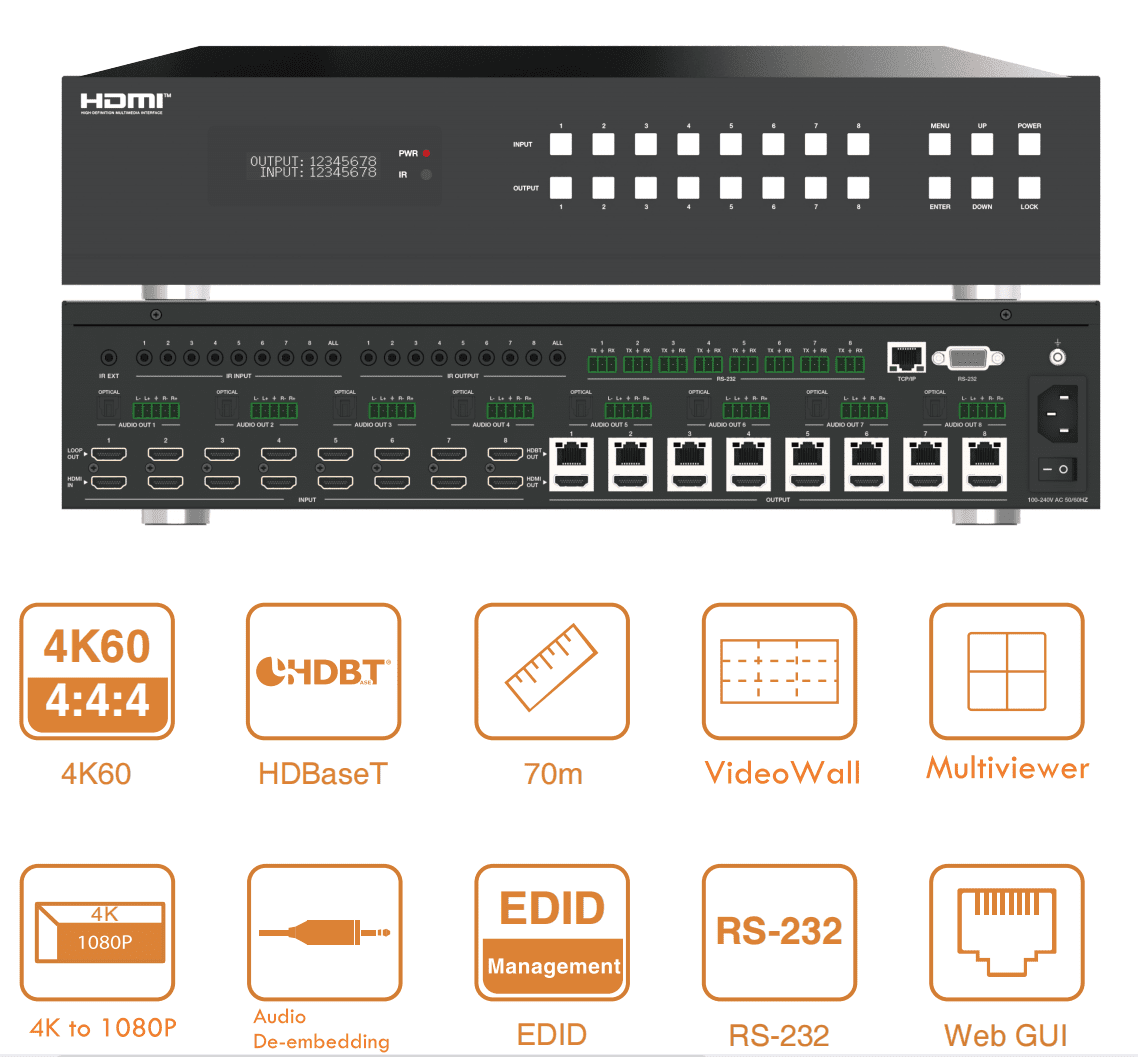

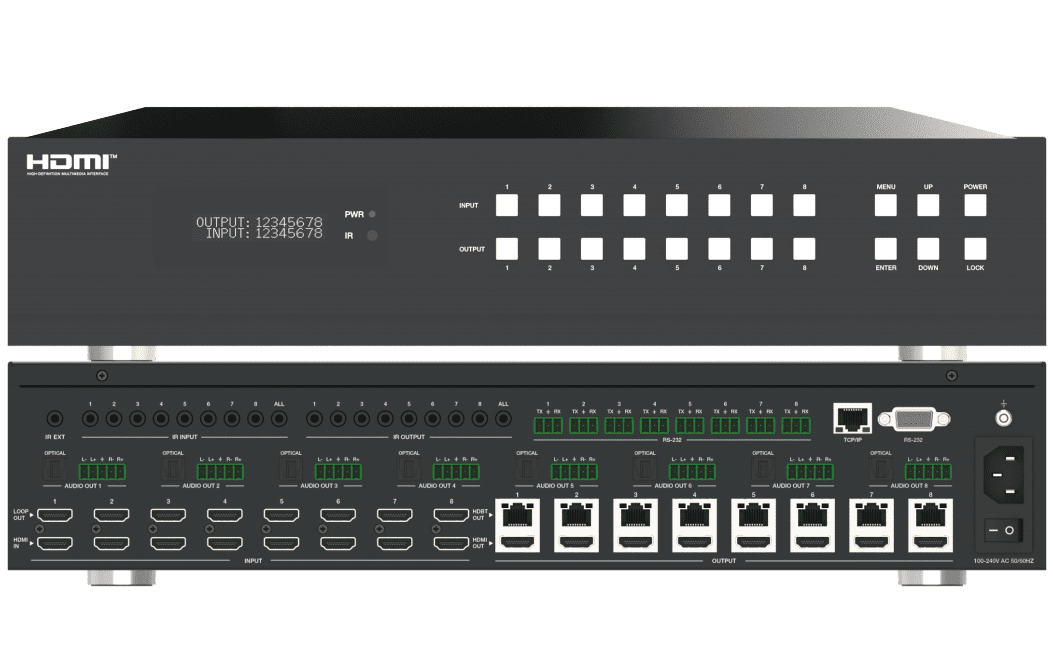

Seamless 8X8,8×16,8×24 4K60Hz HDBaseT Matrix Extender with VideoWall,Multiviewer,Audio
HDMI2.0 HDBaset Matrix 8x84K@60Hz By CAT6 70m with 8 receivers,VideowWall,Multiviewer,Seamless switch
| Weight | 11000 g |
|---|---|
| Dimensions | 44 × 36.2 × 8.8 cm |
| HDMI Version | 2.0 HDBaset Technology |
| All in one | Seamless switching, VidoeWall, Multiviewer |
| Resolution | 4K2K@60Hz 4:4:4, 18Gbps |
| HDCP | HDCP2.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| Cat6/6a/7 transmission distance | 4K signal up to 40meter,1080p signal up to 70meter |
| IR | Support |
| Control | Support TCP/IP,RS232,WebGui Control |
Detailes About Seamless 8X8,8×16,8×24 4K60Hz HDBaseT Matrix Extender with VideoWall,Multiviewer,Audio
Features:
Compliant with HDMI 2.0b and HDCP 2.2 specifications
Video resolution up to 4K60Hz RGB/YCbCr 4:4:4
Support LPCM 7.1ch, Dolby TrueHD and DTS-HD Master
Transmission distance up to 70 meters (1080P resolution) or 40 meters (4K resolution) via a single Cat 6/6a/7 network cable
Support HDMI and HDBaseT signal mirror output
Support seamless switching, video wall and multi-screen functions
Built-in equalizer, video scaling, signal shaping and driver
Support audio matrix function
Intelligent EDID management
Controllable via TCP/IP, RS-232 serial port commands, Web GUI, Front panel buttons and infrared remote control
