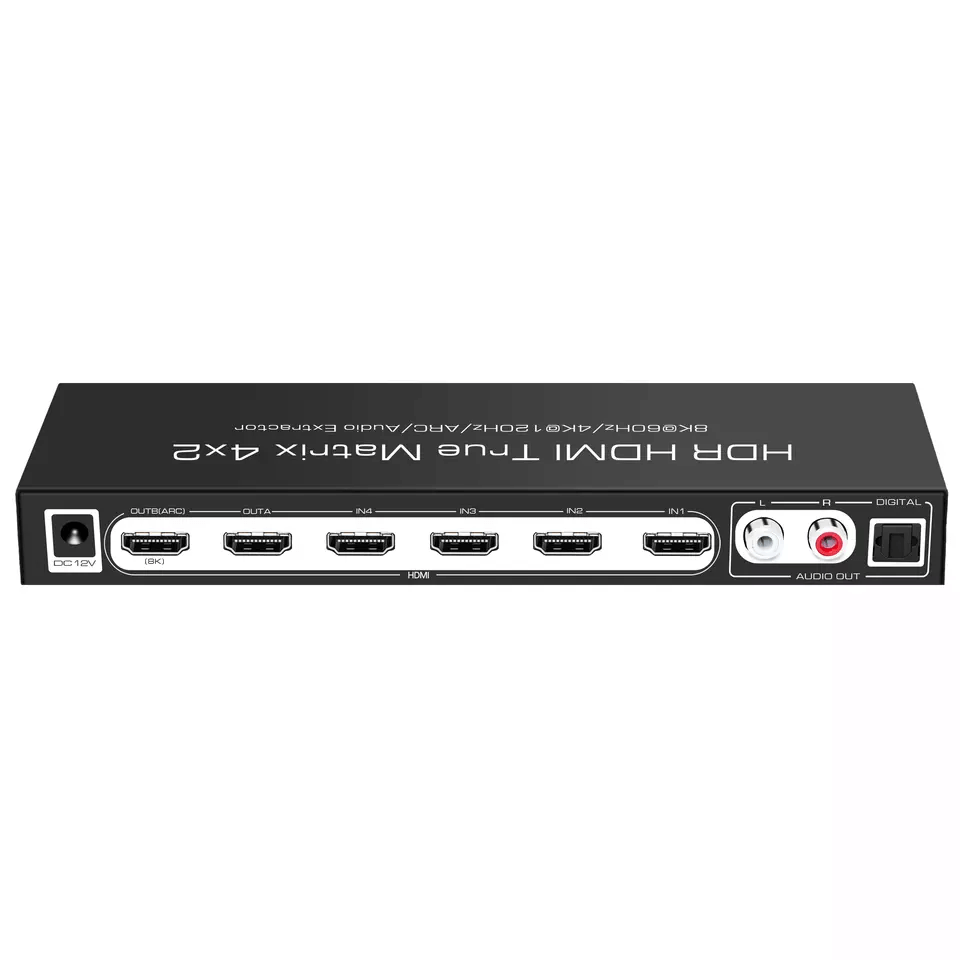

8K60Hz HDMI True Matrix 4x2 4K120Hz with Audio

IR Remote Control 3840x2160P 4K@120Hz 7680×4320@60Hz 8K HDMI Switch Splitter Matrix 4 In 2 Out

Additional information

Weight 550 g
Dimensions 25 × 7.5 × 3 cm
HDMI Version

3840x2160P 4K@120Hz 7680×4320@60Hz 8K

Resolution

8K 4K@120Hz 4K@60Hz

HDCP

HDCP2.2 HDCP1.4

IR Control

Support

ARC

Support

Audio Format Support

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Markets

Venues, Government, Retail, Hospitality, Residential, Corporate, Education

Detailes About 8K60Hz HDMI True Matrix 4x2 4K120Hz with Audio

The 4×2 HDMI Matrix can connect four HD Sources with two HD Displays; it can easily switch and distribute four HD Source signals to two HD displays at the same time.

IR Remote Control 3840x2160P 4K@120Hz 7680×4320@60Hz 8K HDMI Switch Splitter Matrix 4 In 2 Out

Feature:
1. Four Input HD Source signals switch and distribute to two HD Displays
2. Support 30/36 Bit Deep Color
3. Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC
4. Support Audio Format:DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5. Support Signal Retiming
6. Input HDMI Cable length up to 10M if using the standard AWG26 HDMI Cable; Output HDMI Cable length up to 12M if use the standard AWG26 HDMI Cable.
7. It can use the remote to choose the signal source or switch the input signal source by press the switch button.
8. Use 12V Power Adaptor

SPECIFICATION:
HDMI Input/Output Resolution……480p/720p/1080p/2160p@24/25/30/50/60/100/120Hz
Up to 4320p@50/60Hz. Supports HDR & Dolby Vision
Deep Color….8/10/12/16Bit@2160p ,8/10bit@4320p
HDMI Audio Format……Dolby HD/DTS HD/Dolby Atmos/Dolby AC3/DTS/LPCM
HDMI Max bandwidth………1200MHz
HDMI Max baud rate……48Gbps

HDMI Input cable distance.…… ≤10m AWG26 HDMI standard cable1080p, ≤5m 2160p/AWG26
Output cable distance…….≤12m AWG26 HDMI standard cable 1080P,≤5M 2160P/AWG 26
Max working current……500MA
Power adapter format………12V/1.5A
Operating Temperature range…….(-5 to +40℃)
Operating Humidity range…5 to 85%RH (No Condensation)
Product size (L x W x H)……250X75X30 (mm)
Weight…..550g
