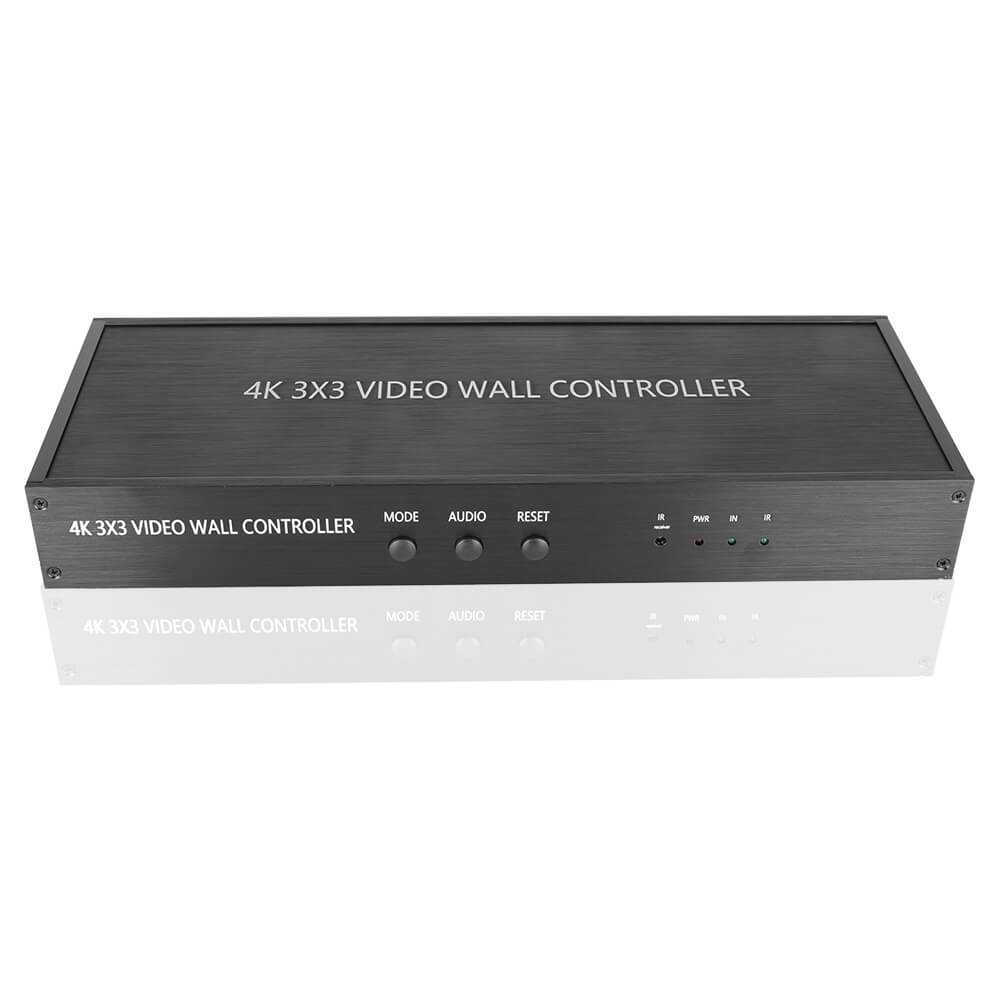

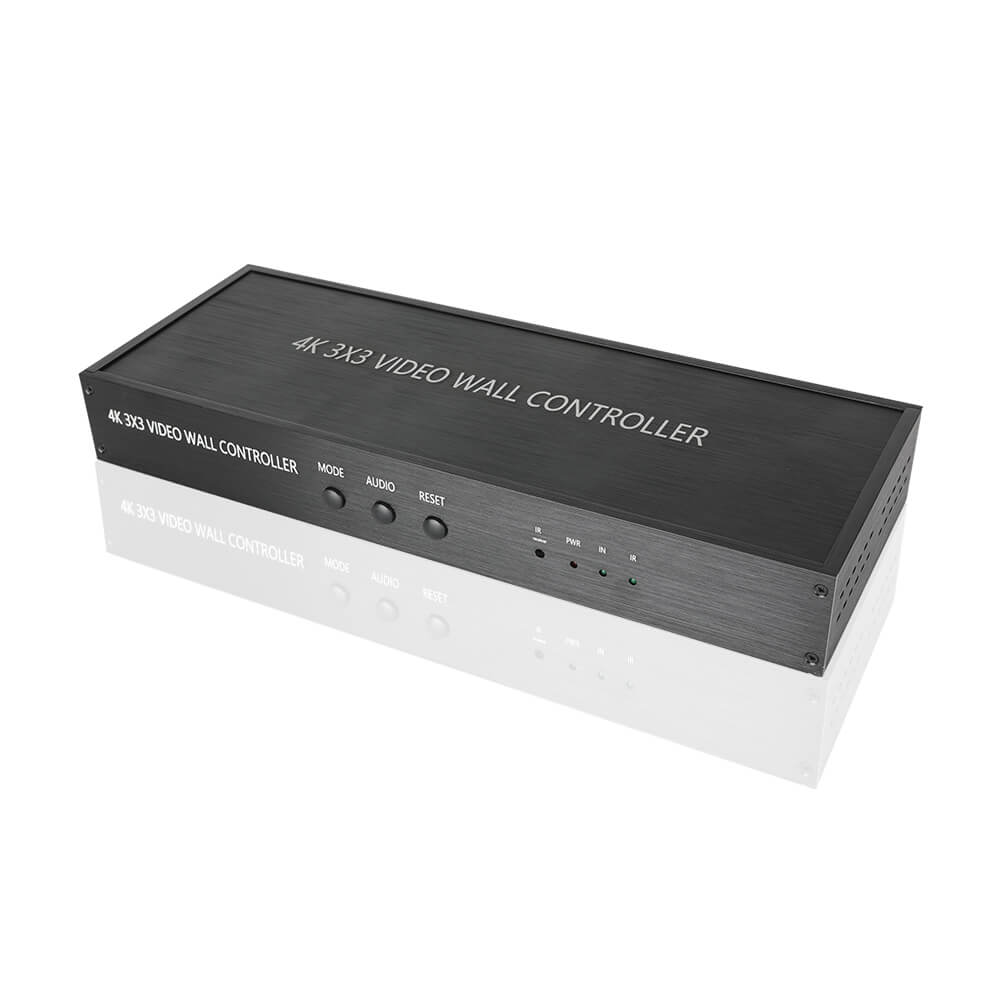

4K60Hz 3×3 Enjoy large screen
| Weight | 550 g |
|---|---|
| Dimensions | 25 × 10 × 3 cm |
| HDMI Version | hdmi2.0b |
| Resolution | 4k60hz &1080p |
| HDCP | HDCP2.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |

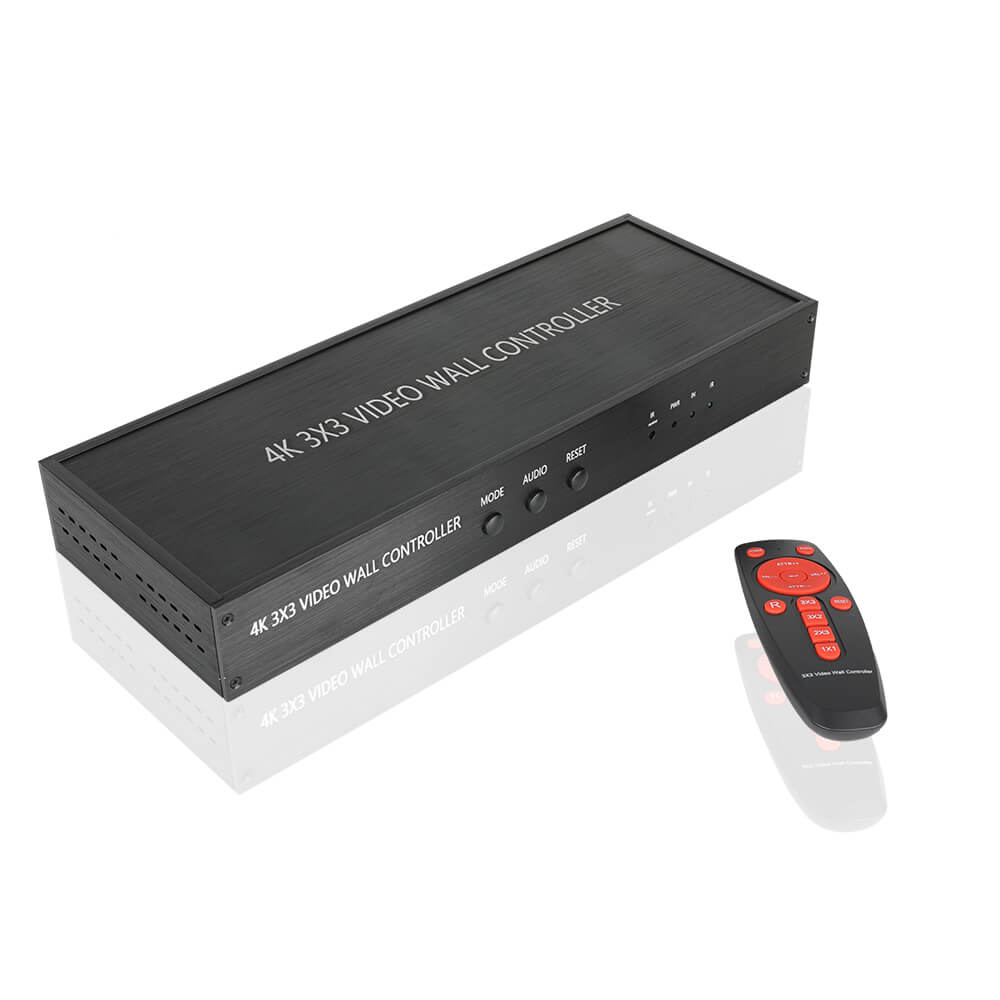

| IR | Support 38KHz |

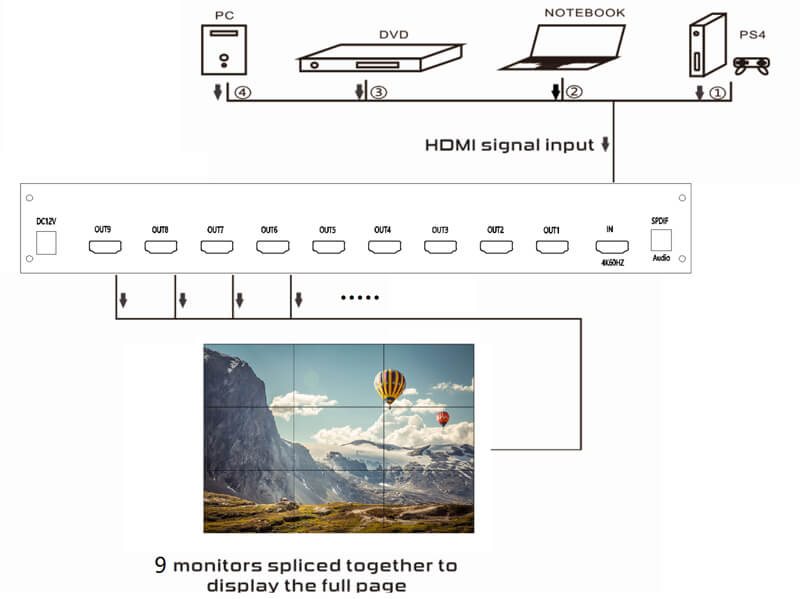

9 monitors spliced together to display the full page
FEATURES
*Support 1 HDMI input
*Support input HDMI2.0b and HDCP2.2
*Support 9 HDMI outputs
*Support input 3840x2160P60HZ(4KP60),and lower resolution
*Support output resolution 1920x1080P(1080P)
*Support multiple splicing modes, easy to operate, plug and play
SPECIFICATION
| Technical | |
| HDMI compliance | HDMI 2.0b |
| HDCP compliance | HDCP 2.2 |
| Input Resolution | up to4K60Hz 3840x2160p |
| Output Resolutions | 1920x1080p |
| IR Level | 5V p-p |
| IR Frequency | 38KHz |
| Support Audio | Spdif Audio |
| Cable Length | Standard 26AWG, input up to 15meter,output up to 15meter |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) |
| Connections | |

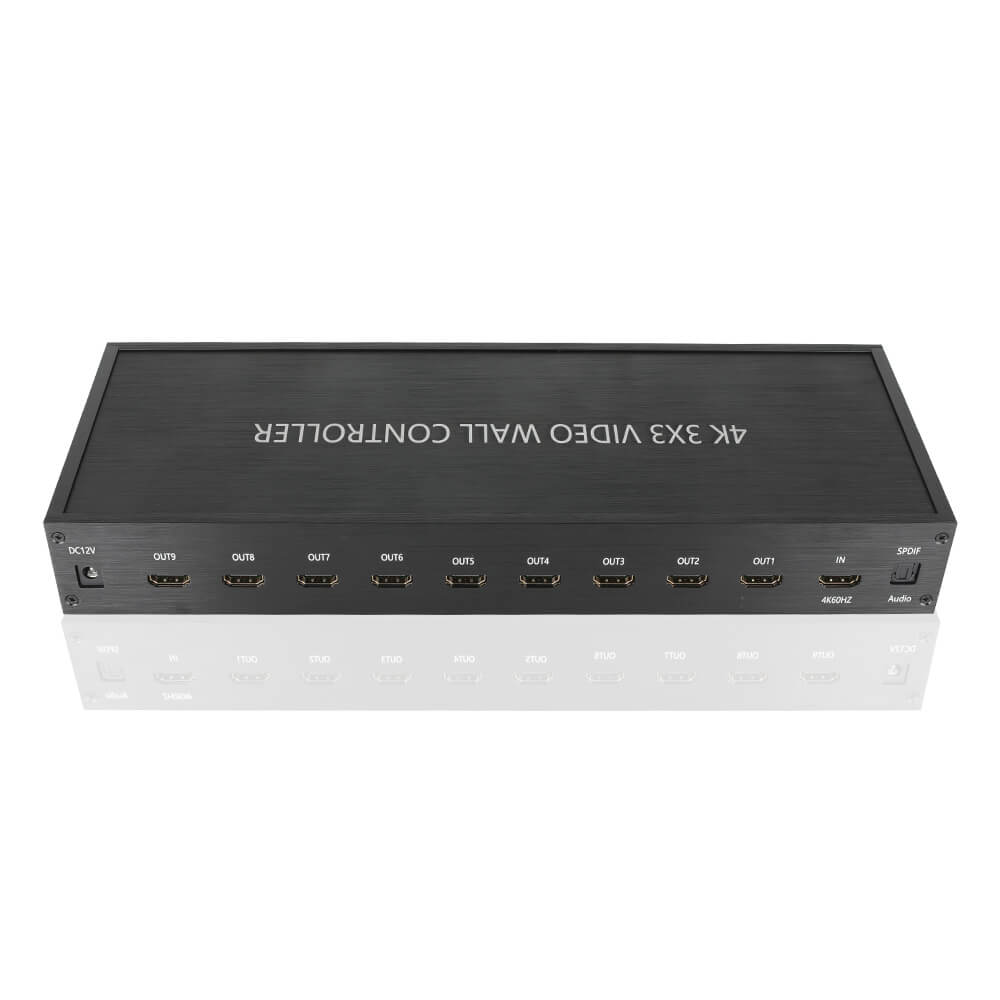

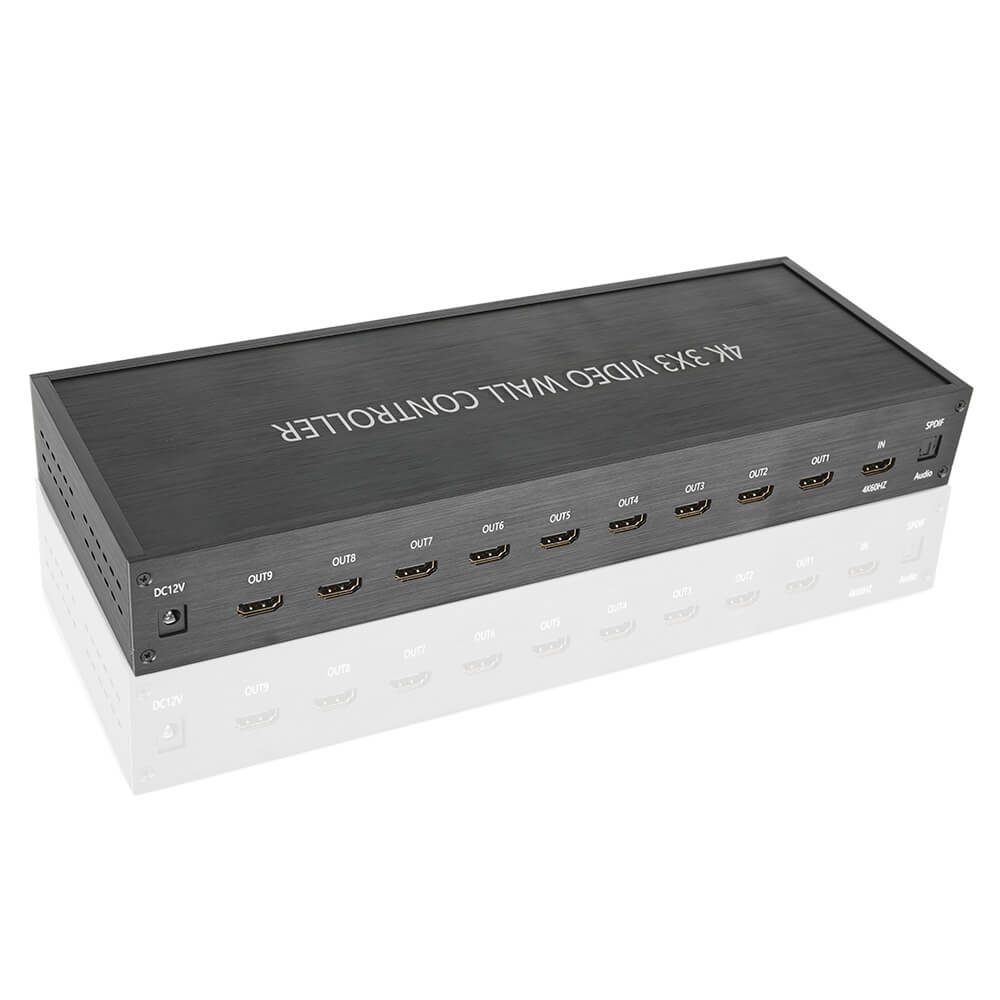

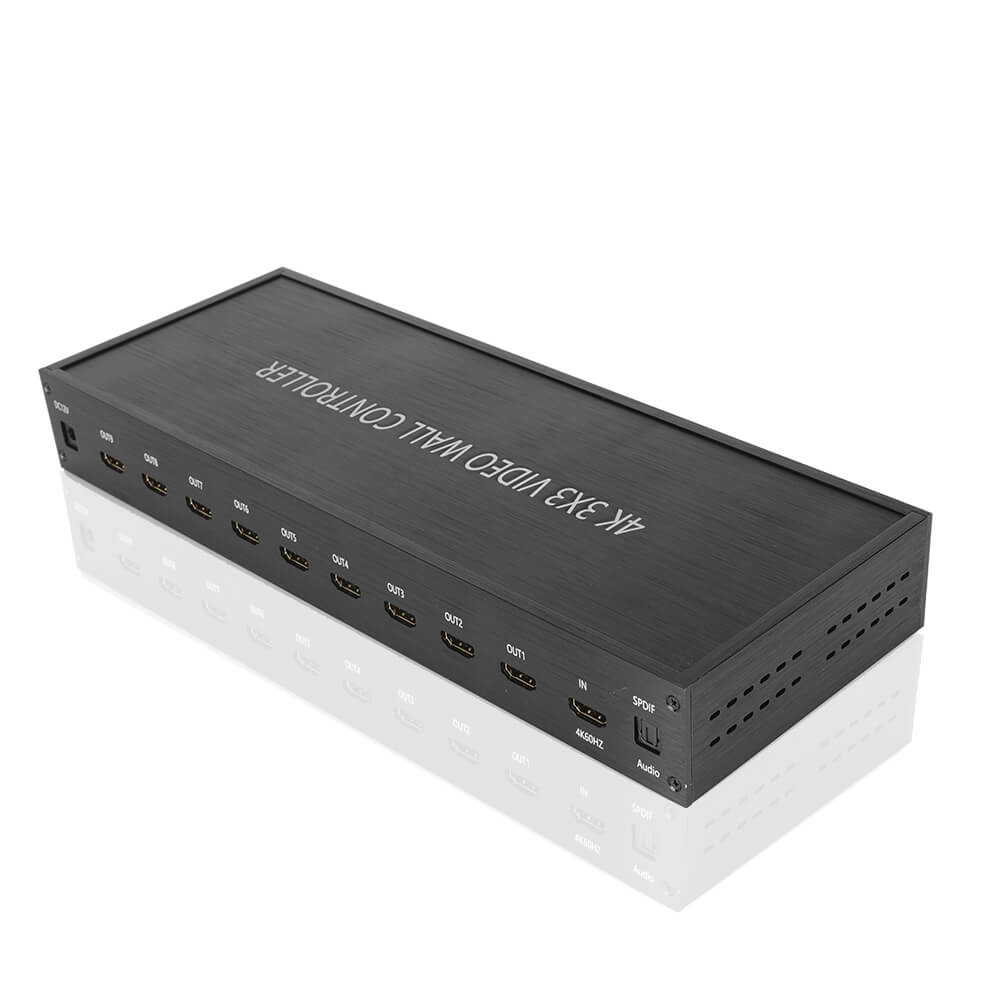

| Input ports / Output | Input ports 1 x HDMI IN [Type A, 19-pin female]
Output ports 9 x HDMI OUT [Type A, 19-pin female] |
| Mode | 1×2,2×1,2×2,2×4,4×2, |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 250mm [W] x 93mm [D] x 30mm [H] |
| Weight | 550g |
| Power Supply | Input: AC100 – 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 10W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 – 90% RH (no condensation) |
