8K4K Bidirection HDMI Switch Splitter 2 Input 1 Output or 1 In 2 Out
8K 2 Port HDMI Switch 2 In 1 Splitter 1 In 2 Out 4K@120Hz 8K@60Hz HDMI 2.1 HDR UHD VRR for PS5 XBOX Series X 8K TV
| Weight | 54 g |
|---|---|
| Dimensions | 5.6 × 5.3 × 2.1 cm |
| HDMI Version | 2.1 48Gbps |
| Resolution | 8K 60Hz, 4K 120 HZ HDR UHD |
| HDCP | HDCP 2.2 HDCP1.4 |
| Audio Format Support | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM and so on |
| HDMI Input Port | 2 Ports, 3 Ports, 4 Ports, 5 Ports |
| Markets | Residential |
Detailes About 8K4K Bidirection HDMI Switch Splitter 2 Input 1 Output or 1 In 2 Out
4K@120Hz 8K @60Hz HDMI-compatible 2.1 Switcher Adapter HDCP2.3 Video Splitter 2×1 1×2 8K HDMI Switch 2 In 1 Out for PS5 8K TV
Feature：

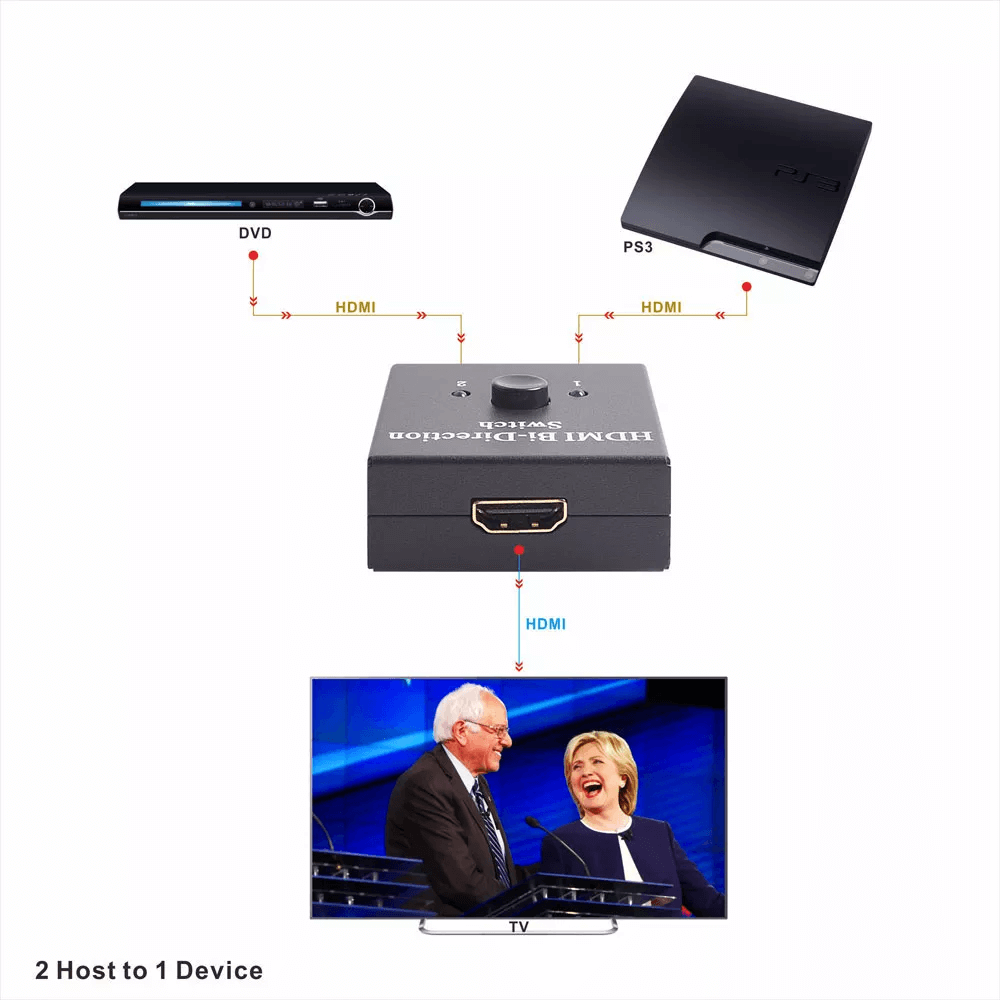

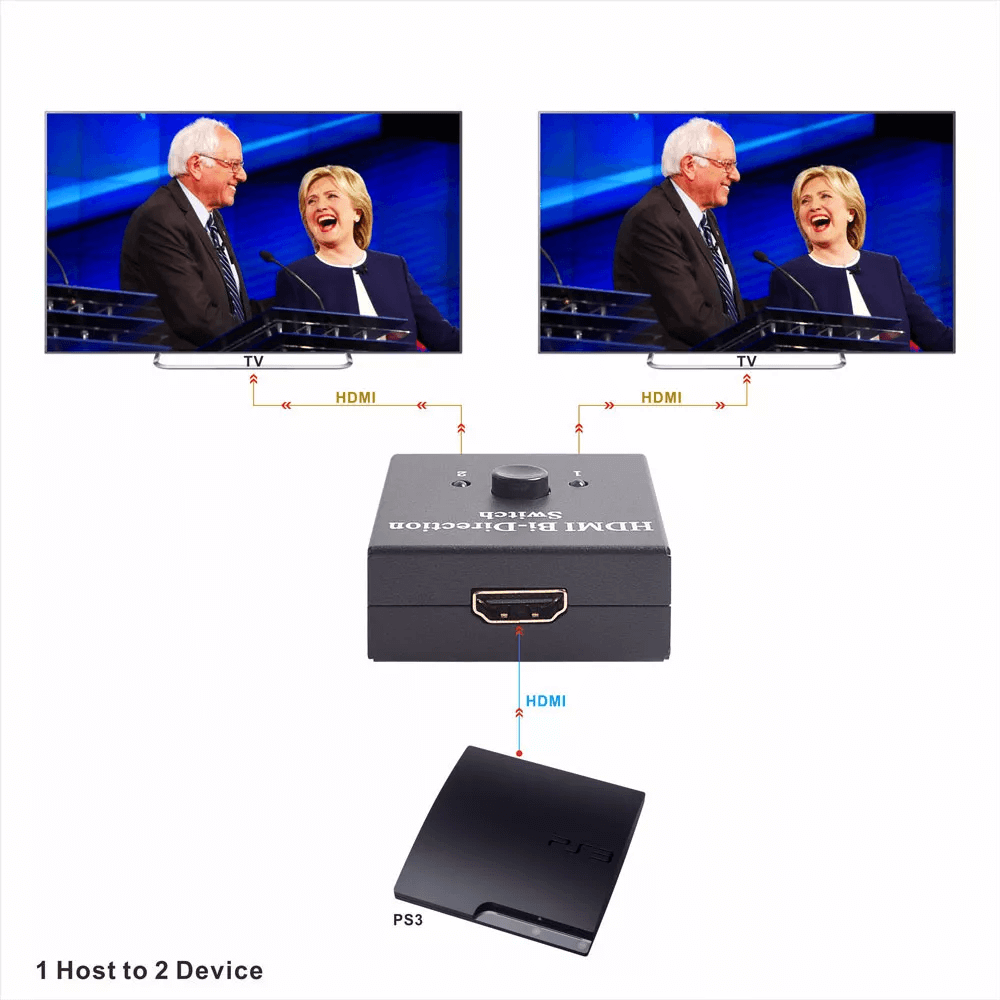

1. Two HDMI Inputs switch to one HDMI Output or One HDMI Input switch to Two HDMI Output.
2. Support 8K @60hz,4K@120Hz UHD signal input and output.
3. Support HDMI auto switch.
4. LED Status Light shows clearly the working state.
5. Input cable length: 4320P/AWG 26 ≤3m；2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m
Output cable length: 4320P/AWG 26 ≤3m；2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m
6. Easy-Install
Specifications:
| Model name | 2×1 1×2 8K HDMI Switch |
| Video format | 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P @50/60Hz(YCC420) |
| Support HDR/Dolby Vision | |
| Deep color | 8/10/12/16Bit@2160p, 8/10Bit@4320P |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby |
| AC3/DTS/LPCM…… | |
| Transmission rate | 48Gbps |
| Input cable length | 4320P/AWG 26 ≤3m； |
| 2160P/AWG 26 ≤5m； | |
| 1080P/AWG 26 ≤10m | |
| Output cable length | 4320P/AWG 26 ≤3m； |
| 2160P/AWG 26 ≤5m； | |
| 1080P/AWG 26 ≤10m | |
| Max working current | 400mA |
| Working temperature range | 0 ~ +40℃ |
| Working humidity range | 5 to 85%RH(No Condensation) |
| Storage temperature | -15 to 55℃ |
| Storage humidity | 5 ~95%RH(No Condensation) |
| Size | 56x53x21(mm) |
| Weight | 54g |
