Seamless 4K60Hz HDMI 4×1 Multiviewer with USB 3.0 KVM Switch

4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher with Multiviewer Control

Additional information

Weight 450 g
Dimensions 22 × 10 × 3 cm
HDMI Version

HDMI 2.0b,up to 18Gbps

HDMI Resolution

Up to 4K2K@60Hz 4:4:4

HDCP

HDCP 2.2

Switch

Auto and Manual switching

8 display modes

Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

Control

panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands

USB

3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers

Detailes About Seamless 4K60Hz HDMI 4×1 Multiviewer with USB 3.0 KVM Switch

seamless 4k60hz hdmi 4x1 multiviewer with usb 3.0 kvm switch

Introduction

This 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.

It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input.

This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.

This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM function.

It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.

This device can be controlled via front panel buttons, IR remote, keyboard/ mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands.

Features:

☆ HDCP 2.2 and HDCP 1.x compliant

☆ Support 18Gbps uncompressed video bandwidth

☆ Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b

☆ Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel

☆ Seamless switching between input channels and combined multiple images on single UHD monitor

☆ Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2) 1 / 27

☆ Seamless switching in single screen display mode

☆ Fast switching in multiview display mode

☆ Using only 1 set of keyboard, mouse and monitor to control 4 computers

☆ Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers

☆ Support multimedia, wireless keyboards and mouse

☆ Audio de-embedding via analog and optical fiber audio ports

☆ Support volume control and independent audio selection

☆ Support OSD navigation for advanced setting

☆ EDID management

☆ Control via front panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands

☆ Compact design for easy and flexible installation

Package list

① 1 x 4K60 4×1 Seamless UHD Video & USB 3.0 KVM Switcher

② 1 x IR Remote

③ 1 x 3pin-3.81mm Phoenix Connector (male)

④ 1 x Fixed Frequency 38KHz IR Receiver Cable (1.5 meters)

⑤ 2 x Mounting Ear

⑥ 4 x Machine Screw (KM3*4)

⑦ 4 x USB Cable (USB 3.0 AM to BM, 1.8 meters)

⑧ 1 x 12V/2.5A Locking Power Supply

⑨ 1 x User Manual

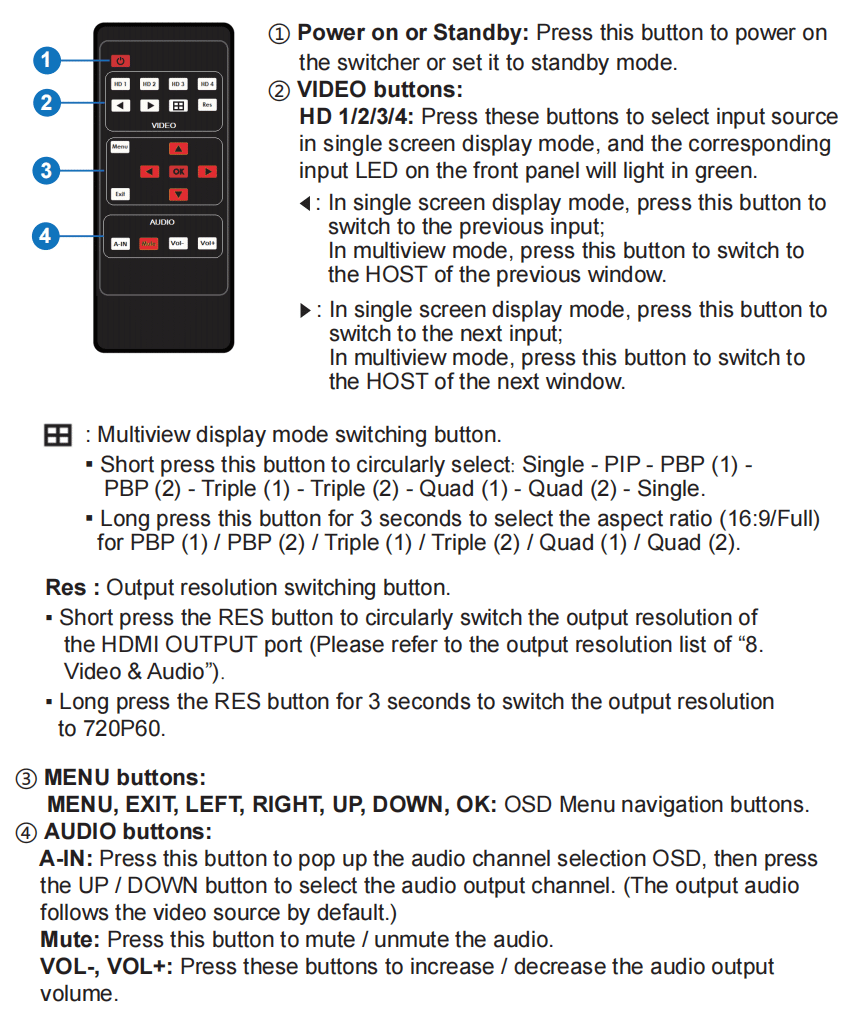

seamless 4k60hz hdmi 4x1 multiviewer with usb 3.0 kvm switch IR Remote

seamless 4k60hz hdmi 4x1 multiviewer with usb 3.0 kvm switch

Multiviewer modes

seamless 4k60hz hdmi 4x1 multiviewer with usb 3.0 kvm switch

Output interface

seamless 4k60hz hdmi 4x1 multiviewer with usb 3.0 kvm switch
