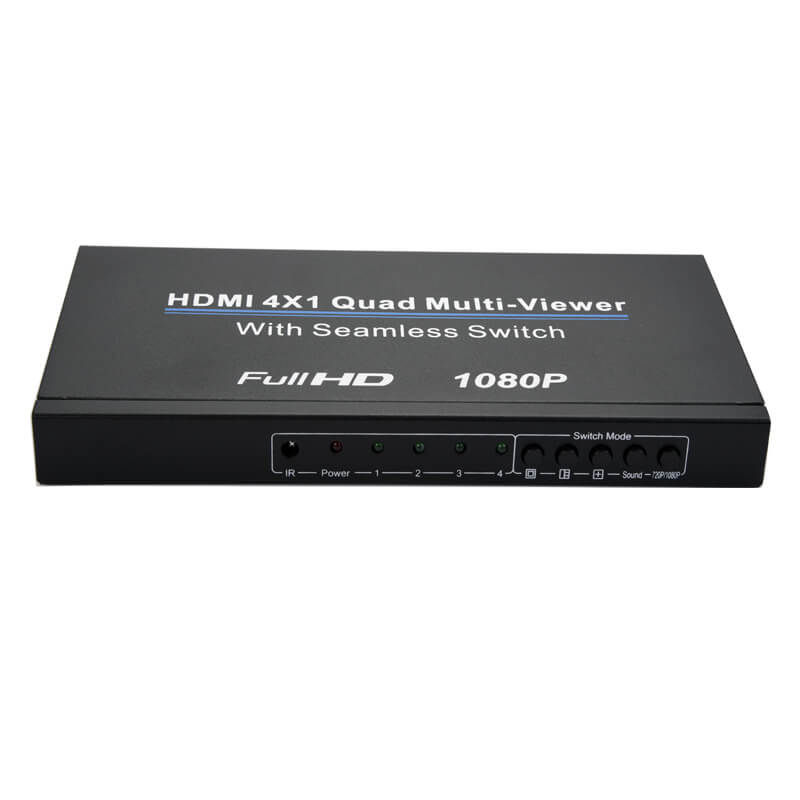

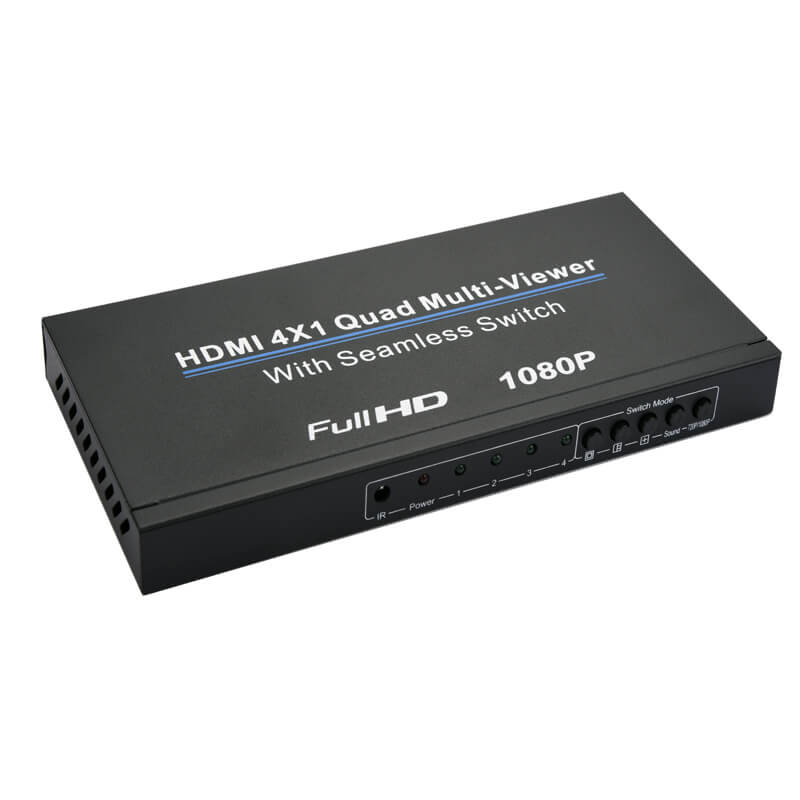

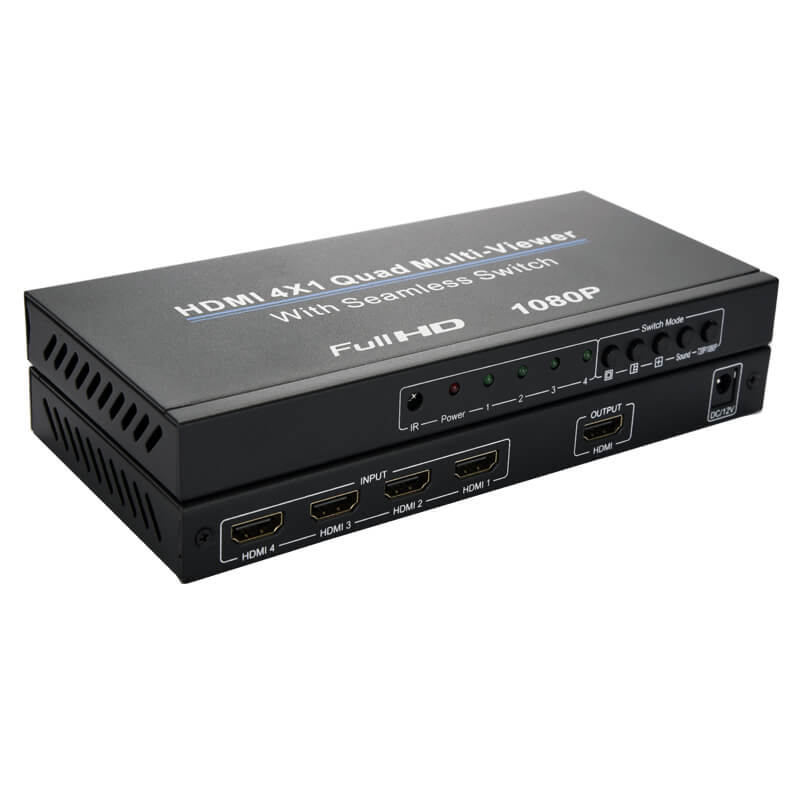

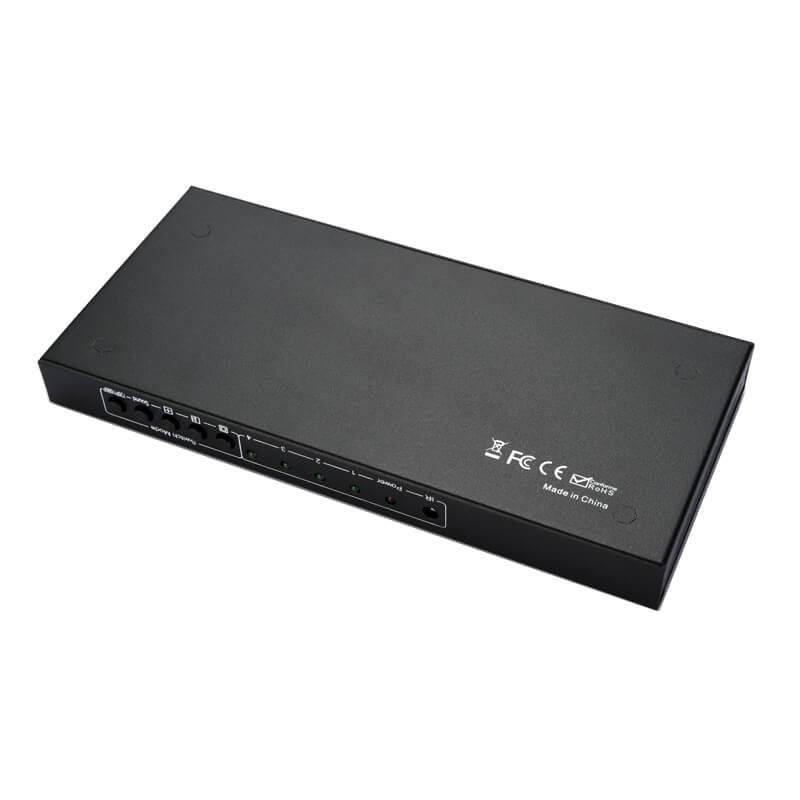

1080P seamless 4×1 multiviewer switcher
| Weight | 500 g |
|---|---|
| Dimensions | 20 × 10 × 3 cm |
| HDMI Version | 1.3a |
| Resolution | 1080p |
| HDCP | HDCP1.2 |
| Markets | Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| IR | Support 38KHz |
It was developed for the purpose of supporting higher output resolution (1080p) for multiple sources on a single screen.
It can combine up to four video signals onto a single displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the four inputs on a single monitor.

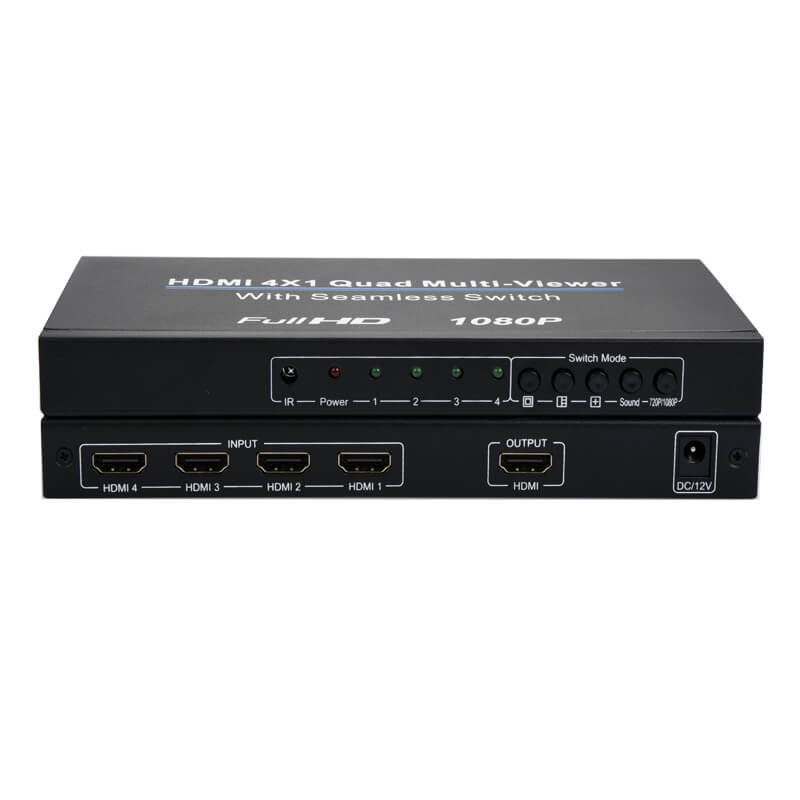

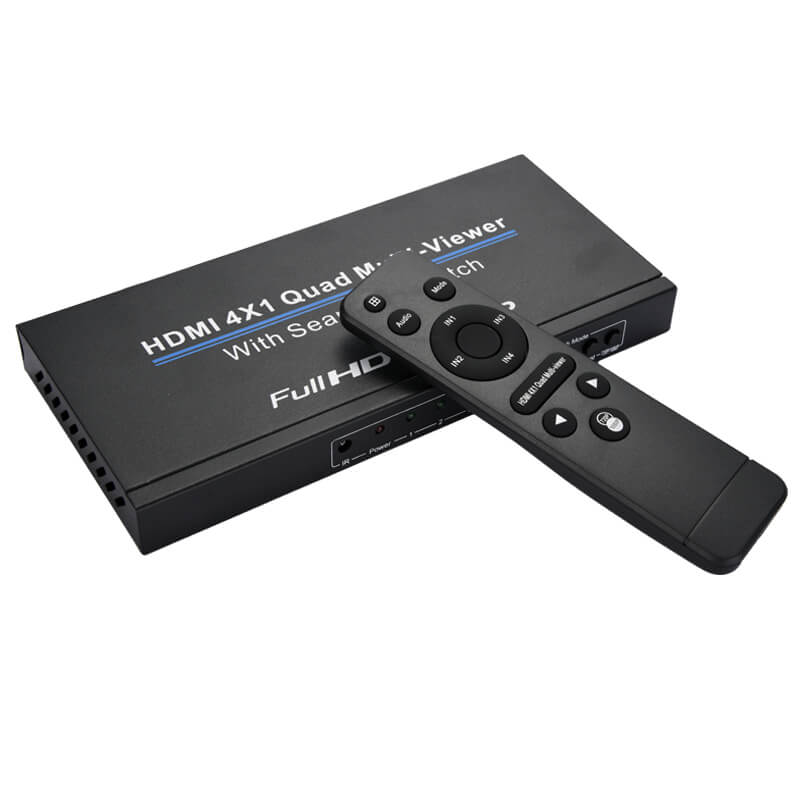

This device can be controlled via front panel buttons, IR remote.
FEATURES
SPECIFICATION
| Technical | |
| HDMIcompliance | HDMI 1.3a |
| HDCPcompliance | HDCP 1.2 |
| Input Compatible | DVI 1.0Version |
| Video Resolutions | up to 1080p |
| IR Level | 5V p-p |
| IR Frequency | 38KHz |
| Support Audio Out | PCM2 |
| Cable Length | Standard 26AWG, input up to 15meter,output up to 15meter |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge) |
| Connections | |

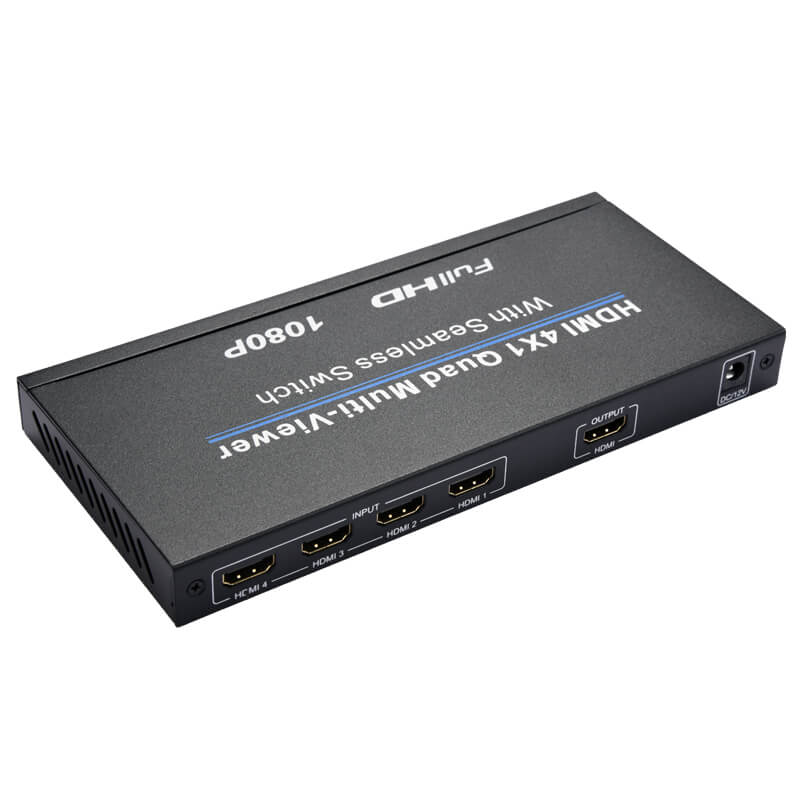

| Input ports / Output | Input ports 4 x HDMI IN [Type A, 19-pin female]
Output ports 1 x HDMI OUT [Type A, 19-pin female] |
| Control ports | 1 x IR EXT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 200mm [W] x 93mm [D] x 20mm [H] |
| Weight | 460g |
| Power Supply | Input: AC100 – 240V 50/60Hz
Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 10W (Max) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 – 90% RH (no condensation) |
Package Contents:
