2023 New 2×1 4K60 UHD Quad/PiP/PoP Multiviewer Seamless Video Switcher

HDMI2.0 4K60Hz seamless 2×1 multiviewer switcher UHD TV



Additional information

Weight 350 g
Dimensions 18 × 9 × 3 cm
HDMI Version

2.0

Resolution

4K2K@60Hz 4:4:4, 18Gbps

HDCP

HDCP2.2

Markets

Hospitality, Residential, Corporate, Education, Venues, Government, Retail

IR

Support 38KHz

RS232

Support

Audio

Support

Detailes About 2023 New 2×1 4K60 UHD Quad/PiP/PoP Multiviewer Seamless Video Switcher

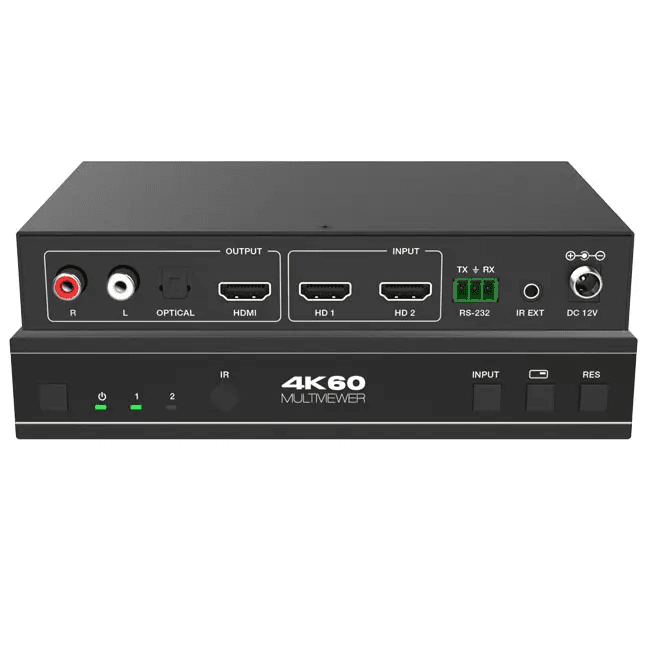

4K60 2×1 Multiviewer Seamless UHD Video Switcher

2023 new 2x1 4k60 uhd quad/pip/pop multiviewer seamless video switcher

It was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen.

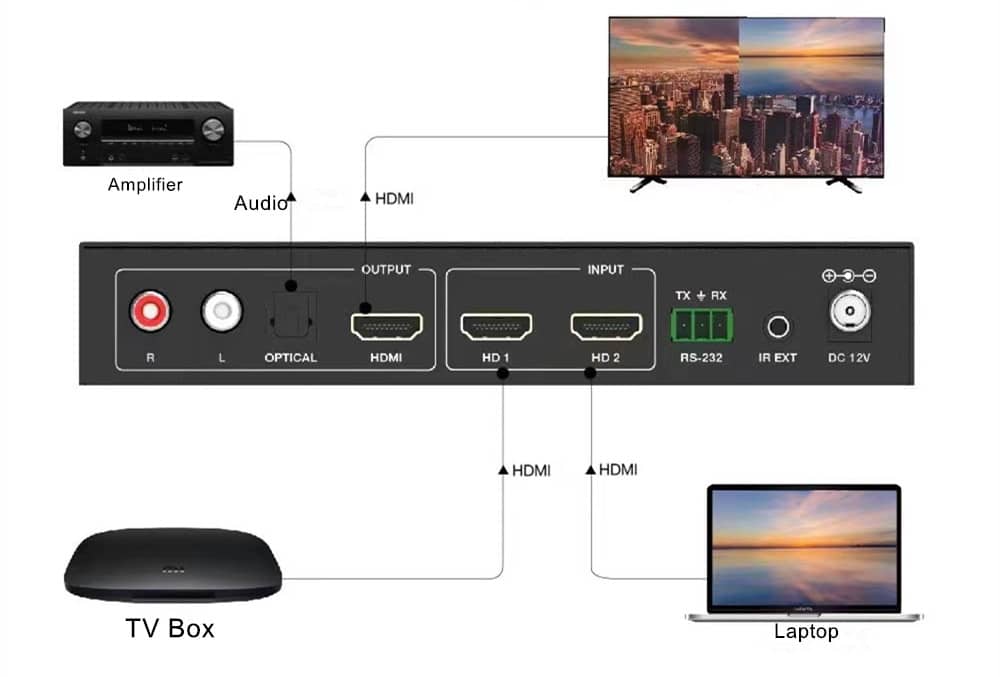

It can combine up to two video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create any layout and position of any of the two inputs on a single monitor.

This device support full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

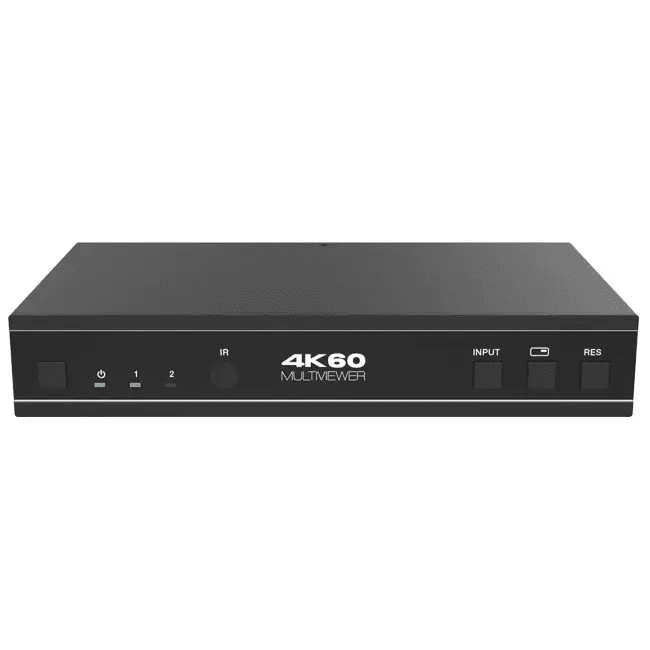

This device can be controlled via front panel buttons, IR remote, RS-232 commands.

2023 new 2x1 4k60 uhd quad/pip/pop multiviewer seamless video switcher

FEATURES

HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
Support 18Gbps video bandwidth
Input and output resolutions support up to 4K@60Hz
Support LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
Seamless switching between input channels and combined multiple images on single UHD monitor
Up to (4) display modes: SINGLE, PIP, PBP (1), PBP (2).
Seamless switching on single screen display mode
Fast switching on multiview display mode
Audio de-embedding via analog and optical fiber audio ports
Support volume control and independent audio selection
Support OSD navigation for advanced setting
EDID management
Control via front panel buttons, IR remote, RS-232 commands
Compact design for easy and flexible installation

SPECIFICATION

Technical
HDMIcompliance HDMI 2.0b
HDCPcompliance HDCP 2.2 and HDCP 1.x
Video Bandwidth 18 Gbps
Video Resolutions up to 4K@60Hz
IR Level 5V p-p
IR Frequency 38KHz
Color Space/Depth RGB,YCbCr4:4:4,YCbCr 4:2:2,YCbCr 4:2:0 / 8bit
Audio Formats HDMI: PCM2.0/5.1/7.1CH, Dolby Digital/Plus, DTS, DTS
High Res
Analog audio [3.5mm L/R]: PCM2.0;
SPDIF (OPTICAL): Dolby Digital, DTS 5.1, PCM2.0.
Note: It does not support HBR audio.
ESD Protection Human body model — ±8kV (Air-gap discharge) &
ESD Protection ±4kV (Contact discharge)

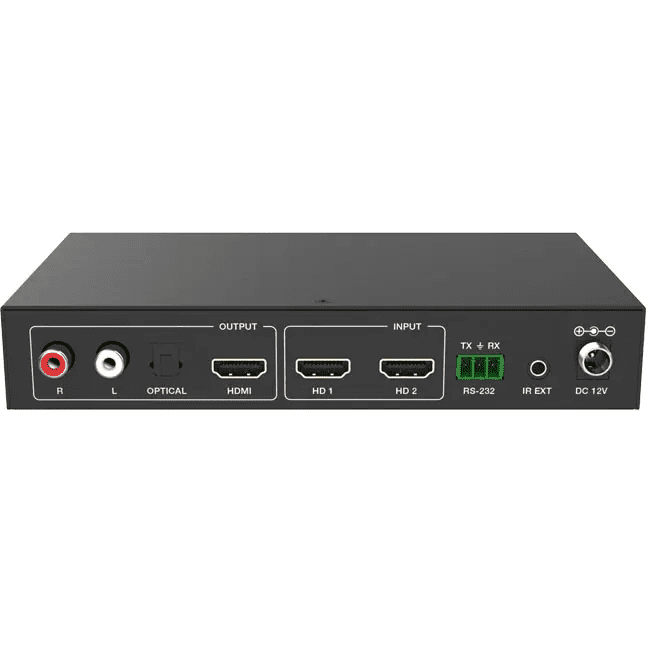

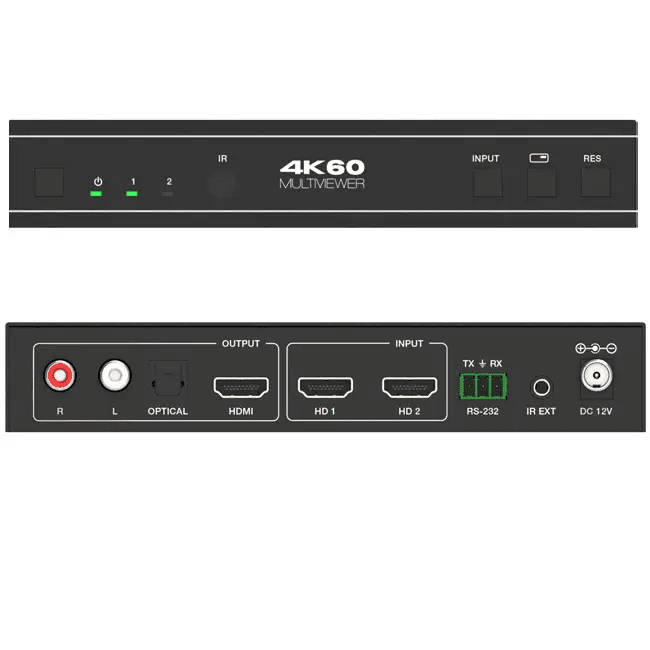

Connections
Input ports / Output Input ports

2 x HDMI IN [Type A, 19-pin female]

Output ports

1 x HDMI OUT [Type A, 19-pin female]
1 x L/R OUTPUT [RCA]
1 x OPTICAL OUTPUT [S/PDIF]

Control ports 1 x RS-232 [3pin-3.81mm phoenix connector]
1 x IR EXT [3.5mm Stereo Mini-jack]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions 180mm [W] x 80mm [D] x 30mm [H]
Weight 320g
Power Supply Input: AC100 – 240V 50/60Hz

Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)

Power Consumption 10W (Max)
Operation Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 – 90% RH (no condensation)

2023 new 2x1 4k60 uhd quad/pip/pop multiviewer seamless video switcher

Package Contents:

4K60 2×1 Multiviewer Seamless UHD Video Switcher
IR Remote
3pin-3.81mm Phoenix Connector (male)
38KHz IR Wideband Receiver Cable (1.5M)
(2) Mounting Ears
(4) Machine Screws (KM3*2)
(4) Rubber Feet
12V/2.5A Locking Power Adapter
Users Guide
