Introduction

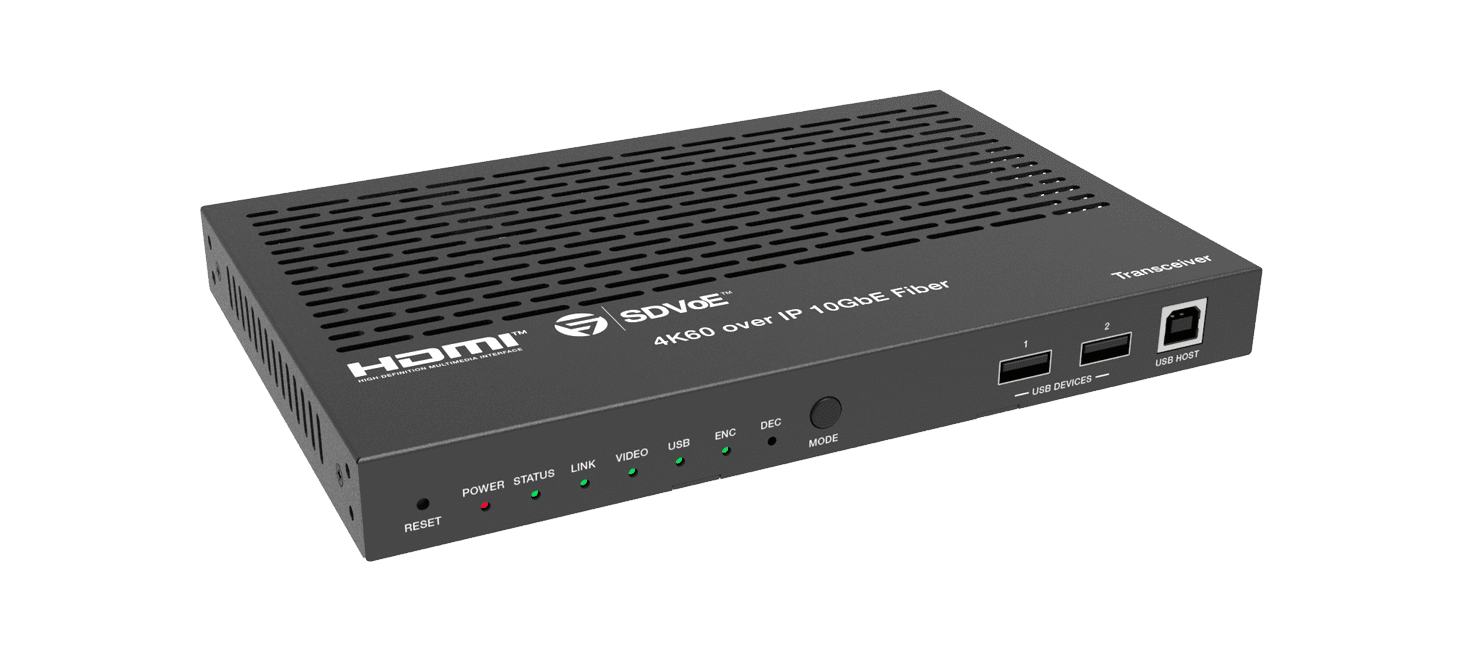

This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides highest-quality, uncompressed 4K and zero-frame latency audio/video extension over a standard 10G Fiber Network Switch with instant switching, Video Wall and MultiView functions.

It can transfer advanced HDMI content such as HDR (high dynamic range), full color-depth and multichannel HD Bitstream audio. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control.

Its built-in Secondary Stream supports a high quality, bandwidth configurable H.264/H.265 compression video stream for portable device preview purpose. Multiple control and data signals can be transmitted along with audio and video signals simultaneously, including bi-directional IR, RS-232, USB KVM, CEC and 1G Ethernet.

Features

☆ HDMI 2.0b and HDCP 2.2 compliant

☆ Support video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth

☆ Flexible transceiver design (Encoder and Decoder within a single box)

☆ Encoder or Decoder mode can be set via Button or API

☆ Encoder supports HDMI Loop out

☆ Support HDR10, Dolby Vision, HLG, 3D as well

☆ Support full HDMI audio formats, up to Dolby TrueHD, Dolby Atmos and DTS-HD, DTS:X

☆ Support Zero-Frame latency operating mode

☆ Support signal extension, seamless switching, Matrix, Video Wall up to 9×9 and MultiView up to 25 windows

☆ Flexible audio routes control including bidirectional analog audio transmissions between Encoder and Decoder

☆ Built-in H.264/H.265 Secondary Stream (SS) for preview

☆ Support Secondary Stream VLAN tagging and parameters configuration

☆ Support bi-directional IR and RS-232 control signal pass-through

☆ Support USB2.0 (KVM), CEC routing control

☆ Support IR, RS-232, TCP/IP, Web GUI control

☆ Standard POE supported (802.3at PD device)

☆ 10G managed network switch

Widely used in offices, huddle rooms, conference rooms, or as content contribution (trunking) between locations.

Connection:
