New Video Capture Screen Capture Windows

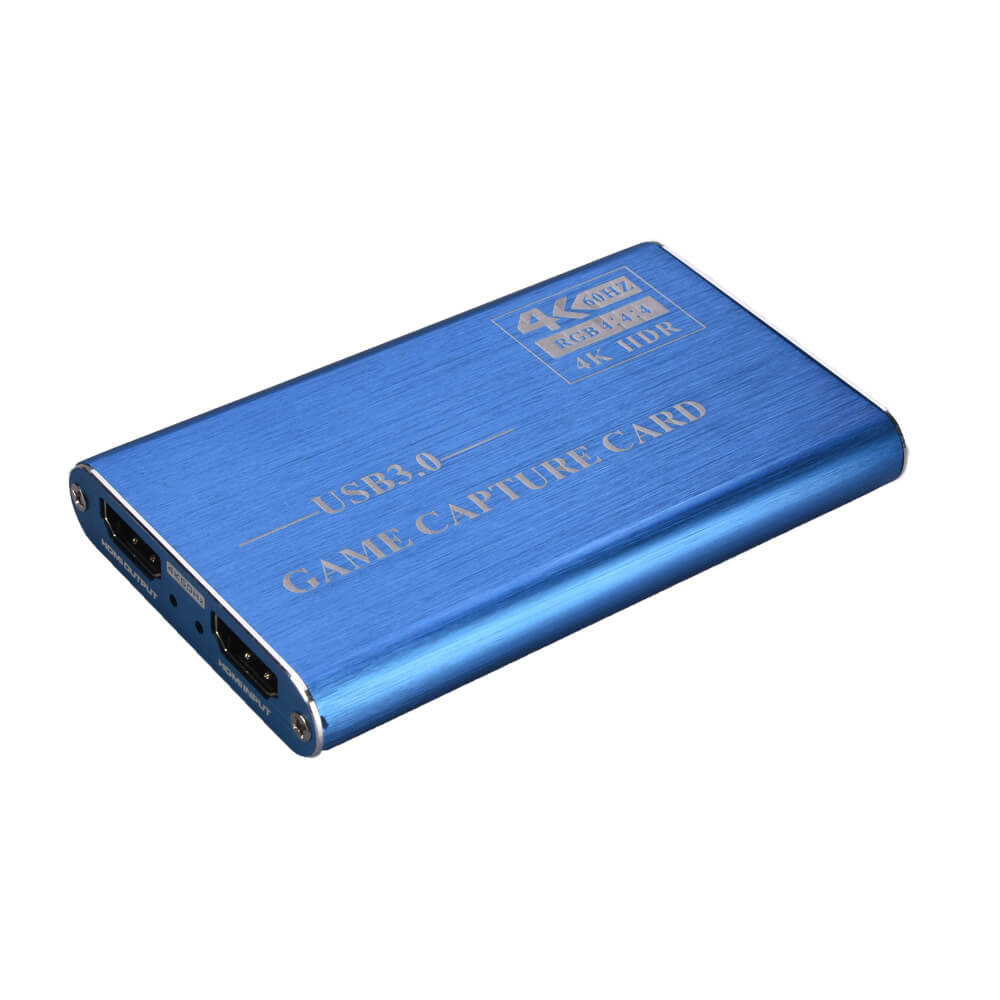

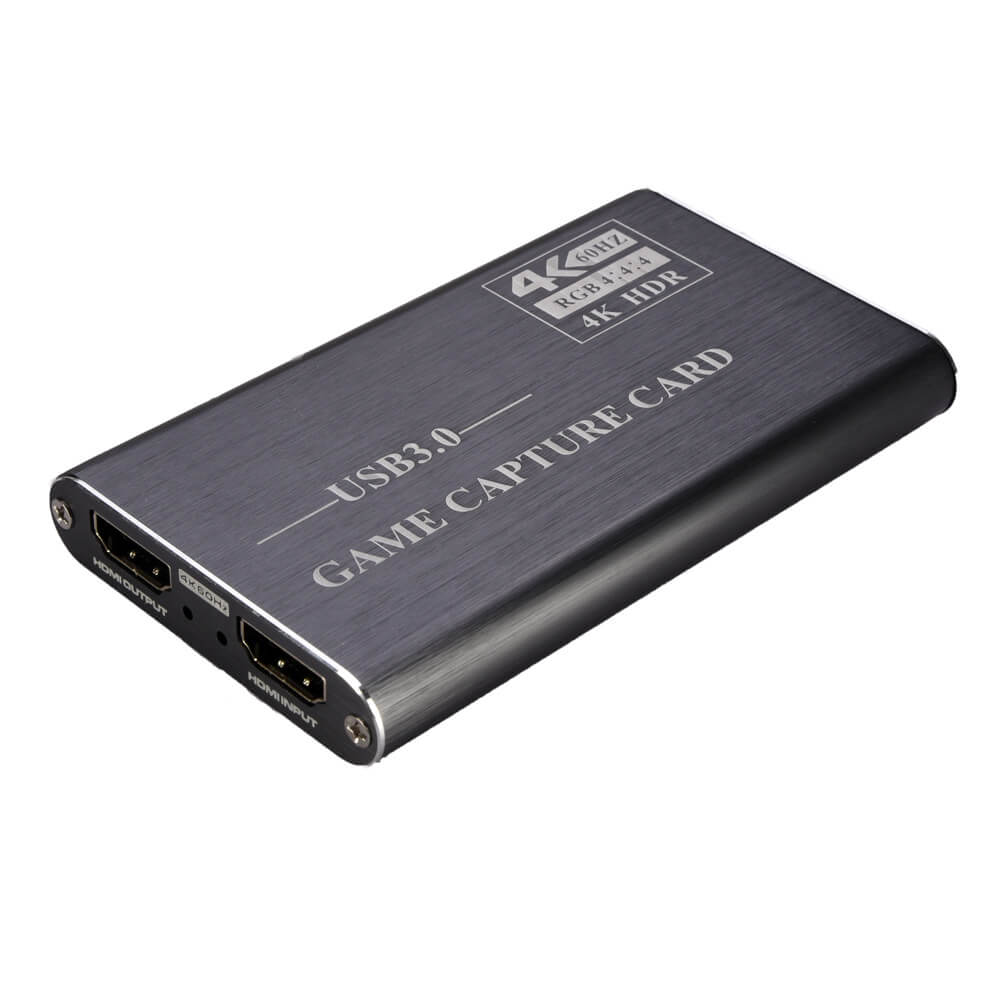

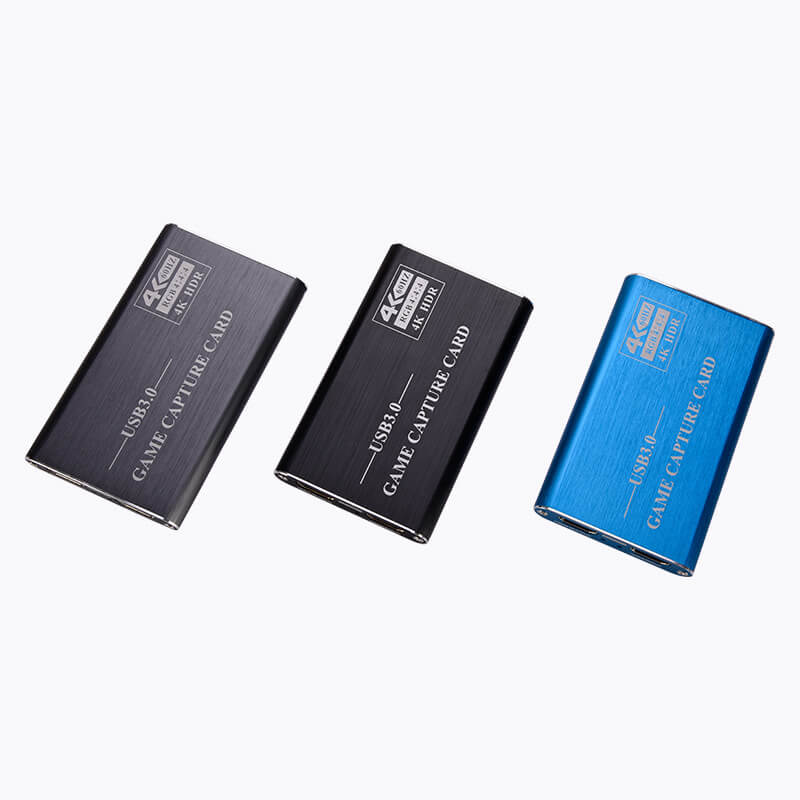

4K USB 3.0 Video Capture Card Dongle 1080P for OBS Capturing Gaming Live



Additional information

Weight 79 g
Dimensions 10.2 × 6 × 1.3 cm
Resolution

4K, 60Hz

Support

mainstream equipment like Phone, PS3,PS4,XBOX,Set-top box,Camera,Projector and more.

Compatible

Windows, Linux, Mac OSX operating systems.

USB Port

USB 3.0 USB 2.0

Audio

48KHz PCM

Markets

Residential

Detailes About New Video Capture Screen Capture Windows

With the popularity of Live streaming, conference rooms, Gaming record, the HDMI Video capture is an ideal recorder for recording/capture solutions.

USB 3.0 Game Capture Card 4K  60Hz HDR RGB 4:4:4

HDMI to USB3.0 Video Capture Dongle, it is easy to carry, has superior performance, superior compatibility, simple installation, and many other features.

It can capture one HDMI 4Kp60 input ,output HDMI 4Kp60 and USB 1080p60 signals.

The HDMI video capture meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

Features:

It doesn’t need to install a driver, and it is truly PnP.

It is compatible with Windows, Linux, OS X operating systems

USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0

The process of video and audio is done by the dongle and will not occupy the CPU.

It can capture one single channel HD HDMI video signal.

It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

Support HDMI 2.0b and HDCP 2.2.

Support MIC input and audio output.

Support HDMI loop output 4Kp60.

Package:

USB3.0 Capture HDMI 4Kp60 Box—————–1Pcs

USB3.0 Cable——————————————–1Pcs

HDMI Cable———————————————-1Pcs

User manual———————————————1pcs

Specification :

Host Interface USB3.0 ,*300-350MB/s,USB2.0, *40MB/s
HDMI Input & Output

Formats

480i,480p,576i,576p,720p,

1080i,1080P,4Kp30,4Kp60

USB3.0 Output Formats 360×240/640×480/720×480/720×576/768×576/800×600/

1024×768/1280×720/1280×800/1280×960/1280×1024/1368×768/

1440×900/1600×1200/1680×1050/1920×1080/

1920×1200/640×360/856×480/960×540/1024×576

Frame Rate: 30/40/48/50/59.94/60 fps
Size: 102*60*13 (mm)
Weight: 79g
Power Consumption <=2.5w
Working Temperature 0-50 degree C
Storage Temperature -20-70 degree C
Storage Humidity 5%-90%
