2X1 HDMI/USB-C 4K60 Huddle Room Switch

Introduction:

This is a 2×1 Huddle Room Switcher with multiple control methods, designed with one HDMI™ and one USB-C inputs, one HDMI™ output,
one USB host, one USB-C device, two USB-A devices, dual 1G Ethernet ports. Video resolution is up to 4K@60Hz 4:4:4, delivering high-quality
visuals for presentations and displays. Audio embedding and de embedding on a balanced analog audio interface, ensuring clear and synchronized audio record and playback.
The product also supports USB KVM, RS-232, GPIO, IR and Ethernet switching functions, as well as auto and manual switching, auto signal
detection and wake up the whole system including external devices. It can be controlled via front panel button, RS-232, TCP/IP and Web GUI.
It features multiple interfaces for the easy connection between the BYOD devices and the meeting room devices, providing versatility and enhanced connectivity for presentation environments. It is designed to meet the demands of modern huddle room setups, providing a user friendly and feature-rich solution for enhanced connectivity and control.

Highlight Features:

☆ HDCP 2.3 and DP 1.4a compliant
☆ 2×1 huddle room switcher with USB-C/HDMI™ input and HDMI™ output
☆ USB-C input with DP Alt mode up to 4K60Hz 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G ethernet and 100W charging
☆ HDMI™ input up to 4K60Hz 4:4:4, as specifi ed in HDMI™ 2.0b
☆ Fast switching including auto and manual switching
☆ Auto switching with signal detection and 5V detection

☆ USB 3.2 Gen 1 (5Gbps) host and local hub
☆ USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
☆ Support balanced/un-balanced analog audio embedding to USB or HDMI™ audio
☆ Support balanced/un-balanced analog audio de-embedding from USB or HDMI™ audio
☆ Advanced EDID management
☆ User defi ned welcome screen and no signal display image
☆ Dual 1G Ethernet ports with 802.1x and VLAN
☆ IR eye for IR learning and control
☆ Auto display on/off control
☆ External device control via CEC/IR/RS-232/LAN/GPIO
☆ Control via front panel buttons, RS-232, TCP/IP and Web GUI

Packing list

① 1× 2×1 HDMI™ and USB-C Huddle Room Switcher
② 1× 24V/7.5A Power Supply
③ 1× IR Blaster Cable (1.5m)
④ 1× 3pin-3.5mm Phoenix Connector (male)
⑤ 2× 5pin-3.5mm Phoenix Connector (male)
⑥ 1× 6pin-3.5mm Phoenix Connector (male)
⑦ 4× Rubber Foot
⑧ 2× Mounting Ear
⑨ 4× Machine Screw (M3*5, for rubber foots)
⑩ 4× Machine Screw (KM3*6, for mounting ears)
⑪ 1× User Manual

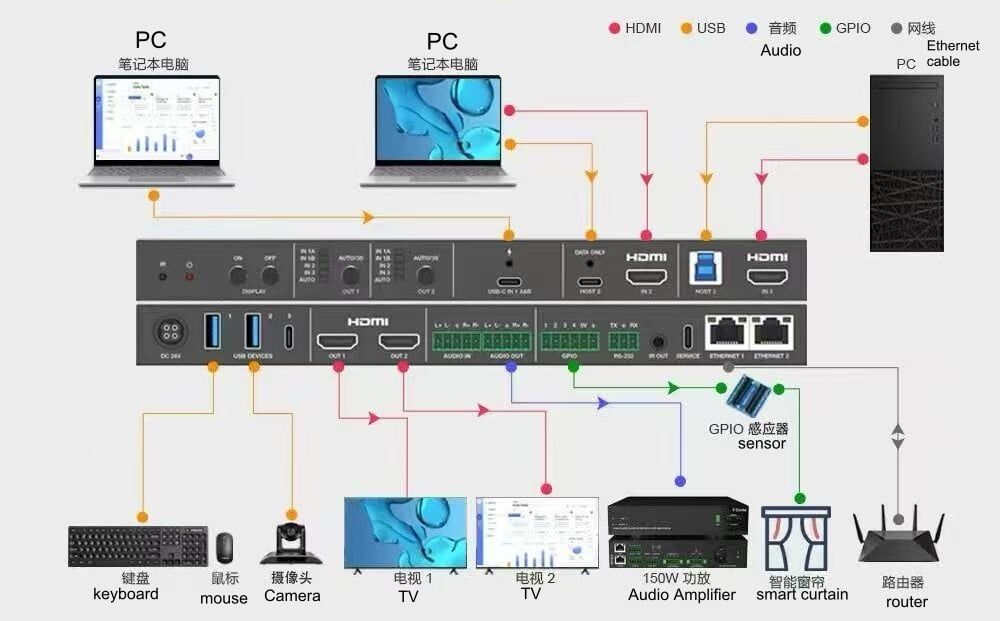

Connection diagram

Specification

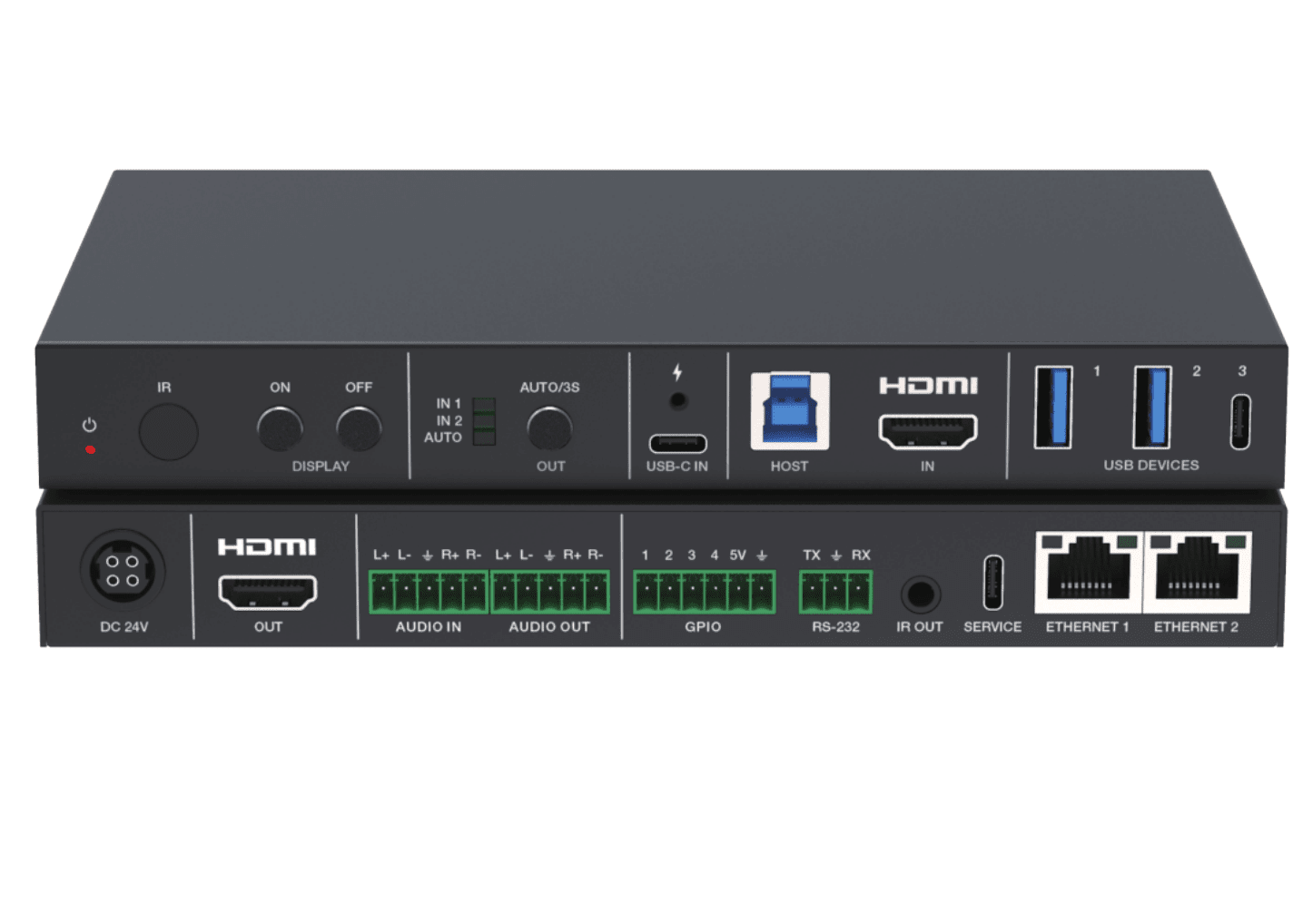

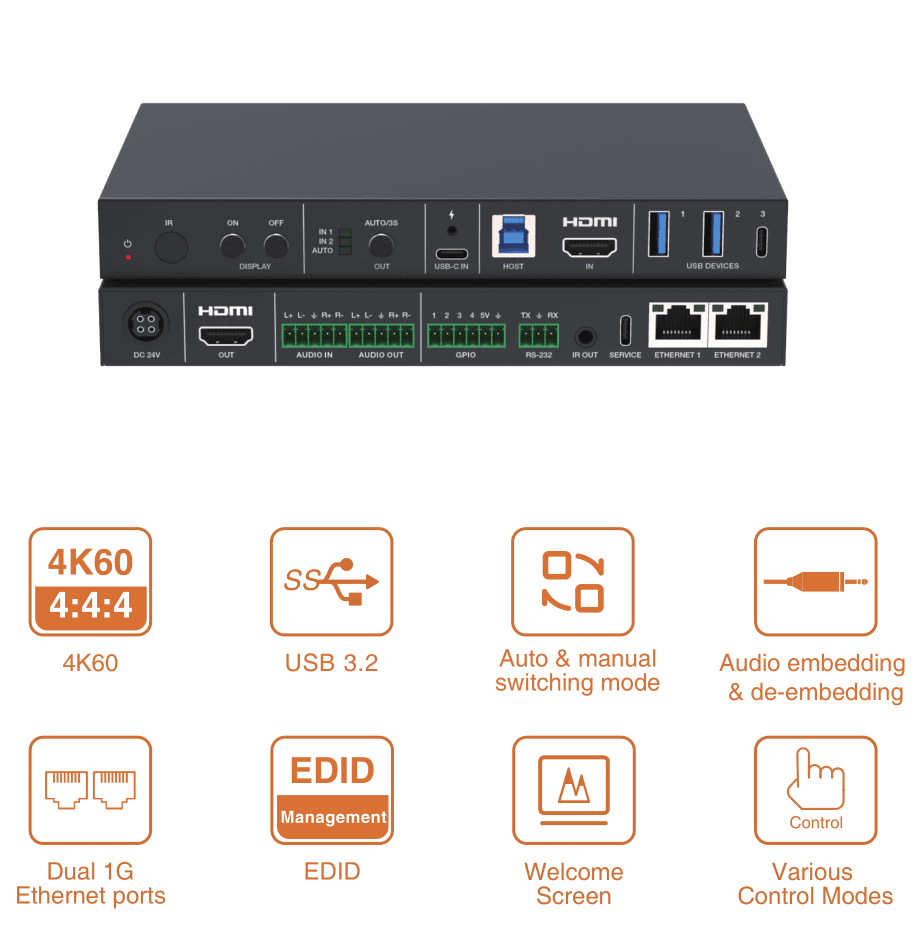

Front Interface

Rear Interface

Note:

ETHERNET ports support two modes, you can set it via API command and Web GUI page.
Separated Mode (Default): ETHERNET 1 is used for TCP/IP/Web GUI;
ETHERNET 2 is used for 1G Ethernet only.
Switch Mode: ETHERNET 1 and ETHERNET 2 are both used for TCP/IP/Web GUI and 1G Ethernet access.

Web GUI Control

This product can be controlled by Web GUI. The operation method is shown as below:
Step 1: Get the current IP Address.
The default IP address is 192.168.0.100. You can get the current IP address via API command. Send the command “get ip addr” through an ASCII Command tool, and then you’ll get the current IP address (The IP address is variable, depending on what the specifi c device returns).
For the details of API control, please refer to “8. API Commands”.
Step 2: Connect the ETHERNET port of the product to a PC, and set the IP address of the PC to be in the same network segment with the product.
For example, if its IP address is 192.168.62.106, the IP address of PC must be set to 192.168.62.xxx; if its IP address is 192.168.0.100, the IP address of PC must be set to 192.168.0.xxx.
Step 3: Enter the IP address of the product into your browser on the PC. After entering the Web GUI page, there will be a Login page,For detailes, you can contact us for the newest user manual for operation.

Features:

USB-C with DP Alt mode up to 4K60Hz 4:4:4 (DP 1.4a, HDCP 2.3), USB 3.2 Gen 1 5Gbps, 1G ethernet and 100W charging

HDMI up to 4K60Hz 4:4:4 (HDMI 2.0b, HDCP 2.3)

Auto and manual switching mode

Auto switch supports signal and 5V detection

USB 3.2 Gen 1 5Gbps host and local hub

USB 3.2 Gen 1 5Gbps device with 5V/1.5A power out

Balanced/un-balanced analog audio input to USB audio

Balanced/un-balanced analog audio breakout from HDMI

EDID management

User defined welcome screen and no signal display image

Dual 1G Ethernet ports

IR eye for IR learning

RS-232, TCP/IP and Web GUI control

Auto display on/off control

External device control through CEC/IR/RS-232/ TCP/GPIO

The 3rd party control system driver included
