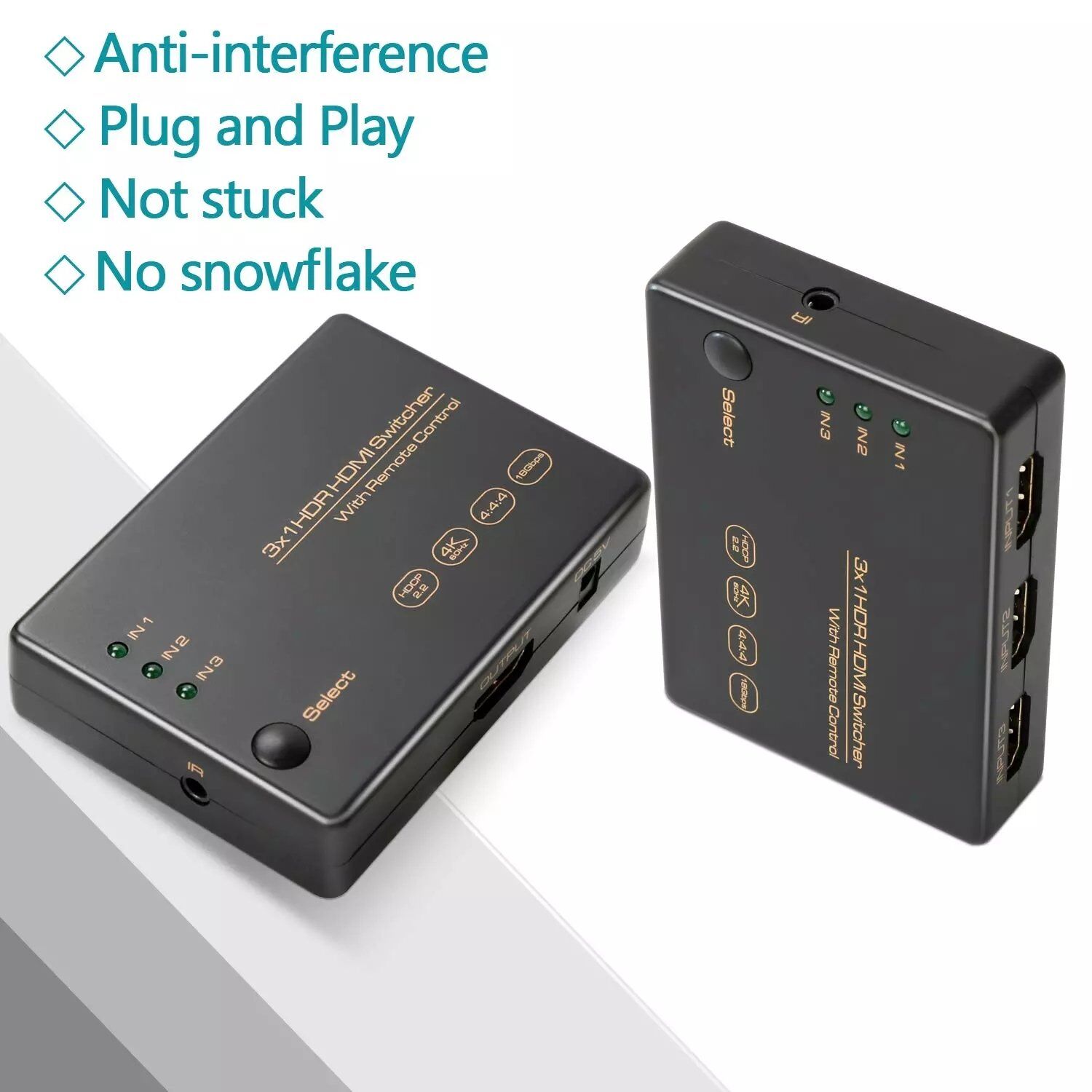

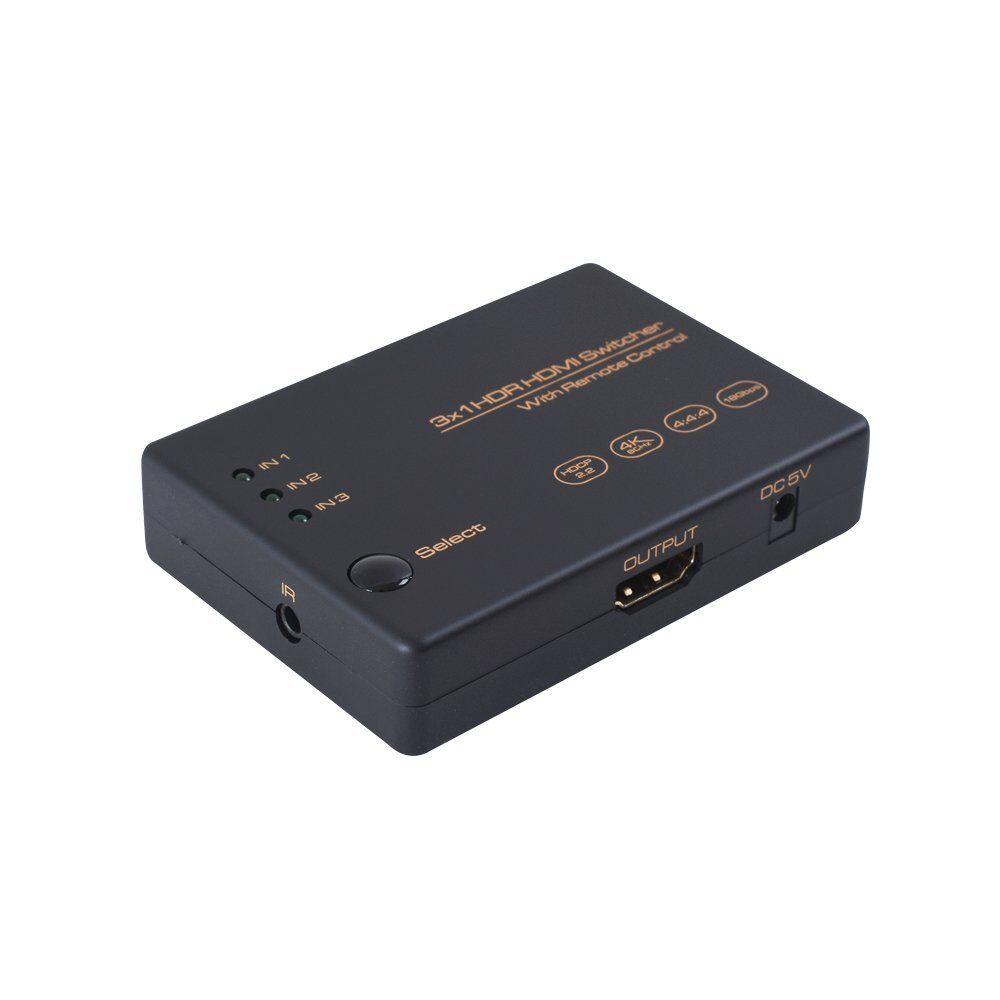

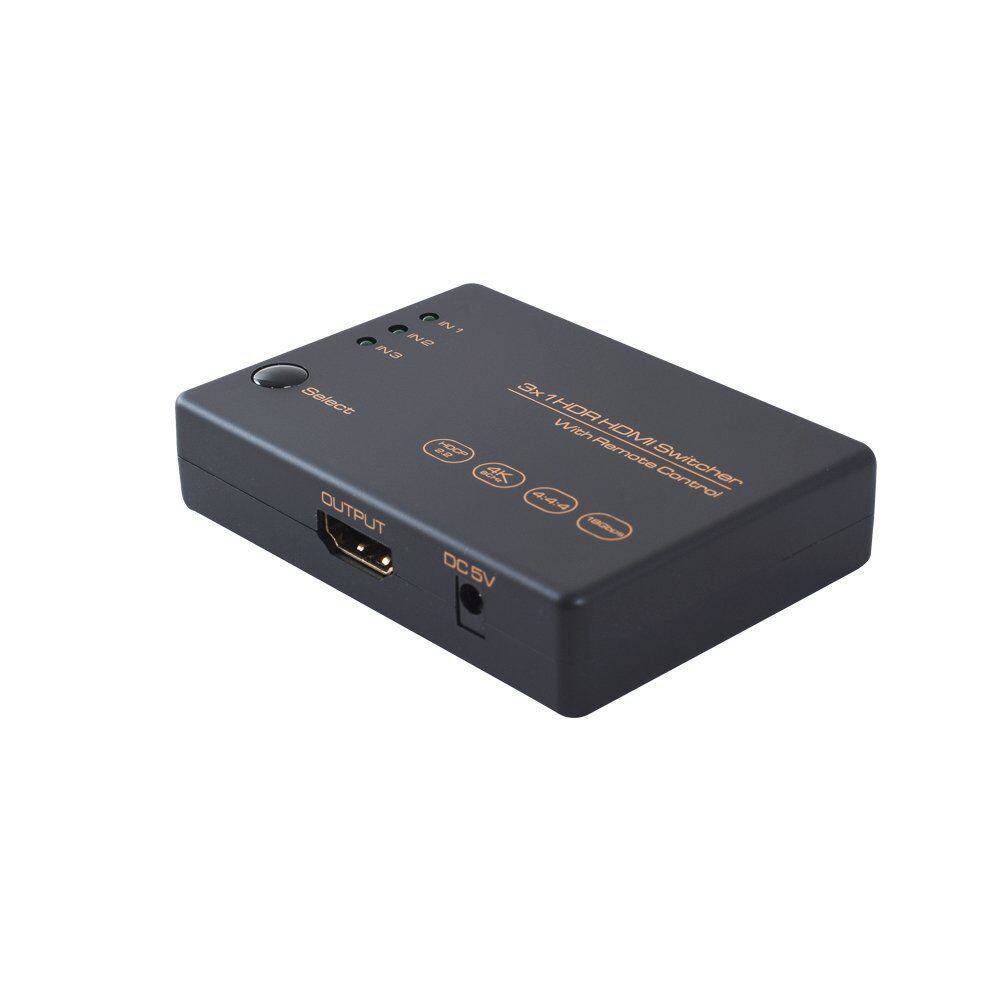

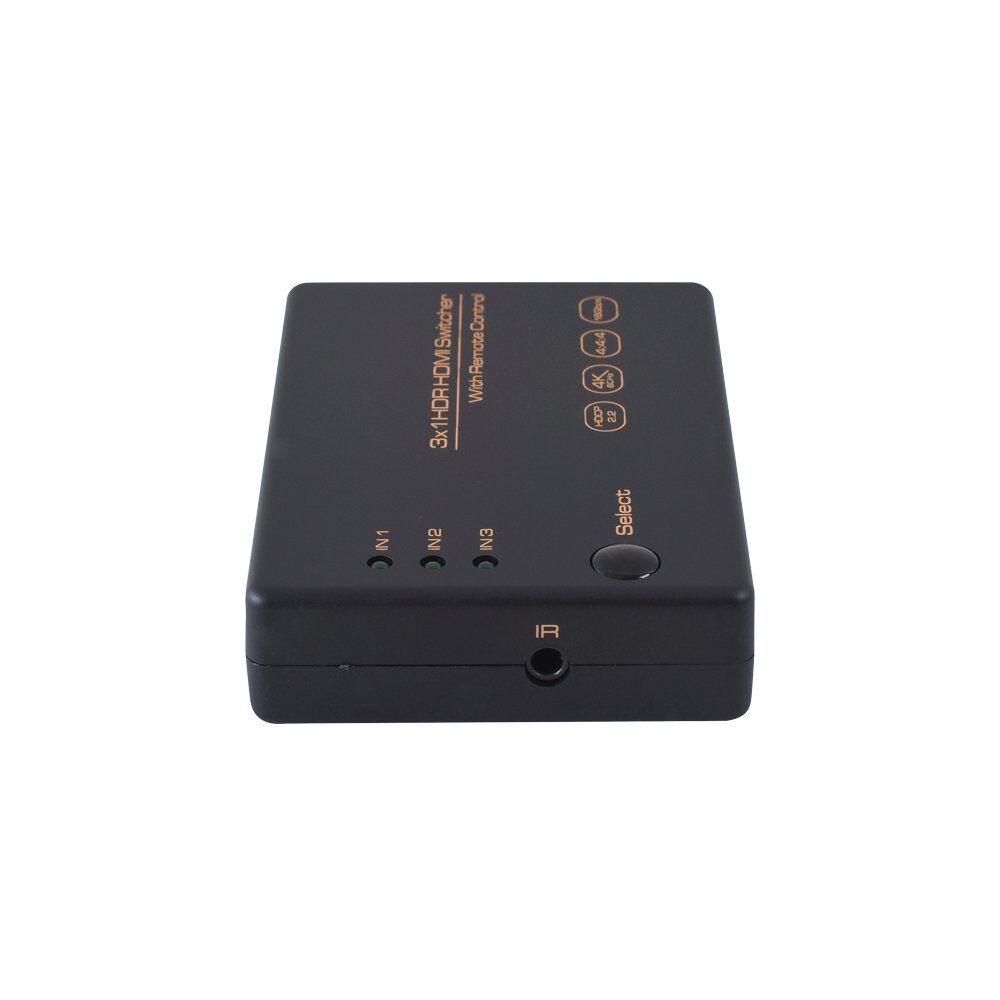

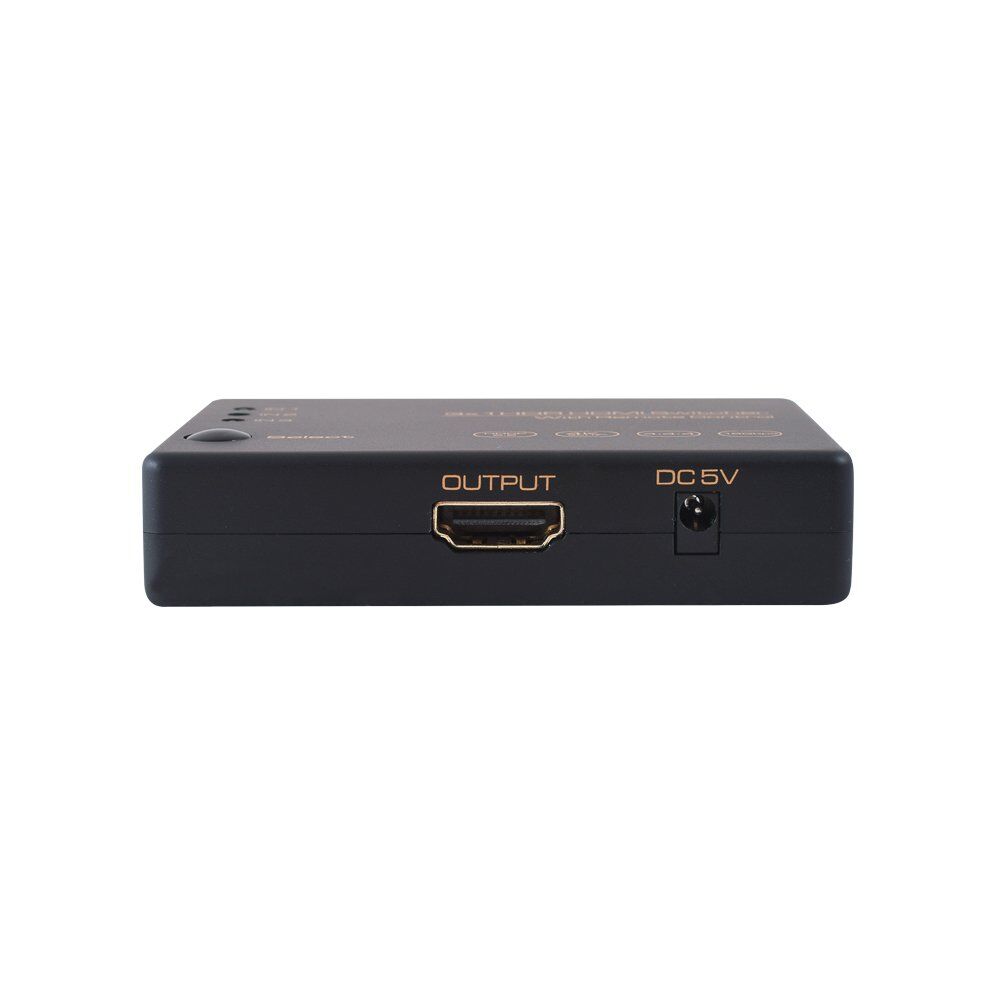

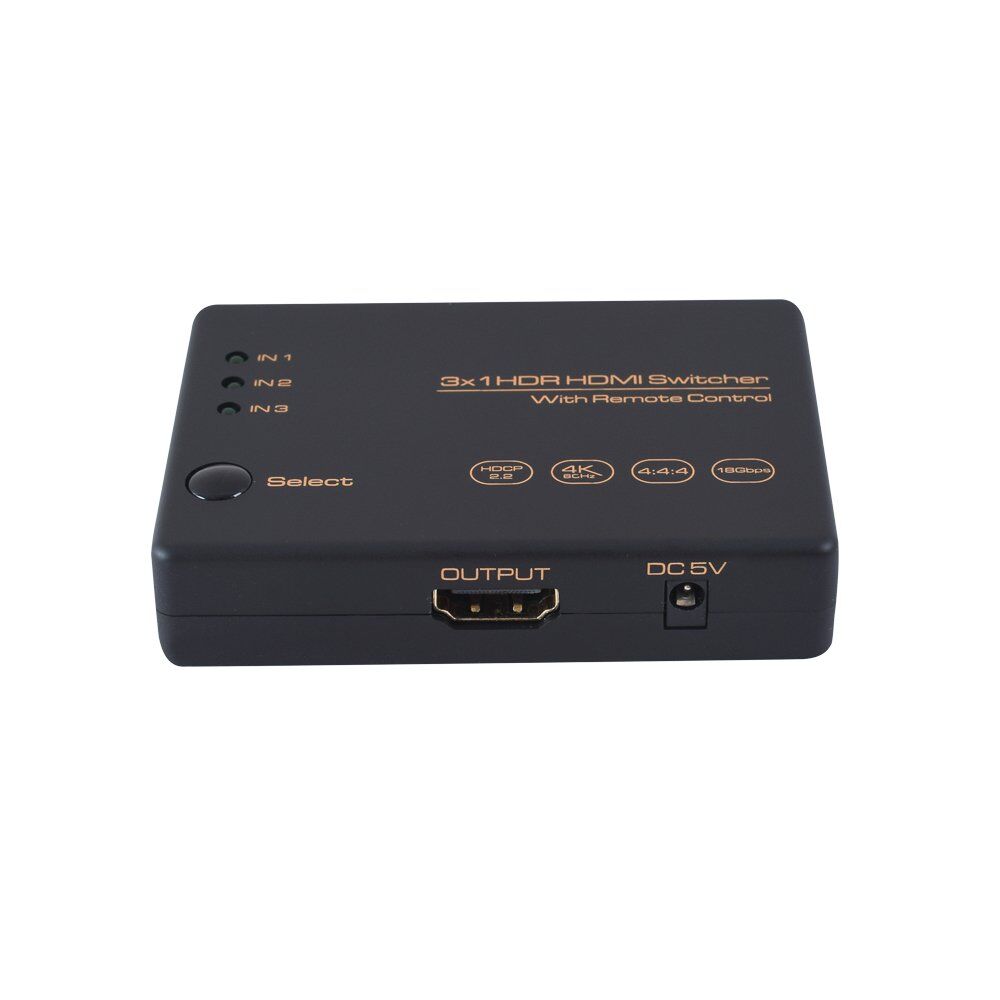

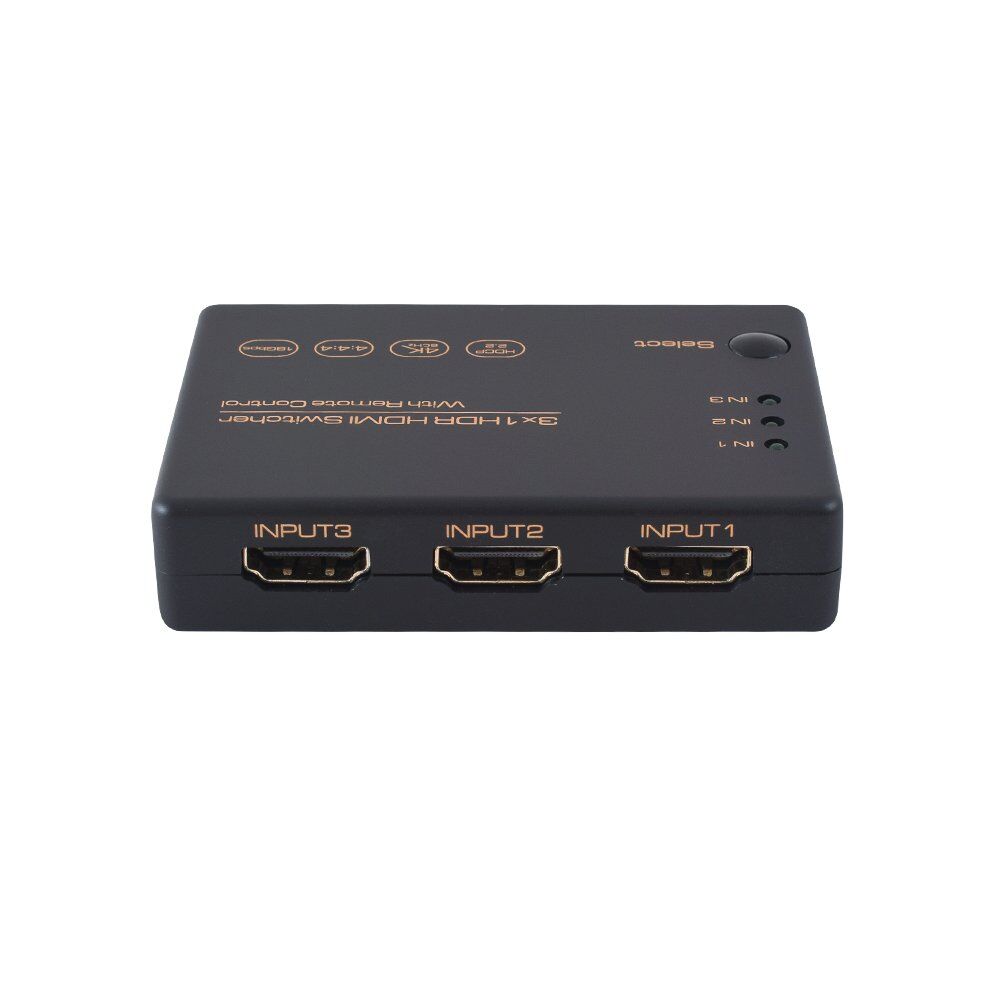

4K 60HZ HDMI 2.0 3 Ways Switcher 3×1 without power
| Weight | 48 g |
|---|---|
| Dimensions | 8.2 × 6 × 2 cm |
| HDMI Version | 2.0b 18Gbps |
| Resolution | 4K 60 HZ, YCbCr 4:4:4 HDR |
| HDCP | HDCP 2.2 HDCP1.4 |
| Audio Format Support | Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS5.1, Dolby Digital, 7.1ch, Dolby 5.1, Dolby true HD, LPCM 2.0 Etc |
| HDMI Input Port | 2 Ports, 3 Ports, 4 Ports, 5 Ports |
| Markets | Residential |

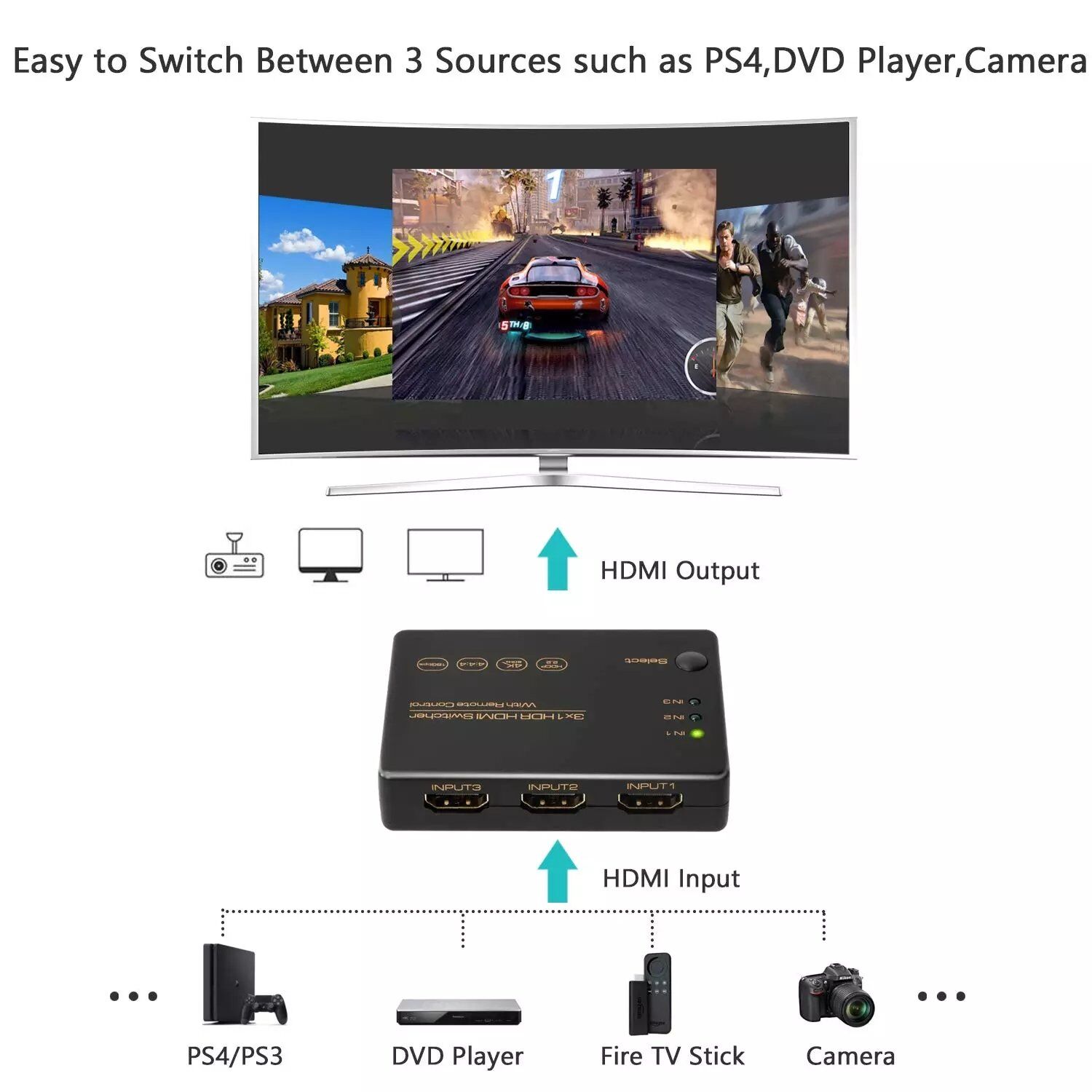

The device can switch 3 HDMI Inputs to one HDMI Output, It can easily switch three routes of UHD Source to any one UHD display or projector.
Feature：
1. Three HDMI Inputs switch to one HDMI Output
2. Support [email protected] UHD signal input and output.

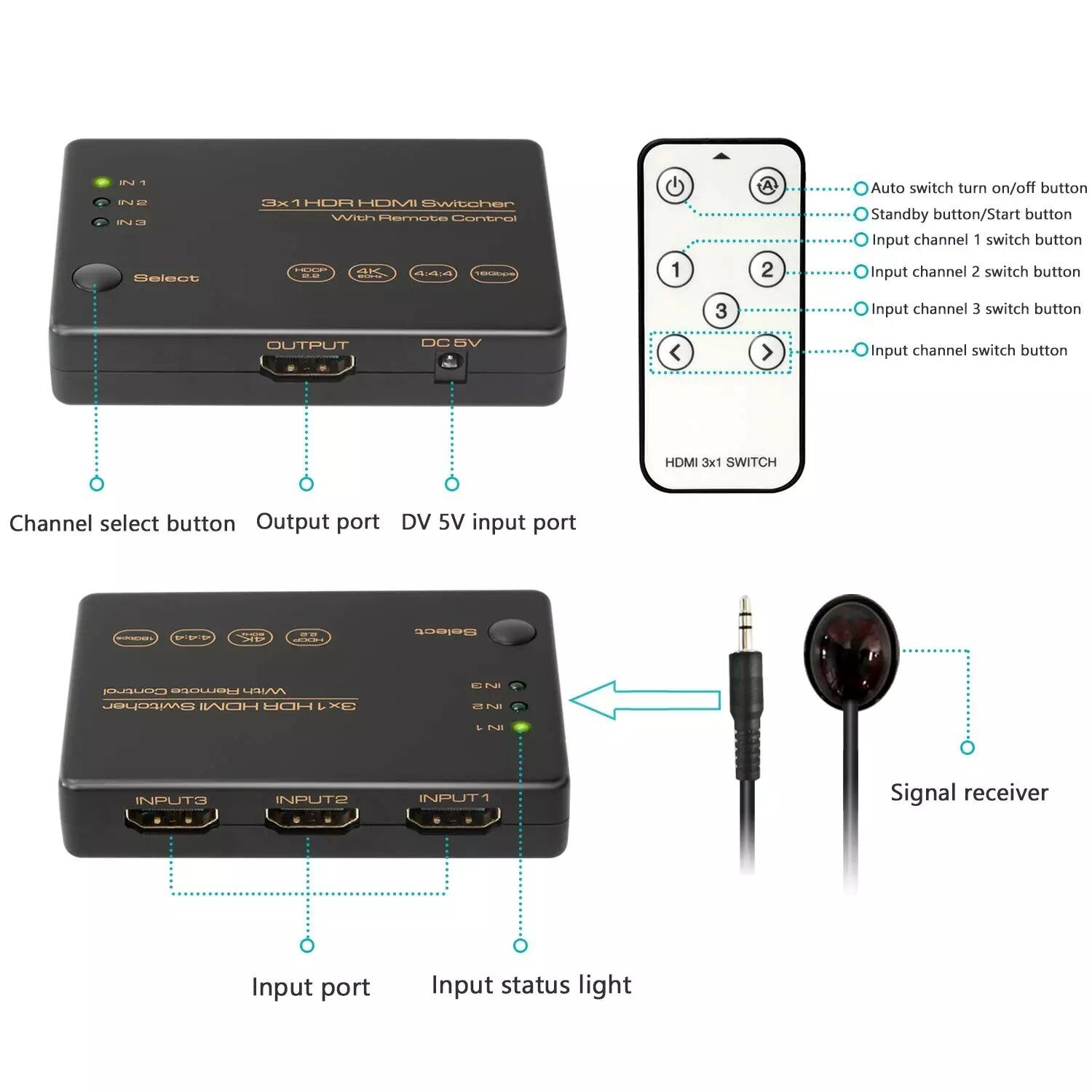

3. Support Remote control and HDMI auto switch.
4. LED Status Light shows clearly the working state.
5. In [email protected] HDMI UHD resolution, HDMI Input and Output distance can be up to 5m using the AWG26 standard HDMI Cable. In other HDMI resolution, HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
6. Easy-Install
Specifications:
| Model name | 3 Port HDR HDMI switcher |
| Input channel | 3 port |
| Output channel | 1 port |
| Video format | 480P/720P/1080P/2160P |
| Deep color | 8/10/[email protected]/720P/1080P [email protected] |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM…… |
| Transmission bandwidth | 25~600MHz |
| Transmission rate | 0.75~18Gbps |
| Auto switch | Support |
| IR distance | ≥4m |
| Timing | Support |
| Input cable length | 2160P/AWG 26 ≤5m 1080P/AWG 26 ≤10m |
| Output cable length | 2160P/AWG 26 ≤5m 1080P/AWG 26 ≤10m |
| DC input specification | DC 5V/1A |
| Max working current | 220mA |
| Working temperature range | 0 ~ +40℃ |
| Working humidity range | 5 to 85%RH(No Condensation) |
| Storage temperature | -15 to 55℃ |
| Storage humidity | 5 ~95%RH(No Condensation) |
| Size | 82×58.5×18.4(mm) |
| Weight | 48g |
| Accessories | Manual, Remote, USB Cable |
