4K60HZ HDMI 2.0 2×2,2 x 4 HDMI Ultra HD Video Wall Processor
18Gbps HDMI2.0 4K60Hz 2×4 Video wall Processor
| Weight | 250 g |
|---|---|
| Dimensions | 22 × 9 × 3 cm |
| HDMI Version | 2.0 |
| Resolution | 4K2K@60Hz 4:4:4, 18Gbps |
| HDCP | HDCP2.2 |
| Markets | Home, Office, Hospitality, Residential, Corporate, Education, Venues, Government, Retail |
| Control | Control via RS232,Remote controller, |
| Audio | Support L/R Toslink |
Detailes About 4K60HZ HDMI 2.0 2×2,2 x 4 HDMI Ultra HD Video Wall Processor
18Gbps HDMI 2.0 2X4 Video wall Processor
1. Introduction

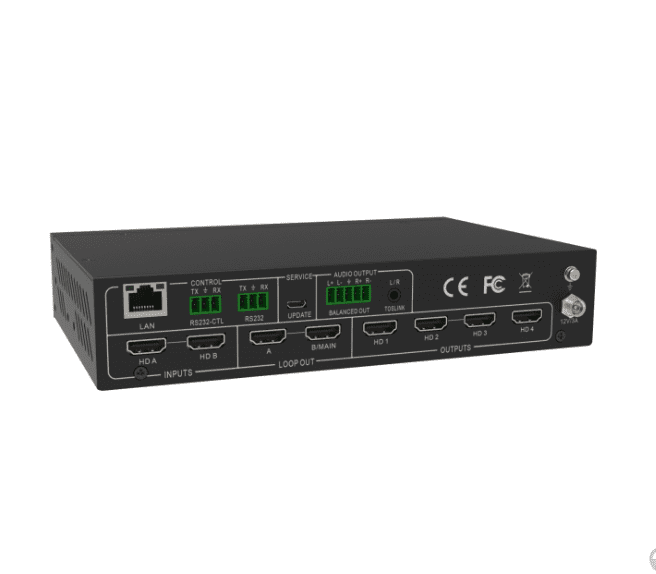

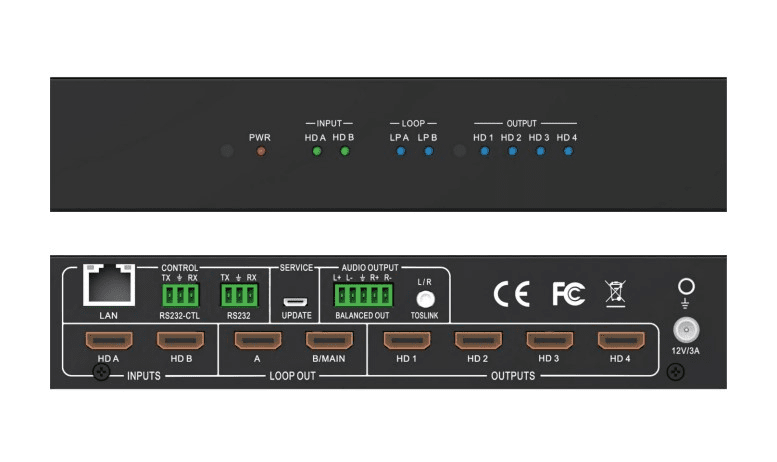

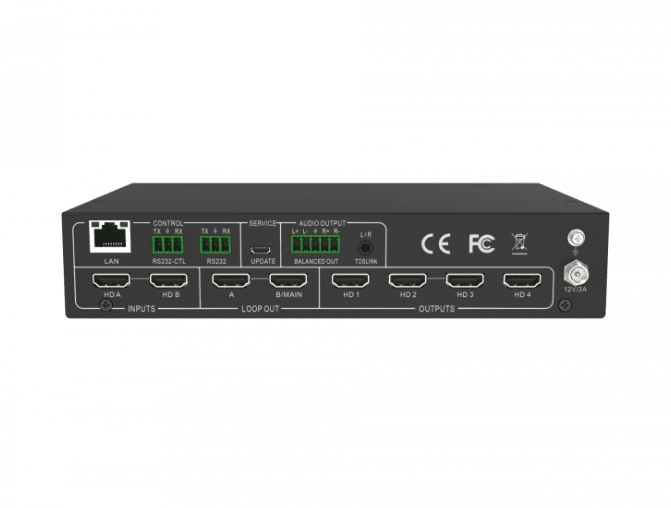

- 4K 2×4 HDMI Video Wall Processor
- Allows for 16 rows and columns of displays in any video wall configuration up to 16×16
- Two HDMI loop-outs to cascade into other units for larger video walls or to monitor sources locally
- Two HDMI inputs allow for multiple source video wall configurations, or to switch one source across the entire video wall display
- Passes up to 4K@60Hz with HDR
- Able to scale output resolutions
- HDMI 2.0 and HDCP 2.2 compliant
- Customizable options for bezel adjustment
- Supports 180° screen rotation
- Able to be controlled over RS232 and TCP/IP via product software or 3rd party control systems
- Dimensions: 8.5” W x 5.7” D x 1.7” H
Tech Support Tips:
Larger video wall configurations requiring multiple units can ONLY be setup and controlled via RS-232.
When multiple units need to be connected for larger video wall configurations, once the device is given a Device ID of 2 or greater is provided to the unit, it will need to be connected to the first unit in order to be controlled or accessed through the software.
Please ensure your source input resolution are set to a resolution OTHER than 720P/1280×720 when creating a video wall.
To prevent overheating when using multiple units, make sure you provide ample spacing between units of at least 1inch/25mm.
5-pin Phoenix Connector
(2) 3-pin Phoenix Connector
RS232-Phoenix Connector Adapter Cable
Digital Audio Optical Adapter
12V/3A Power Supply
Product Manual
SPECIFICATION
| Technical | |
| HDMIcompliance | HDMI 2.0 |
| HDCPcompliance | HDCP 2.2 and HDCP 1.4 |
| RS232 | Baud rate 57600,data bit 8, Stop bit 1,no parity |
| Input Video Resolutions | 4096x2160p 24/25/30/50/60Hz–1400×1050 60Hz 3840x2160p 24/25/30/50/60Hz–1366×768 60Hz 1080p 24/25/30/50/60Hz–1360×768 60Hz 1080i 50/60Hz 1920×1200 60Hz– 1280×1024 60Hz 1280×960 60Hz 1680×1050 60Hz–1280×800 60Hz 1600×1200 60Hz—1024×768 60Hz 1440×900 60Hz–1280x720p50/60Hz |
| Audio Format | 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, DTS |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Weight | 440g |
| Power Supply | Input: DC 5V/2A. Support DC5-12V wide voltage power supply; Output with overcurrent protection function |
| Power Consumption | 1.5W (Max) |
| Storage temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 – 90% RH (no condensation) |
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Dimensions | 212mm(W) × 82mm(D) × 21mm(H) |
