8K 4 Port HDMI Switch 4 In 1 Out 4K@120Hz 8K@60Hz HDMI 2.1 HDMI Switcher 4×1 Splitter HDR UHD VRR for PS5 XBOX Series X 8K TV
| Weight | 270 g |
|---|---|
| Dimensions | 19.6 × 6.7 × 2.1 cm |
| HDMI Version | 2.1 40Gbps |
| Resolution | 8K 60Hz, 4K 120 HZ HDR UHD |
| HDCP | HDCP 2.2 HDCP1.4 |
| Audio Format Support | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM and so on |
| HDMI Input Port | 2 Ports, 3 Ports, 4 Ports, 5 Ports |
| Markets | Residential |

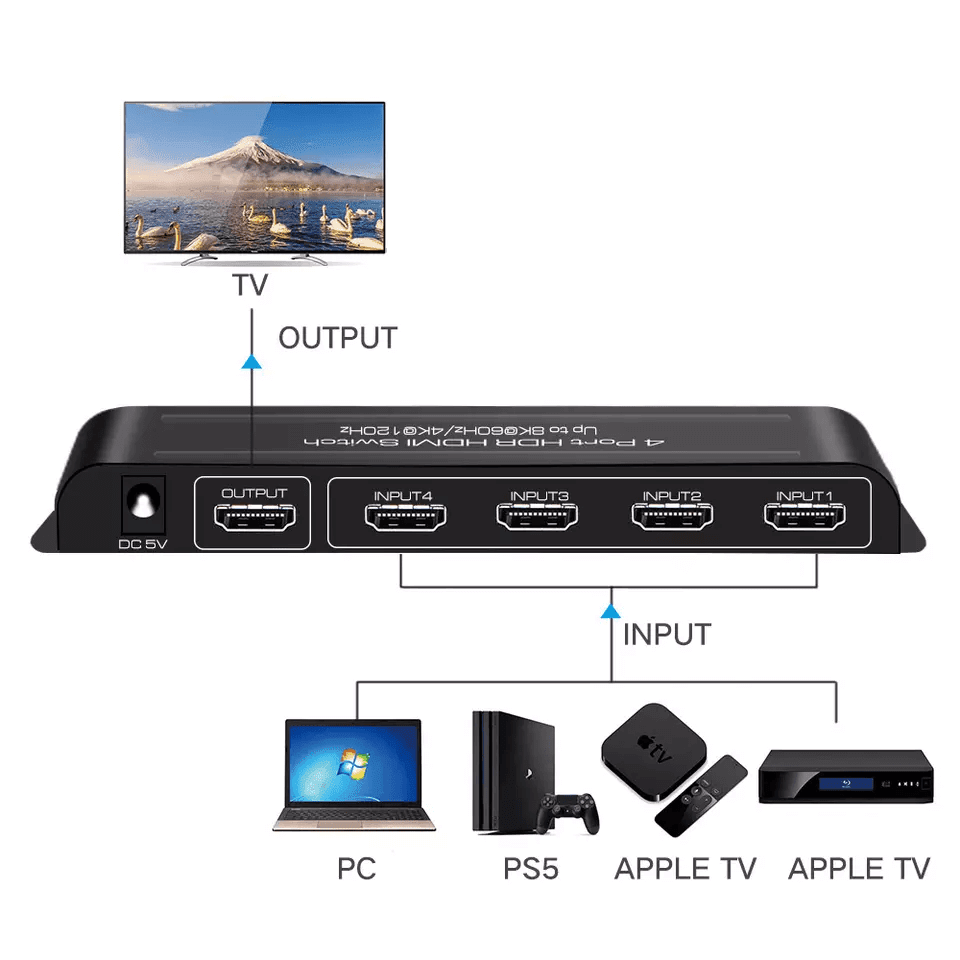

The device can switch 4 HDMI Inputs to one HDMI Output, It can easily switch four routes of UHD Source to any one UHD display or projector.
Feature：
1. Four HDMI Inputs switch to one HDMI Output
2. Support 8K @60hz,4K@120Hz UHD signal input and output.
3. Support Remote control and HDMI auto switch.

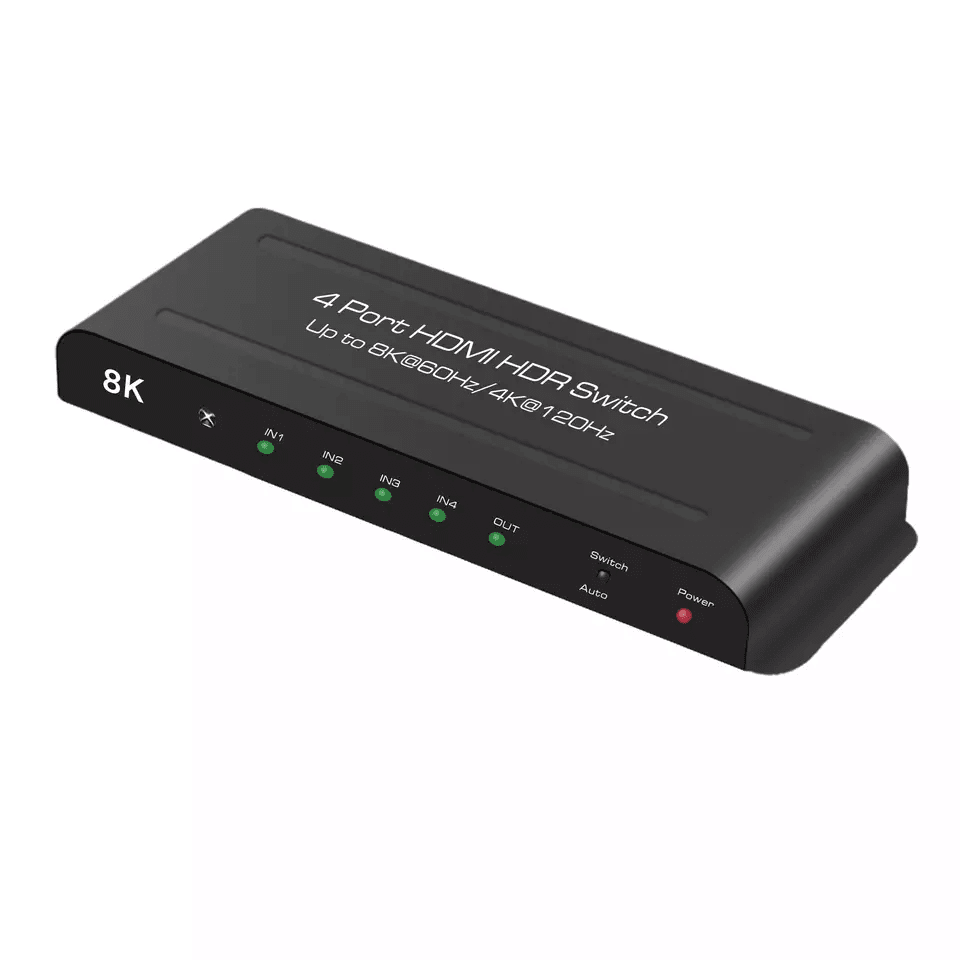

4. LED Status Light shows clearly the working state.
5. Input cable length: 4320P/AWG 26 ≤3m；2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m
Output cable length: 4320P/AWG 26 ≤3m；2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m
6. Easy-Install
Specifications:
| Model name | 4 Port HDR HDMI switcher |
| Input channel | 4 port |
| Output channel | 1 port |
| Video format | 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P @50/60Hz(YCC420)
Support HDR/Dolby Vision
|
| Deep color | 8/10/12/16Bit@2160p, 8/10Bit@4320P |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM…… |
| Transmission bandwidth | 1GHz Max. |
| Transmission rate | 40Gbps |
| Input cable length | 4320P/AWG 26 ≤3m； |
| 2160P/AWG 26 ≤5m； | |
| 1080P/AWG 26 ≤10m | |
| Output cable length | 4320P/AWG 26 ≤3m；2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m |
| IR distance | ≤5m |
| DC input specification | DC 5V/1A |
| Max working current | 400mA |
| Working temperature range | 0 ~ +40℃ |
| Working humidity range | 5 to 85%RH(No Condensation) |
| Storage temperature | -15 to 55℃ |
| Storage humidity | 5 ~95%RH(No Condensation) |

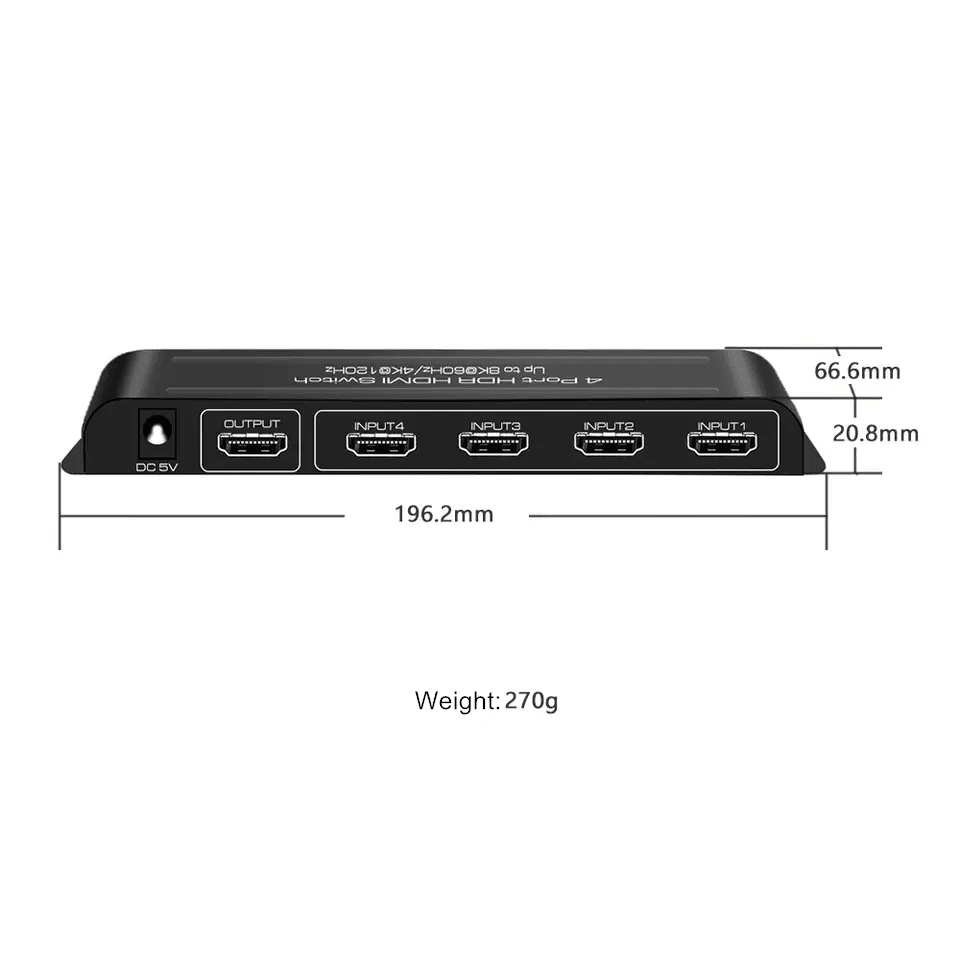

| Size | 196x67x21(mm) |
| Weight | 270g |

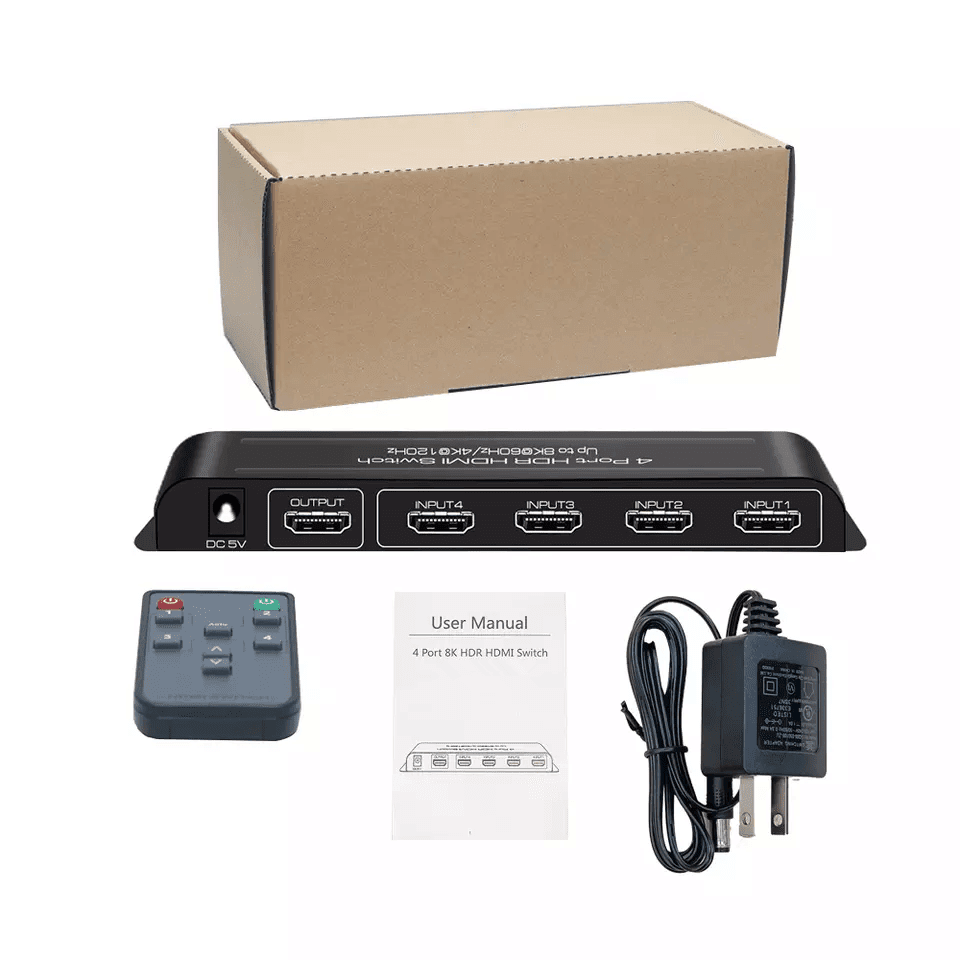

| Accessories | Manual, Remote, Power adapter |
