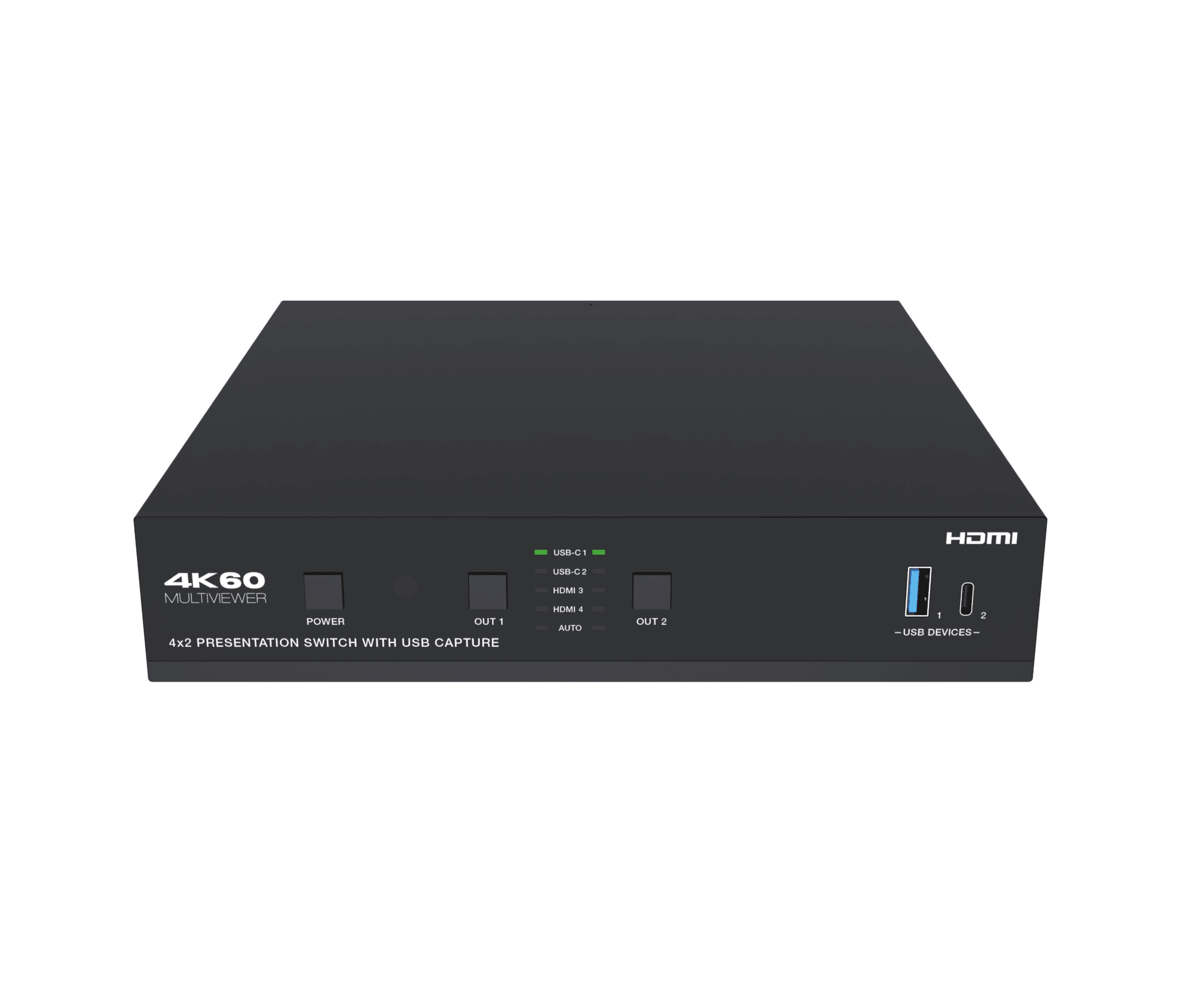

New 4k60hz 4×2 Presentation Switcher with Multiview and USB3.2 Video Capture
18Gbps 4×2 Presentation System seamless switcher with multiview , RS232 Control,Audio Embedding,De-embedding, EDID,Web Gui,USB 3.2 Capure
| Weight | 2500 g |
|---|---|
| Dimensions | 22 × 22 × 4.5 cm |
| HDMI Version | HDMI 2.0b |
| Resolution | up to 3840×2160@60hz RGB/YCBCR 4:4:4 |
| HDCP | HDCP2.2 |
| USB-C | supports DisplayPort Alternate Mode for |
| Multiview | Full Screen PIP/PAP/Tri/Quad-view Multiview 5 configurable display modes |
| Audio | Audio matrix and DSP functions for gain, equalization, |
| Control | Front panel button, IR, RS-232, TCP/IP and |
| Hub | Local USB 3.2 Gen 1 hub |
| Markets | Venues, Government, Retail, Hospitality, Residential, Corporate, Education |
Detailes About New 4k60hz 4×2 Presentation Switcher with Multiview and USB3.2 Video Capture

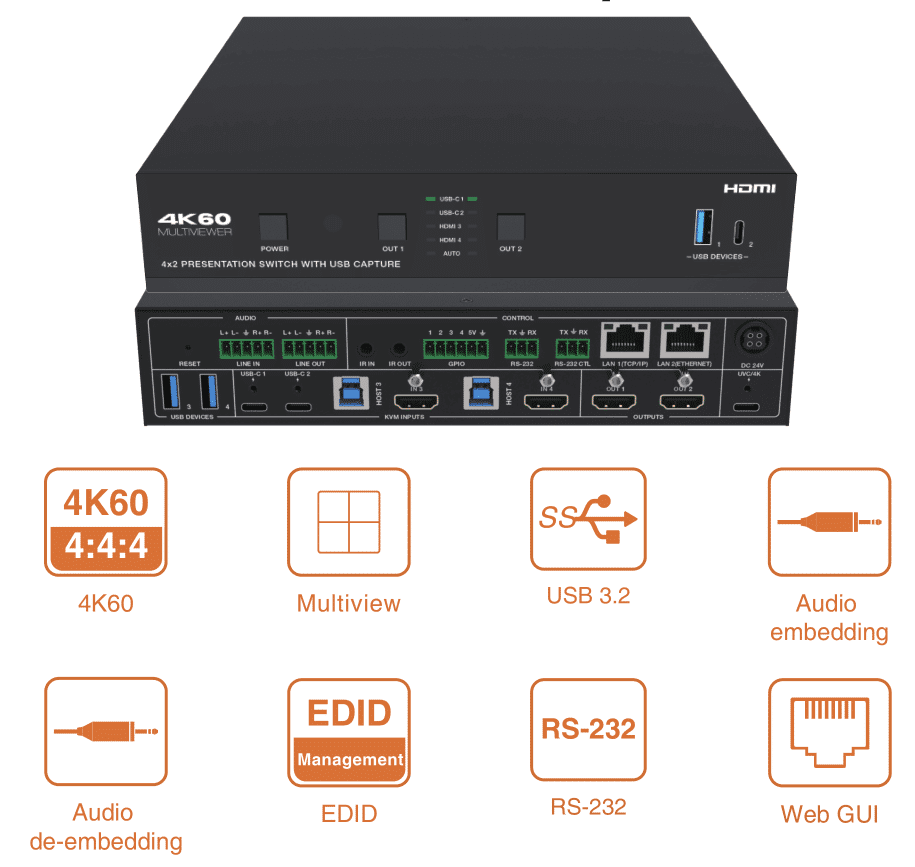

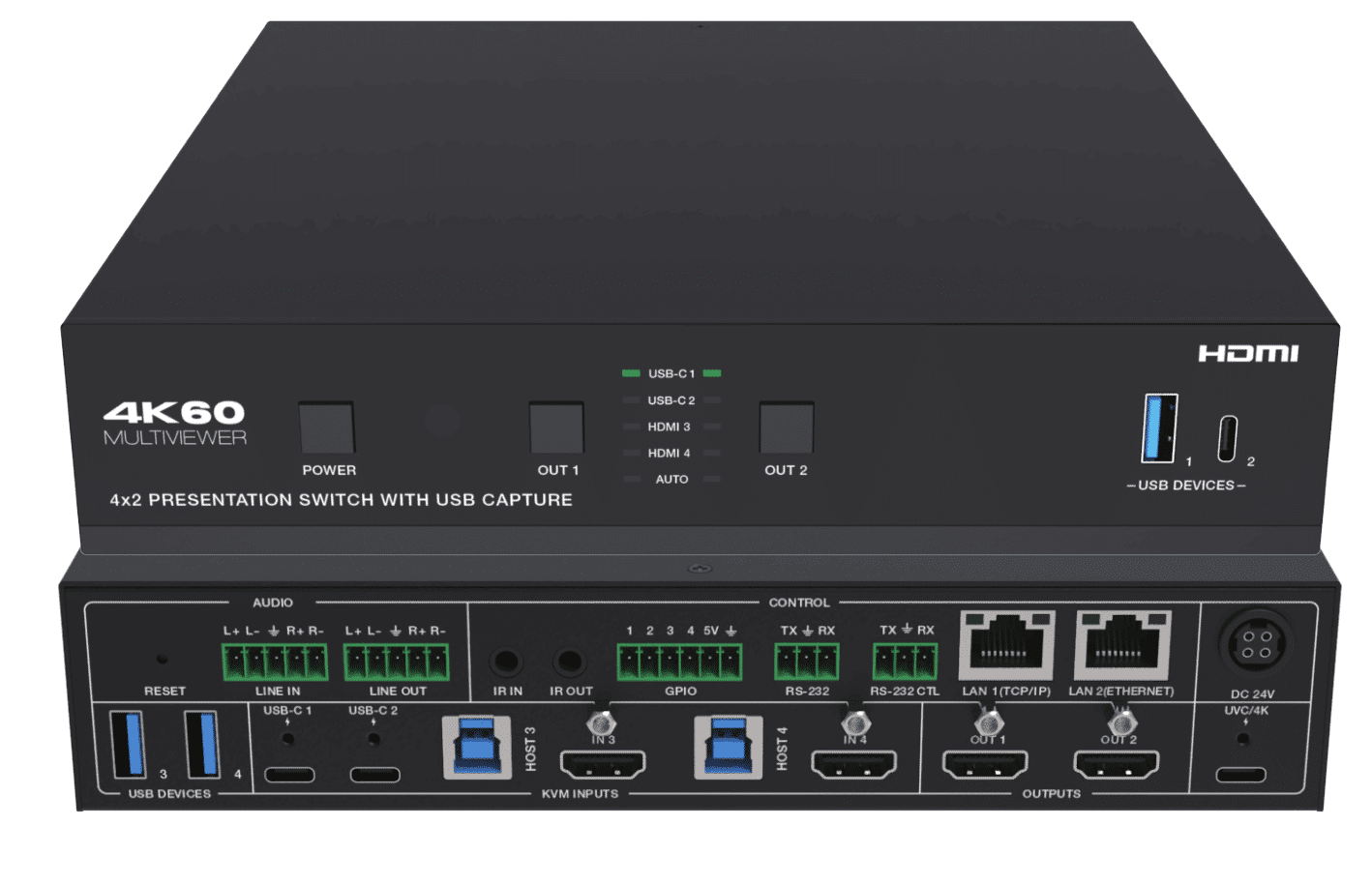

4×2 Seamless Matrix Switcher with MultiView and USB 3.2 Capture
PIP/PBP/Tri/Quad-view/Custom Multiview functionality 18Gbps
Features:
HDCP 2.2 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4, as specified in HDMI 2.0b
Inputs: 2 USB-C/HDMI, 2 HDMI, 1 analog audio, 1 USB 3.2 Gen 1 host
Outputs: 2 HDMI, 1 analog audio, 3 USB 3.2 Gen 1 devices
Automatic or manual switching mode
Seamless switching with no black screen or screen tearing (Matrix mode)
USB-C supports DisplayPort Alternate Mode for audio/video transmission and 60W charging
Full screen/PIP/PAP/Triple-view/Quad-view configurable display modes
Local USB 3.2 Gen 1 hub
Audio embedding and de-embedding
Audio matrix and DSP functions for gain, equalization, volume, and delay control
EDID management
Front panel button, IR, RS-232, TCP/IP and Web GUI control

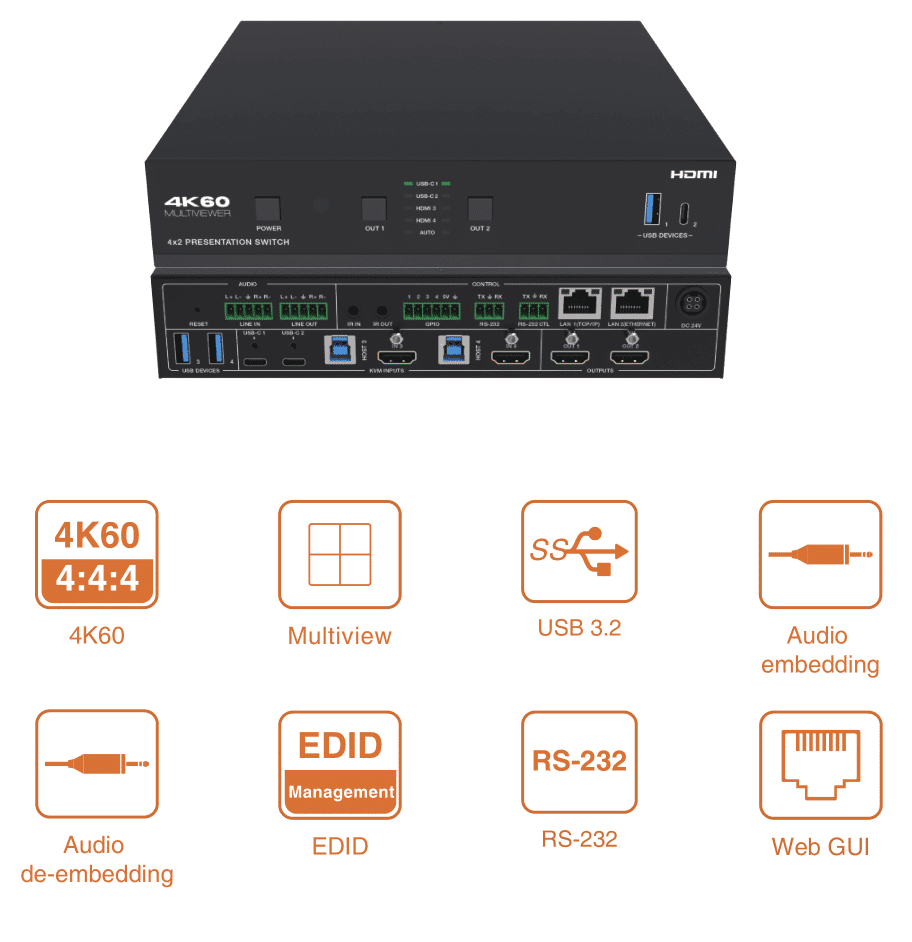

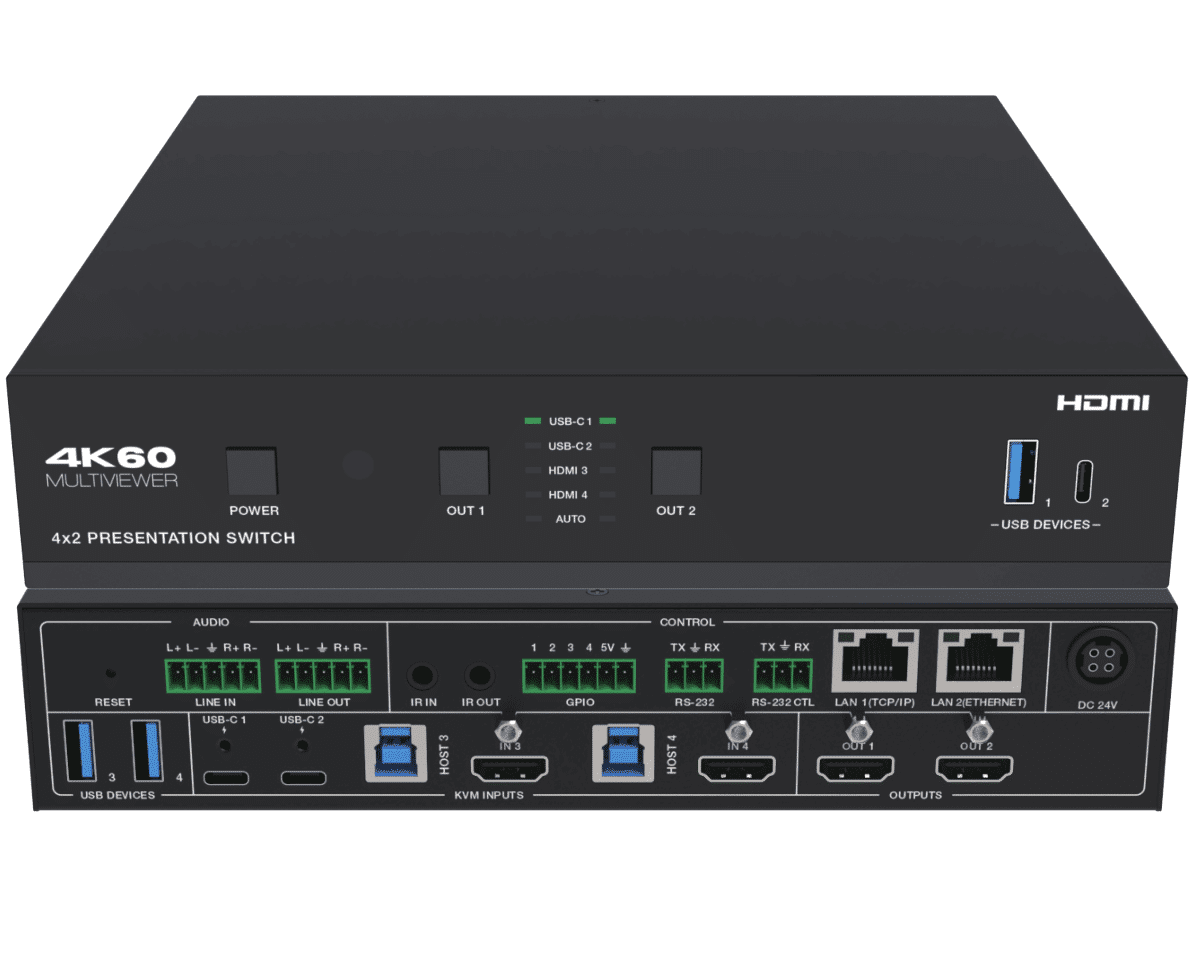

4×2 Seamless Matrix Switcher with MultiView (Simple Version)
Features:
Multiview
Web GUI Control Interface
RS232 Cable Control
